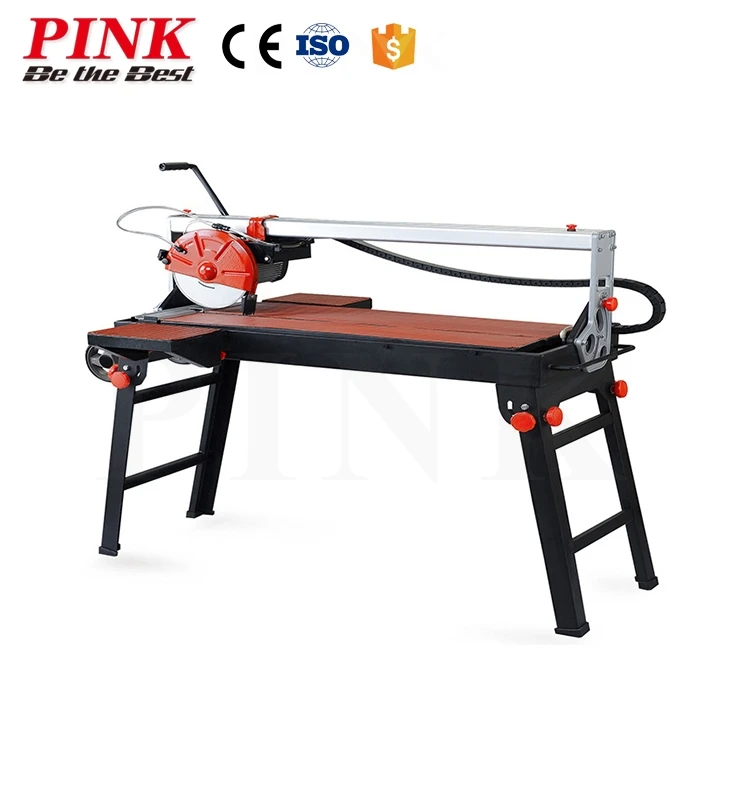

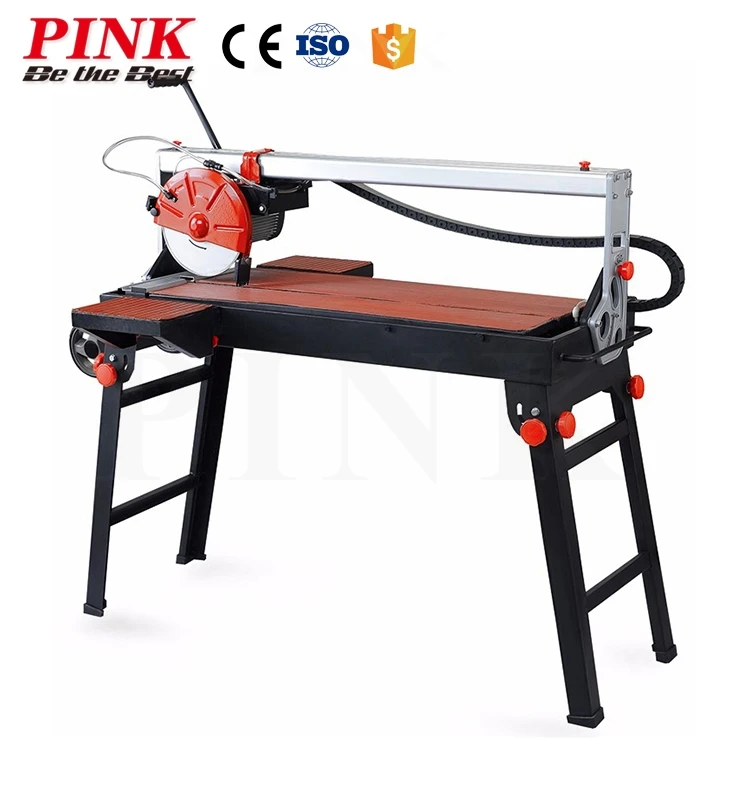

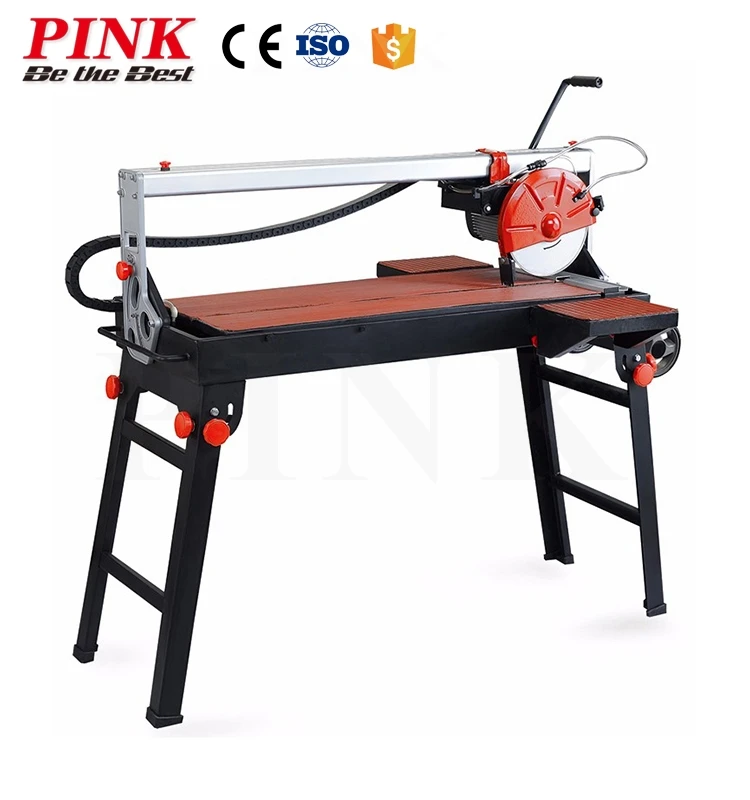

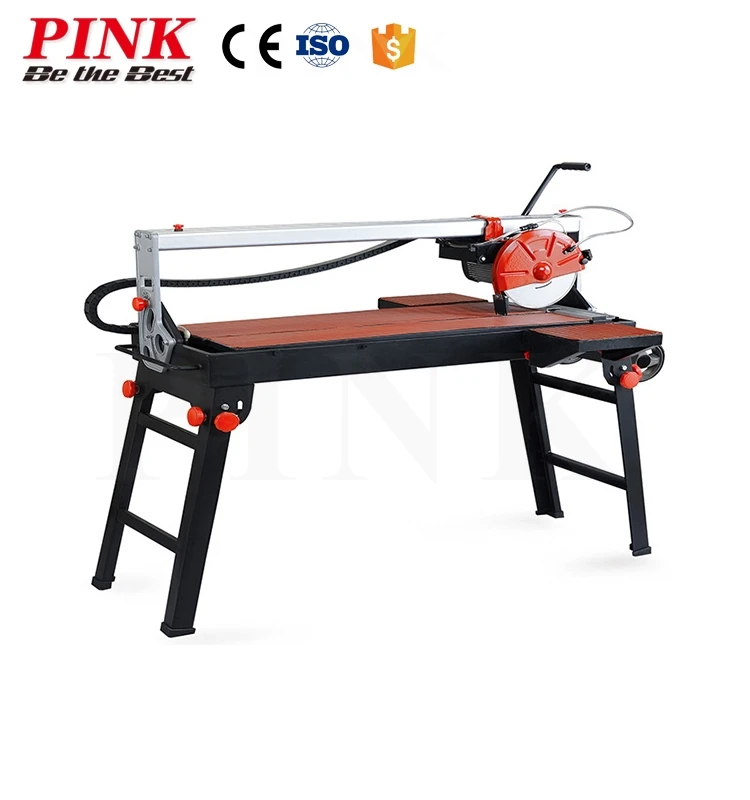

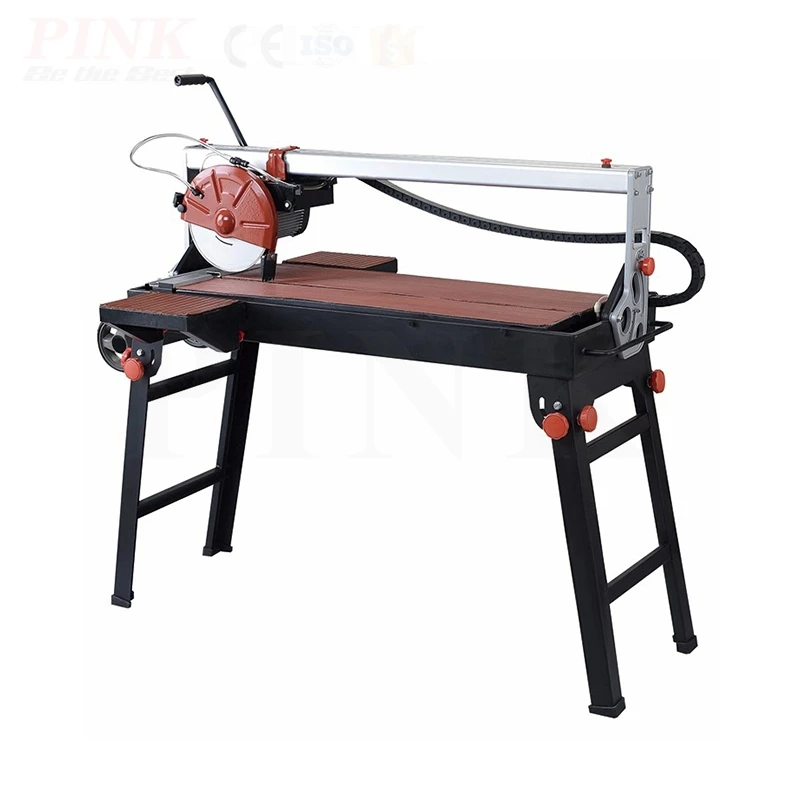

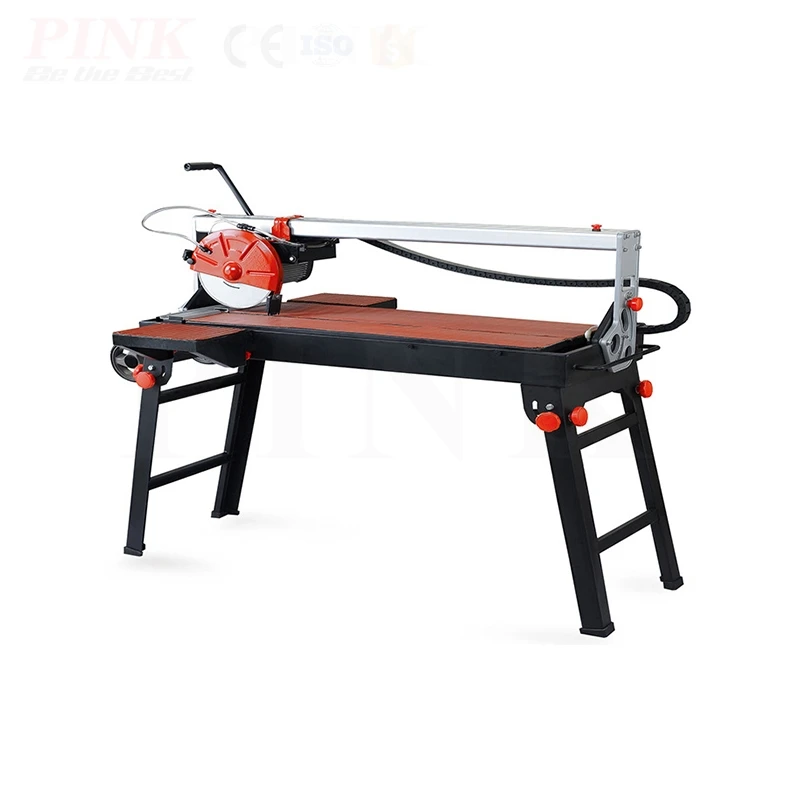

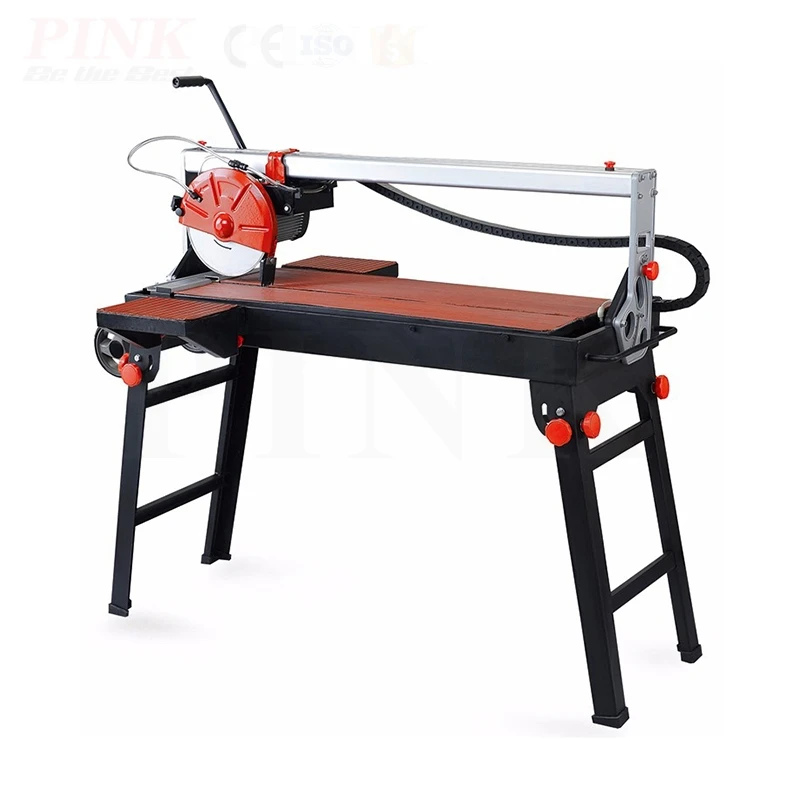

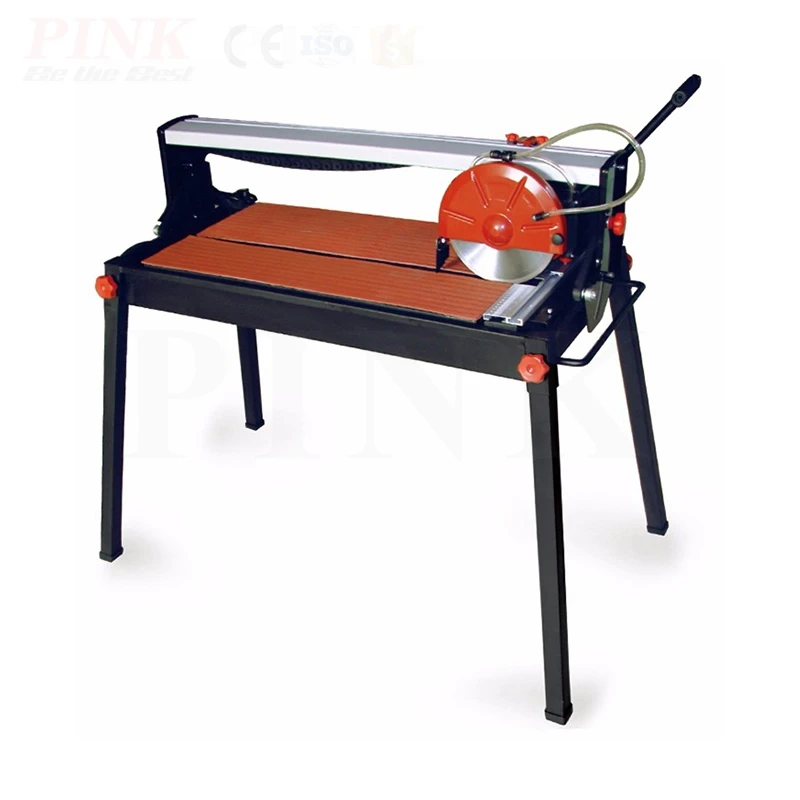

Wet Tile Saw

Product Overview

Description

Tile Wet Saw Detail:
1.Power: 810, 900, 1200W S2 20min
2. Speed: 3000r/m
3.Cutting Capacity: Tilt:0°~ 45°
4.90° thickness: 40mm
5.45° thickness: 34mm Width: 520,620,720,920,1200mm
6.Blade Diameter: 230mm
7.Table size: 400*700,400*800,400*900,400*1090mm
8. Extension support: Yes, Laser: Yes
9. Weight:49,52,58kg

10.Certificate: GS,CE, EMC,ROHS





Tile Wet Saw Features and Functions:

1. The portable electric desktop cutting machine has no dust and low noise during the cutting process, and can process most tiles on the market.
2. Portable tile cutters have replaced marble cutters and manual cutters, becoming the mainstream configuration of tile processing.
3. The electric tile cutting machine has a stable structure, simple installation, light weight and durability; it integrates cutting, chamfering and slotting functions.
4. The whole machine operates fully automatically, runs smoothly, has good processing accuracy, and saves you a lot of equipment investment. It is your ideal equipment for processing plate.
5. The machine is designed to provide professional cutting effects for various types of stone, ceramics and bricks. Simple operation, environmental protection, clean, convenient, professional, accurate, high quality and efficient. It can cut all kinds of ceramic tiles, wall tiles, floor tiles, three-dimensional tiles, ceramic plates, vitrified porcelain tiles, and flat glass.
6. The stone cutting machine equipment can not only cut smoothly, but also improve the efficiency by more than 5 times, and the cutting edge is neat. Low cost, no noise, light weight, easy to use and carry, so it is welcomed by the majority of construction workers.

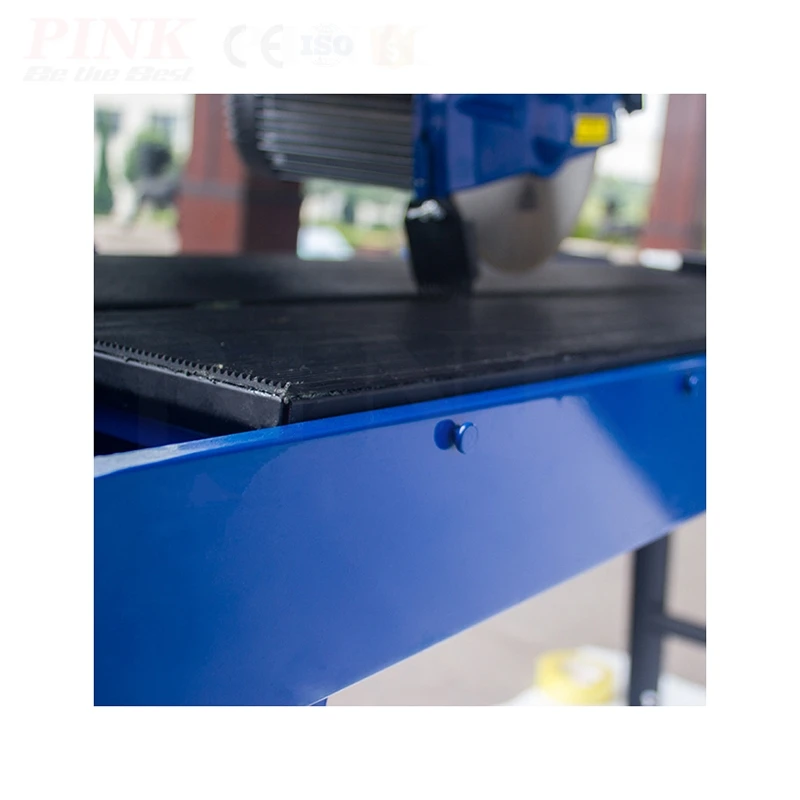

7. The platform is made of cast iron flat plate, which will not be deformed permanently, and the guide rail is a round linear guide rail design, which is accurate in cutting. The platform is made of cast iron flat plate, which will not be deformed forever, and the round linear guide rail design of the guide rail makes the cutting accurate.



8. Performance characteristics of new electric tile cutting machine:
8.1. Features: Safety, precision, durability, no chipping, easy operation, balanced operation, no vibration, low noise, etc.
8.2. Uses: Mainly used for foundation line, step brick, 45-degree V-shaped inner wall, dry hanging, all kinds of floor tiles, stone interior and exterior wall decoration, etc.



Instructions for use:
1. Check before use that the power supply voltage should be within 10% of the rated value. Before turning on the power, the switch should be in the off state.
2. Check carefully before use if the cutting blade is cracked or damaged, please replace it immediately. 3. Check that the slices are in working condition, and do not start the cutting operation without rubbing the master.
4. The working feed should be stable and not use too much force. If the speed of the saw blade drops sharply, reduce the feed force to prevent the machine from being overloaded.
5. It is strictly prohibited to remove the protective cover for cutting.
6. The cooling water source for the saw blade is tap water. Connect the water pipe to the tap before use, and the water output is appropriate.



Model	Product Name	Specification	Packing Size(cm)	G.W/N.W (kg)	PCS/CTN	20´GP(pcs)
NETWS-01	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:810W  S2  20min Amps:6.8A; Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:34mm 45° thickness:27mm  Width:520mm Blade:Diameter:200mm Table size:400X700mm	132*54*58.5	56/49	1	62
NETWS-02	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:810W  S2  20min Amps:6.8A; Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:34mm 45° thickness:27mm  Width:620mm Blade:Diameter:200mm Table size:400X800mm	132*54*58.5	56/49	1	62
NETWS-03	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:810W  S2  20min Amps:6.8A; Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:34mm 45° thickness:27mm  Width:720mm Blade:Diameter:200mm Table size:400X900mm	132*54*58.5	56/49	1	62
NETWS-04	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:900W  S2  20min Amps:7.5A, Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:34mm 45° thickness:27mm Width:620mm Blade:Diameter:200mm Table size:400X990mm Extension support:Yes, Laser:Yes	153*54*58.5	60/52	1	53
NETWS-05	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:900W  S2  20min Amps:7.5A, Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:34mm 45° thickness:27mm Width:720mm Blade:Diameter:200mm Table size:400X1090mm Extension support:Yes, Laser:Yes	153*54*58.5	60/52	1	53
NETWS-06	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:900W  S2  20min Amps:7.5A, Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:34mm 45° thickness:27mm Width:920mm Blade:Diameter:200mm Table size:400X1290mm Extension support:Yes, Laser:Yes	153*54*58.5	60/52	1	53
NETWS-07	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:1200W   S2  20min Amps:10A, Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:40mm 45° thickness:34mm Width:720mm Blade:Diameter:230mm Table size:400X1090mm Extension support:Yes, Laser:Yes	183*54*58.5	67/58	1	44
NETWS-08	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:1200W   S2  20min Amps:10A, Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:40mm 45° thickness:34mm Width:920mm Blade:Diameter:230mm Table size:400X1290mm Extension support:Yes, Laser:Yes	183*54*58.5	67/58	1	44
NETWS-09	Tile Wet Saw	Motor Type:Induction Voltage:230V  50Hz Power:1200W   S2  20min Amps:10A, Speed:3000rpm Cutting Capacity: Tilt:0°~ 45° 90° thickness:40mm 45° thickness:34mm Width:1200mm Blade:Diameter:230mm Table size:400X1570mm Extension support:Yes, Laser:Yes	183*54*58.5	67/58	1	44









If you are interested in our Tile Wet Saw, please don't hesitate to contact us.
