50 Ohm Low Loss High Quality RF Coax Extension Cable RG58
- Category: >>>
- Supplier: Shenzhen Tianjukeli Communication Cable Co. Ltd.
Share on (62471107309):
Product Overview
Description
Product Paramenters
High quality low loss RG58 coaxial cable 1m-300m | ||||
Mechanical Characteristics and Electrical Performance Parameters | ||||

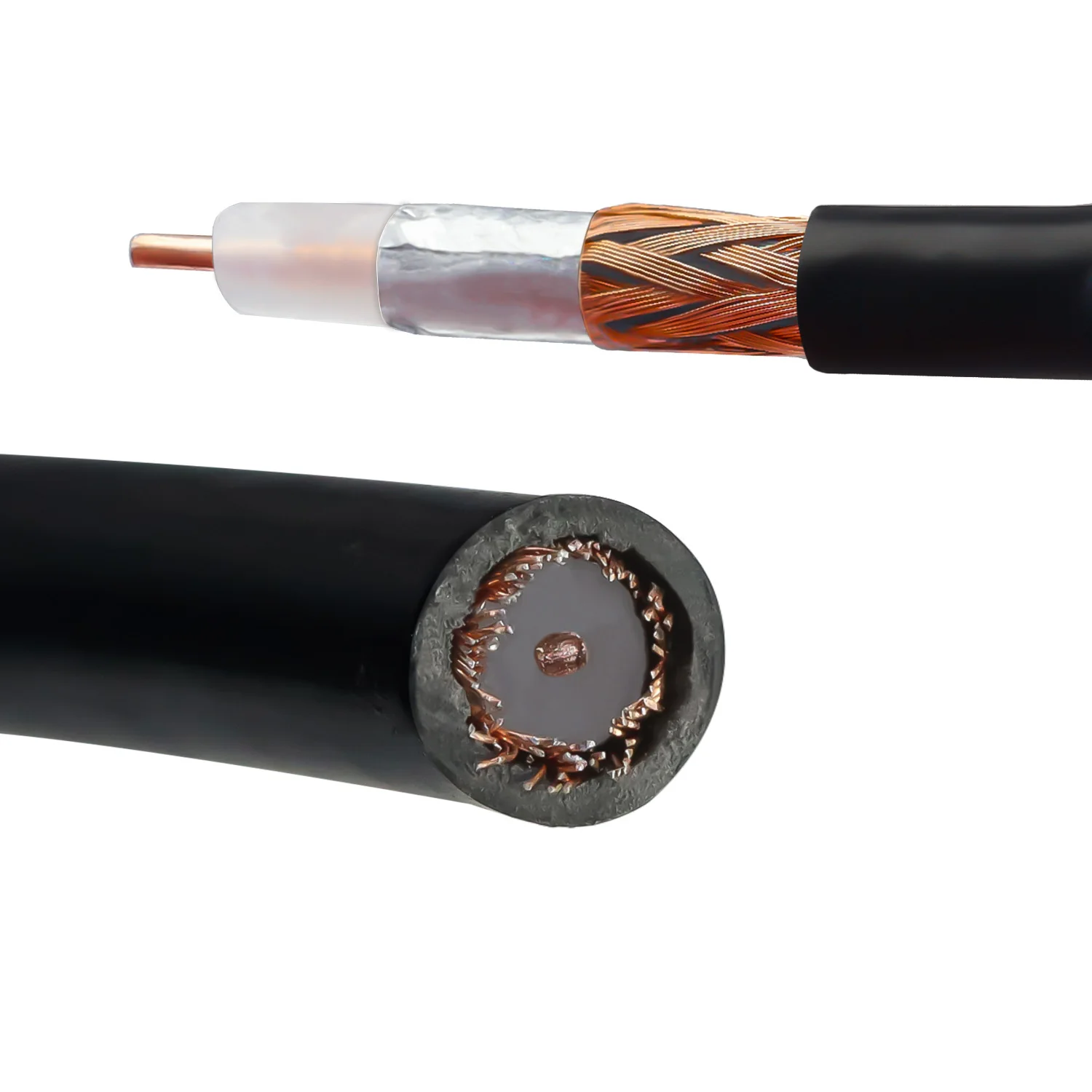

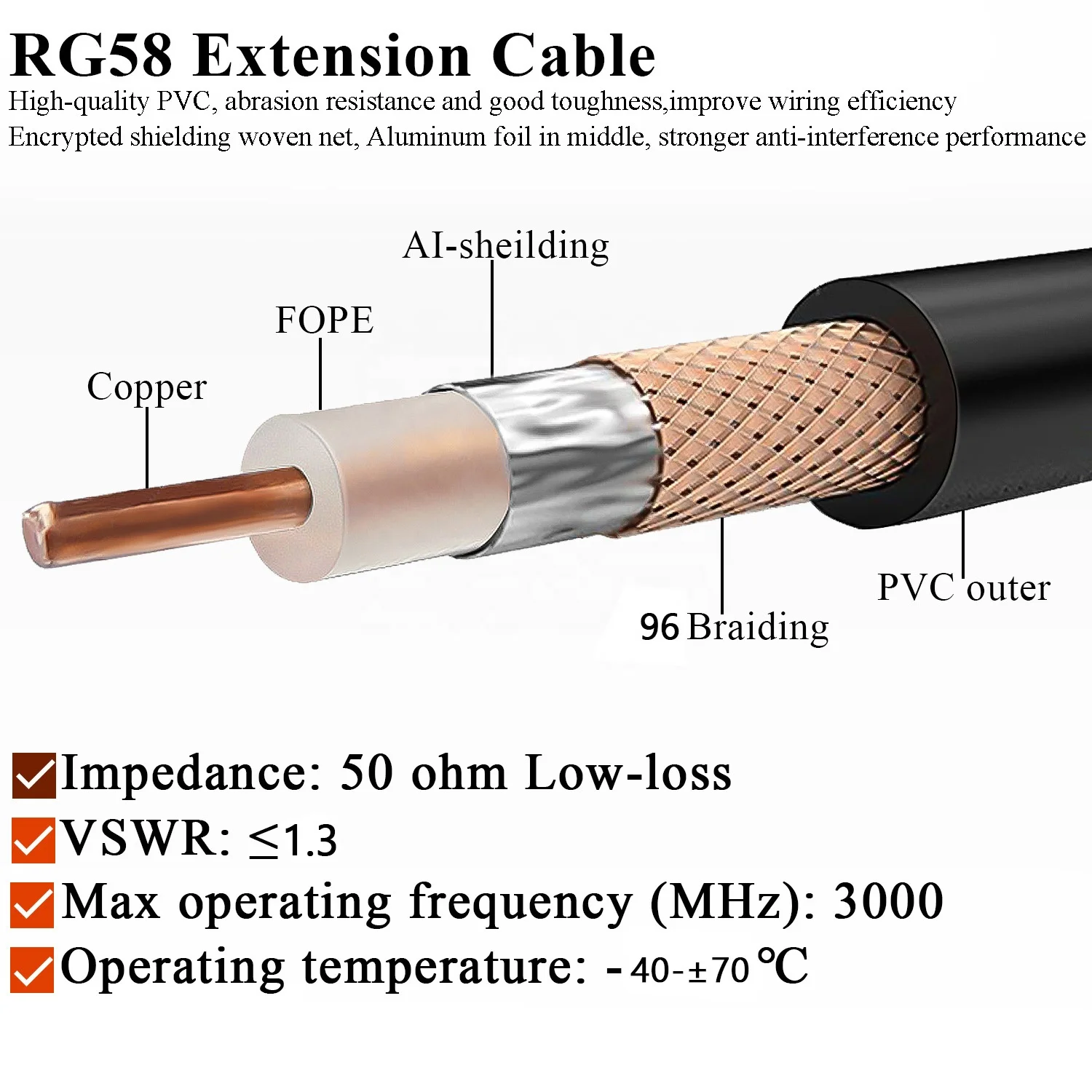

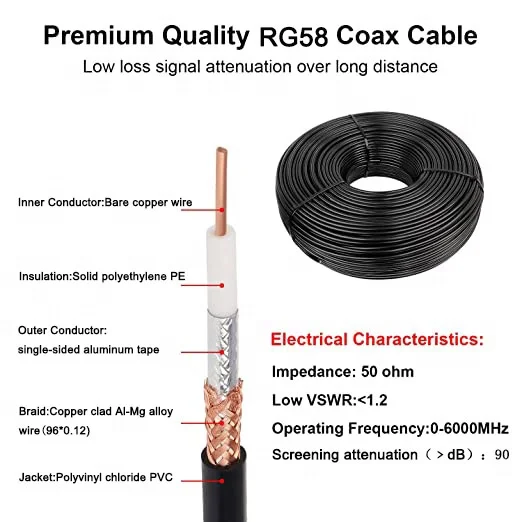

1、 Inner Conductor | Bare Copper Ф0.9±0.009mm | |||
2、Dielectric | PE(Foam PE ) Ф2.95±0.05mm | |||
3、Outer Conductor | single-sided aluminum tape（13*0.035）Ф3.05±0.1mm | |||
4、Braid | Bare Copper （16*6*0.10）Ф3.5±0.1mm | |||
5、Jacket | Polyvinyl chloride（PVC） Ф5.0±0.1mm | |||
Mechanical Characteristics | ||||
1、Impedance | 50±2Ω（Ohms） | |||
2、Capacitance | 96±2PF/M | |||
3、Velocity | 66% | |||
4、Peak Power | 1.8KW | |||
5、V.RMS | 3000V | |||
6、Inner Conductor Dc resistance | ≯27.11ohms/1000m | |||
7、OuterConductor Dc resistance | ≯25ohms/1000m | |||
8、(GHz)cutoff Frequency | 15G | |||
9、OperatingTemperature ºC | -20～70ºC | |||
10、Min Bend Radius | 50mm | |||
11、Pull strength of the insulation | 3～6lb/in | |||
12、Sheath of the drawing force | 3～8lb/in | |||
12、The surfac quality sheath | The sheath surface is smooth, bright, no network and other visual defects | |||
13、jacket-Marking | RG58 meters | |||
14、Reel Length | 1M、2M、5M、10M、15M、20M……200M | |||
15、(>dB)(Screening attenuation) | 90 | |||
16、VSWR | 5～3000MHZ | <1.20 | ||

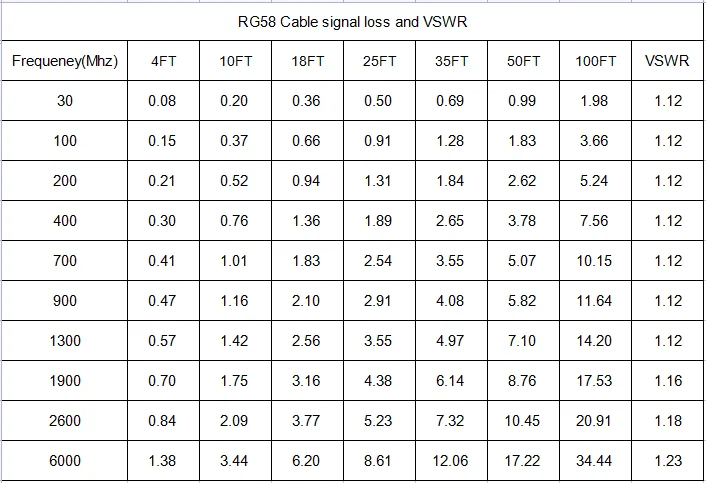

Typical attenuation of sea level at 20°C | ||||
frequency | Attenuation dB/100m | note | ||
100 | 7.66 | |||
400 | 21.2 | |||
900 | 43.2 | |||
1500 | 69.6 | |||
1800 | 76.6 | |||
2500 | 93.2 | |||
3000 | 105.2 | |||
Products Description
Processing and customization service
Welcome to custom machining

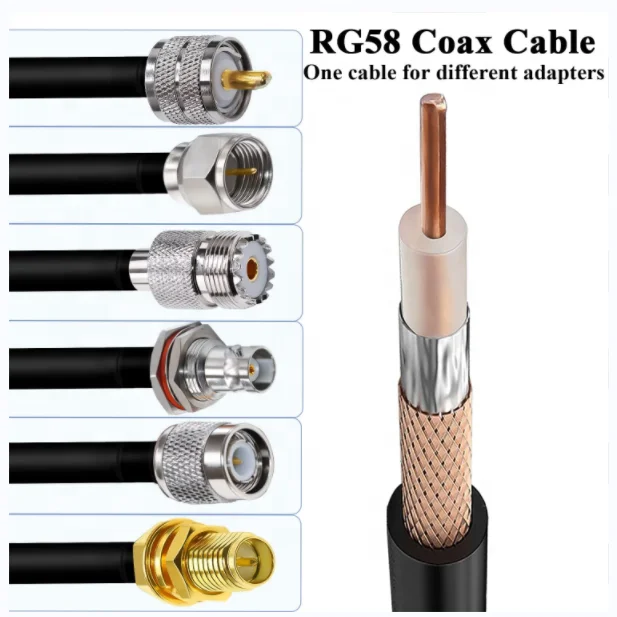

We can also provide a variety of different types of RF connector cable components, connector, cable material can be customized.
Product packaging and transportation
Product packaging and transportation
PackingWe have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort
your results by time or cost to find the most cost-effective shipping service.
Our Advantages
Shenzhen tianjukeli communication cable co., LTD. Is mainly engaged in production, development and sales of mid to high-end RF
coaxial cable and RF cable components enterprises, specializing in production high-quality communications cable and professional
connector components solutions, Our products are widely used in broadcasting and television, mobile communication, microwave
communication, tunnel communication, military electronics, communication terminals, aerospace and other fields.
coaxial cable and RF cable components enterprises, specializing in production high-quality communications cable and professional
connector components solutions, Our products are widely used in broadcasting and television, mobile communication, microwave
communication, tunnel communication, military electronics, communication terminals, aerospace and other fields.
We have a 5,000 square meter factory, 60 employees and a complete supply chain. In order to ensure the quality of our products, we
have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and
development every year. To prove to our customers that we have stable technical support and continuous innovation.
have introduced high-end production technology and testing equipment, and about 12% of our sales revenue is used for research and
development every year. To prove to our customers that we have stable technical support and continuous innovation.
We have a strong sales team and are willing to help you. We will help you from product selection to shipping.
