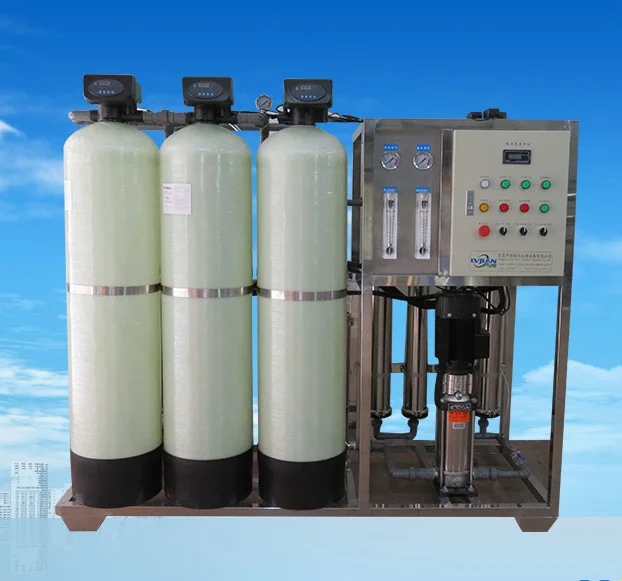

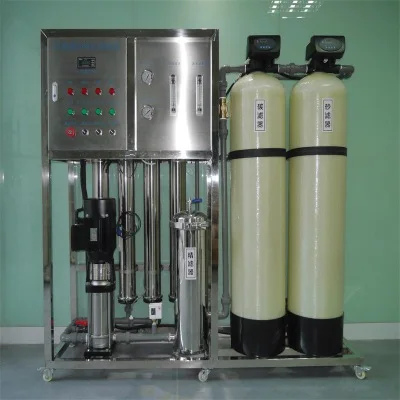

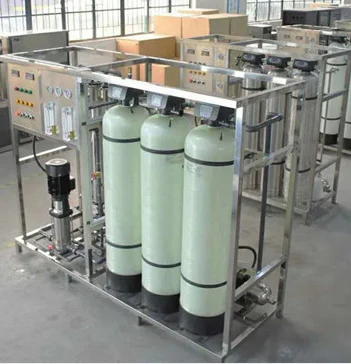

Manual/Auto Control Industrial alkaline RO 500Lph FRP tank Water Treatment Plant RO Filter Water Purified Drinking Systems

Product Overview

Description

 Manual/Auto Control Industrial alkaline RO 500Lph  FRP tank Water Treatment Plant RO Filter Water Purified Drinking  Systems



What's reverse osmosis system?

Reverse osmosis system is raw water through precision filter, granular activated carbon filters, activated carbon filters, compression, and then through the pump pressure, the use of reverse osmosis membrane pore size 1/10000μm make a higher concentration of water into low concentration of water, while the industrial pollutants, heavy metals, bacteria, viruses and other impurities in the water mixed  with a large number of full isolation, to achieve the required physical and chemical indicators for drinking and hygiene standards, outputs to clean pure water is the best choice of body replenish water quality. It is key equipment of pure water plant.





Ro system operating process:
Raw water storage tank -- Raw water pump -- Sand filter -- Carbon filter -- Water softener -- Brine Tank -- Security filter -- RO unit -- Pure water tank

RO plant Detail specification:
1. Sand filter - mainly used for the removal of the sediment from water.
2. Carbon filter--mainly used for chlorine removal and other organic gases, also to clear up the taste of water .
3. Water Softener--Exchange "Ions" of calcium and magnesium with the most common and easiest method.
4. High pressure pump- Provide the high pressure to RO membrane.
5. RO Unit-- The main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
6. Pure water tank:After the below process,The water result is pure enough for different application.







Industry applications	Purified water electroplating liquid printed circuit board coating detergent, medical water, oral industry, pharmaceutical injection, beverage, alcohol and other liquid filtration, gas filtration
characteristic	wide application
Function	Water purification
Mode	Reverse Osmosis
