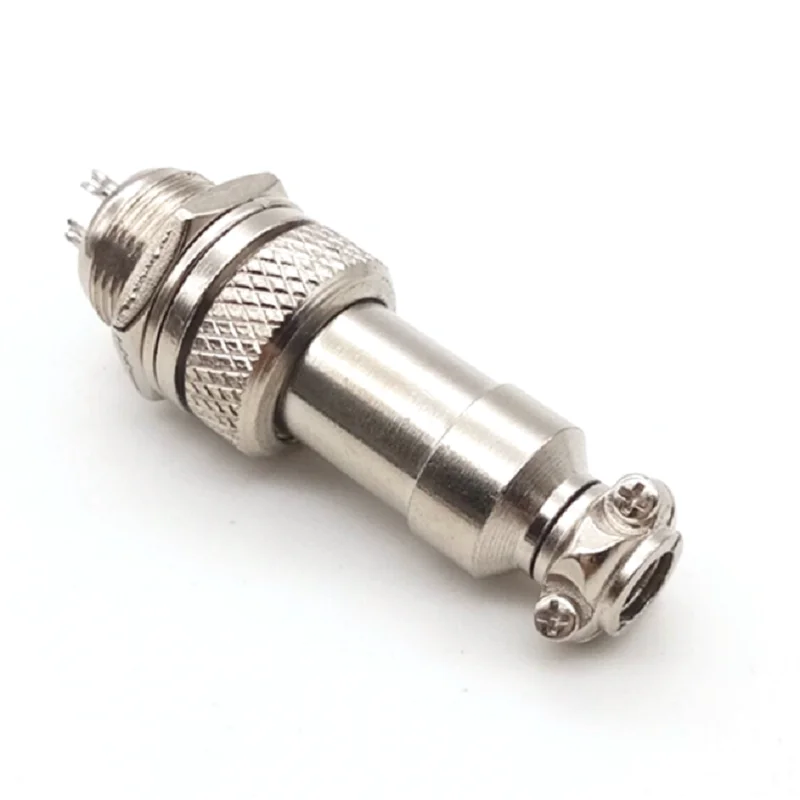

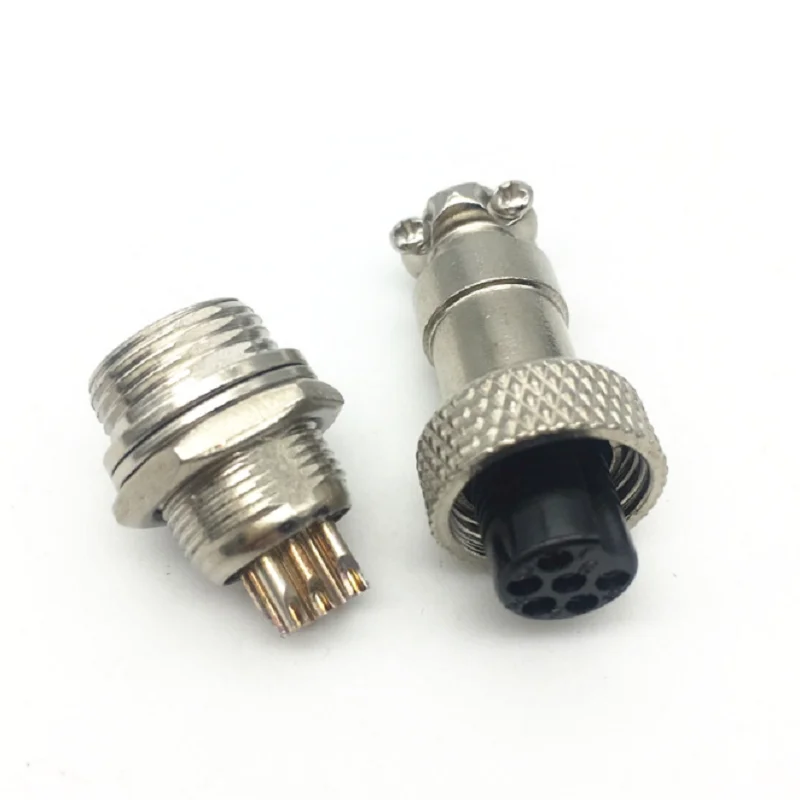

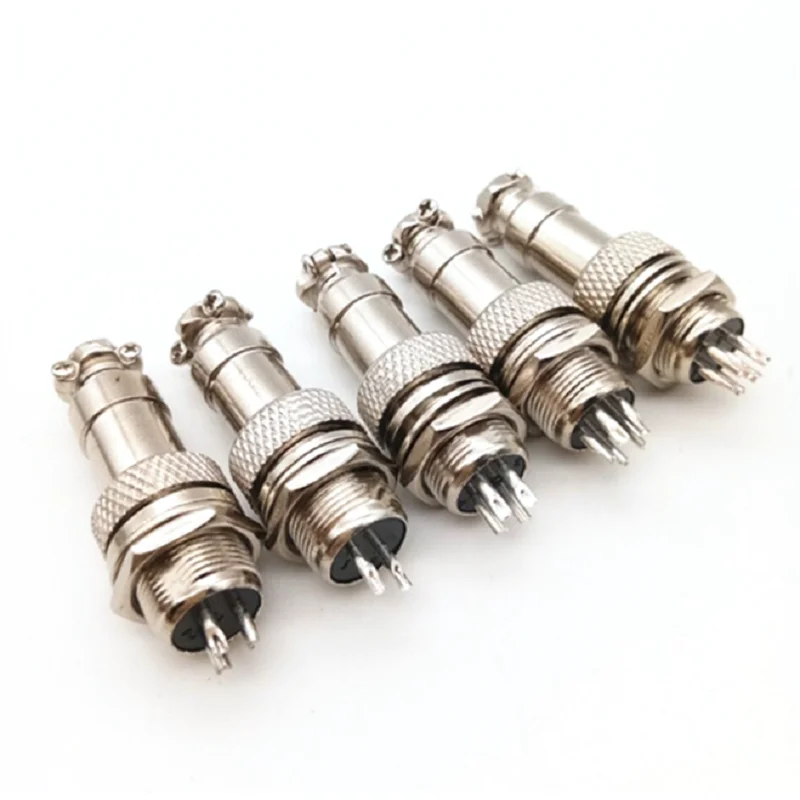

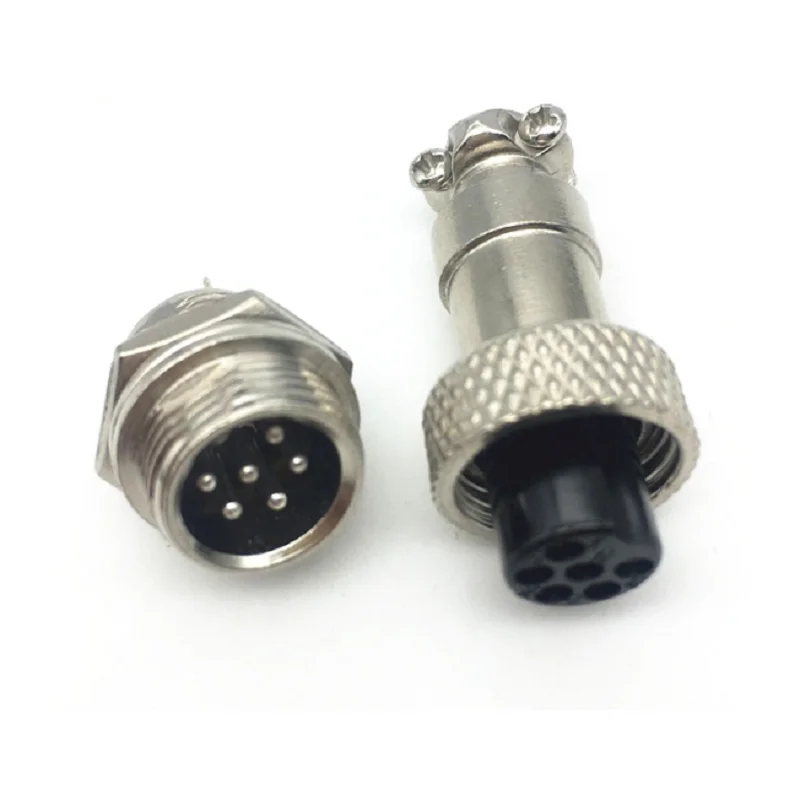

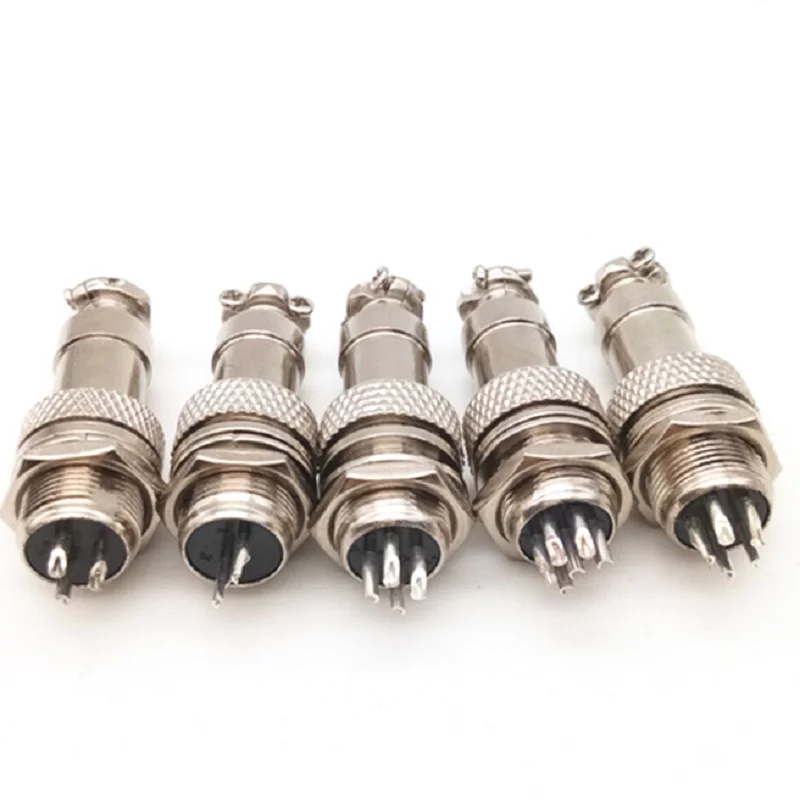

Aviation Male and Female Plug GX12 Hole Circular Round Plug Socket Connector

Product Overview

Description

Xieao Industrial Co.,Ltd are specialized manufacturers in connectors from China, waterproof connectors, push-pull connectors, Push-pull Circular Connectors suppliers/factory, wholesale high-quality products of Push-pull Circular Connectors R & D and manufacturing, we have the perfect after-sales service and technical support. Look forward to your cooperation!





Protection level	IP65
Contact diameter*quantity	5 pin
Wire diameter range	Φ5.5mm ~Φ7mm
Current rating(A)	5A
Operating voltage	125V
Contact resistance	<2.5mΩ
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Method of connecting cable	Threaded connection
Prevent the combustion level	UL94-V0
Material of insulated parts	High-performance engineering plastics
Hardware metal	Copper
Contact pin	Copper alloy(gold-plated)
