Japanese brand 5 Tons isuzu Freezer Truck 4.2 meters Fish Meat Transport Refrigerator Box Truck
- Category: >>>
- Supplier: Hubei Wanglong Special Purpose Vehicle Co. Ltd.
Share on (62471225515):
Product Overview
Description

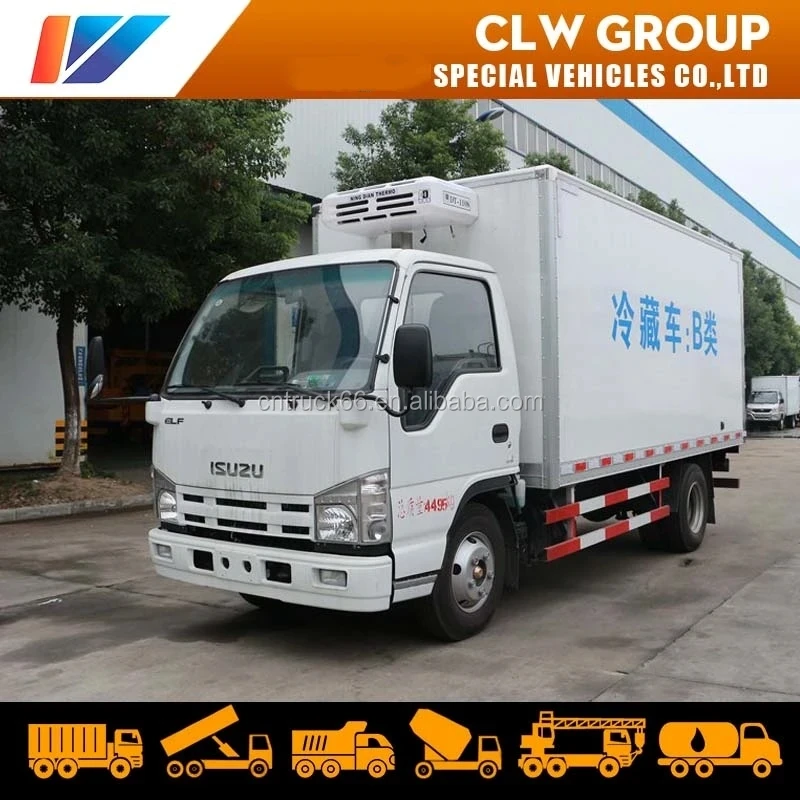

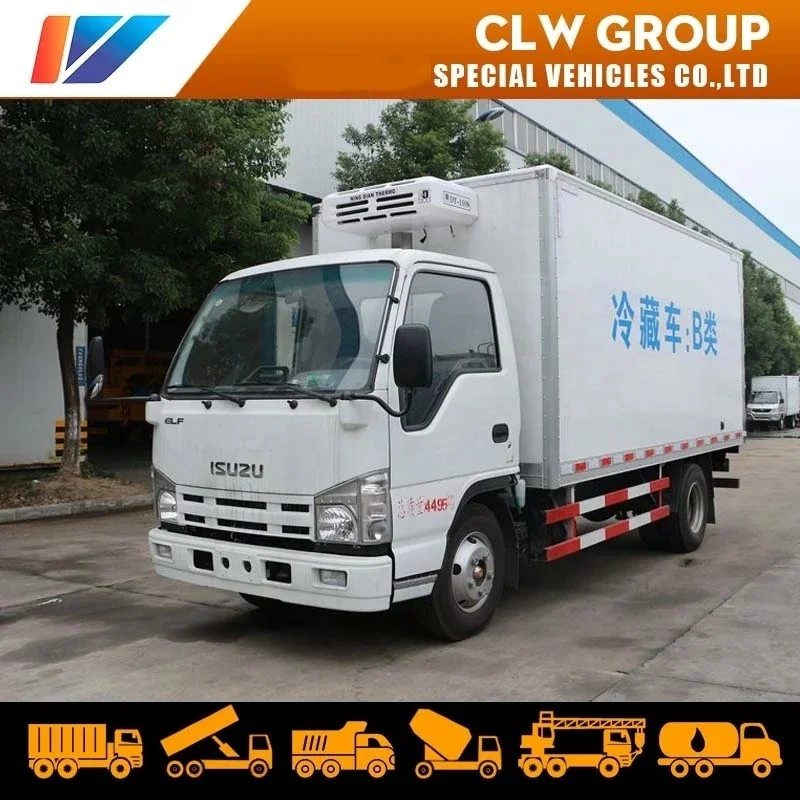

Japanese brand 5 Tons isuzu Freezer Truck 4.2 meters Fish Meat Transport Refrigerator Box Truck
Product Description
5 Tons ISUZU Refrigerator Truck Fish Meat Transport Freezer Truck
Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Product Specification
| General Technical Parameters | ||||
| Overall Dimension | 6000×2500×3300(mm) | Gross Vehicle Weight | 9000(Kg) | |
| Curb Weight | 3900(Kg) | Loading Weight | 5000(Kg) | |
| Chassis Specification | ||||
| Chassis parameters | Chassis Brand | ISUZU | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Engine | Model | 4KH1-TCG4O, 4 Cylinders | ||
| Power | 88KW/120HP | |||
| Emission standard | EURO IV | |||
| Displacement | 2.999L | |||
| Fuel type | Diesel | |||
| Gearbox | MSB, 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2.5T/4.8T | |||
| Wheel base | 3360(mm) | |||
| Overhang( Front/Rear) | 1130/1505(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Oil brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 650-16, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 105(km/h) | |||
| Superstructure | ||||
| Van | Box size | 4100×2300×2100(mm) | ||
| Material | Fiberglass | |||
| Insulating Layer | 8cm Polyurethane Foam | |||
| Brand | THERMOKING | |||
| Truck refrigeration unit | Model | KV300 | ||
| Applicable temperature (ºC) | -18~0 | |||
| Remarks | Part Optional: Ventilation slot Hook External power supply Side door | |||

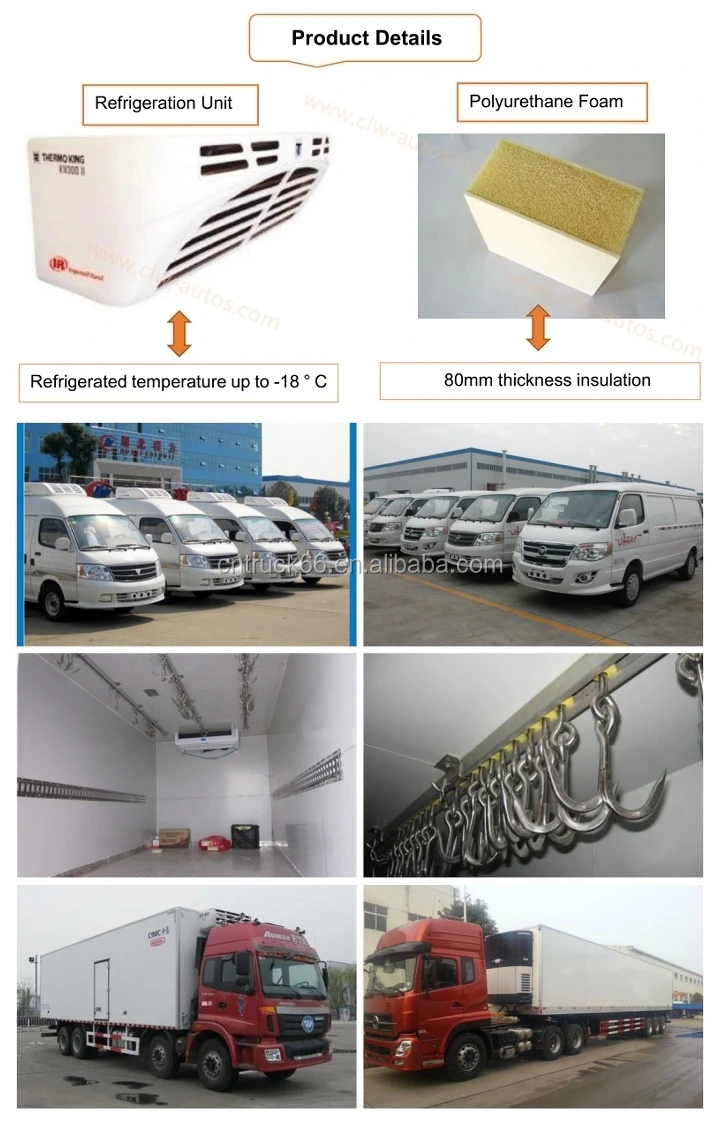

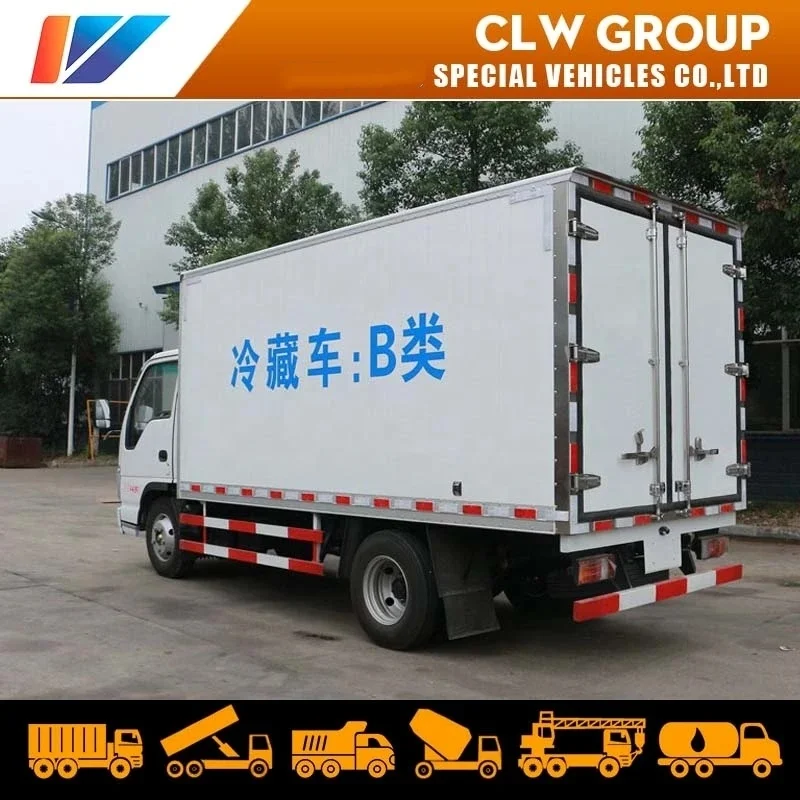

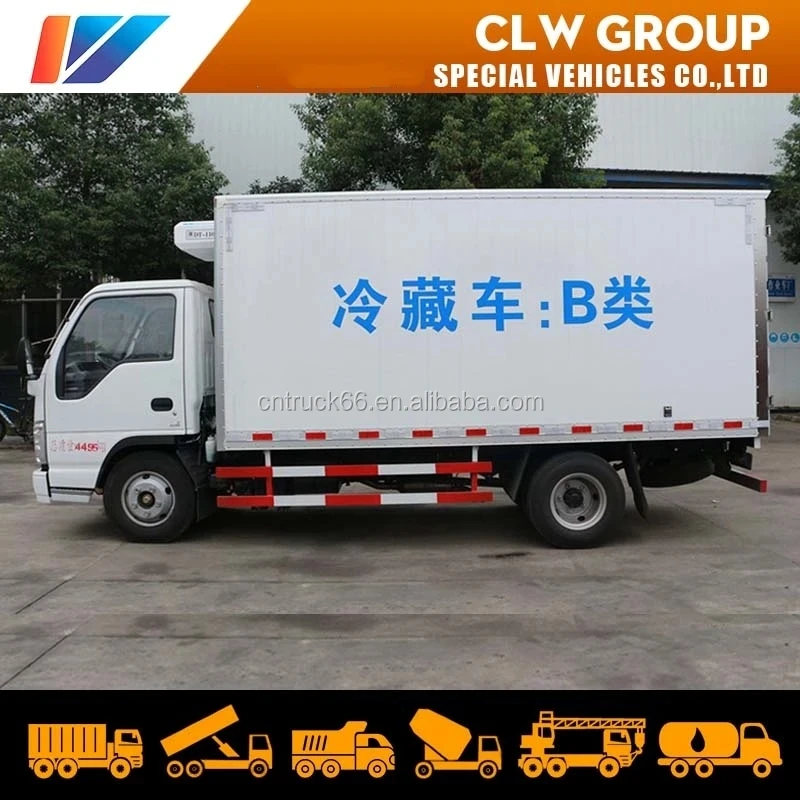

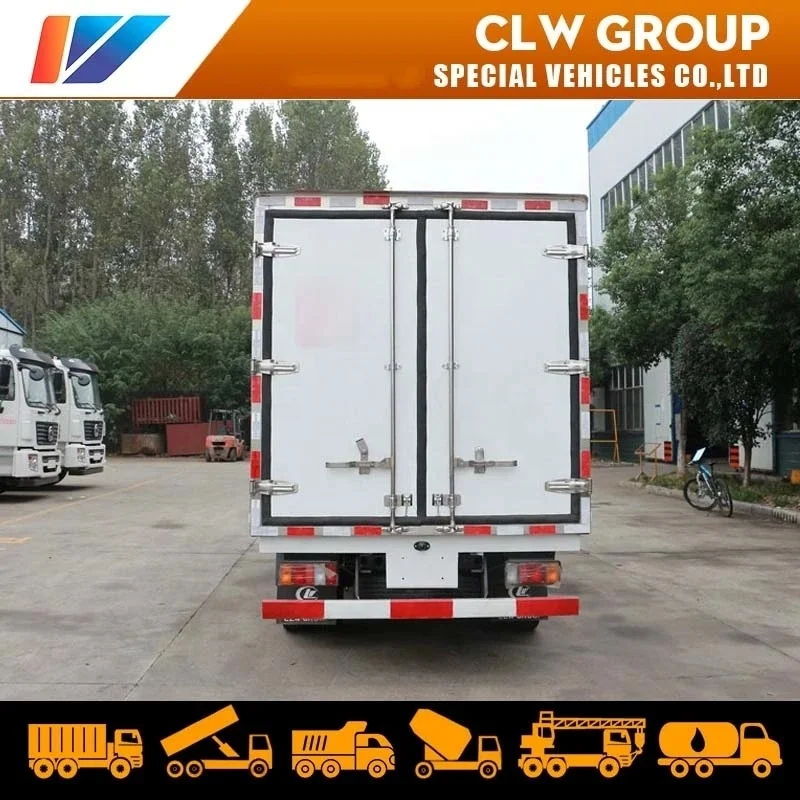

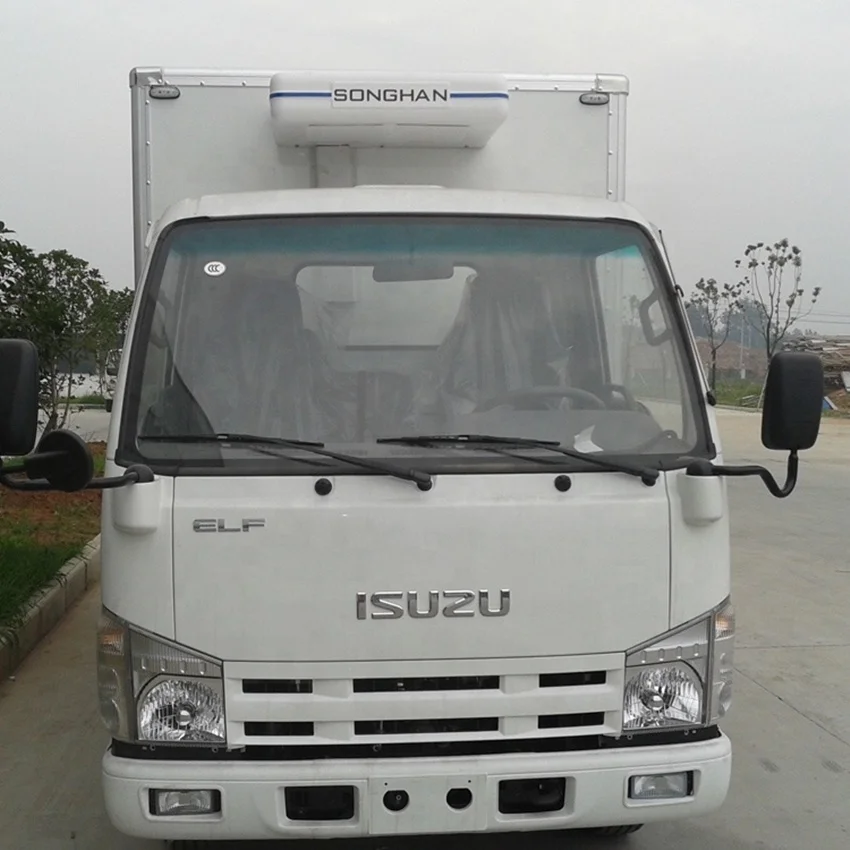

Product Pictures
Detailed Images
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Cargo tonnage: 1 ton to 40tons
7. Product type :bread refrigerated truck, van refrigerated truck, refrigerated semi-trailer, fresh fish transport truck, milk fresh-keeping transport truck, etc.
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sinotruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
Company Information
Packaging & Shipping
1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container
