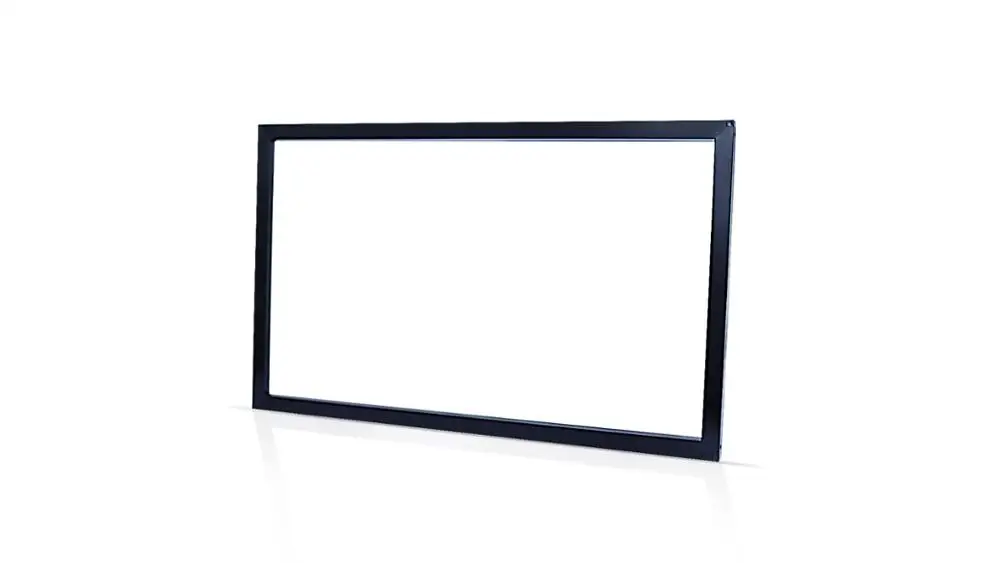

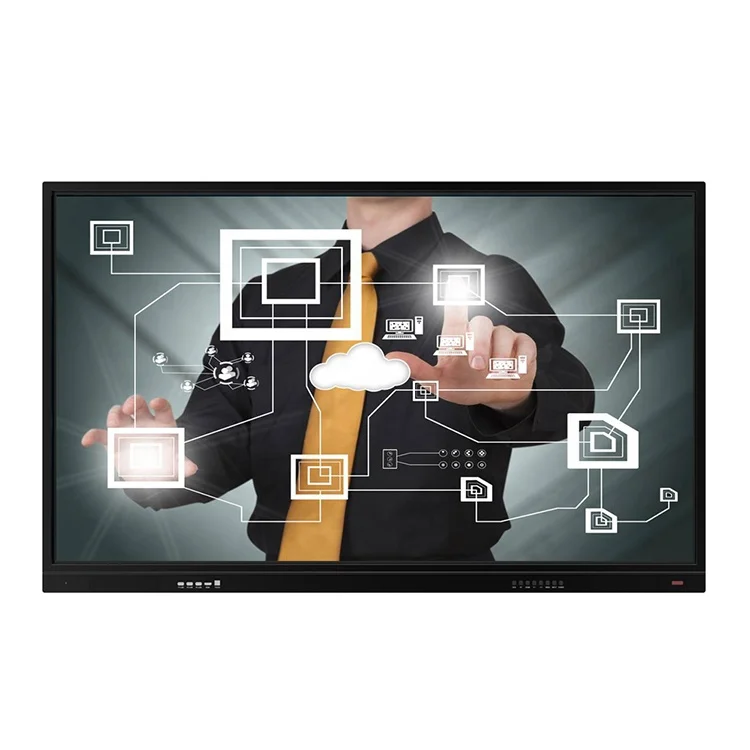

Interactive IR touch screen for kiosk ,digital signage advertising

Products name

IR Touch Screen Frame

Series

L series

Size available

20" ~103"

Input Method

Finger or touch pen

Touch Activation Force

Non Minimum activation force

Position Accuracy

2mm

Resolution

4096(W) × 4096(D)

Response Time

≤8ms

Cursor Speed

120/sec

Glass

No glass,Transparence : 100%

Optics Cell pitch

5.2mm

Object Touch Size

≥ Ø5mm

Touch Intensity

Over 6000 single point touch

Operation system

Windows/ Linux /Android/Mac

Operating Voltage

DC+5V±5%

Power

3.6W (720mA at DC 5V)

Power Supply

USB

Temperature

Operating:-10 °C ~ 50 °C   Storage:-20°C ~ 60 °C

Humidity

Operating:20% ~85%    Storage:0%~95%

Anti – sunlight Test

80000LUX

Altitude

3,000m

Interface

USB

Detection Method

Infrared rays

Touch Point

10 points

Seal Ability

(option) skin IP65

Working Environment

indoor and outdoor

Application of Display

LCD,PDP,DLP

Scanning

Auto full screen scanning

Movement

Touch,drawing

Output

Coordinate output
