oem stainless steel heat exchanger coil tube bending china manufacturer price
- Category: >>>

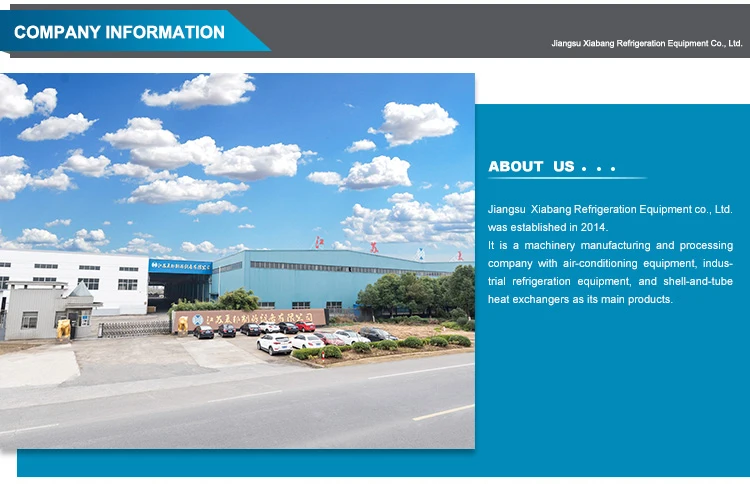

- Supplier: Jiangsu Xiabang Refrigeration Equipment Co. Ltd.
Share on (62471297496):
Product Overview
Description
Product Description
oem stainless steel heat exchanger coil tube bending china manufacturer price

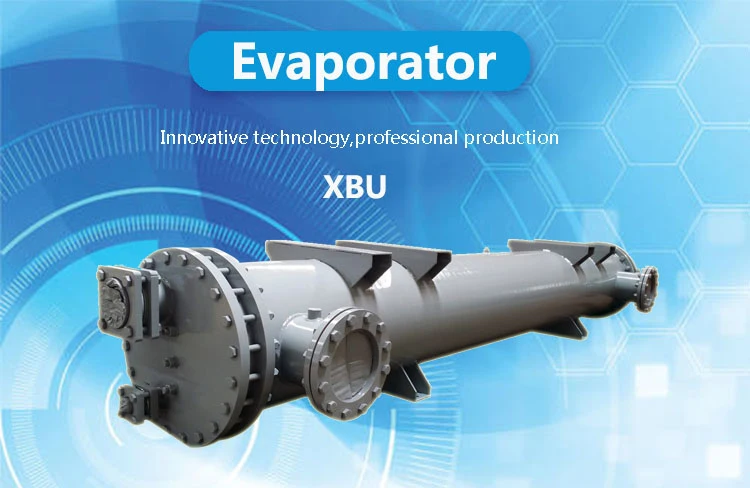

| Model | XBU | 3S5 | 5S5 | 8S5 | 10S6 | 12S6 | 15S6 | 20S6 | 25S8 | 30S8 | |
| R22 refrigerant | Qn* | KW | 8.7 | 14.5 | 23.3 | 29.1 | 34.9 | 43.6 | 58.1 | 72.7 | 87.2 |
| Ti=12℃ To=7℃ | 104Kcal/h | 0.8 | 1.3 | 2.0 | 2.5 | 3.0 | 3.8 | 5.0 | 6.3 | 7.5 | |
| Tc=40℃ Te=2℃ | Wn | m³/h | 1.5 | 2.5 | 4.0 | 5.0 | 6.0 | 7.5 | 10.0 | 12.6 | 15.1 |
| FF=0.018 m²K/KW | Wm | m³/h | 1.8 | 3.0 | 4.8 | 6.0 | 7.2 | 9.0 | 12.0 | 15.0 | 17.9 |
Dimensios | A | mm | 610 | 710 | 950 | 950 | 1050 | 1110 | 1445 | 1450 | 1555 |
| B | mm | 107 | 107 | 132 | 132 | 142 | 142 | 142 | 160 | 160 | |
| C | mm | 375 | 549 | 696 | 696 | 784 | 836 | 1167 | 1142 | 1247 | |
| D | mm | 400 | 400 | 400 | 400 | 500 | 700 | 800 | 800 | 800 | |
| E | mm | 103 | 170 | 250 | 250 | 217 | 217 | 297 | 300 | 352 | |
| F | mm | 110 | 110 | 110 | 110 | 110 | 110 | 110 | 160 | 160 | |
| G | mm | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 120 | 120 | |
| H | mm | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 55 | 55 | |
| I | mm | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 40 | 40 | |
| J | mm | 134 | 134 | 160 | 160 | 160 | 160 | 190 | 190 | 190 | |
| K | mm | 140 | 140 | 165 | 165 | 165 | 165 | 165 | 219 | 219 | |
| L | mm | 60 | 80 | 80 | 80 | 80 | 80 | 80 | 100 | 100 | |
Connections | d1 | mm | 35 | 48 | 48 | 48 | 60 | 60 | 60 | 60 | 60 |
| d2 | mm | 16 | 16 | 16 | 22 | 22 | 22 | 22 | 22 | 22 | |
| d3 | mm | 22 | 22 | 22 | 35 | 35 | 35 | 35 | 35 | 35 | |
