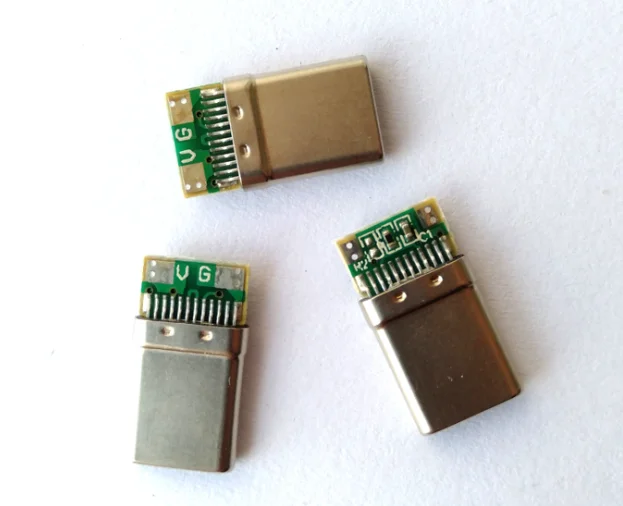

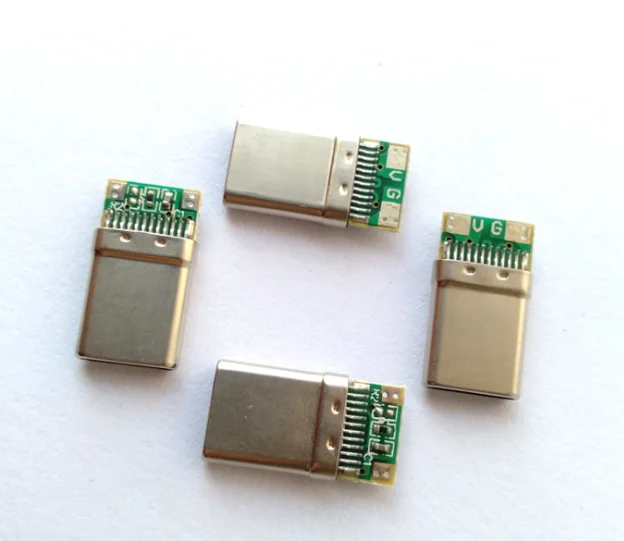

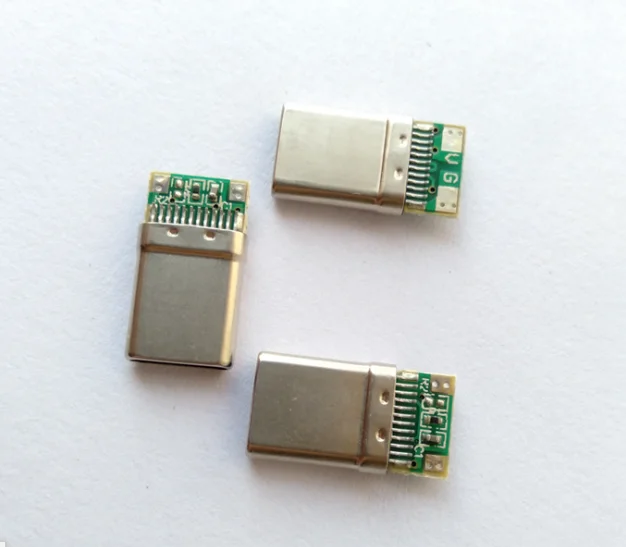

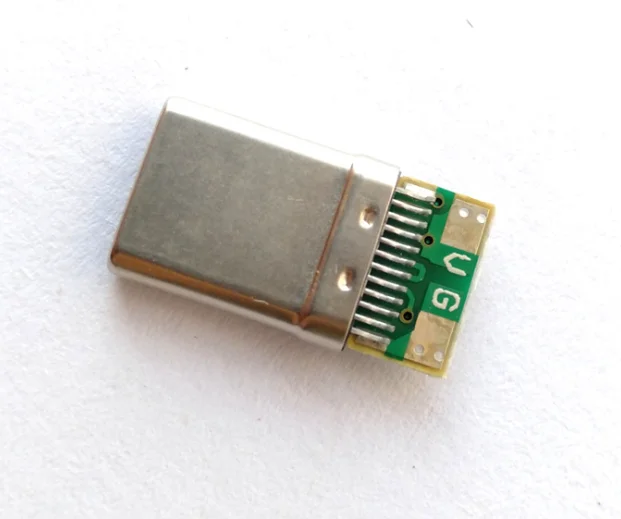

USB Type C Male With PCB Connector
Specification: NOTES:
1.MATERIAL:
1-1.OUTSIDE SHELL: SUS301-1/2H T=0.20mm
1-2.INNER SHELL: SUS301-1/2H T=0.20mm
1-3.SIGNAL: SUS301-H T=0.10mm
1-4.RFI PAD: SUS301-H T=0.10mm
1-5.HOUSING: LCP+30%G.F. UL94 V-0 BLACK
1-6.TEMINARL: COPPER ALLOY C19400-H.T=0.10mm
2.PLATING SPECIFICATION
2-1.TERMINAL: GOLD PLATED.
2-2.SHELL: NICKEL PLATED 60μ"MIN.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 3A.
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.IR REFLOW:
THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -55°C~105°C.
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
1.MATERIAL:
1-1.OUTSIDE SHELL: SUS301-1/2H T=0.20mm
1-2.INNER SHELL: SUS301-1/2H T=0.20mm
1-3.SIGNAL: SUS301-H T=0.10mm
1-4.RFI PAD: SUS301-H T=0.10mm
1-5.HOUSING: LCP+30%G.F. UL94 V-0 BLACK
1-6.TEMINARL: COPPER ALLOY C19400-H.T=0.10mm
2.PLATING SPECIFICATION
2-1.TERMINAL: GOLD PLATED.
2-2.SHELL: NICKEL PLATED 60μ"MIN.
3.MECHANICAL PERFORMANCE
3-1.INSERTION FORCE: 5N~20N.
3-2.WITHDRAWAL FORCE: INITIAL 8N~20N , AFTER 1000 MATING CYCLES 6N~20N.
3-3.DURABILITY: 10000 CYCLES.
4.ELECTRICAL PERFORMANCE
4-1.CURRENT RATING: 3A.
4-2.LLCR: CONTACT: 40mΩ MAX(INITIAL).
4-3.INSULATION RESISTANCE:UNMATED: 100MΩ MIN.
4-4.DIELECTRIC WITHSTAND VOLTAGE: 100V/AC.
5.IR REFLOW:
THE PEAK TEMPERATURE ON BOARD SHALL BE MAINTAINED FOR 10 SECONDS AT 260±5°C.
6.OPERATING TEMPERATURE RANGE: -55°C~105°C.
7.RoHS COMPLIANT OR HALOGEN FREE COMPLIANT.
