Pe100 Polyethylene Electrofusion Welding Machine DPS20 3.5KW
- Category: Welding Equipment >>>
- Supplier: Hebei Zemo Technology Co. Ltd.
Share on (62471479858):
Product Overview
Description
Product Description

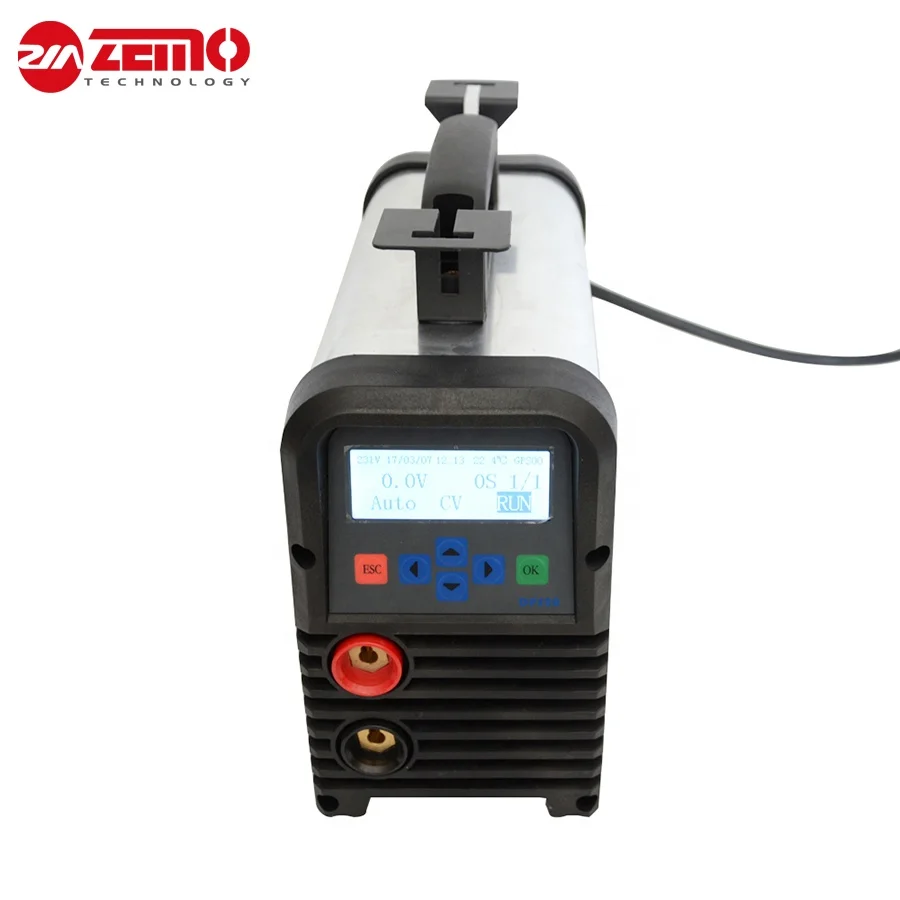

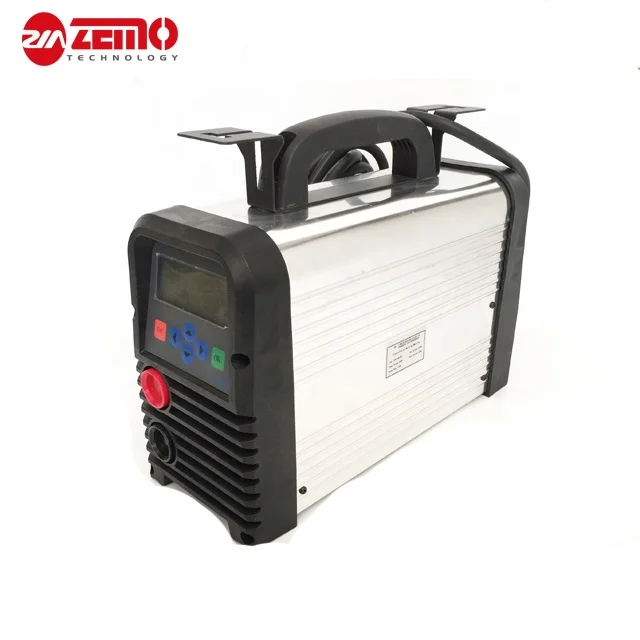

DPS20-2.2KW Electrofusion Welding Machine using true RMS control, is mainly used in connection of gas or water polyethylene (PE)
pipes and fittings. It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units .
pipes and fittings. It is the perfect corollary equipment for every PE pipe, pipe fitting manufactures and construction units .
The machine has higher performance than the international standard ISO12176-2 in welding voltage stability, welding time accuracy
and the temperature detection accuracy, etc.
and the temperature detection accuracy, etc.
Details Images
♦ High-level MCU is used as control core, with abundant parameter setting, measuring and perfect protective function
♦ Wide power supply and voltage input, suitable for on-the-spot electric network level
♦ High precision control to electric energy and time, ensure welding quality
♦ Swiftly output response time when power supply breaks, high stability
♦ Support U disk reading welding record
♦ Support U disk import formula parameter

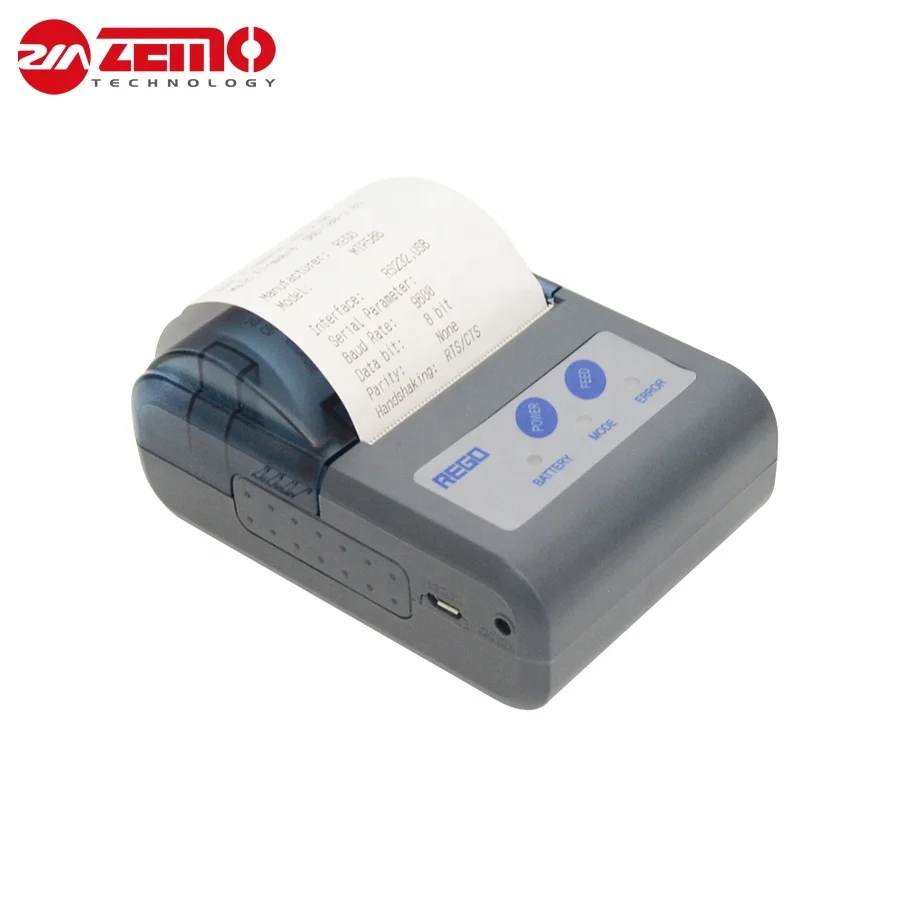

♦ Support USB portable printer, print welding record
♦ With automatic identification matching pipe function
♦ Good doubling protection function
♦ With up to 6 phases programmable welding function, can adapt to different pipe welding requirements

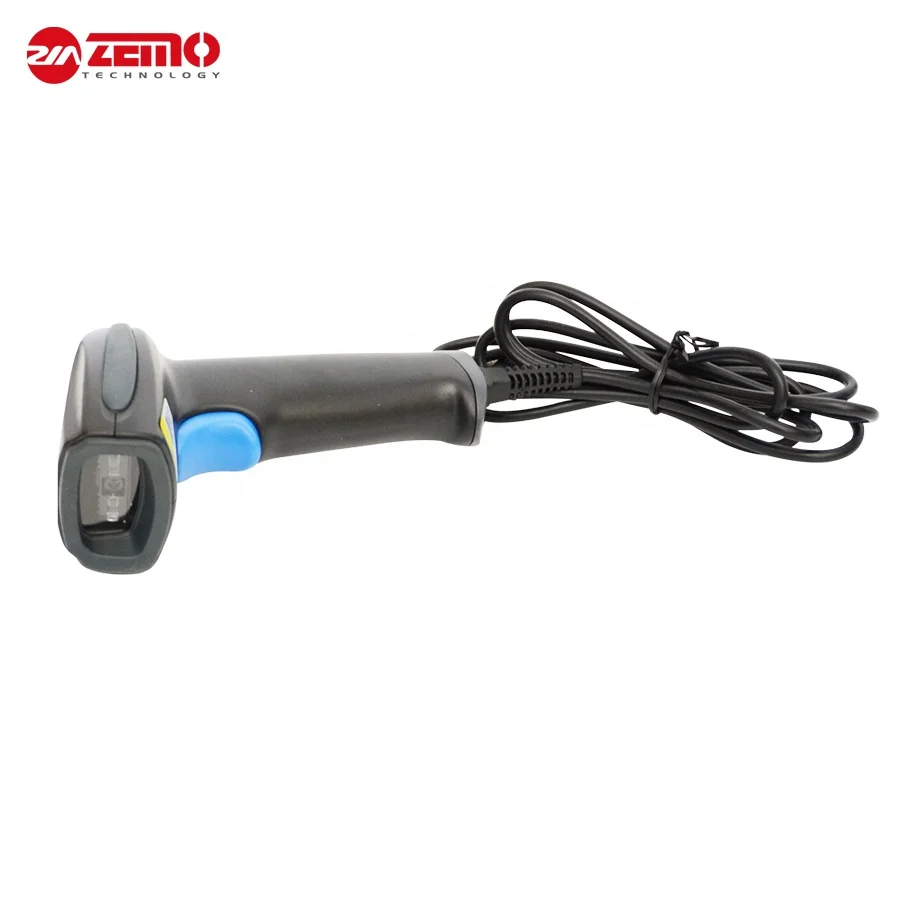

♦ Support a variety of welding parameters input: manual input, formula extraction, bar code scanning input
♦ The control board adopts SMT welding technology to reduce the failure rate of the whole machine
♦ Wide power supply and voltage input, suitable for on-the-spot electric network level
♦ High precision control to electric energy and time, ensure welding quality
♦ Swiftly output response time when power supply breaks, high stability
♦ Support U disk reading welding record
♦ Support U disk import formula parameter
♦ Support USB portable printer, print welding record
♦ With automatic identification matching pipe function
♦ Good doubling protection function
♦ With up to 6 phases programmable welding function, can adapt to different pipe welding requirements
♦ Support a variety of welding parameters input: manual input, formula extraction, bar code scanning input
♦ The control board adopts SMT welding technology to reduce the failure rate of the whole machine
Product Paramenters
Electrofusion Welding Machine | ||||||||||||
Specification | Input Voltage(V) | Output Power (KW) | Output Current (A) | Output Voltage (v) | Welding Specification (mm) | Dimension (mm)(LXW | ||||||
DPS20-2K2 | AC220V±20% | 2.5 | 50 | 55 | Dn20-200 | 352X188X341 | ||||||
DPS20-3K5 | AC220V±20% | 3.5 | 55 | 75 | Dn20-315 | 352X188X341 | ||||||
DPS20-6K | AC380V±20% | 6 | 60 | 120 | Dn20-400 | 480X273X440 | ||||||
DPS20-8K | AC380V±20% | 8 | 60 | 150 | Dn20-500 | 480X273X440 | ||||||
DPS20-12K | AC380V±20% | 12 | 80 | 170 | Dn20-800 | 480X273X440 | ||||||
DPS20-15K | AC380V±20% | 15 | 80 | 210 | Dn20-1200 | 480X273X440 | ||||||
Product packaging
Company Profile
Zemo is one of comprehensive manufacturer of Thermoplastic Welding Equipment and an experienced professional exporters in China
ZEMO products included Butt Fusion Machine,Socket Fusion Machine, Electrofusion Machine,Hot Air Welders,Hot Air Welding Machine Extrusion Welders, Geomembrane Overlap Wedge Welders,Band Saw,Workshop Fittings Machine,and Welding Accessories Required undertheISO9001 system and approved to CE standards by SGS.
Plastic Welding Machine's One Stop sourcing Platform,ZEMO will serve world thermoplastic material industry.
ZEMO products included Butt Fusion Machine,Socket Fusion Machine, Electrofusion Machine,Hot Air Welders,Hot Air Welding Machine Extrusion Welders, Geomembrane Overlap Wedge Welders,Band Saw,Workshop Fittings Machine,and Welding Accessories Required undertheISO9001 system and approved to CE standards by SGS.
Plastic Welding Machine's One Stop sourcing Platform,ZEMO will serve world thermoplastic material industry.
Customer operation
FAQ
1. What is your payment terms ?
100% TT in advance . Western Union , D/P . Credit card payment on line .
2. What’s your delivery time ?
3-5 days after payment
3.How about your Guarantee and Service ?
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
100% TT in advance . Western Union , D/P . Credit card payment on line .
2. What’s your delivery time ?
3-5 days after payment
3.How about your Guarantee and Service ?
All designed according to ISO21307:2011(E),ISO12176-1 and DVS2207/1(08/2007)
International warranty: 24months.
Any parts broken or does not work under normal operating,we are free to provide.
