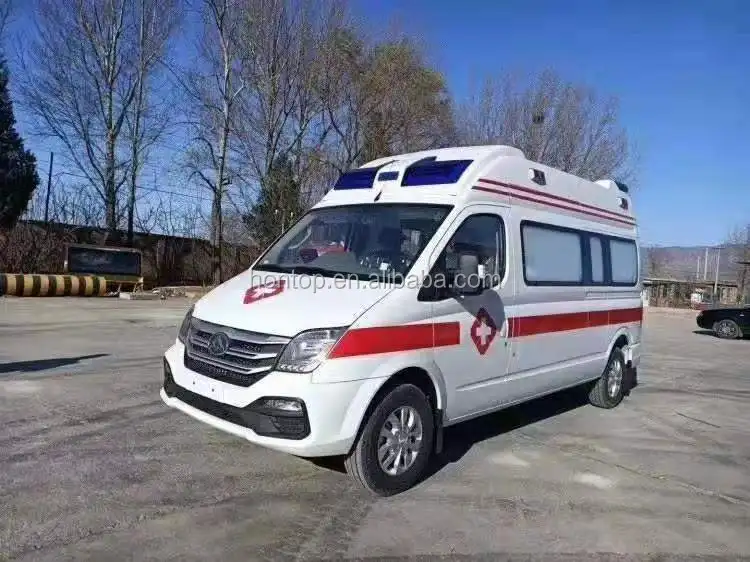

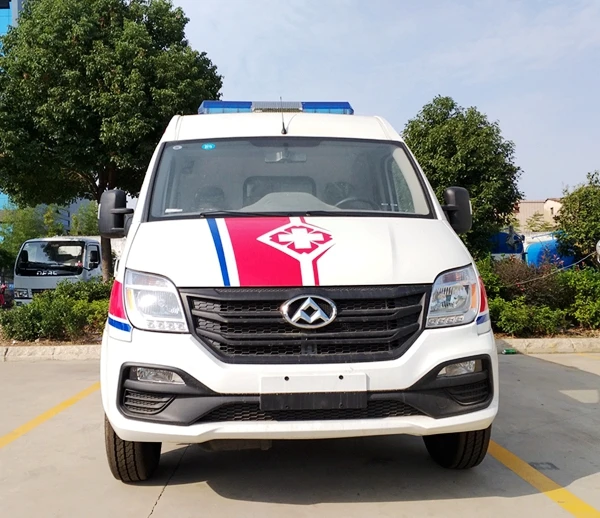

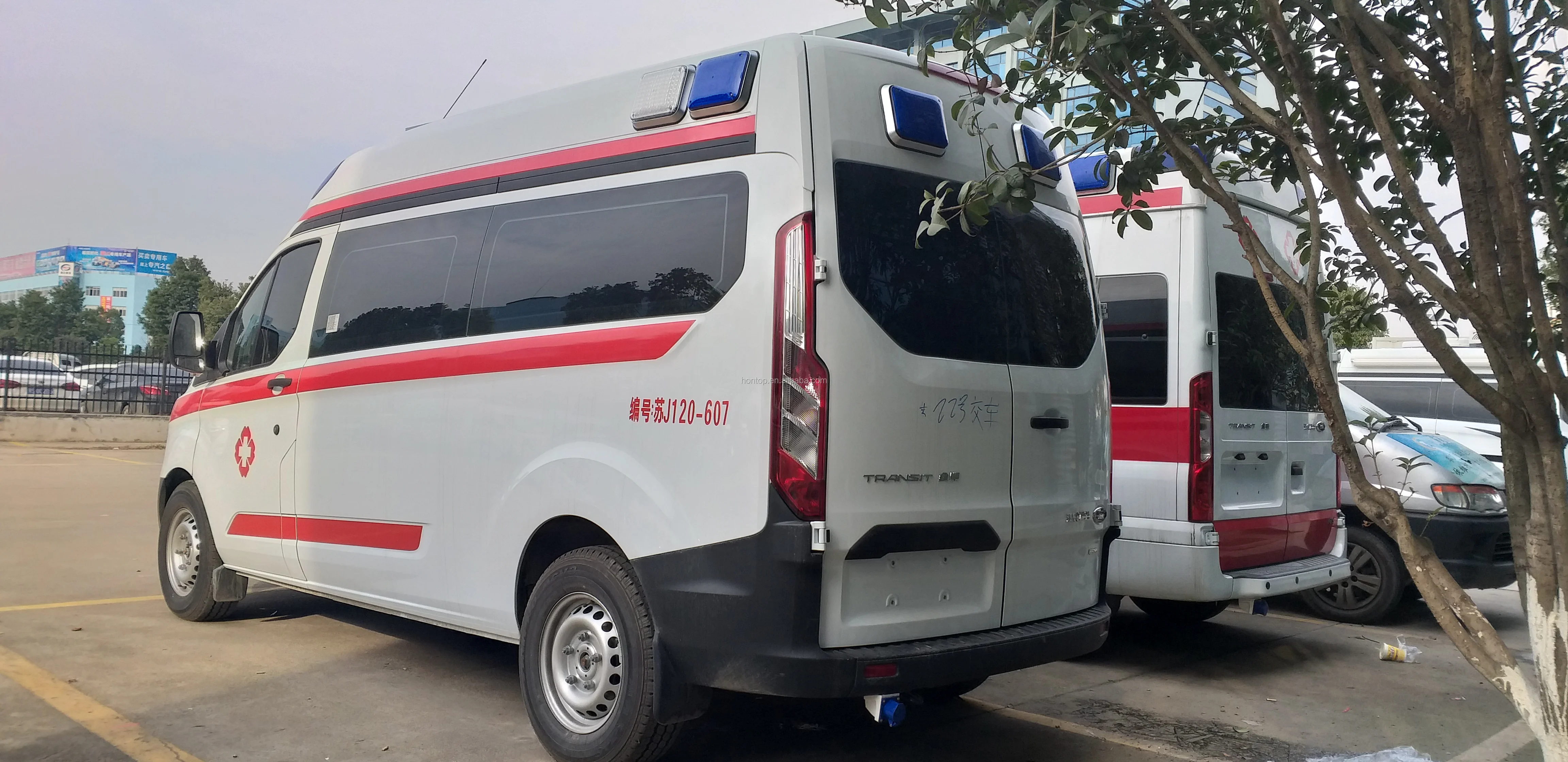

Транспортировка Maxus, короткоколесная машина скорой помощи с отрицательным давлением
- Category: Ambulance >>>
- Supplier: Hubei Hontop Special Vehicle Co. Ltd.
Share on (62471508136):
Product Overview
Description
Product Description
Patient Transport Maxus Short wheel negative pressure ambulance
The function of negative pressure ambulance and sterile ward of the hospital is the same.The negative pressure system consists of negative pressure controller, exhaust fan, pressure display meter, high efficiency air filter, outlet components, air sterilization system.By efficient exhaust device and its filtering disinfector, the bacteria in the air coming in and out is filtered. This function prevents from the leaking of pollution from the ambulance, kills bacteria inside the vehicle, and creates a sterile environment for the medical staff and patients. It is the most suitable ambulace to transport highly infectious like the patient of Sars, ebola, etc.

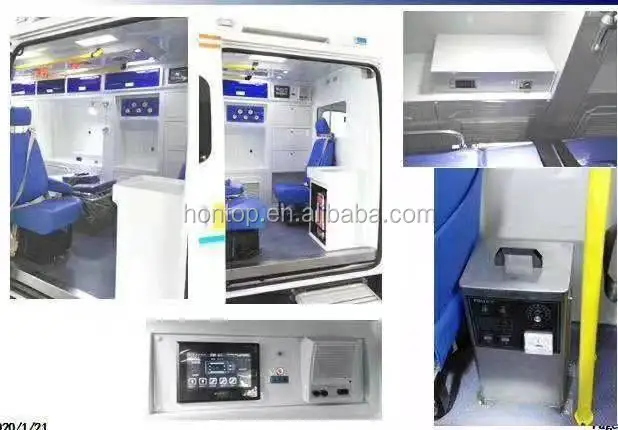

1. Negative pressure exhaust air purification device
| Valut | DC 12V |
| Currency | 20A |
| Exhaust air volume | 400m3/h |
| Negative pressure range | minus 27--23 Pa |
| Filter dimension | 295X595X46mm |
| Filter efficienty | 99.999%@0.3μm |
2. Vehicle specification
| Chassis brand | Maxus |
| Dimension | 5910X1998X2530 mm |
| Gross weight | 3800kg |
| Curb weight | 2560kg |
| Passenger | 3-9 |
| Wheel base | 3100mm |
| Axle load | 1760/2040kg |
| Tire speicification | 215/75R16LT |
| Max speed | 150km/h |
| Engine | SC25R136.1Q5 |
| Horspower | 136hp |
| Displacement | 2499ml |
| Emission standard | Euro 5 |

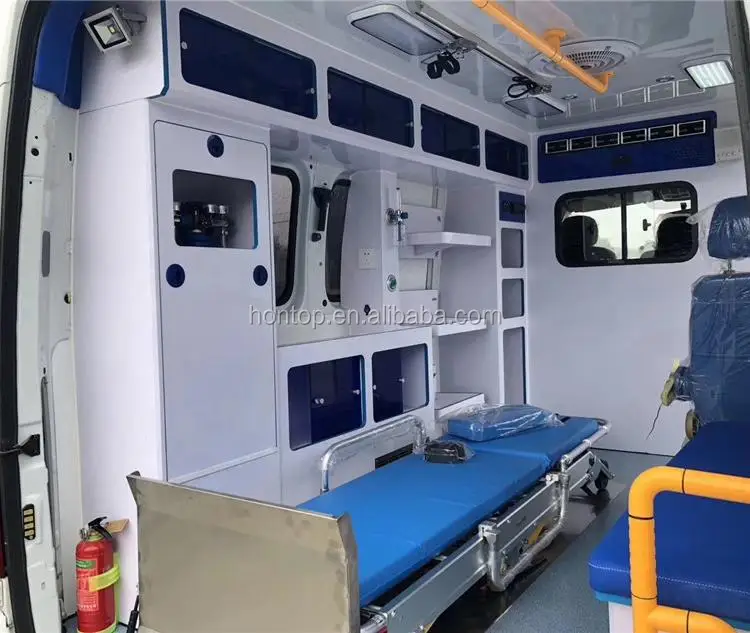

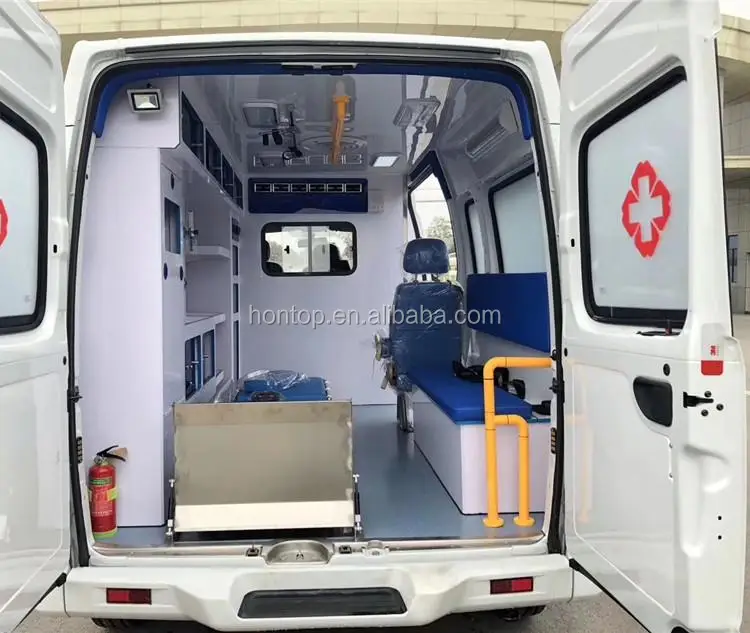

3. Standard configuration
| 1 | Long raw ambulance light |
| 2 | Fold able stretcher |
| 3 | Automatic boarding stretcher |
| 4 | Oxygen cylinder(10L) |
| 5 | Oxygen cylinder cabinet |
| 6 | Oxygen Fast interface |
| 7 | Medical cabinet |
| 8 | Working seat |
| 9 | Accompanying chairs |
| 10 | Sterilizing lamp |
| 11 | Infusion clamp |
| 12 | Inverter (100w) |
| 13 | 12V Lamp |
| 14 | Power outlet(220V) |
| 15 | Middle partition(with observing window) |
| 16 | Washable medical wear-resistant floor |
| 17 | Cross logo |
| 18 | Waste receptacle |
| 19 | Air conditioner (cool and warm) |
| 20 | Advertising color strip on the body |
| 21 | humidifier |
| 22 | Negative pressure exhaust air purification device |
