Greenpedel 36v 48V 350w 500W 750W electric bike front rear newest electric hub motor
- Category: >>>
- Supplier: Changzhou Green Pedel Co. Ltd.
Share on (62471525005):
Product Overview
Description
Related Production
Whole Set Picture
Greenpedel 20 to 28 inch 36v 48V 350w 500W 750W E Bike Hub Motor for Electric Bicycle designed according to EU standard for road legal,with our own design patent.
Suitable for city bike and mountain bike, silent and powerful.
We have our Hub Motor with waterproof connector in the end, single or multi speed as you want.
We use bended magnets,which is better than most of the ones that existed in the market.
R&U bearings,0.35mm silicon steel sheet, which means higher efficiency than the 0.5mm ones. Axle with rust-proof treatment.
Product Description
Rated Voltage (V) | 36V 48V | Cable Location | Shaft center right |
Rated Power (W) | 350W 500W 750W | Spoke Specification | 12g/13g |
Wheel Size | 20--28 | Hall Sensor | Optional |
Rated Speed (km/h) | 25-42 | Integrate speed sensor | Optional |
Rated Efficiency (%) | >=80 | Surface | Black/Silver |
Reduction Ratio | 5.0 | Brake Type | E-brake/Brake sensor |
Weight (Kg) | 4.2 | Salt fog test (h) | 24/96 |
Open Size (mm) | 100/135 | Noise (db) | < 55db |
Drive and Freewheel | 8-10s | Waterproof Grade | IP54 |
Details Images
M58 Motor

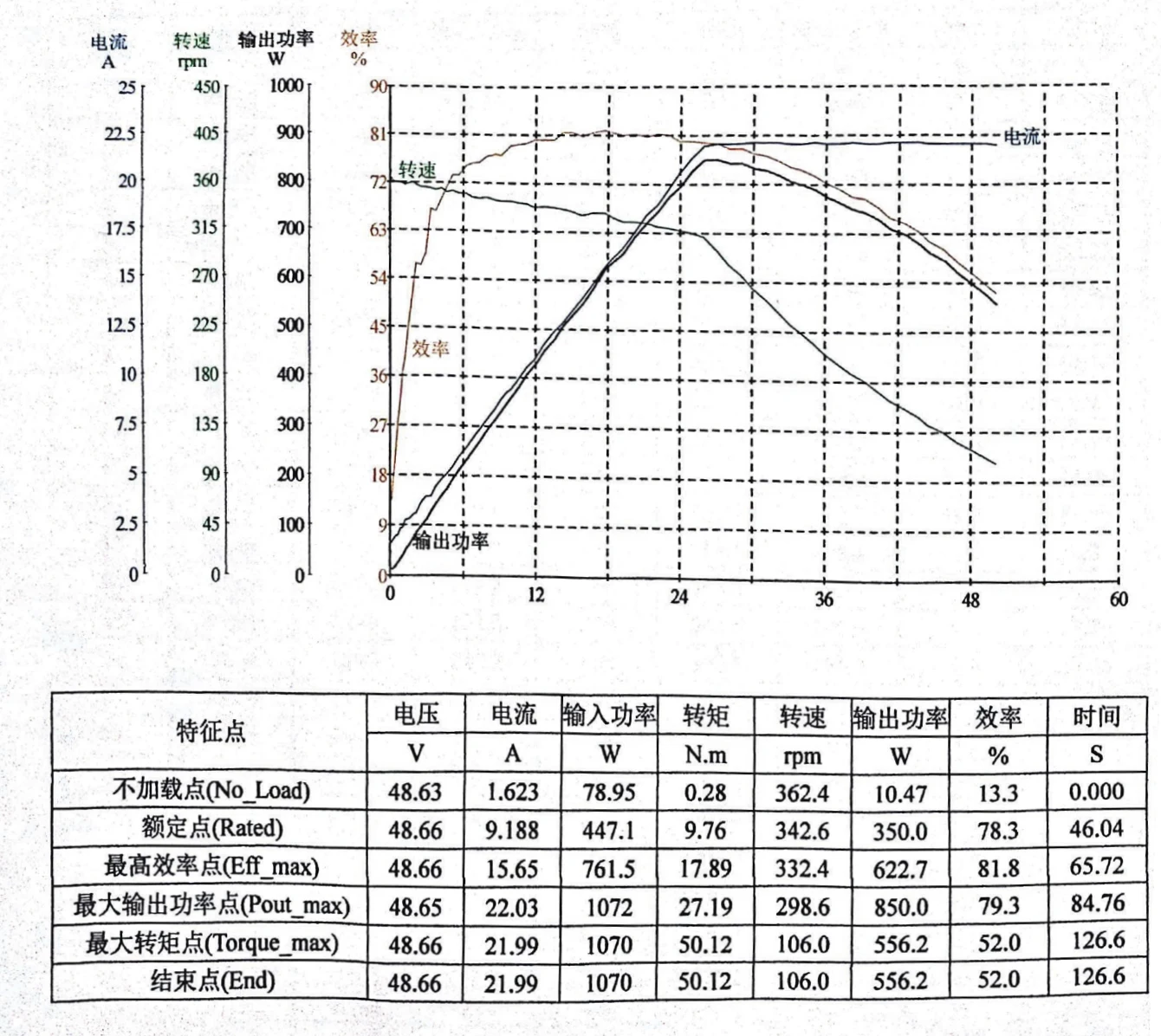

Motor testing report
Factory&Packing
Certifications
Exhibition
