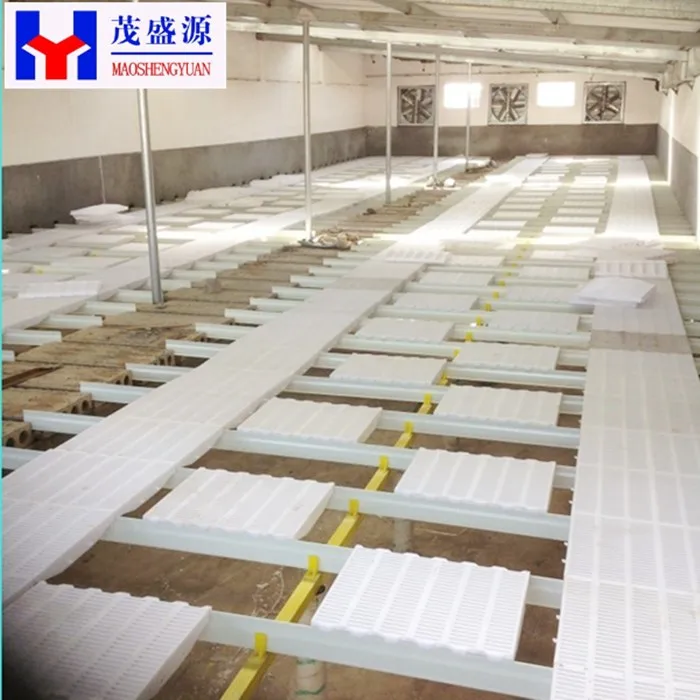

Insulation Crossion resistant fiberglass solid support beam for pig house
- Category: >>>
- Supplier: Qingyun Maoshengyuan Composite Material Co. Ltd.
Share on (62471676284):
Product Overview
Description
Product Description
Insulation Crossion resistant fiberglass solid support beam for pig house
Our company has become one of the largest ,the most advanced equipment and most technical force professional manufacturers of Pultruded FRP structural profiles in North China.

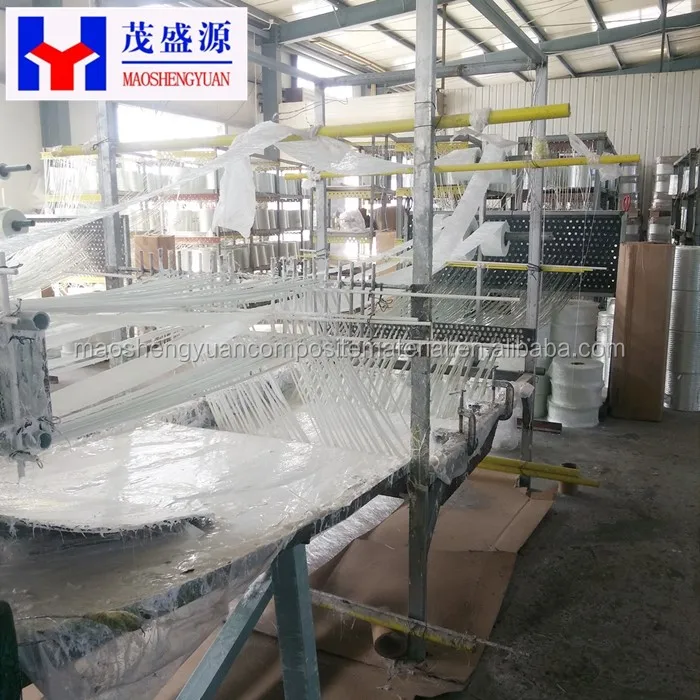

The pultrusion process is a continuous roving, felt, belt or cloth reinforced material which is impregnated with glue. Under the action of traction, it is heated by pultrusion and solidification, and continuous production of FRP profiles of unlimited length is continuously produced.
The mainly material are UPR (unstaturates polyester resins), glass fiber yarn and glass fiber felt .
The advantages are :
1. Excellent corrosion resistance
2. Weight is less than steel
3. High strength
4. Good insulation
5.More than 10 years service life

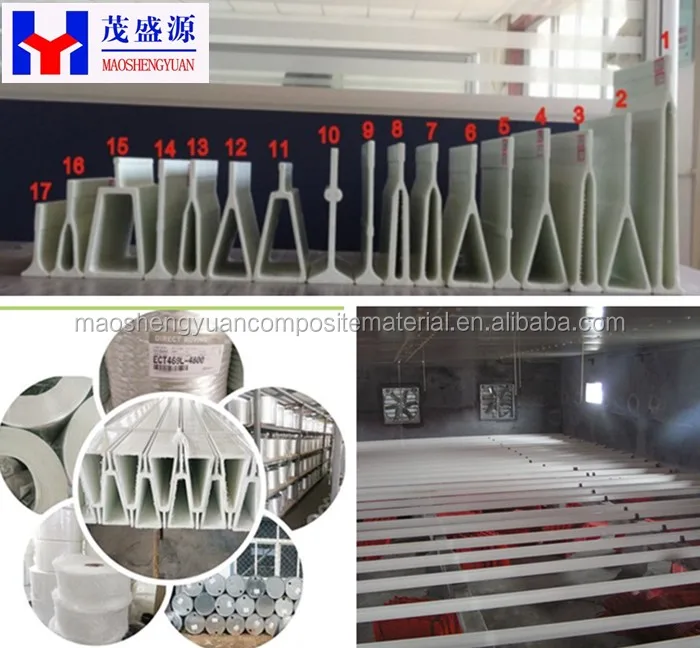

Various models to meet your needs.
Type | Model | Size | Weight/Kg/M |
Hollow FRP Beam | H-80 | 80*30*5.5mm | 1.1kg/m |
H-100 | 100*30*5.5mm | 1.35kg/m | |
H-120-1 | 120*30*5.5mm | 1.62kg/m | |
H-120-2 | 120*30*5.5mm | 2.36kg/m | |
H-135 | 135*30*5.5mm | 1.7kg/m | |
H-200 | 200*30*5.5mm | 2.7kg/m | |
Triangel FRP Beam | S-100-01 | 100*30*5.5mm | 1.37kg/m |
S-100-02 | 100*45*5.5mm | 1.4kg/m | |
S-120-01 | 120*30*5.5mm | 1.4kg/m | |
S-120-02 | 120*35*5.5mm | 1.4kg/m | |
S-120-03 | 120*45*5.5mm | 1.6kg/m | |
S-135-01 | 135*35*5.5mm | 1.5kg/m | |
S-135-02 | 135*45*5.5mm | 1.65kg/m | |
S-150 | 150*45*5.5mm | 1.79kg/m | |

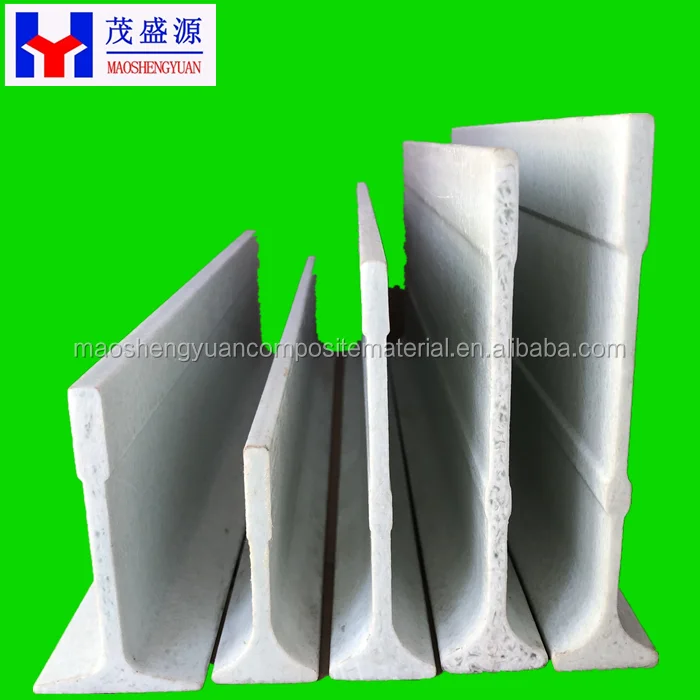

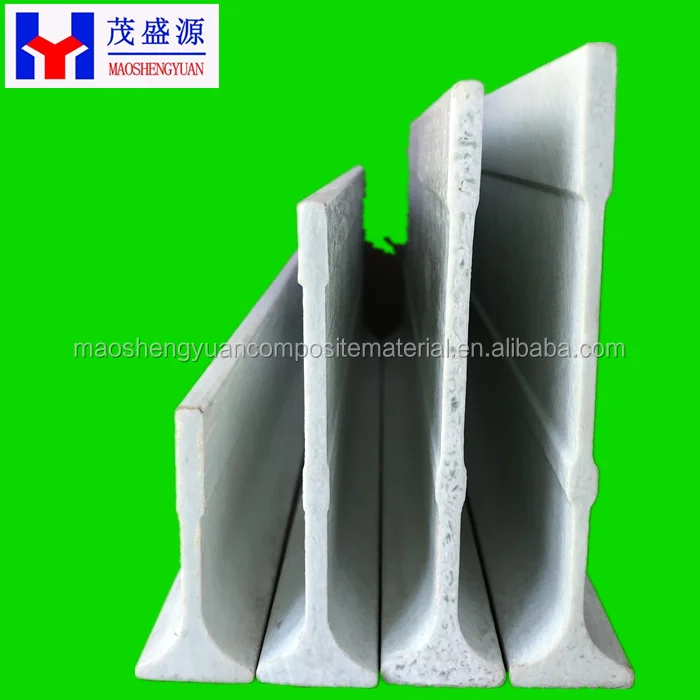

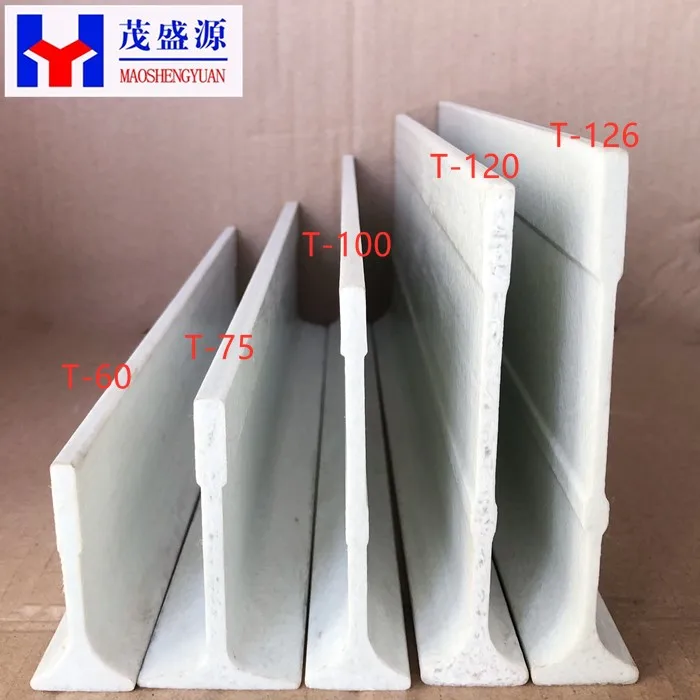

Solid FRP Beam | T-60 | 60*25.4*5.5mm | 0.8kg/m |
T-75 | 75*40*6.5mm | 1.2kg/m | |
T-100 | 100*25.4*5.5mm | 1.05kg/m | |
T-114 | 114*44.45*6.35mm | 1.33kg/m | |
T-120 | 120*25.4*5.5mm | 1.98kg/m | |
T-126 | 126*25.4*5.5mm | 1.3kg/m | |
Trapezoid FRP Beam | Trapezoid-100 | 100*50*5.5mm | 1.8kg/m |
Trapezoid-120 | 120*50*5.5mm | 2.1kg/m |
Packaging & Shipping

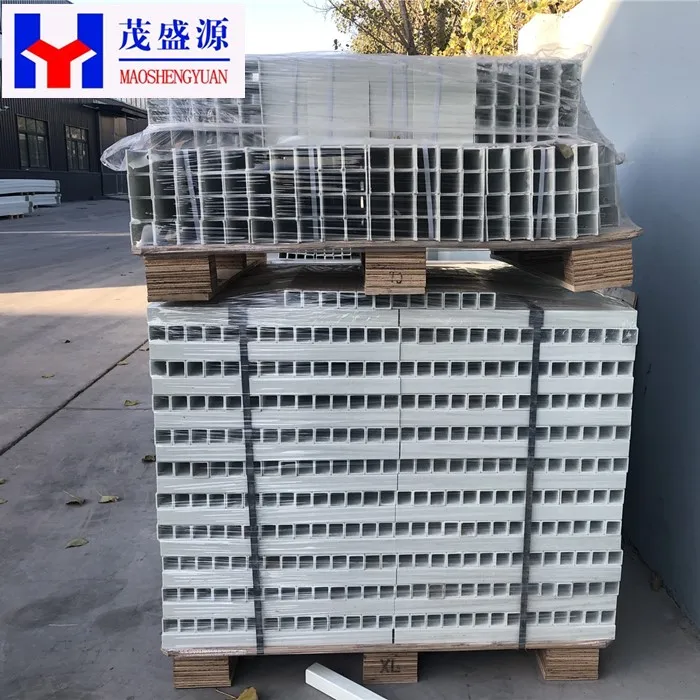

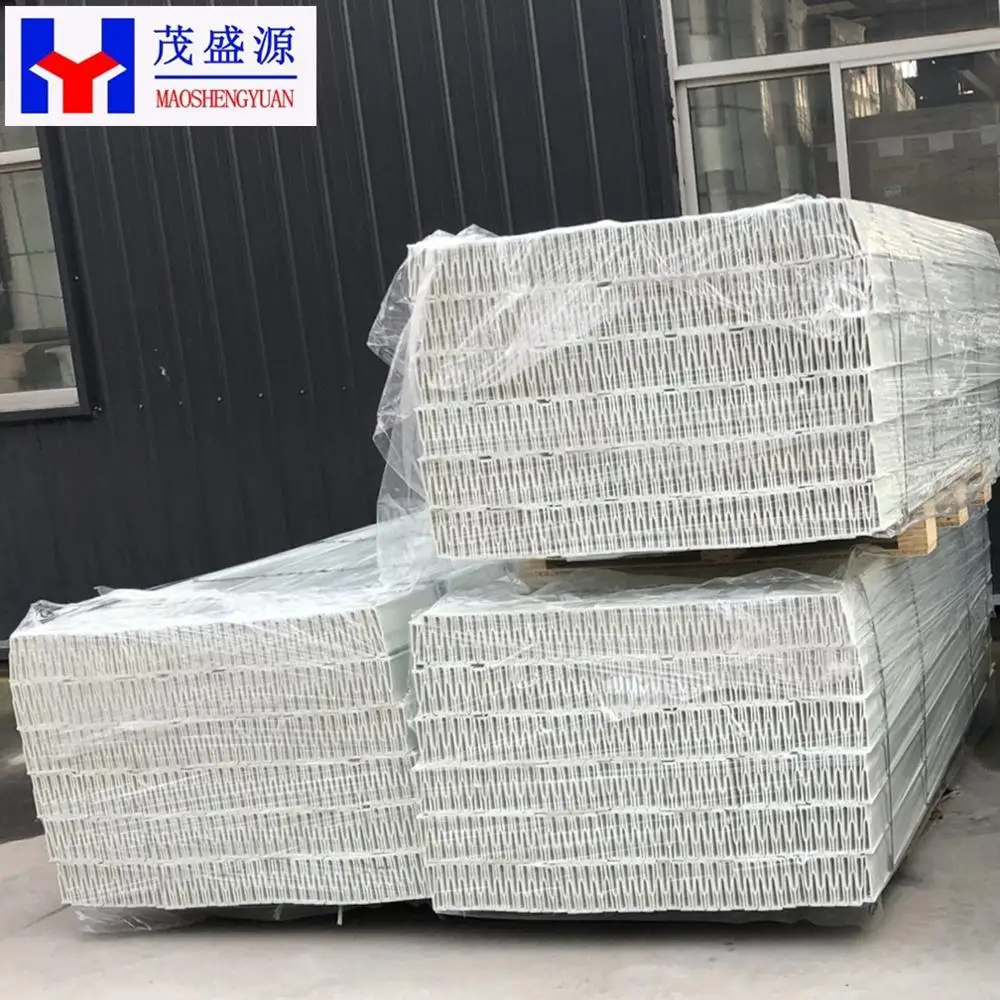

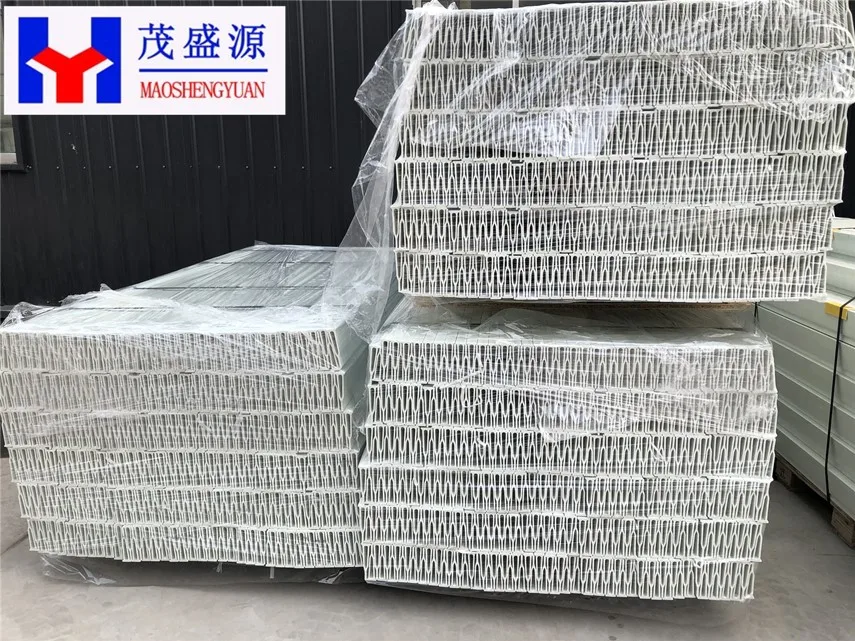

Packaging :pallet / woven bag
- Port:Qingdao
Our Services
High-strength lightweight glass fiber reinforced plastic beams. First, we choose Chinese famous brands to ensure the quality of FRP. Secondly, the glass beam can not only withstand static loads, but also with dynamic load pressures. The dynamic load test has been carried out on the FRP beams produced by our company. When the bending deformation reached 1 cm, pressure was applied to the FRP beam. Apply 50 times per point, continuously apply 3,000 times without interruption, and pass the test as a qualified product.
OUR SERVICE
For the FRP Beam produced by our company , we provide quality assurance and aftersales service as below ,
1.We guarantee that we supply the profucts according the contract’s quality and performance.
2.We inspact every index of products strictly before shipment to insure that qualification rate is 100%.
3.We inform customer the ETA and ETD , provide all the documents required.
4.If you have any problems,we will reply you in 12 H and handle in 24H .
Company Information

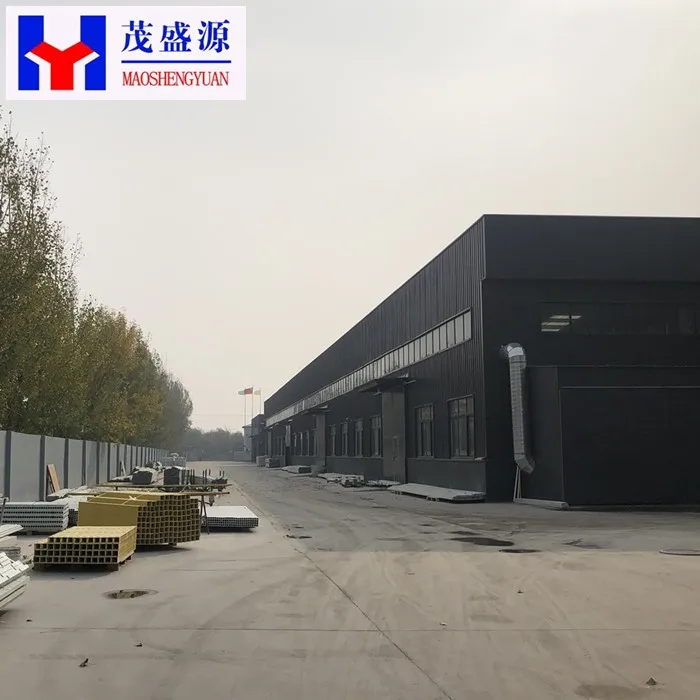

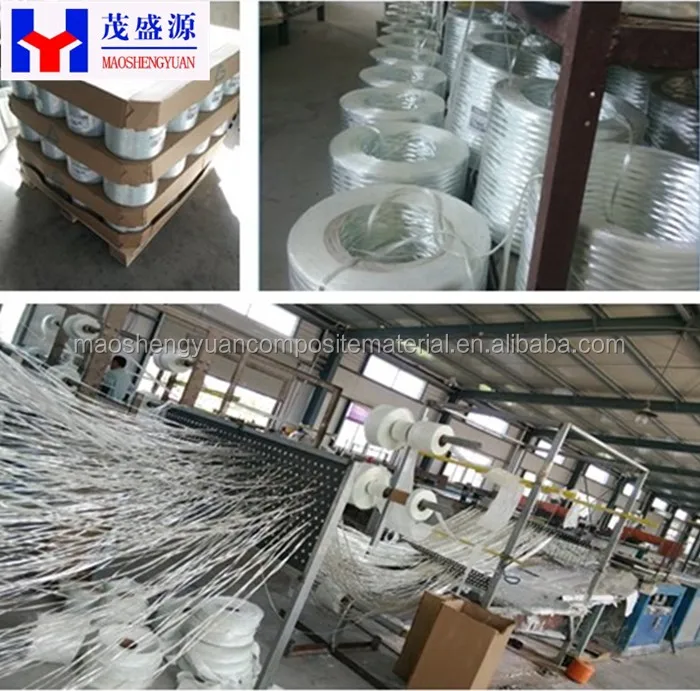

Our company was founded in 1993, introduced the world's most advanced FRP full-automatic pultrusion production equipment and inspection & testing equipment for products and materials from US . All staffs are trained by American experts. Through their hard work and research, they not only master the advanced technology of foreign countries, but also innovate the products according to the actual situation of China's FRP market and broaden the application fields of the products. Our company has become one of the largest ,the most advanced equipment and most technical force professional manufacturers of Pultruded FRP structural profiles in North China.
