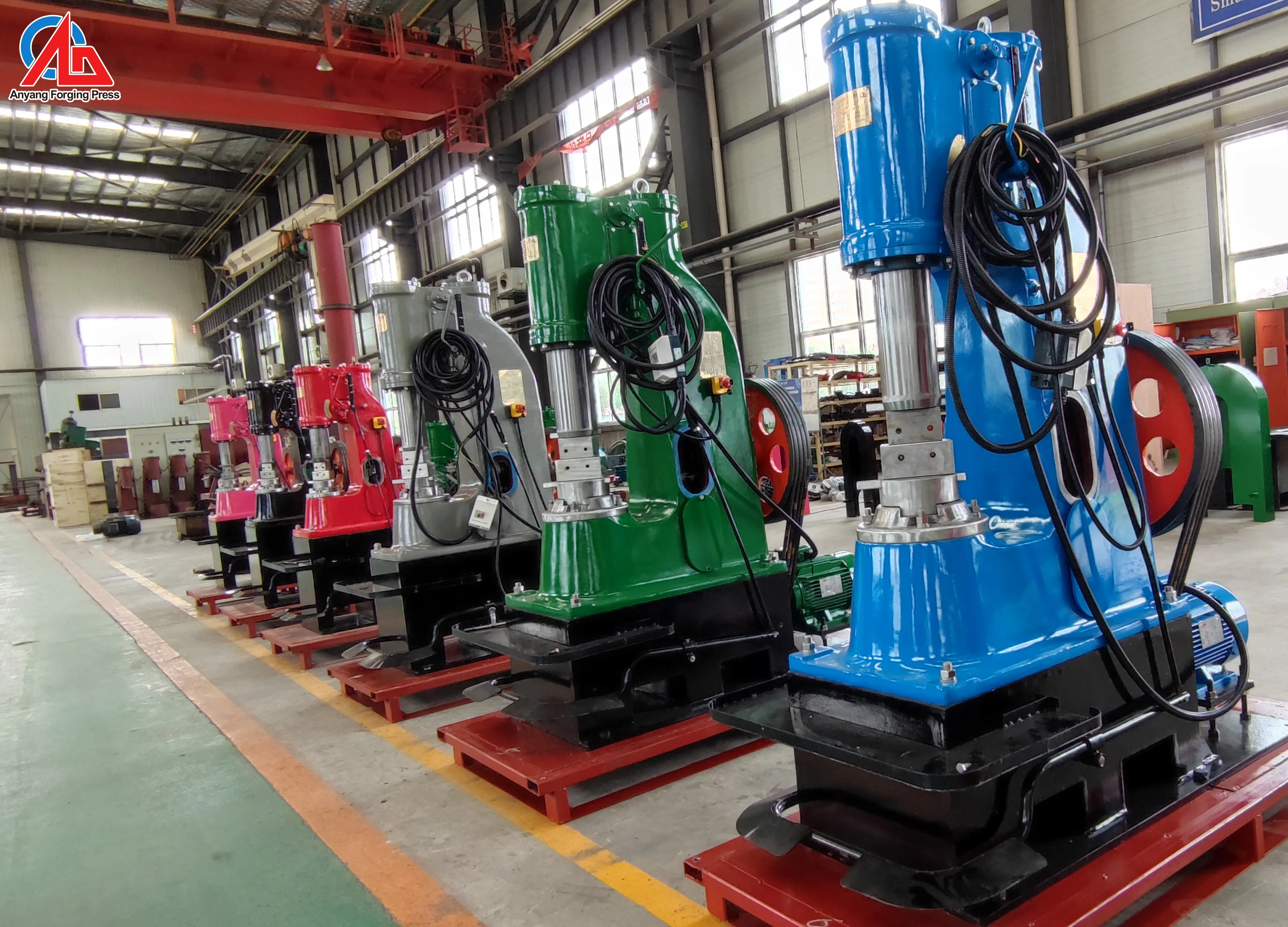

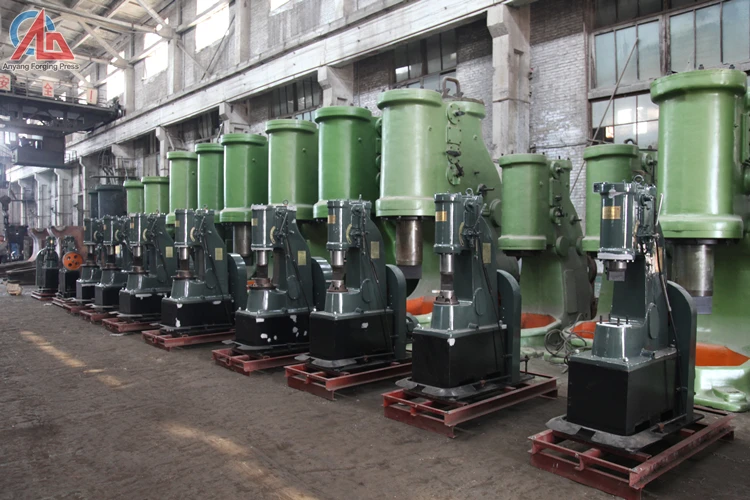

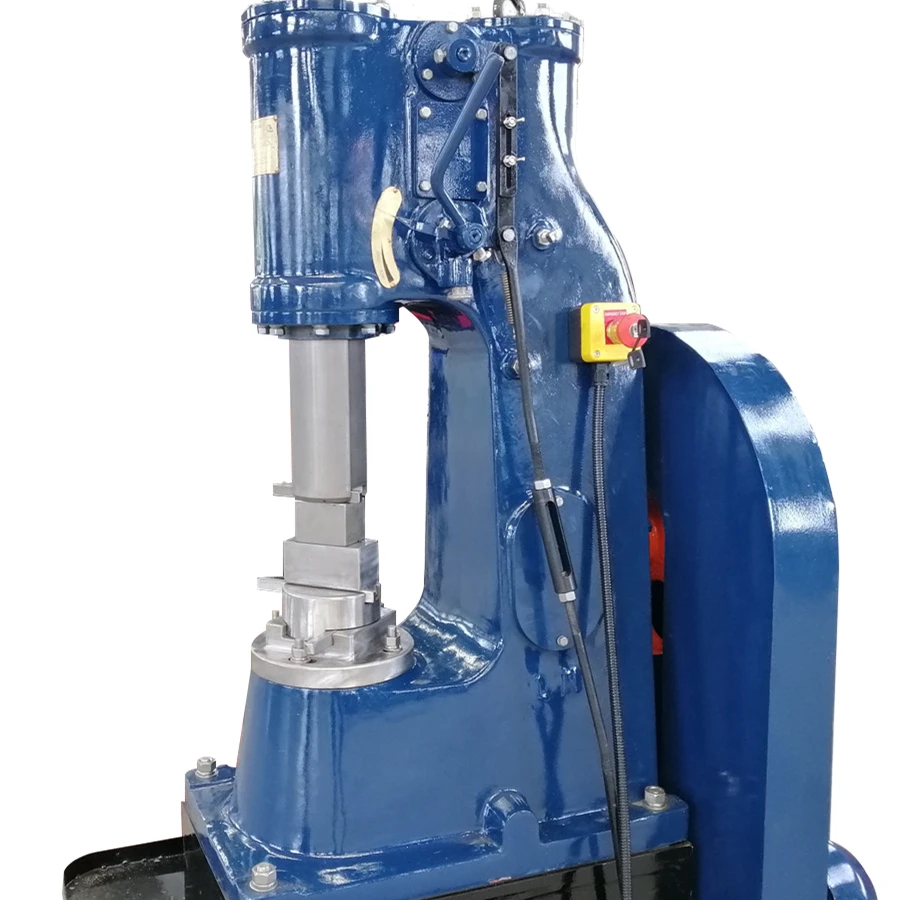

Anyang Power Hammer for Blacksmith
Anyang blacksmith power hammers from 9kg to 110kg are widely used in open die forging. The frames are cast irons, and the internal parts are forged steel and precision machined.
The features and advantages:
1. Anyang pneumatic forging hammer does not need an outside air compressor. It will compress air inside with a motor-driven flywheel.
2. The cast Iron Frame will never flex or warp. Compare the weights of different hammers available and you will find that the Anyang is amongst the heaviest. Cast iron is much more expensive to manufacture but allows the designer to put the mass and strength where it is required.
3. Lifetime frame warranty, one year on wearing parts against defects, one year on electrical components against defects.5. Simplistic design. Only 3 basic sections (crankcase, compressor piston, ram). Hammers can be disassembled, and if needed rebuilt in a day or less.
4. External drive belts. The design keeps the belts dry and away from oil. This eliminates belt slippage and extends belt life. Replacing the belts is quick and easy.6. Easy to install and low maintenance.
PRODUCT SPECIFICATIONS
Main Technical Parameters | ||||||||||||||||
Model | C41-9 | C41-15L | C41-25L | C41-40L | C41-55L | C41-75L | C41-110L | |||||||||
Weight of falling parts(kg) | 9 | 15 | 25 | 40 | 55 | 75 | 110 | |||||||||
Hitting energy(kj) | 0.09 | 0.16 | 0.27 | 0.53 | 0.7 | 1 | 1.98 | |||||||||
Hitting frequency(min-1) | 245 | 300 | 250 | 245 | 230 | 210 | 180 | |||||||||
Height of working area(mm) | 135 | 160 | 240 | 245 | 270 | 300 | 355 | |||||||||
D - Depth of throat(mm) | 120 | 170 | 235 | 270 | 300 | 330 | 400 | |||||||||
Working | Square | 25×25 | 30×30 | 40×40 | 52×52 | 60×60 | 65×65 | 110×110 | ||||||||
Piece | Round (mm) | Φ30 | Φ35 | Φ48 | Φ68 | Φ75 | Φ85 | Φ120 | ||||||||
Power | (kw) | 1.5 | 2.2 | 3 | 4 | 7.5 | 7.5 | 15 | ||||||||
Weight | Include Base | 450 | 490 | 1080 | 1263 | 1750 | 2700 | 3300 | ||||||||
L1 (mm) | 1080 | 1180 | 1470 | 1650 | 1860 | 1620 | 1910 | |||||||||
L2 (mm) | 420 | 650 | 740 | 800 | 880 | 930 | 1070 | |||||||||
H1 (mm) | 850 | 1025 | 1330 | 1500 | 1750 | 2220 | 2382 | |||||||||
H2 (mm) | 1450 | 1575 | 1835 | 1920 | 2100 | |||||||||||
H3 (mm) | 920 | 920 | 925 | 920 | 965 | 915 | 917 | |||||||||

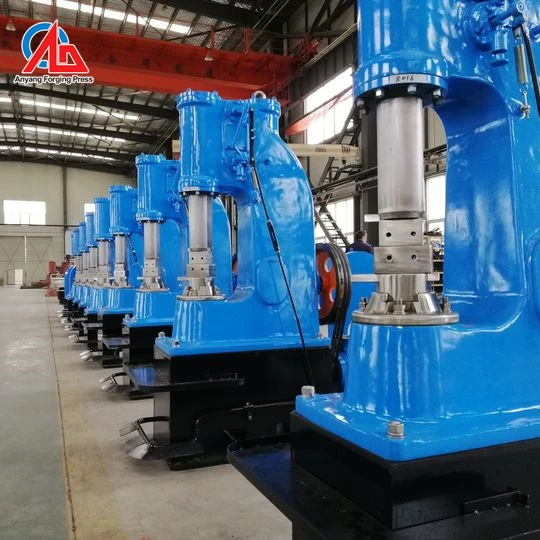

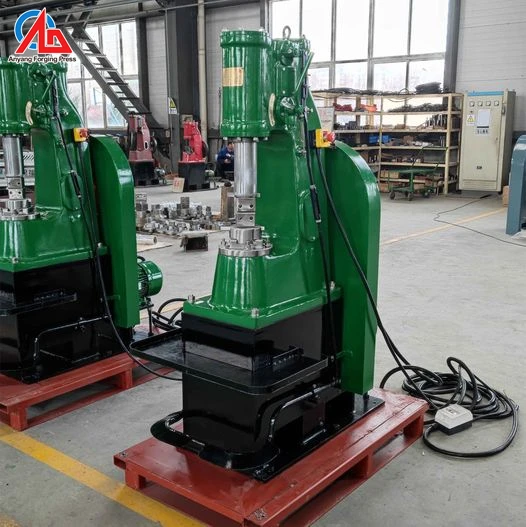

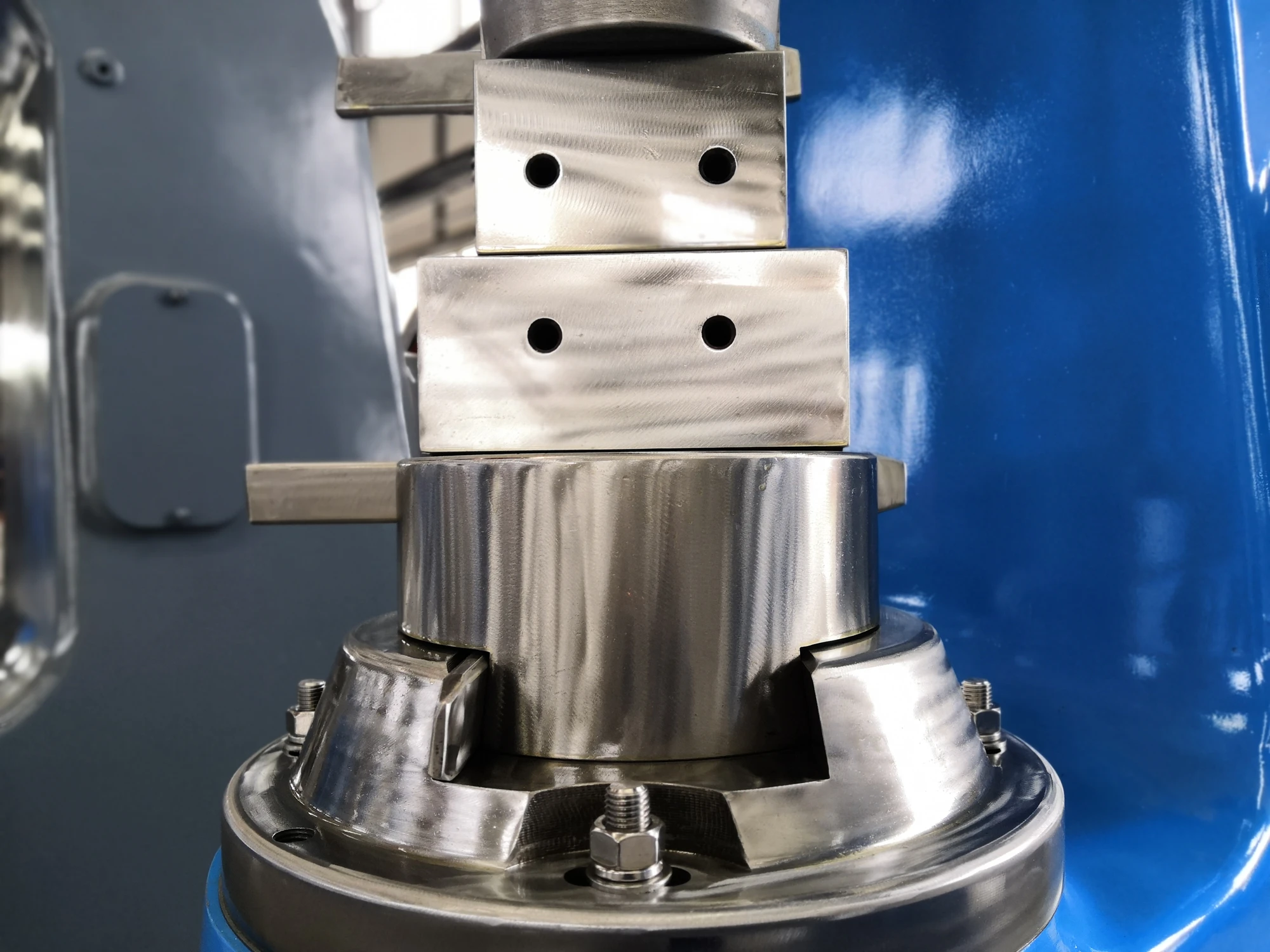

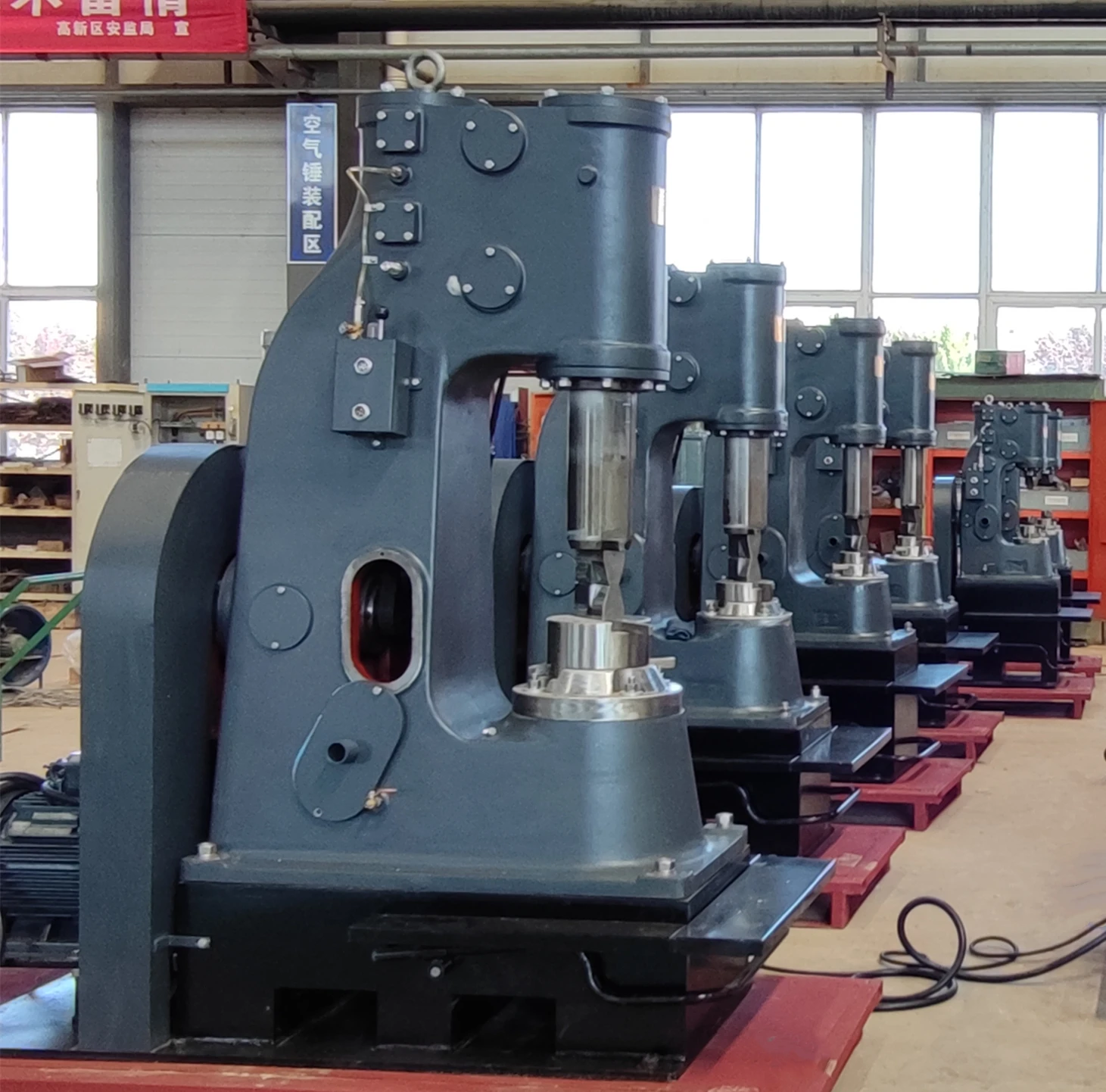

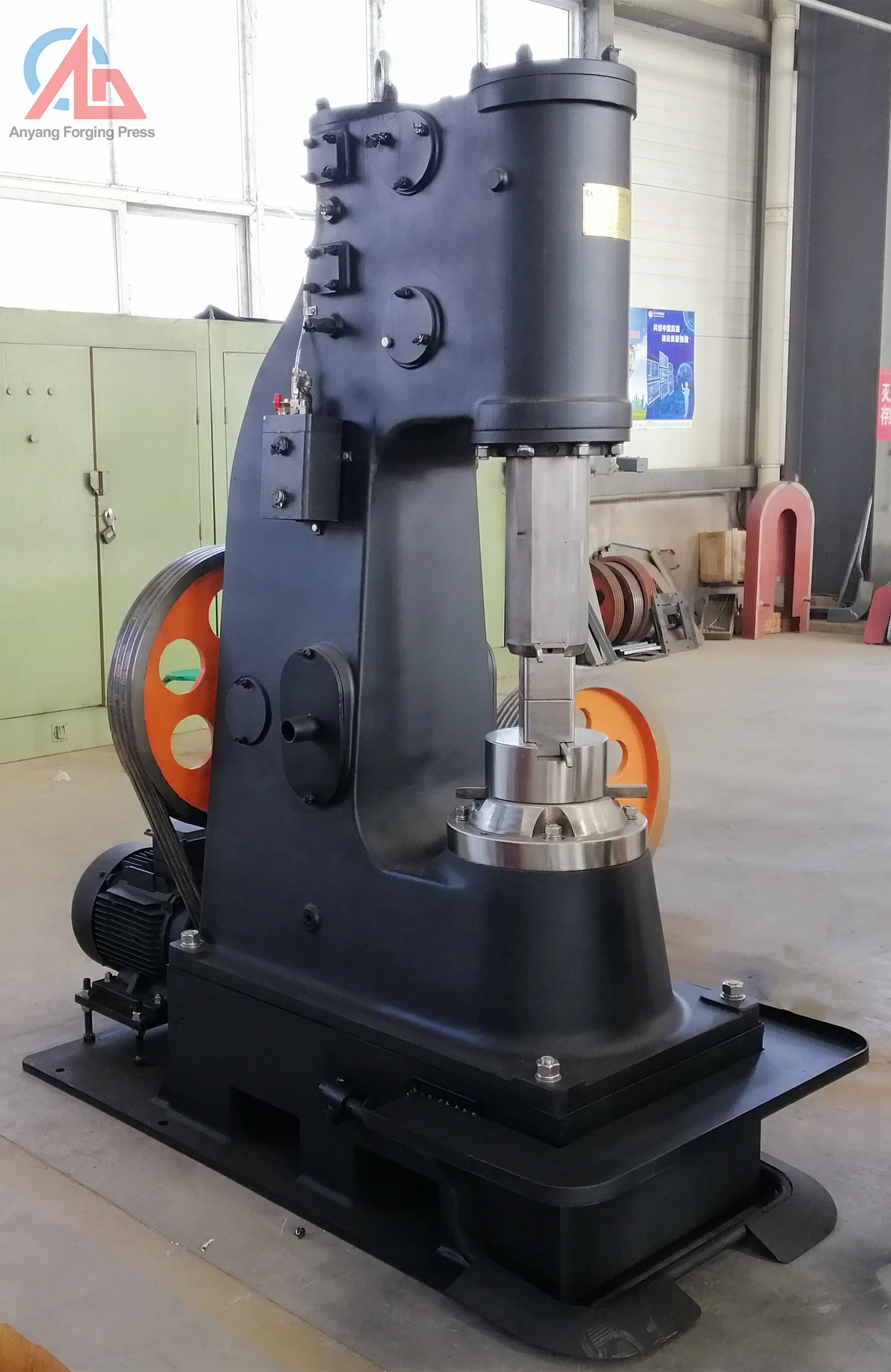

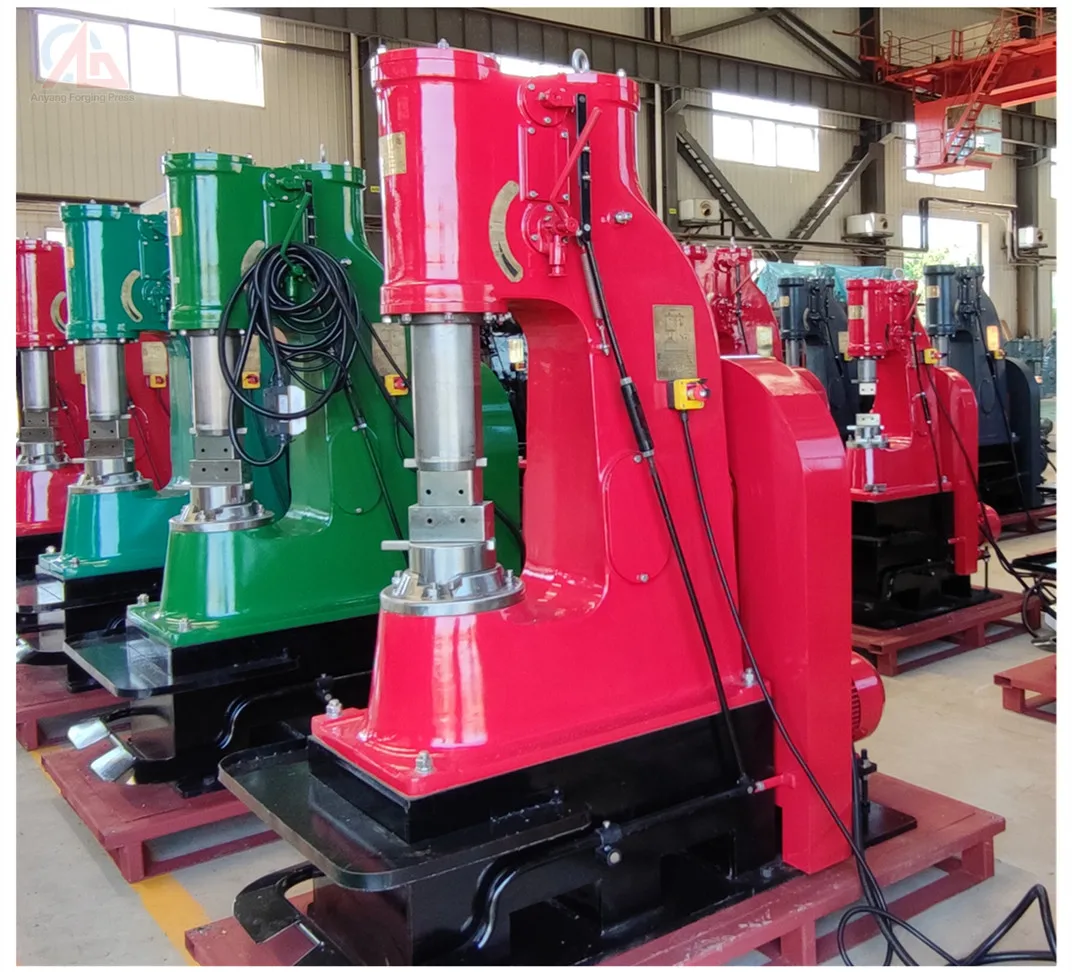

DETAILED IMAGES
Company Information
certificate
All of our Products are CE certificated, and our company owns a number of patents in the field related with mechanical engineering, initiator of the standards of forging equipment in China.
Our Services
Our Team Offers excellent oversea service.
Over 20 International sales team, 7*24 service.
Over 30 engineer team to supply oversea installation and after service.
PACKAGING & DELIVERY
Exhibition and Customer Visit
Anyang Forging Press attends North America Forge Fair, European International Forging Congress, India International Forging Technical Exhibition, Asian International Forging Congress, etc. 10+ exhibition about forgings in different countries.
