4Wd Tractor Agricultural Tractors For Sale Germany
- Category: Tractors >>>
- Supplier: Shandong Bank Investment Agriculture Development Co. Ltd.
Share on (62471839629):
Product Overview
Description

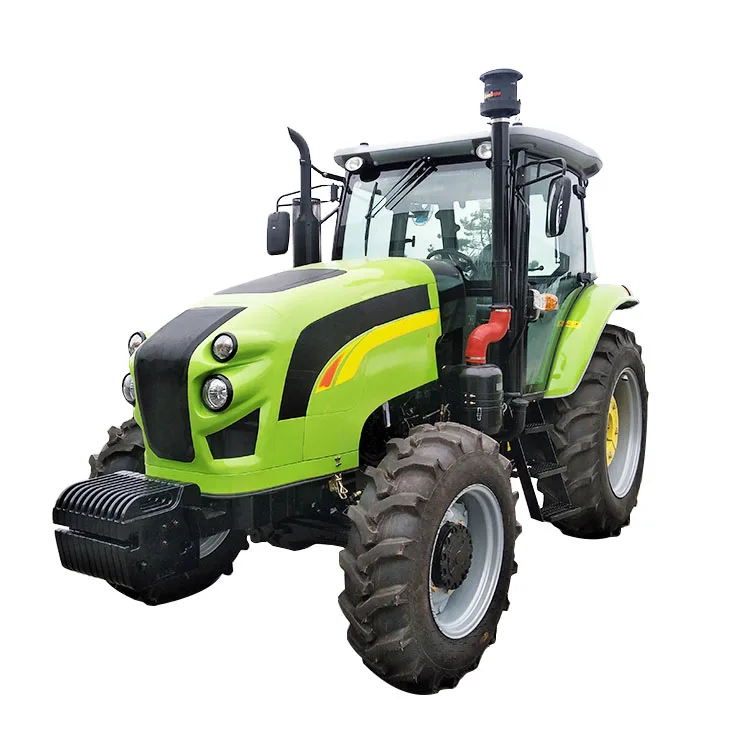

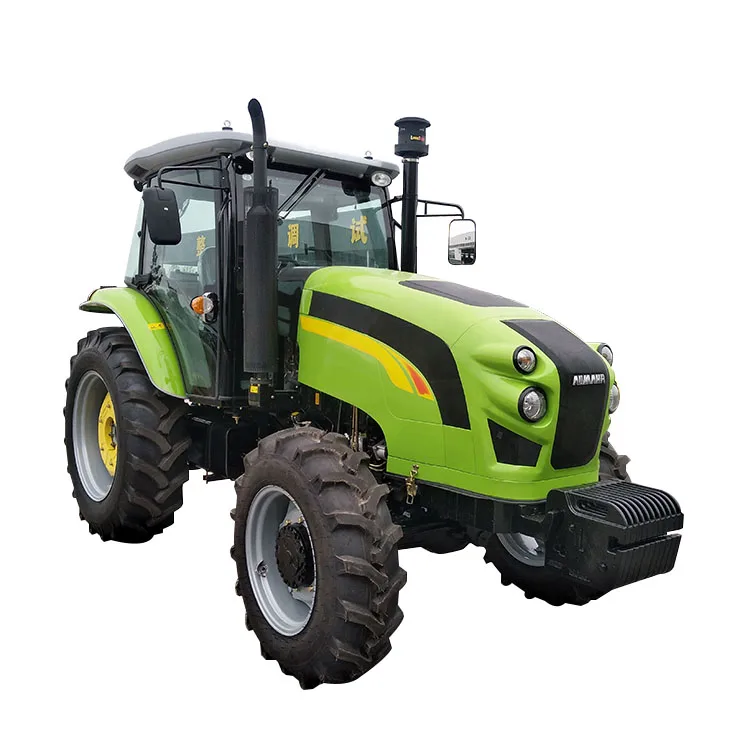

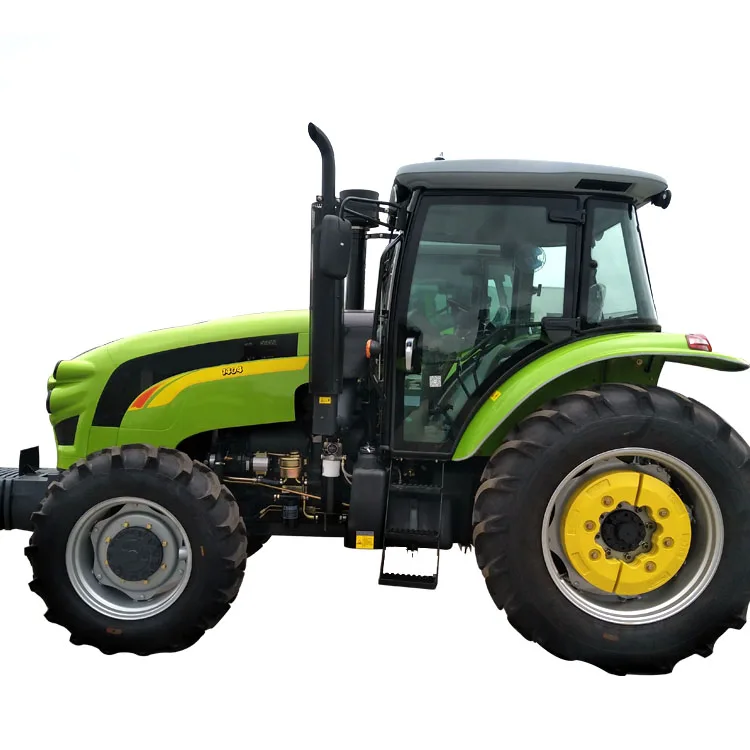

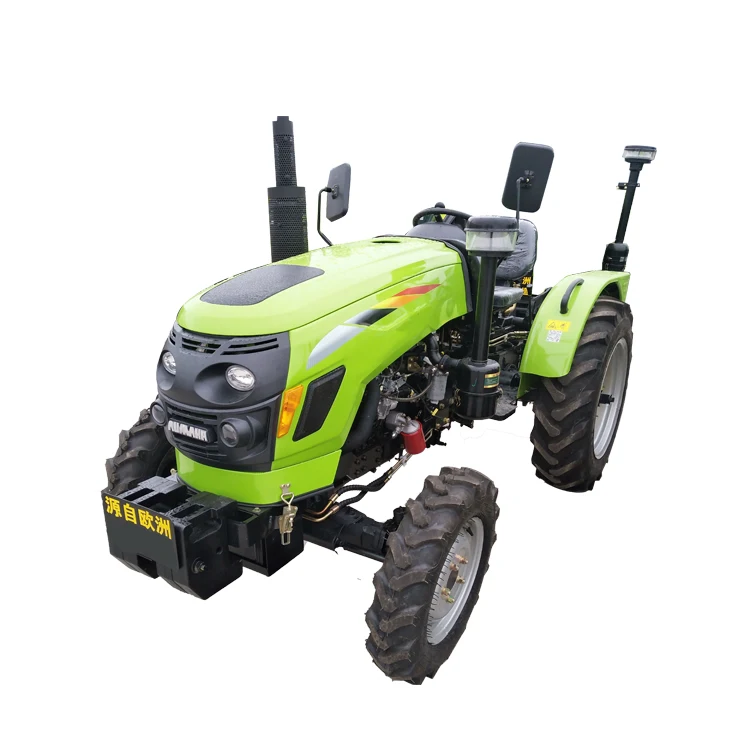

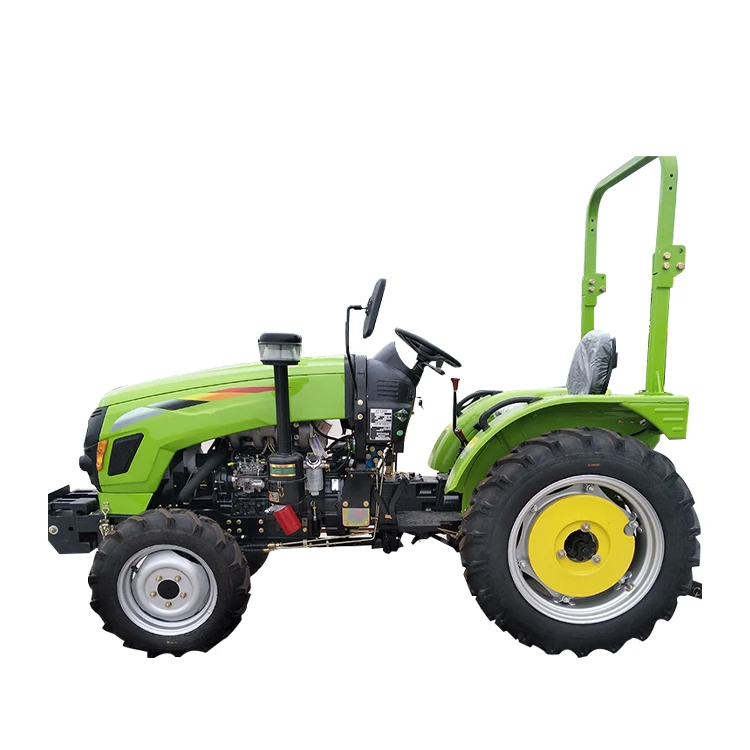

2019 Hot Sale Universal Agricultural Equipment 4wd cheap small Farm Tractor for sale
BIA tractor's advanced cabin is designed for enhanced comfort. All displays, levers, and controls, including those for audio and air conditioning, are strategically located on the right-hand console or around the steering wheel for easier access and intuitive operation.
main parts
Equip with heavy duty offset disc harrow,hydraulic disc plough,etc.
Work in paddy field and dryland.
| Model | BIA300 | BIA304 | BIA350 | BIA354 | BIA400 | BIA404 | |
| Type | Wheeled Type, 2WD | Wheeled Type, 4WD | Wheeled Type, 2WD | Wheeled Type, 4WD | Wheeled Type, 2WD | Wheeled Type, 4WD | |
| Dimensions(L.×W.×H. mm) | 3,250*1,450*2,030 | 3,455*1,515*2,040 | 3,700*1,615*2,130 | ||||
| Tread | Front Wheel (mm) | 1,200 (usual) /960 | |||||
| Rear Wheel (mm) | 960 / 1,160 / 1,200(usual) / 1,300 | 1,200(usual) / 1,300 / 1,400 | |||||
| Wheel Base (mm) | 1,715 | 1,835 | 2,010 | ||||
| Min.Ground clearance (mm) | 300(The bottom of transfer case) | 320(The bottom of front axle) | 325(The bottom of steering tie rod) | ||||
| Engine | Type | 4-cylinder, in-line, water cooled, four stroke | |||||
| Rated Power (hp) | 30 | 35 | 40 | ||||
| Rated Rev. (r/min) | 2,300 | ||||||
| Fuel | Diesel | ||||||
| Tire | Front Wheel | 5.5-16 | 6.0-16 | 5.5-16 | 6.0-16 | 5.5-16 | 6.0-16 |
| Rear Wheel | 9.5-24 | 9.5-24 | 9.5-24 | 9.5-24 | 9.5-24 | 9.5-24 | |
| Clutch | Dry-friction, single disc and dual-stage | ||||||
| Steering | Hydraulic Power Steering | ||||||
| Transmission Box | 8F+2R | 8F+2R | 8F+2R | 8F+2R | 8F+2R | 8F+2R | |
| Hitching Type | Rear mounted, 3-pointed linkage | ||||||
| PTO | Type and rev. (r/min) | Rear mounted, semi-independent, 540/720 | |||||
| Spline Size | I35 rectangle spline with 6 teeth | ||||||
| Model | BIA450 | BIA454 | BIA500 | BIA504 | |
| Type | Wheeled Type, 2WD | Wheeled Type, 4WD | Wheeled Type, 2WD | Wheeled Type, 4WD | |
| Dimensions(L.×W.×H. mm) | 3,340*1,590*2,020 | 3,515*1,635*2,130 | |||
| Tread | Front Wheel (mm) | 1,300 | |||
| Rear Wheel (mm) | 1,200(usual) / 1,300 / 1,400 | 1,200(usual) / 1,300 / 1,400 | |||
| Wheel Base (mm) | 1,800 | 1,920 | |||
| Min.Ground clearance (mm) | 320(The bottom of front axle) | 320(The bottom of front axle) | |||
| Engine | Type | 4-cylinder, in-line, water cooled, four stroke | |||
| Rated Power (hp) | 45 | 50 | |||
| Rated Rev. (r/min) | 2,400 | ||||
| Fuel | Diesel | ||||
| Tire | Front Wheel | 6.00-16 | 6.5-16 | 6.00-16 | 6.5-16 |
| Rear Wheel | 11.2-24 | 11.2-24 | 11.2-24 | 11.2-24 | |
| Clutch | Dry-friction, single disc and dual-stage | ||||
| Steering | Hydraulic Power Steering | ||||
| Transmission Box | 8F+2R | 8F+2R | 8F+2R | 8F+2R | |
| Hitching Type | Rear mounted, 3-pointed linkage | ||||
| PTO | Type and rev. (r/min) | Rear mounted, semi-independent, 540/720 | |||
| Spline Size | I35 rectangle spline with 6 teeth | ||||
