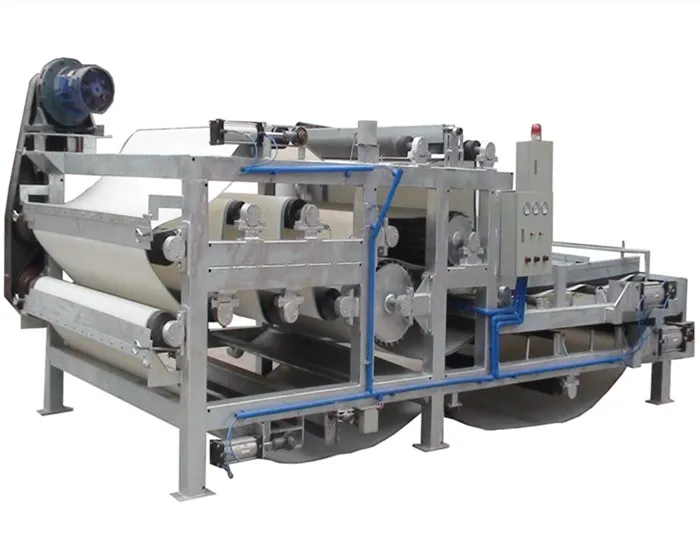

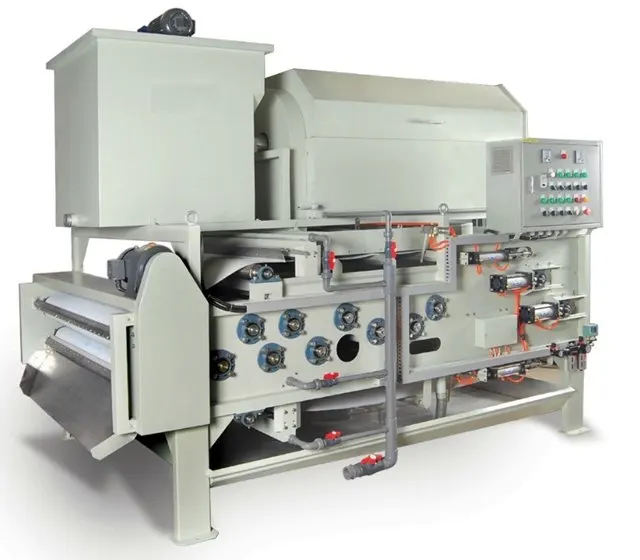

Ленточный фильтр пресс для обезвоживания осадка
- Category: >>>
- Supplier: Yantai Hexin Environmental Protection Equipment Co. Ltd.
Share on (62471993534):
Product Overview
Description
Video Description
Best Service
Strong technical foundation
The Hexin team is a rising star in the solid-liquid separation industry. We have deep technical reserves. We have a number of patents from the main body of the equipment to automatic control. We are experts in solid-liquid separation!
Continuous after sales service
From the time the equipment leaves the factory, we will continue to provide comprehensive service guarantee. Professional engineers will go to the site to guide the installation and commissioning of equipment, and provide free training for on-site workers. For the old customers, we are on standby 7×24 hours, ready to solve equipment failure problems for customers at any time.
Products Description
Product introduction

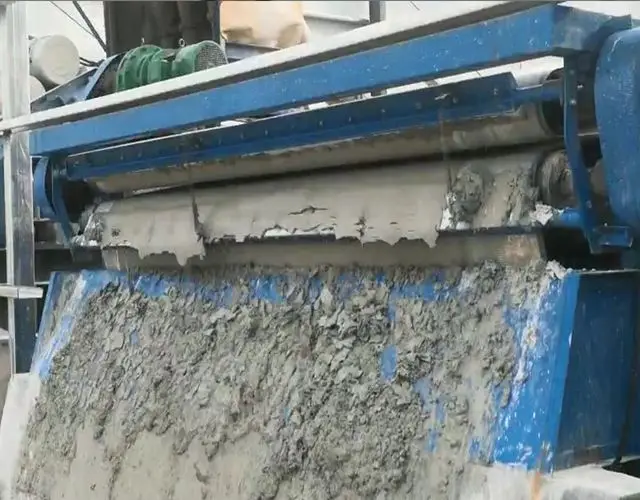

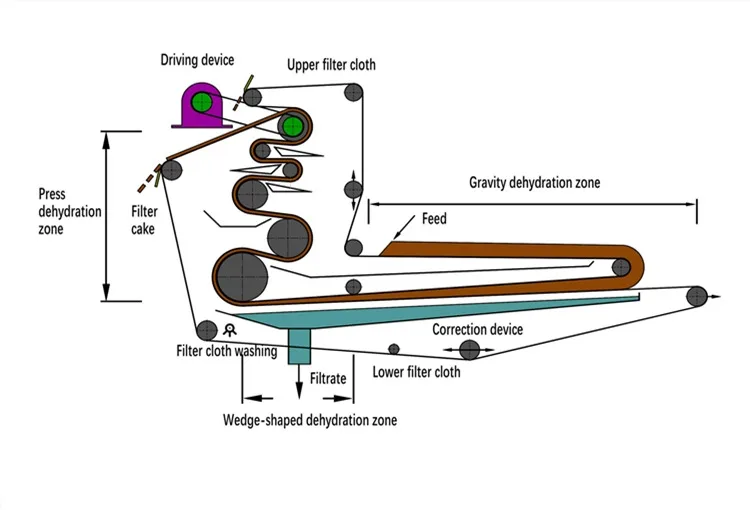

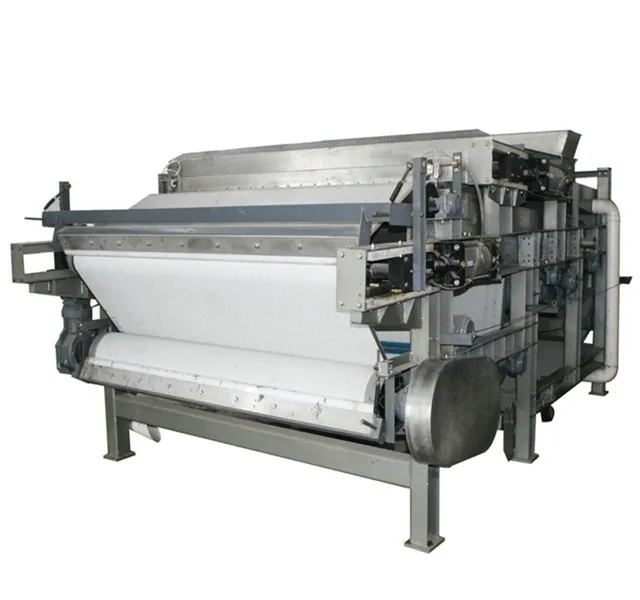

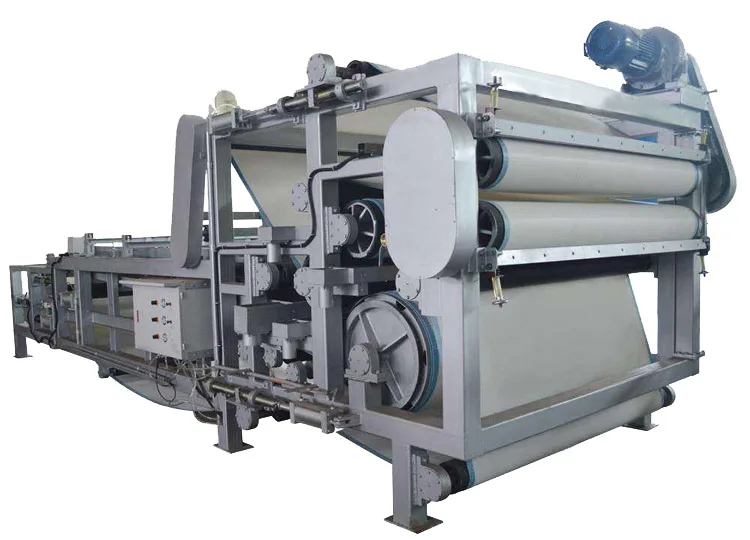

Sludge dewatering machine belt filter press is composed of a gravity dewatering section, a pressing section (several squeeze rollers), and upper and lower filter belts. This is a high-efficiency device, which can make full use of the material's gravity and the effect of repeated pressing rollers to form a shearing effect on the material, thereby achieving solid-liquid separation.
The material and flocculant are fully mixed and reacted, then flow into the gravity pre-dehydration section, and the material is filtered under the action of gravity. The material advances with the upper and lower filter belts. First enter the "wedge" press section, the material is dewatered under slight pressure; second, enter the "S" press area, the material is sandwiched between the upper and lower filter belts, and repeatedly pressed by several different caliber rollers to dewater the material. The dehydrated filter cake is removed with a scraper, the upper and lower filter cloths are moved forward and cleaned, and then re-entered the next work cycle.
1. The main body is made of stainless steel, which has high strength.
2.The equipment runs fully automatically for 24 hours
3. Large material handling capacity and low power consumption
4. Set air chamber type automatic deviation correction device to ensure stable operation of filter cloth.
5, strong product capacity, good washing effect, flexible operation, less water in the cake, low maintenance costs
6. The safety system monitors the entire working environment and automatically stops the device to meet the needs of operational safety.
2.The equipment runs fully automatically for 24 hours
3. Large material handling capacity and low power consumption
4. Set air chamber type automatic deviation correction device to ensure stable operation of filter cloth.
5, strong product capacity, good washing effect, flexible operation, less water in the cake, low maintenance costs
6. The safety system monitors the entire working environment and automatically stops the device to meet the needs of operational safety.
Product Features
Sludge dewatering machine belt filter press application:

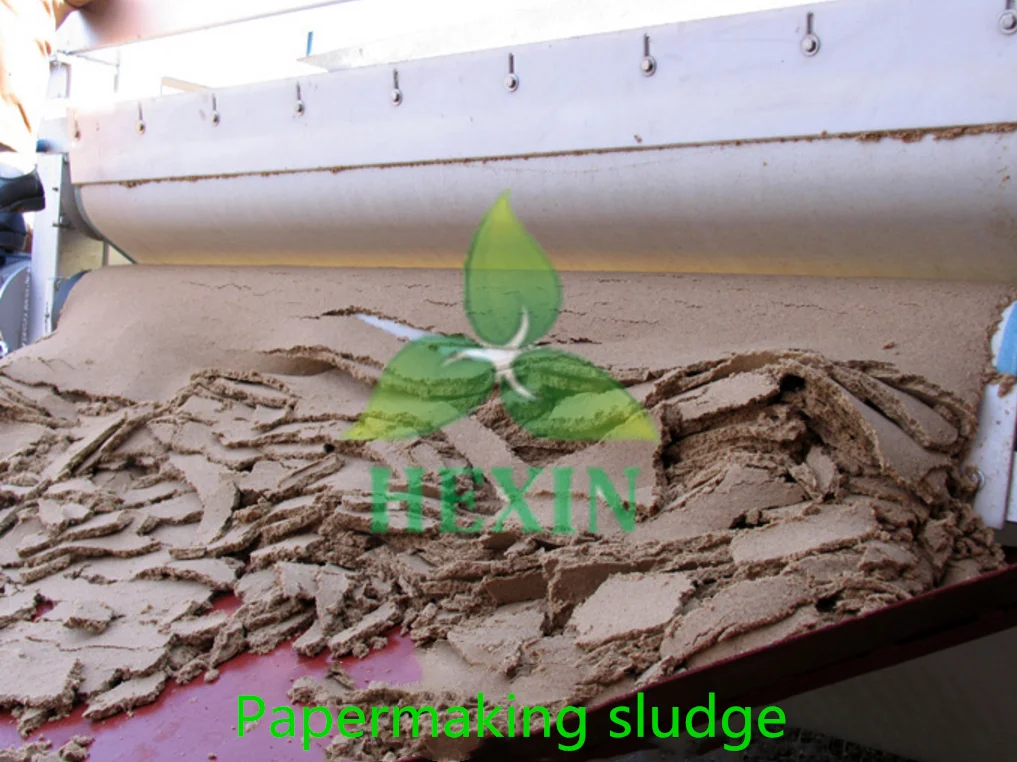

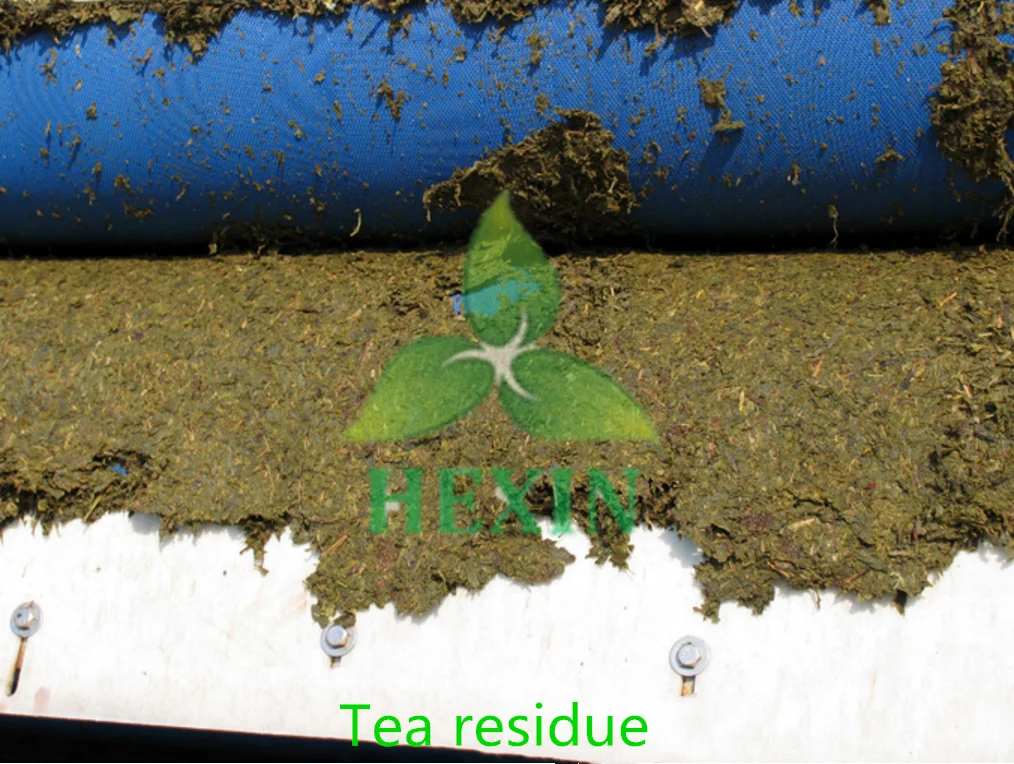

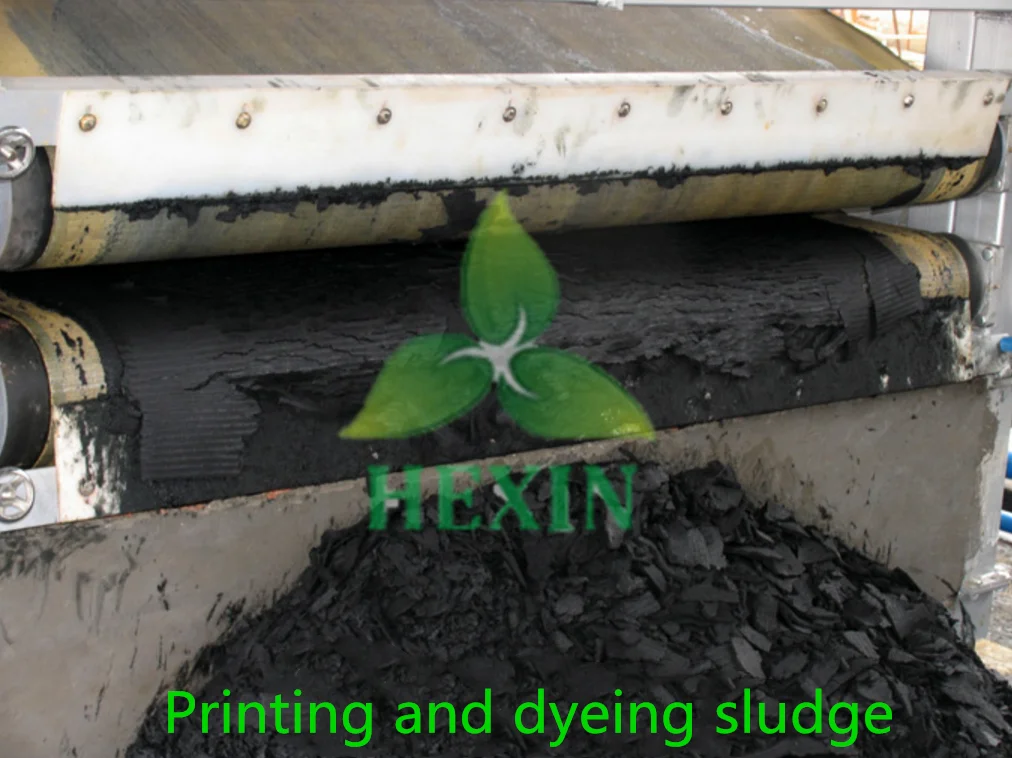

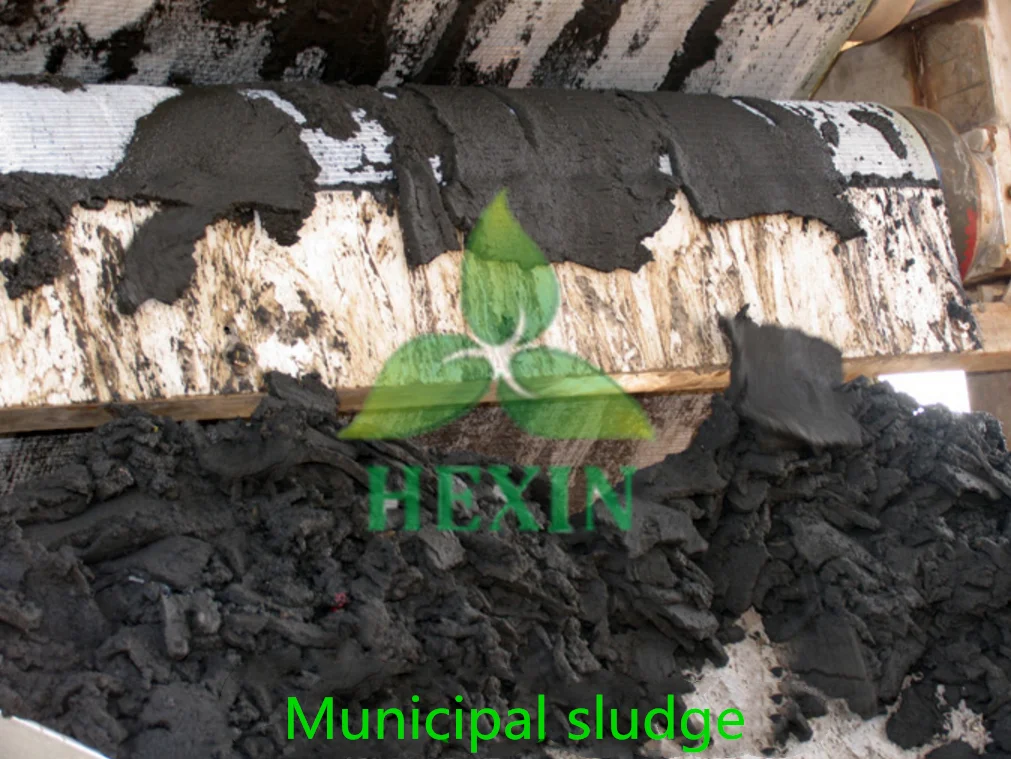

It has been widely used in papermaking, textile printing and dyeing, electroplating, petrochemical, tanning, food and other

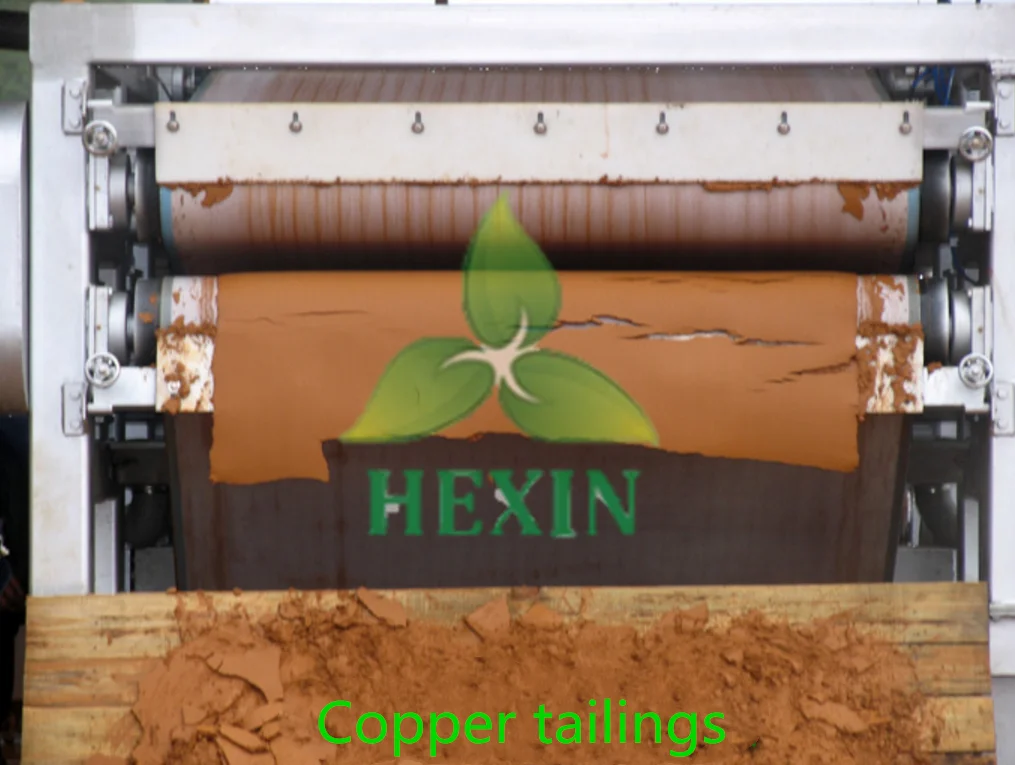

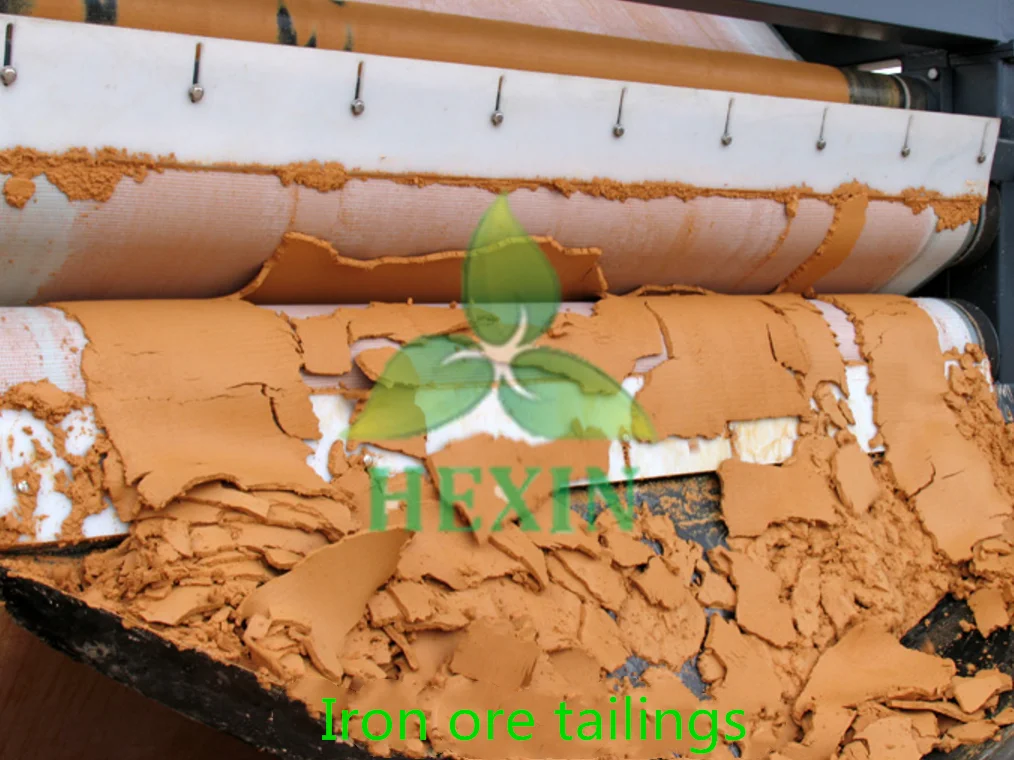

industrial wastewater and sludge dewatering in urban sewage treatment. It is also widely used in the dewatering of tailings instone, ceramic tile, coal, mining and other industries.
Details Images
There are many types of rollers used in belt filter presses, including drive rollers, squeeze rollers, filter cloth redirecting rollers, correction rollers and tension rollers.

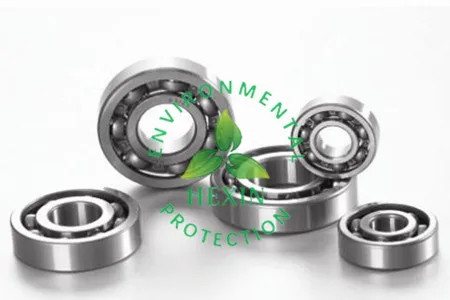

Bearing
Its main function is to support the mechanical rotating body, reduce the friction coefficient during its movement, and ensure its rotation accuracy.
The filter cloth correction device is composed of a correction airbag and a correction mechanical valve. When the deviation of the filter cloth hits the mechanical valve, the corresponding airbag expands, causing the correction roller to swing forward or backward, so as to achieve the purpose of correction.
Filter cloth can be customized according to the characteristics of the slurry. Material is divided into PP, PET and so on. The weaving process is divided into monofilament, multifilament and non-woven fabric.
Company and Factory
Yantai Hexin environmental protection equipment co., ltd is located in Yantai development zone, Shandong province。Specializing in the production ,R&D and sales of all kinds of filtering equipment. Company engaged in filter industry more than 20 years by an experienced team of production, research,development,sales and service,has a perfect product processing, quality assurance and after-sales service system, walking at the forefront of filter in industry.
Company’s main products are horizontal vacuum filter, ceramic filter, vertical filter press, high efficiency thickener, intelligent press filter, belt filter press, centrifuge, tubular filter and other equipment.It is widely used in chemical industry, mining, metallurgy, fertilizer, medicine, food, paper, sewage treatment, tailings treatment and other industries.
Company adhering to the " strives for the survival by the quality, credibility and development" business philosophy, to provide users with high-quality filtration equipment and perfect after-sales service, we sincerely welcome customers at home and abroad ,experts and friends to join hands in creating a better future.
Company’s main products are horizontal vacuum filter, ceramic filter, vertical filter press, high efficiency thickener, intelligent press filter, belt filter press, centrifuge, tubular filter and other equipment.It is widely used in chemical industry, mining, metallurgy, fertilizer, medicine, food, paper, sewage treatment, tailings treatment and other industries.
Company adhering to the " strives for the survival by the quality, credibility and development" business philosophy, to provide users with high-quality filtration equipment and perfect after-sales service, we sincerely welcome customers at home and abroad ,experts and friends to join hands in creating a better future.
Packing&Shipping
We have established a logistics department consisting of 10 engineers, which is responsible for packaging, loading and global overseas freight. We will make full preparations according to customers' packaging and transportation requirements. Make sure that the goods are delivered to customers safely and quickly.

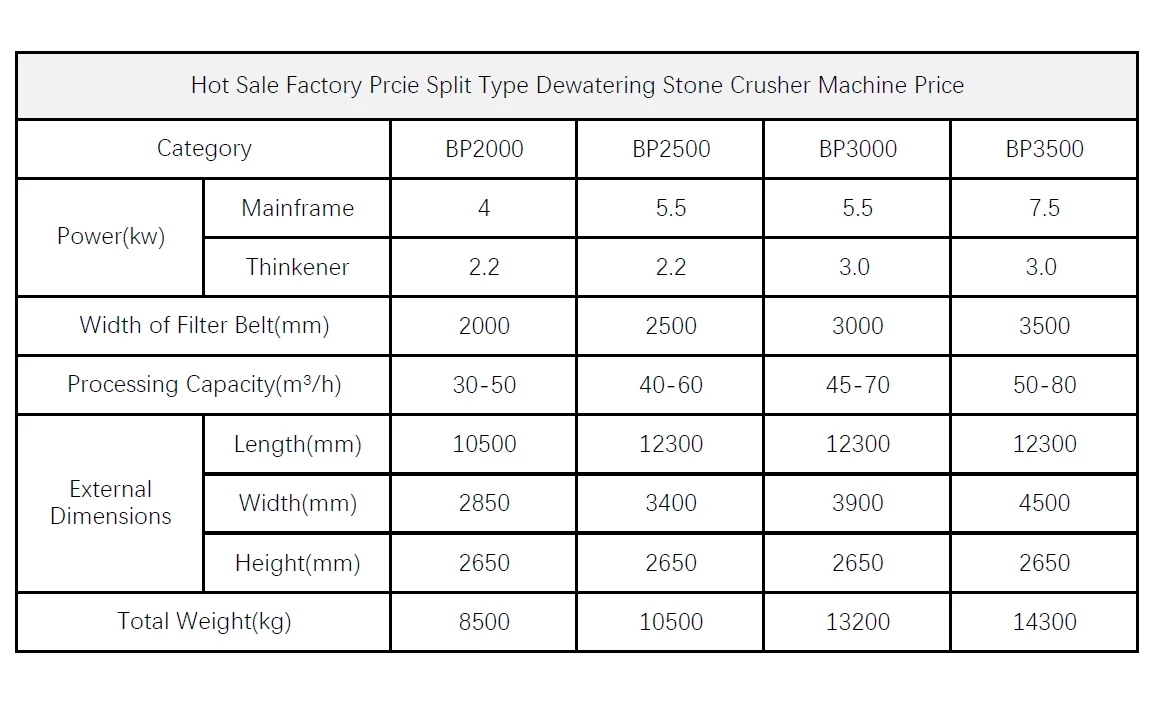

Product Paramenters
