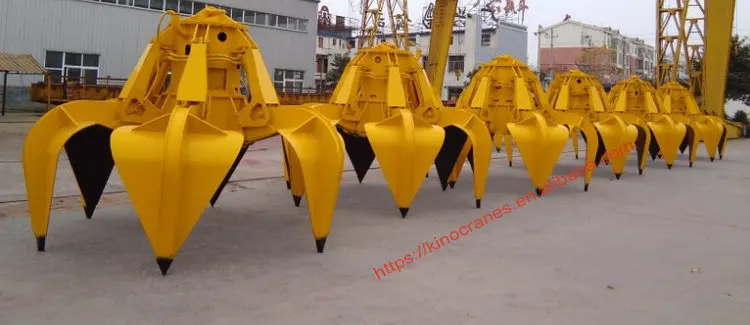

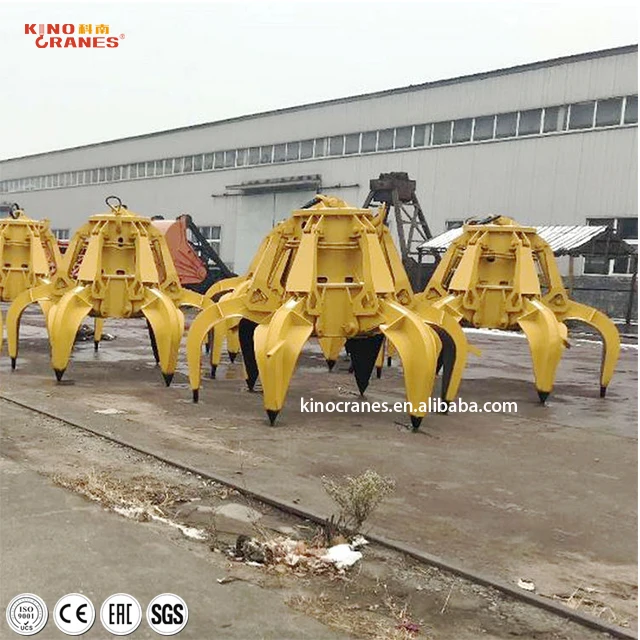

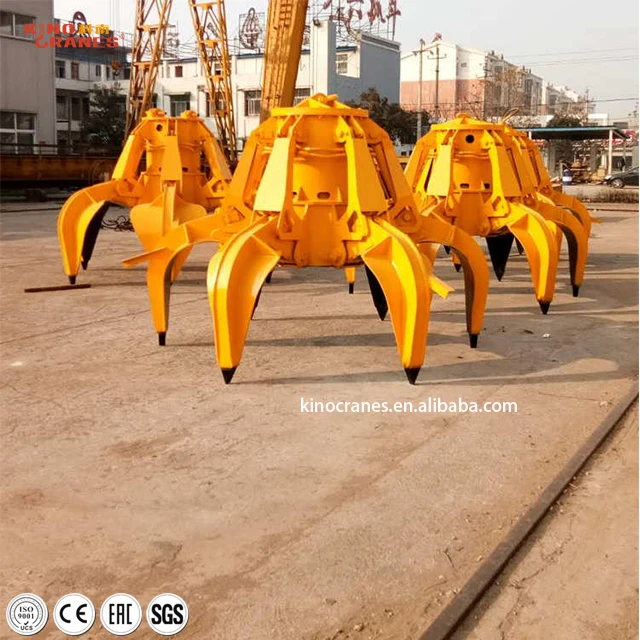

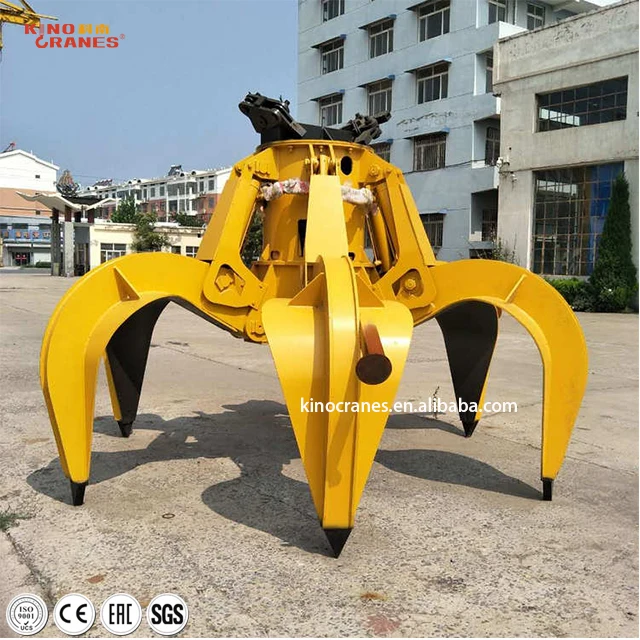

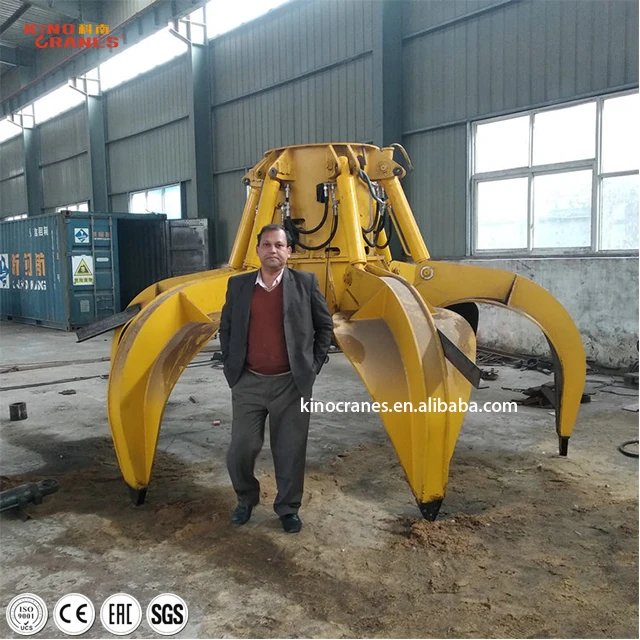

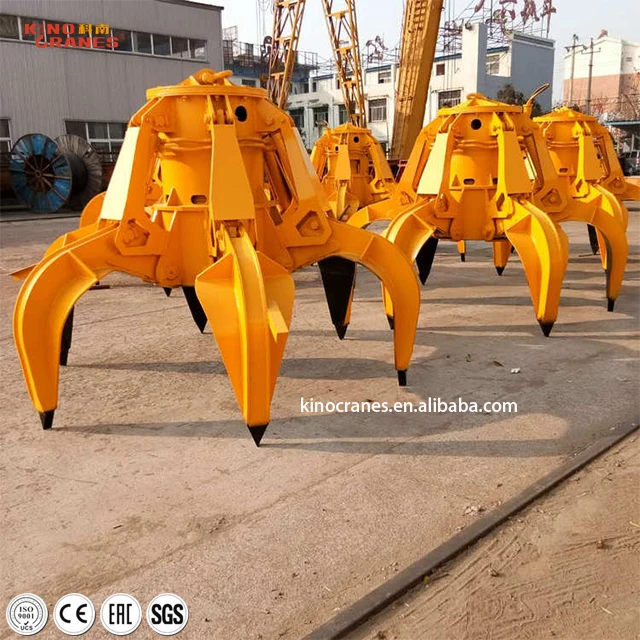

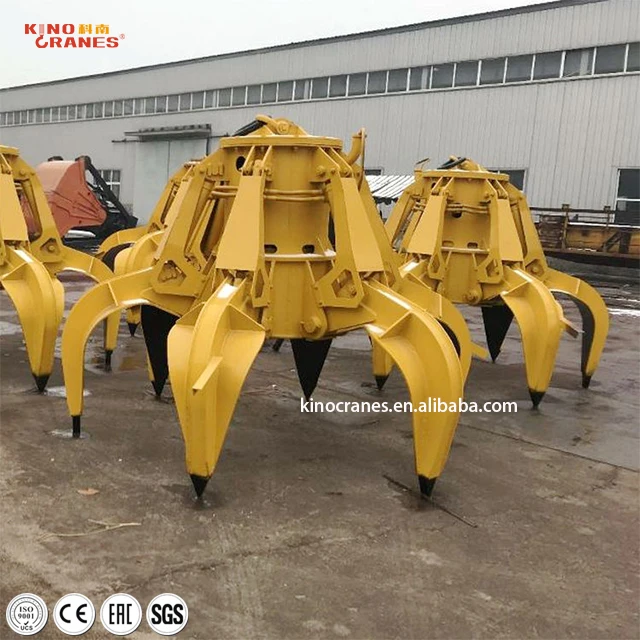

Steel Scrap Handling 10Ton Bridge Crane Using Hydraulic Type Orange Peel Grab

Product Overview

Description

Description:

Motor-Hydraulic Scrap Steel Grab has hydraulic power and control system itself, and the hydraulic power system is imported from Europe and USA. The grab uses constant output pump and servo system. The flow of pump can change by itself according to working pressure. When the pressure reaches the max pressure, the flow is almost zero, so it can reduce the overflow, and reduce the temperature rise of oil. The opening and closing is controlled by valves or positive inversion motor which ensures the grab can positive inversion rotate frequently. The grab can be designed as half-close or full-open type with long teeth. The peels of the grab are particular, it is easy to grab scrap steel. The grab has six or eight peels, and each peel is driven by an oil cylinder, so the material won’t leak. The grab has tie-in on the grab and it is easy to connect to the crane.

The motor grab consists of hydraulic system, steel structure and electrical parts. Hydraulic system: motor, hydraulic pump, valve, tank, and etc. steel structure: lifting eye, grab clamshell, etc. electrical parts: cable, electrical control, cable drum.

Type	Density	Volume	Grab Weight	Motor output  kw		Close time	Operating Pressure	Crane   SWL
	t / m3	m3	kg	380V 50Hz	440V 60Hz	s	Kg/cm2	t
DYP6-2.0-1.5-00	1.5	2.0	3000	11	13	11	220	6
DYP8-3.1-1.5-00	1.5	3.1	3300	15	18	13	220	8
DYP10-4.2-1.5-00	1.5	4.2	3600	22	26	17	220	10
DYP12-4.5-1.5-00	1.5	4.5	5200	22	26	17	220	12
DYP16-6.8-1.5-00	1.5	6.8	5800	22	26	18	220	16
DYP20-8.6-1.5-00	1.5	8.6	7000	30	35	18	220	20
DYP24-10-1.5-00	1.5	10	9000	37	44	20	220	24
DYP28-13-1.5-00	1.5	13	9500	45	54	20	220	28
DYP30-15-1.5-00	1.5	15	10000	45	54	22	220	30
DYP32-17-1.5-00	1.5	17	10500	55	66	23	220	32

Electro hydraulic grabs are widely used in ports, steel plants, power stations, ships and garbage treatment plants, and is used together with tower cranes, ship cranes, ship loaders, traveling cranes and other type of cranes.

Our Grab Advantages:

1. Our motor hydraulic grab feature high productivity, long life span and low costs.

2. Some parts, for example, cylinder bolts or clamshell bolts are never subject to change, if they are greased properly.

3. Lowest running costs per ton material transferred: good performance, high productivity, low maintenance cost, and high reliability.

4. We adopt imported brands for the design of main hydraulic system components, such as motor, valves, sealing and etc.

5. Our electric grabs have advantage of low operation height, variable displacement pump, powerful digging force, simple structure, easy operation, low noise, and stable in working under any circumstances.

6. The cylinder never gets rust.

7. The shells are available in open, half closed and closed versions and with every kind of possible opening direction and with diverse cable patterns.

8. The robust design of the electric grab is manufactured with high-tensile steel. It is lightweight, with excellent filling and digging and fast emptying capabilities.
