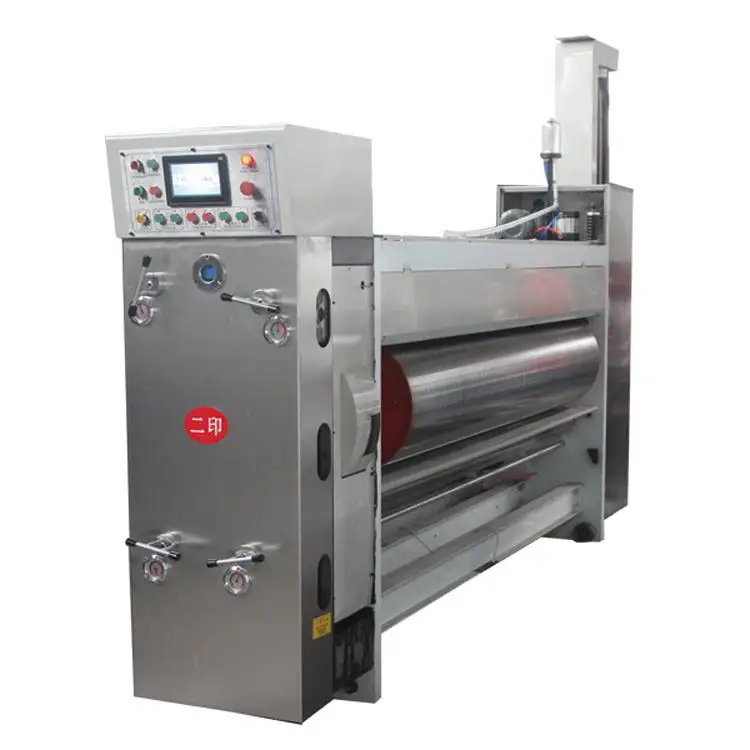

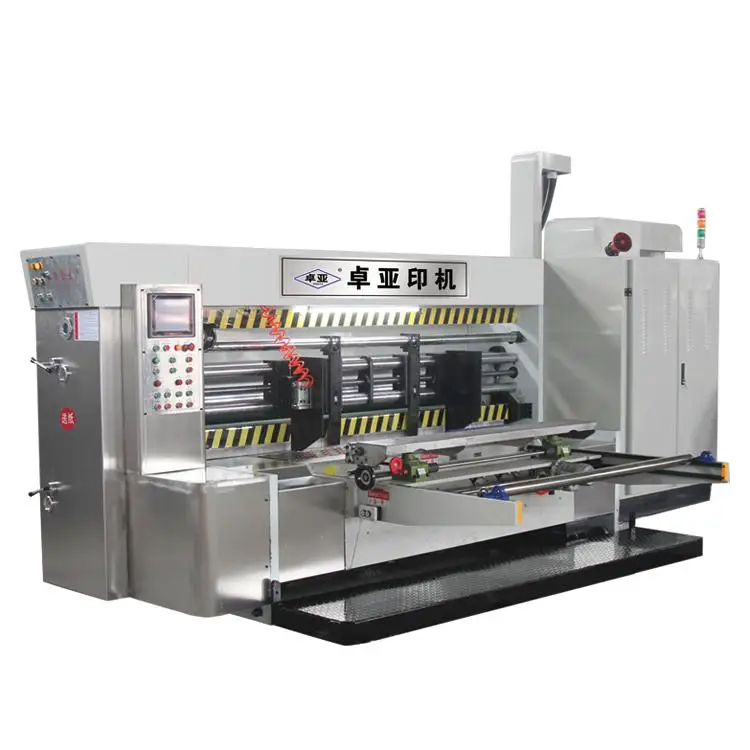

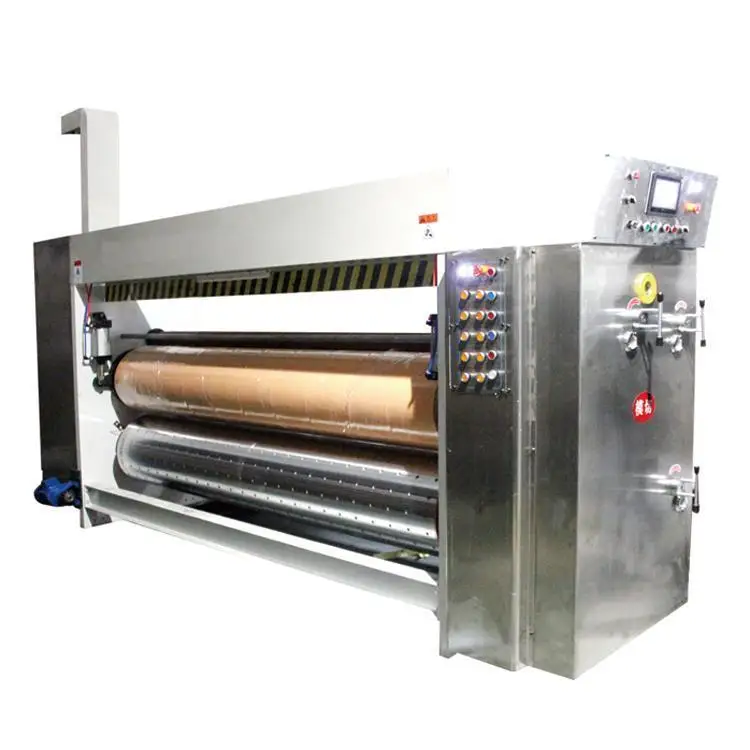

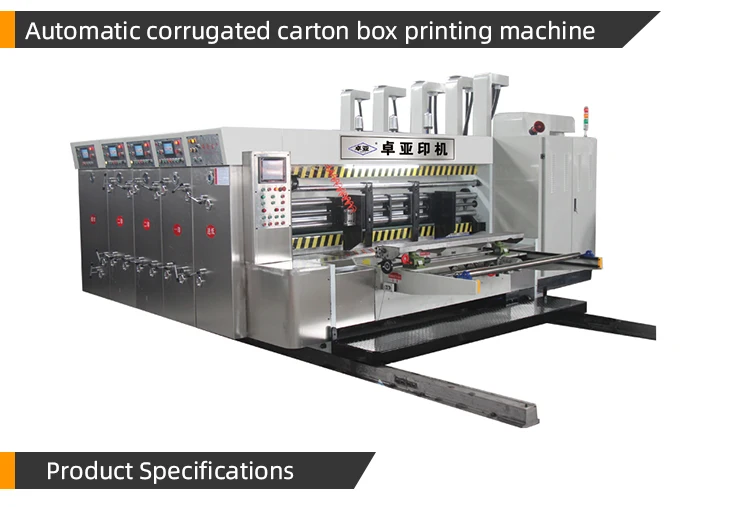

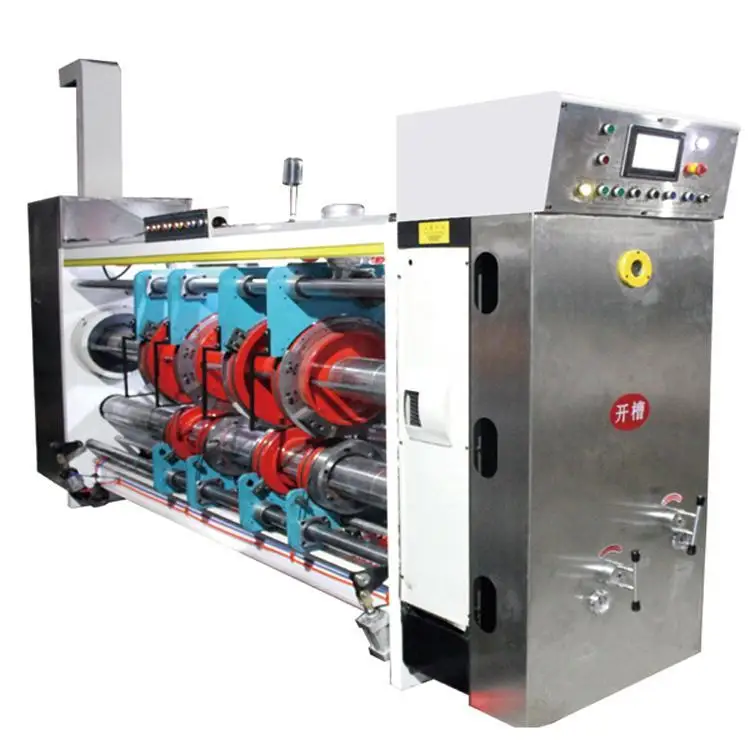

Printing&die cutting machine printing slotting for carton box equipment

Company name



Product description

Use and characteristics:

1. Vacuous adsorbing front feeding paper system, applicable to all kinds of flute profile.transfer smoothly;high speedly and precisely.

2. Frequency transformer devices have been adopted to use on the host, fans and phase adjustment.

3. The drive gear:20GrMnTi high frequency-quenched and carburizing done.

4. Cross-trundling roller driving system, no wear for long time using, ensure for transmission accuracy.

5. Free-keys connection style, roller connects with gear, ensure for registration accuracy

6. Blade-block can be traversed or the carton height can be adjusted, anti- collision device can ensure the safety of the machine.

7. Mechanical spray lubrication, pump circulating system for gears, make gear service life long. Auto-return function.

8. Function of storage of normal die-cutting orders, fast and efficient.



Model		900	1224	1424	1624
Max machine speed (pcs/min)		300	250	180	150
Max feeding size (mm)		900*2400	1250*2700	1450*2800	1660*2700
Max printing size(mm)		880*2000	1200*2400	1400*2400	1600*2400
Min feeding size(mm)		280*680	350*680	360*680	420*680
Max depth of slotting (mm)		230	300	300	410
Die cutting size (mm)		≤±1.5
Tinted precision (mm)		≤±0.4(4 colors )		≤±0.5(4 colors )
Printing plate thickness (mm)		7.2
Feeding thickness (mm)		2.5-12
Min slotting interval (mm)	Normal	160*160*160*160
	Reverse	300*60*300*60

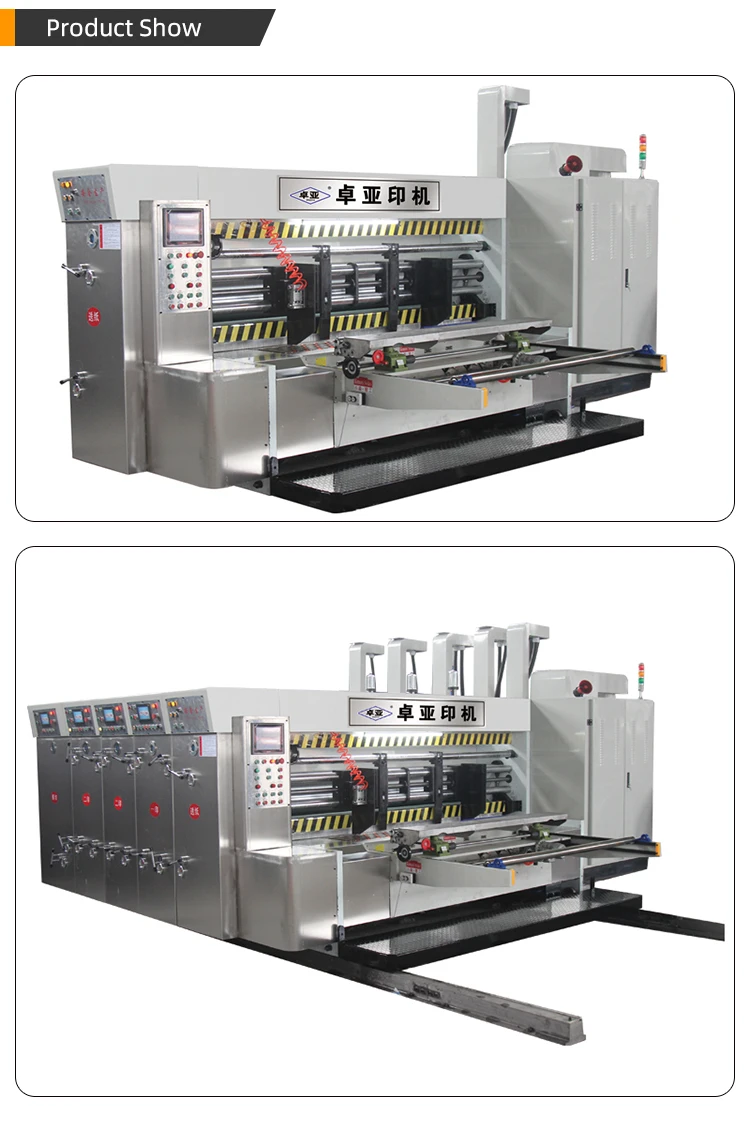

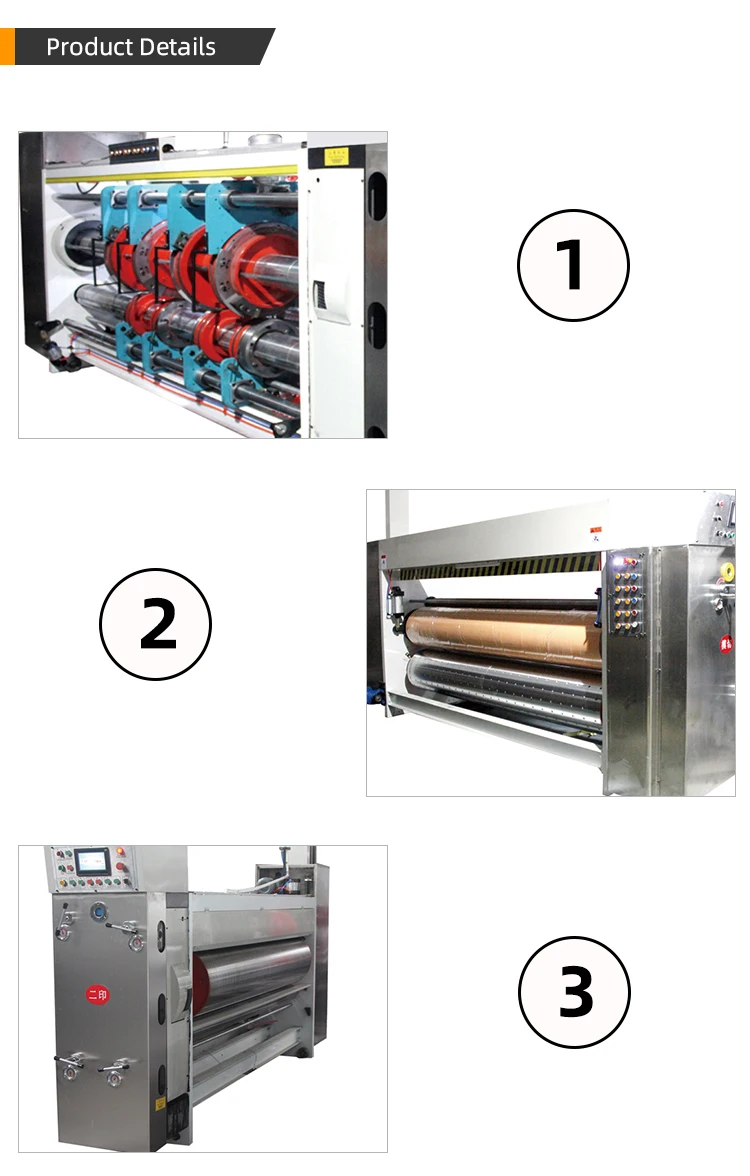

Products show



Finished product
