2 * 22KW Type 2 Socket Commercial Mode3 Evse Charging Station with Ocpp 1.6

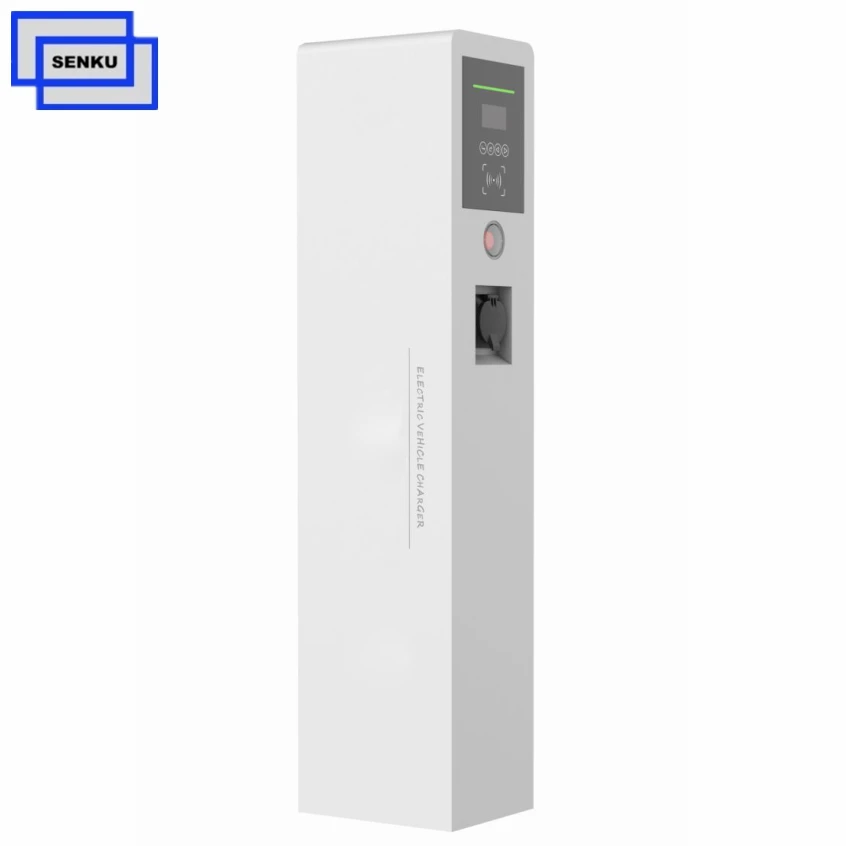

evse charging station

evse charging station

1) Basic data

Rated Voltage400V AC ±10%; 50Hz
Rated Current

2 * 32A  (Current can change to 16A by touch button on the ev charger)

Rated Power

2 *22 KW  ( 2 *11kw when the current is 16A )

Charging ConnectorType2 Socket
Plug Quantity2
Start  and Stop MethodRFID card
HMILED indicator light + LCD display screen + Touch button
InternetOCPP1.6 (JASON) ; Ethernet / 3G / 4G / Wifi
RCD Type A (30mA AC) + 6mA DC
MeterMID Certificated Meter
Housing MaterialGalvanized steel
ApplicationIndoor or Outdoor
Operation Temperature-30℃ ~ + 50℃
Working Humidity 5%~95% without condensation
Working Altitude <2000M
IP Level IP 54
Safety specificationConforms to the latest IEC 61851-1: 2017 and IEC 62196-2: 2016 standardards
ProtectionsOver/Under voltage, Overload, Short circuit Current leakage, Grounding, Surge, Over/Under temperature protection
Dimension & Weight 290*230*1200MM & 33KG





2) Features

1- Ocpp & Internet Ready.

OCPP1.6 (Jason) protocol supported, Internet 3G/4G/Wifi / Ethernet Supported



2- Simultaneously Charging Supported

  • Each side socket Independent operation, MAX charging 2 EVs simultaneously.
  • With 2 MID Certificated energy meter, ensure the dara precision.



3- Charging status indicate function

  • LED light to show whole charging process status.
  • LCD display screen will show the charging current / Voltage / Time etc..
  • Touch button for easy operate, and the current can change between 16A /32A by press touch button.

4- RFID Card Function support

  • Only authorized RFID Card can change, can effective prevent theft of electricity.
  • Smart Phone scan QR code charging support



5-Safety and Reliable

  • More than 9 aspect protection.
  • RCD TypeA + 6mA DC protection, it is safety for uses and Evs.
  • More then 15years long design life
  • IP 54 Protection Level, install both indoor and outdoor
    Comply IEC62196-2:2016 and IEC61851-1:2017 standards

6-Charging all EU market iec62196 type2 Evs. Widely application:

a) Parking lot ; b) Restaurants; c) Commercail Centre; d) Destinations; e) Fleets; f) EV charging station site etc

3) Application

this charger suitable for the Electric model:

Audi A3 e-tron, Audi Q7 e-tron, bmw 225xe, BMW 330e, BMW 530e,BMW 740e, BMW i3, BMW i8, BMW X5, Hgundai IONIQ, Hgundai KONA, Jaguar I-PACE, Kia e -Niro, Kia e-Soul, Kia Niro, Kia Optima, Mercedes B250e,  Mercedes C350e, Mercedes GLE 500e, MG ZS EV, Mini Countryman, Porsche Cayenne E-Hybrid, Porsche Panamera 4 E-Hybrid, Range Rover, Renault Kangoo, Renault Zoe, Smart EQ, Tesla Model 3, Tesla Model S, Tesla Model X, Toyota Prius Plug-In Hybrid,  Vauxhall Corsa-e, Volkswagen e-Golf, Volkswagen e-UP,  Volkswagen Passat Estate, Volvo S60 PHEV, Volvo V60 PHEV, Volvo V90 PHEV, Volvo XC60 PHEV, Volvo XC90 PHEV etc.....



4) Company Info.

Senku Machinery EV charging station is strictly design and produce according to the CE and IEC 61851 standards. We choose the international high quality components as raw material, ensure the charger stable performance, safe and the long service life of the charger. Instead of using the inferior components. Because poor quality EV charger will bring many additional invisible operation and maintenance costs.

Especially for EV operators,once the EV charging station installed, it will serve many electric vehicles, so a stable & secure and real high efficiency charging station is important, so we always believe one good quality charger can bring more profit.

WE BELIEVE IN

ONE GOOD Quality Charger> N Poor Quality Chargers

evse charging station

RFQ

1-What payment terms you accept?

We support TT, L/C, Western Union, Credit Card, Alibaba pay etc...



2-How long is the warranty time?

Charger with 12 months warranty.

Each ev charger we will do charging and function test before shipping to ensure each charger you get all in good performance.

What's more, during the warranty time, if the charger with any fault caused by quality, we will free to provide you a new one.



3-Can i put my brand logo on charger?

Yes, we support OEM and ODM production. We can put your trademark on the ev charger box and plug, but MIQ order quanity should be more than 50pcs.



4-I want charger with cable, can you support me?

yes, please contact us, we can make for you.



Note: if there is any other questions, please contact us to know more.
