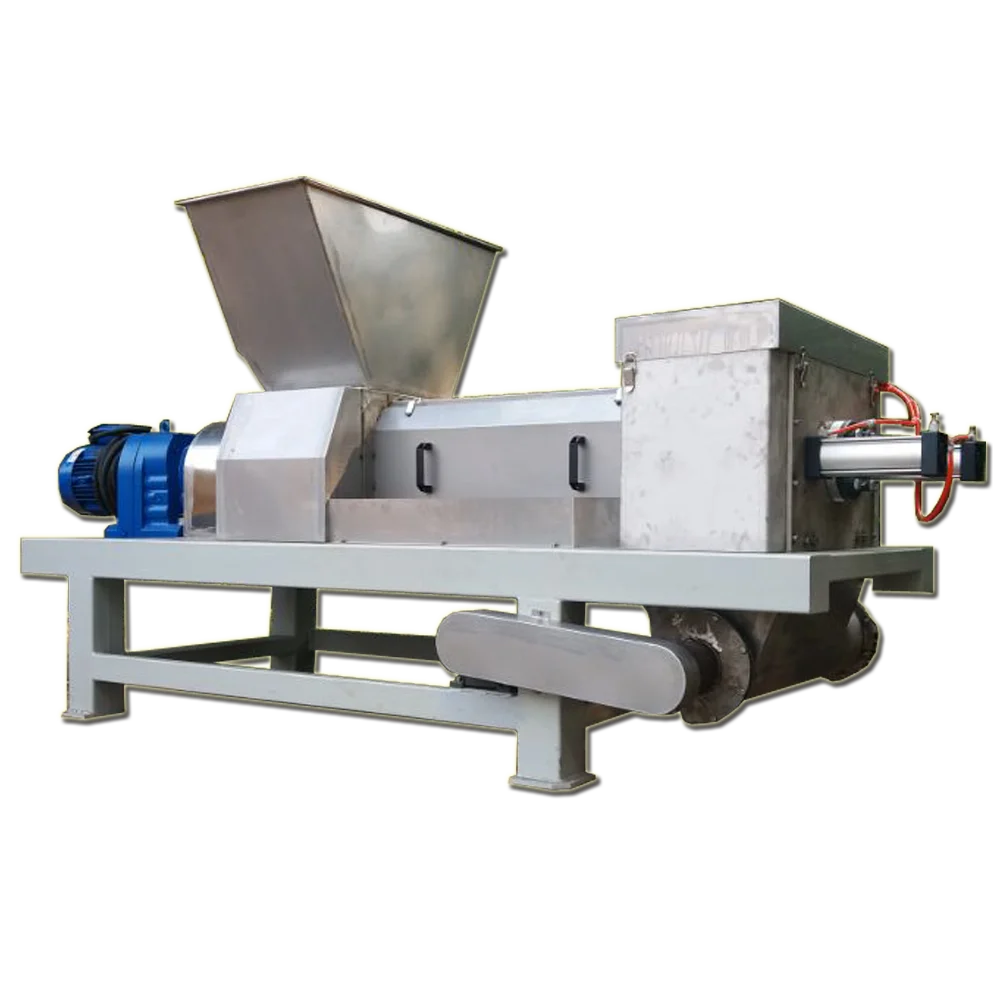

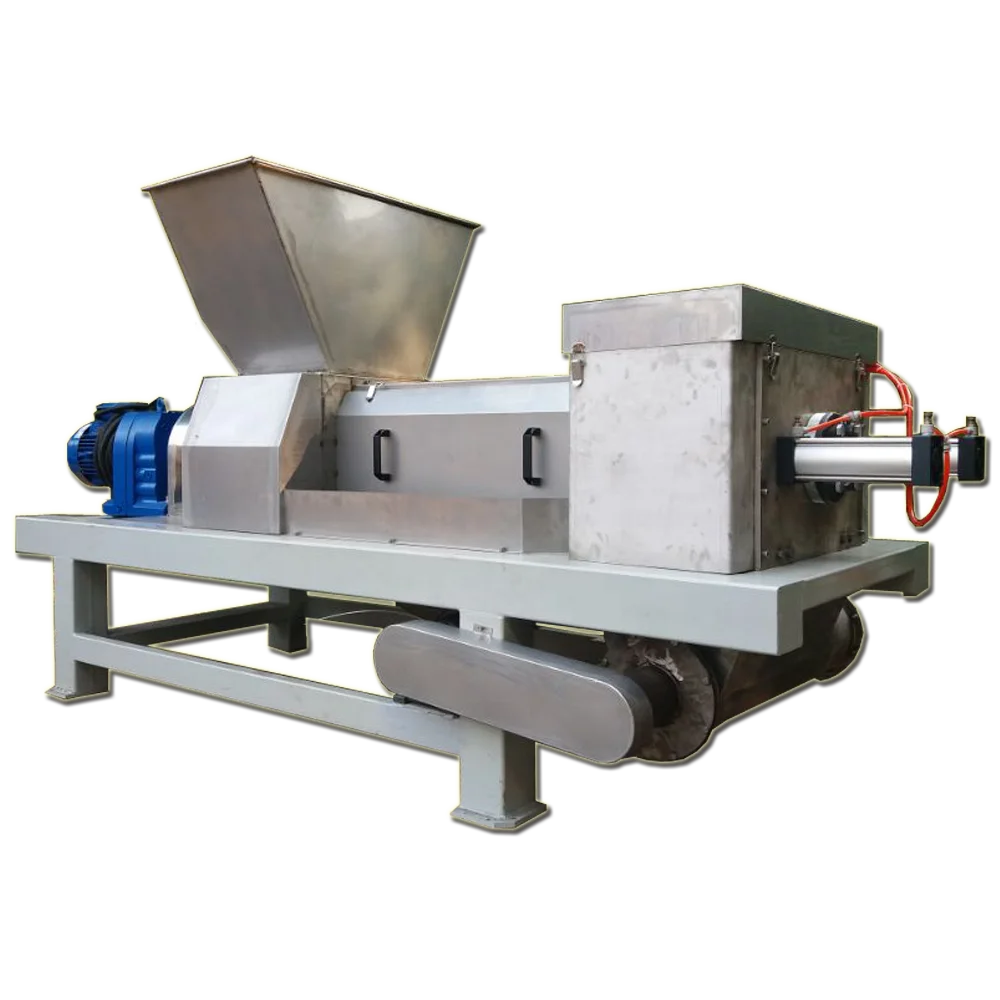

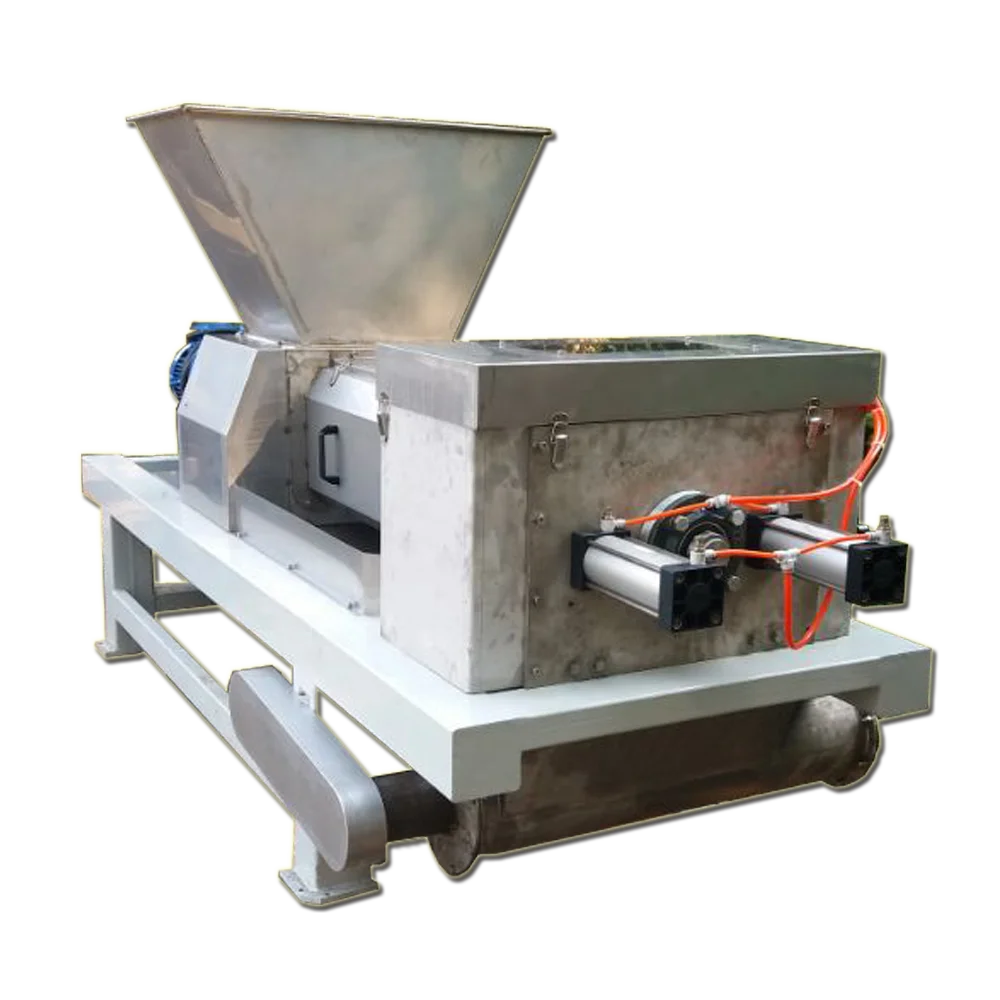

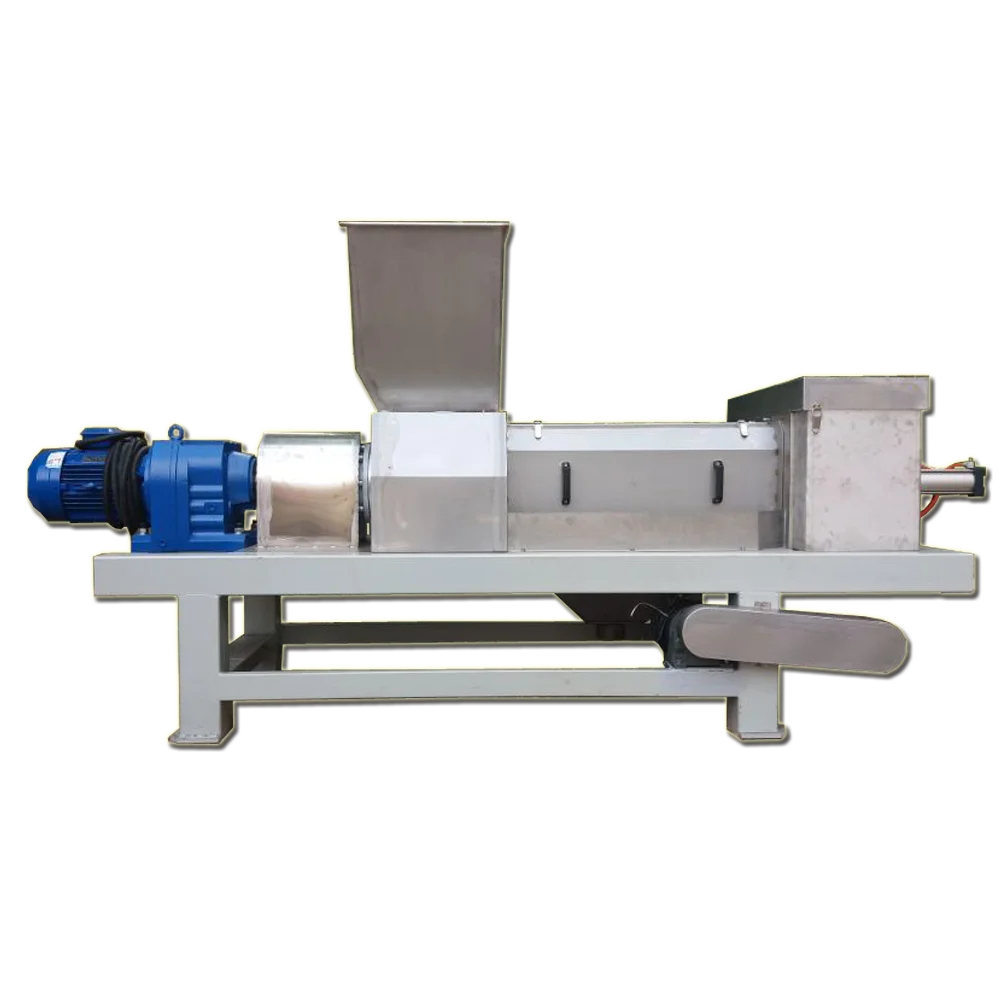

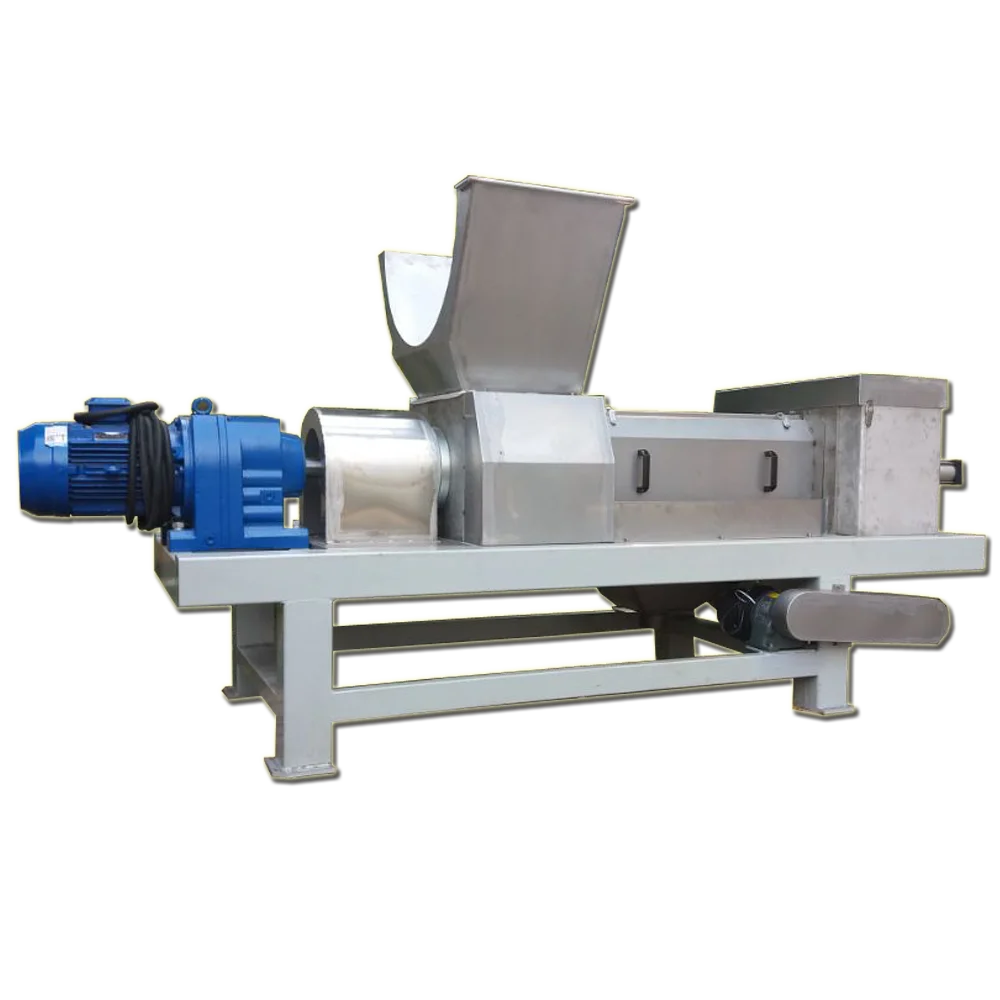

Dewatering Screw Press for Water Hyacinth Dewatering
Timo specializes in the design, engineering and manufacture of dewatering screw press for water hyacinth dewatering. These are machines that squeeze liquid out of waste hyacinth waste material, operating in a continuous (not batch) mode. Water Hyacinth Waste dewatering screw press can be used in an extremely wide variety of liquid-solid separation.High-capacity, sanitary press for continuous dehydration and juicing of water hyacinth and food products,independently driven rotor and regulated cone section provides instantaneous pressure regulation to give just the right squeeze to the material.We offer small screw press with Φ240 mm on up to big model 6 tons/hr with screws that are Φ 400 mm in diameter.
Dewatering Working Principle

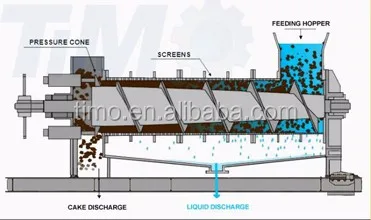

As the animation on the right, the working principle of screw press is that squeezes the material against a screen or filter and the liquid is collected through the screen for collection and use.It is a simple, slow moving mechanical devise that accomplishes dewatering by continuous gravitational drainage. Different materials require different screw speeds, screw configurations, and screens, we are able to design a screw press that is best for you.
Product Feature
Model | MSD240 | MSD320 | MSD400 |
Machine Power KW | 7.5+0.75 | 11+0.75 | 18.5+1.5 |
Screw Diameter mm | Φ180 | Φ320 | Φ400 |
Shaft Speed rpm | 16~25 | 16~25 | 10~20 |
Inlet size mm | 400x400 | 600x600 | 650x750 |
Outlet size mm | Φ240 | Φ240 | Φ400 |
Machine size mm | 3100x800x1400 | 3600x950x1450 | 4300x1300x1650 |
Capacity Kg | 1000~2000 | 2000~4000 | 4000~6000 |
Machine Weight kg | 1200 | 2000 | 3200 |
Water Hyacinth Dewatering Screw Press Feature:
♦ Stainless steel welted parts for abrasive waste and residues.
♦ Peak values in dry matter content.
♦ Heavy duty construction.
♦ Hydraulic back-pressure cone devise
♦ Two-piece screen design allow for easy cleaning and maintenance
♦ Can accept widely varying flow rates
♦ Custom Designed for Every Application
♦ Easy to install and operate.
Application Picture
Water Hyacinth Waste
Water Hyacinth waste shredding and dewatering to make compost.
Organic Waste
Fruit & Vegetable from supermarket shredding and dewatering.
Vegetables dehydration
Stainless steel wetted parts for abrasive vegetable residues.
