Product Overview
Description

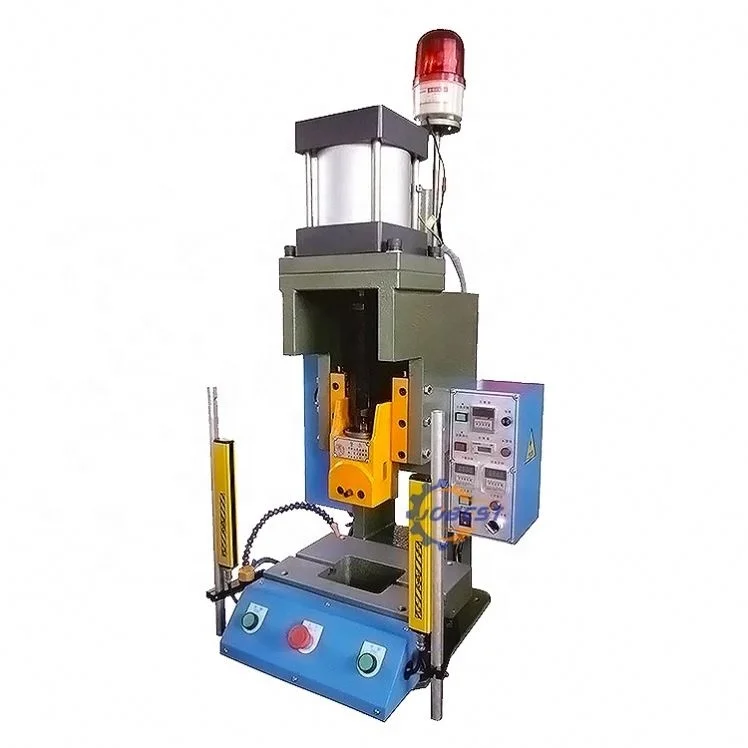

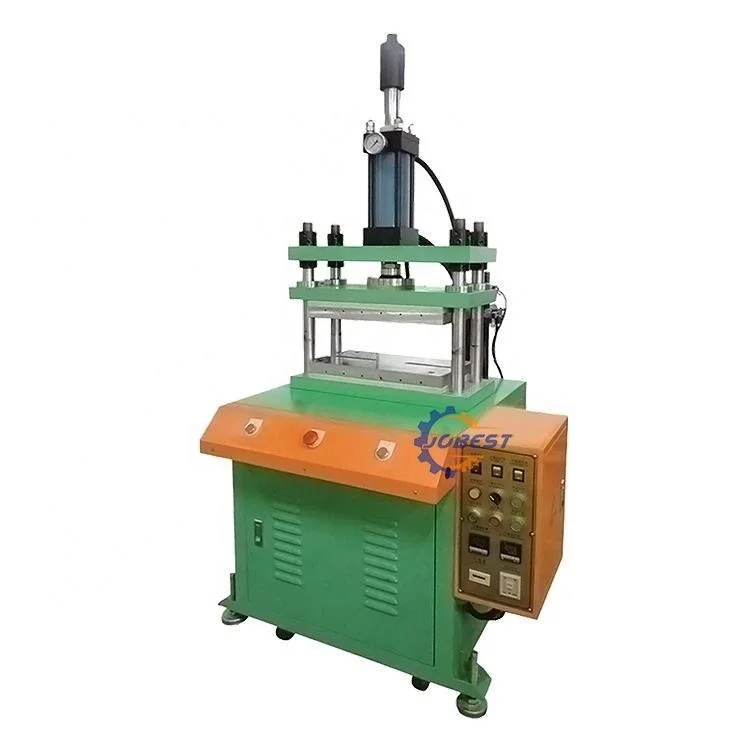

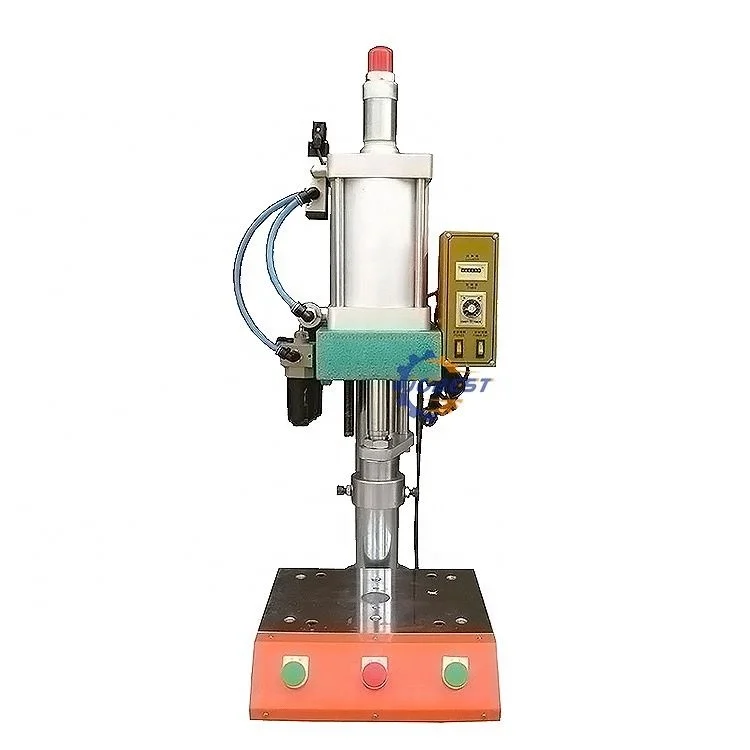

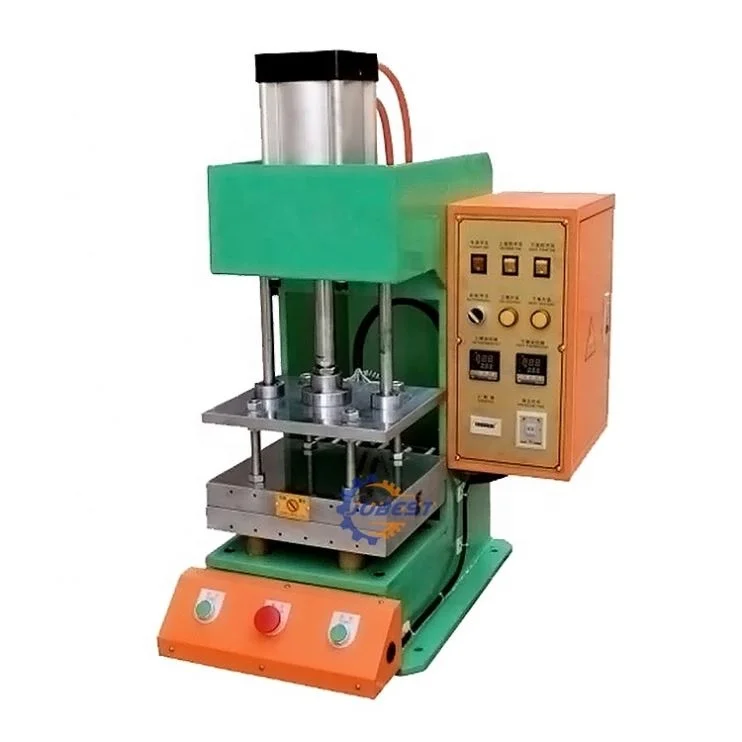

small hydro pneumatic presses aluminum forging machines
Feature:
- The upper and lower pressure plates generate heat independently, and the temperature control is accurate;
Equipped with high pressure cylinder, the pressure can be adjusted constantly;
The body is made of steel plates, and the working surface is electroplated, which is beautiful and durable;
Two-hand operation, with emergency stop button, safe and efficient;
Optional working table (length 650x width 550x height 700mm).
Scope of application:
- Various PC, PVC, PET film switches, horn rubber films and other concave and convex surfaces are hot stamped and formed, and thin films are heat-bonded and crimped, which is suitable for the production and use of hot-pressed products.
Precautions:
- Proper use of hydraulic press machinery and equipment, careful maintenance and strict compliance with safe operating procedures are necessary conditions to extend equipment life and ensure safe production.
- Maintenance
1. The oil used in this machine must be strictly filtered before being filled into the oil tank, and its oil level cannot be lower than the oil indication.
2. The oil tank is cleaned and replaced with new oil once a year. The first oil change time should not exceed six months. The oil can be re-filtered and used again.
3. It is recommended to use N46 anti-wear hydraulic oil or N46 low condensation hydraulic oil.
4. Check the pressure gauge every six months.
5. When the machine is stopped for a long time, wipe the exposed processing surfaces clean and apply anti-rust oil. - Safe operating procedures
1. Those who do not understand the structure performance and operating procedures of the machine should not start the machine without authorization.
2. If you find that the machine has a serious oil leak or an abnormal phenomenon (unreliable movement, loud noise, vibration, etc.), stop the machine immediately to check and analyze the cause, and remove the fault to prevent the machine from running sick. Otherwise, the consequences are at your own risk.
3. During the work of the machine, it is not allowed to overhaul or adjust the mold.
4. It is strictly forbidden to use overload and partial load.
5. It is strictly forbidden to use the cylinder over-travel and over-pressure.
| Model | Nominal Pressure(kn) | Heating Table(mm) | Cylinder Strokem(m) | Opening Height(mm) | Working Pressure (kg/cm2) | Hot Melt Tme (S) | Teperature Range(°C) | Heating Tube Power( KW) | Voltage (V) | Weight (kg) |
| 1T | 10 | 300x250 | 150~180 | 4~7 | 0~99 | 0~99 | Room temperature~250±1 | 3.6 | 380 | 160 |
| 1.5T | 15 | 300x250 | 150~180 | 4~7 | 0~99 | 0~99 | Room temperature~250±1 | 4.8 | 380 | 210 |
| 2T | 20 | 300x250 | 150~180 | 4~7 | 0~99 | 0~99 | Room temperature~250±1 | 4.8 | 380 | 250 |
1. WHY CHOOSE US - JOBEST GROUP?
Pre-sale:
(1) Regarding your demands, the best suitable machine will be recommend you, the customized machine also support;
(2) Regarding your country requirements, some certificates will supply to help you clearance. Like CE,CO, FORM-A, FORM-E, FORM-F, original certificate signed by Embassy.etc.
(3) All the machine will be tested before delivery, and we will take the video and pictures to you. When you receive it , it can work directly.
After-sales
(1) We will supply all the control system and software operate manual,so you can operate the machine easily refer it.
(2) All the machine problem , you can ask me any time , we will help you solve by online way ,or tel,email,remote video at first time ,if all these can’t solve your problem , our engineer will go to your factory to help you on spot.
Welcome to our factory for learning how to operate machine ,one professional engineer will together with you , this service for free.
2. Guarantee
One year for whole machine , any parts except consumables broken regarding machine quality within one year,We will send you the parts for free.
3. Are you factory or trading company?
We are factory in an industrial town near Shanghai city.
4. What shall we do if don't know how to operate your machine?
We can arrange our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached. It's very simple, we have telephone and Email support at 24hours per day.
5. What are your payment terms?
We support T/T, Western Union and so on. Other ways can also be accepted after we both sides' discussion and agreement.
