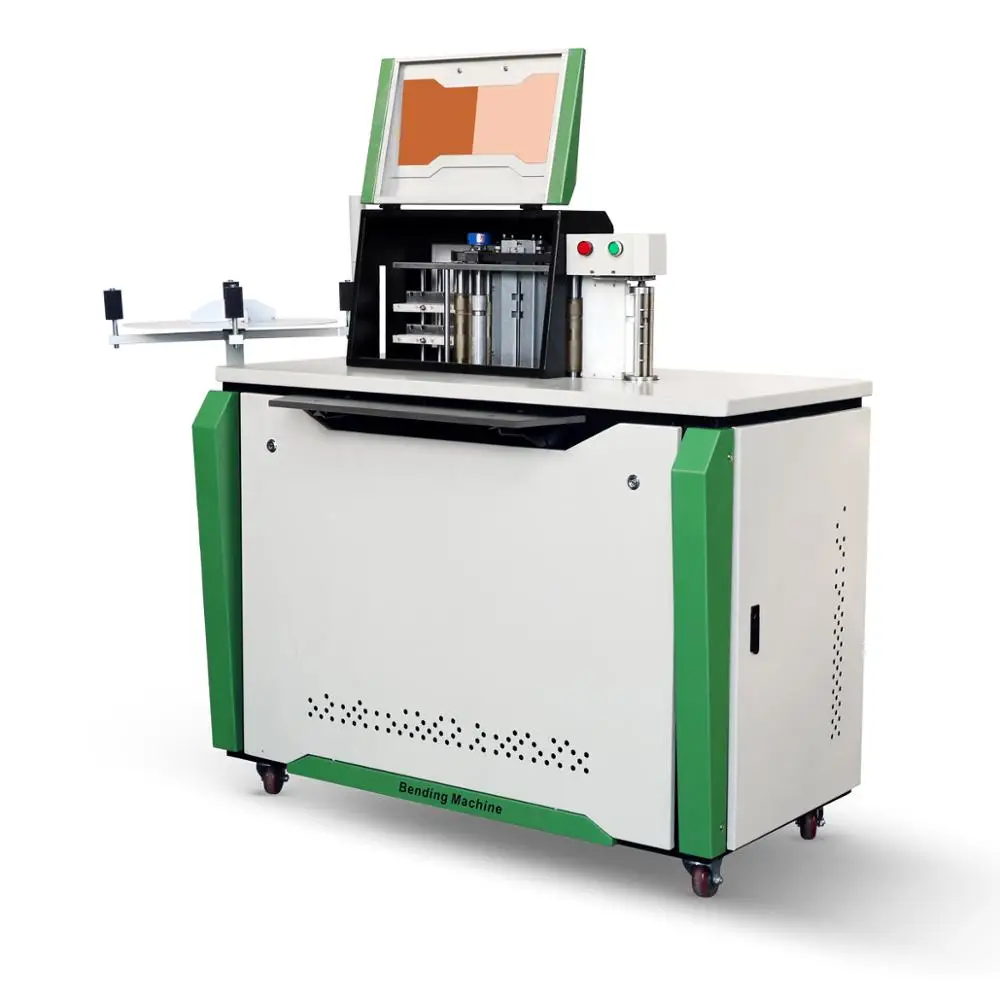

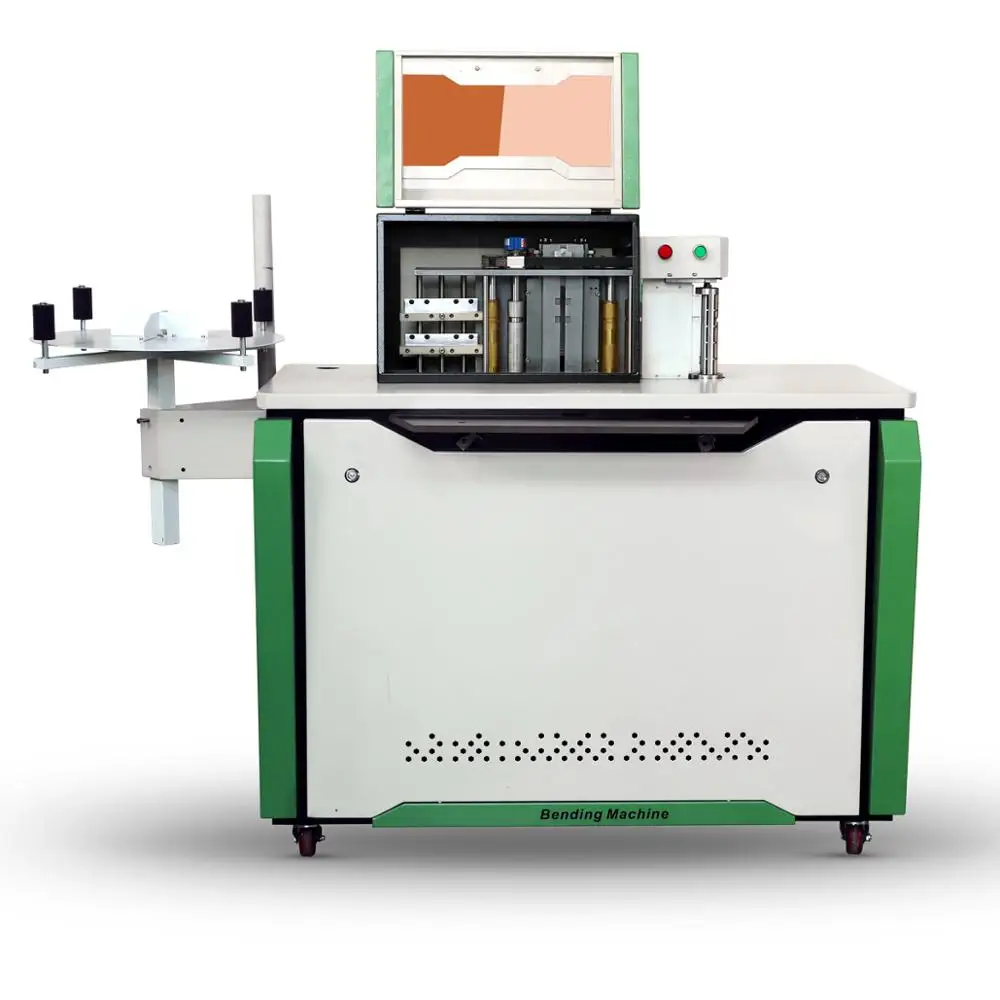

Automatic CNC Aluminum Channel Letter Fabricating Bending Machine
- Category: >>>
- Supplier: Shandong Dahe Machinery Technology Co. Ltd.
Share on (62472832824):
Product Overview
Description
5150 Aluminum Channel Letter Bender Introduction
5150 Channel Bender Machine Parts Details

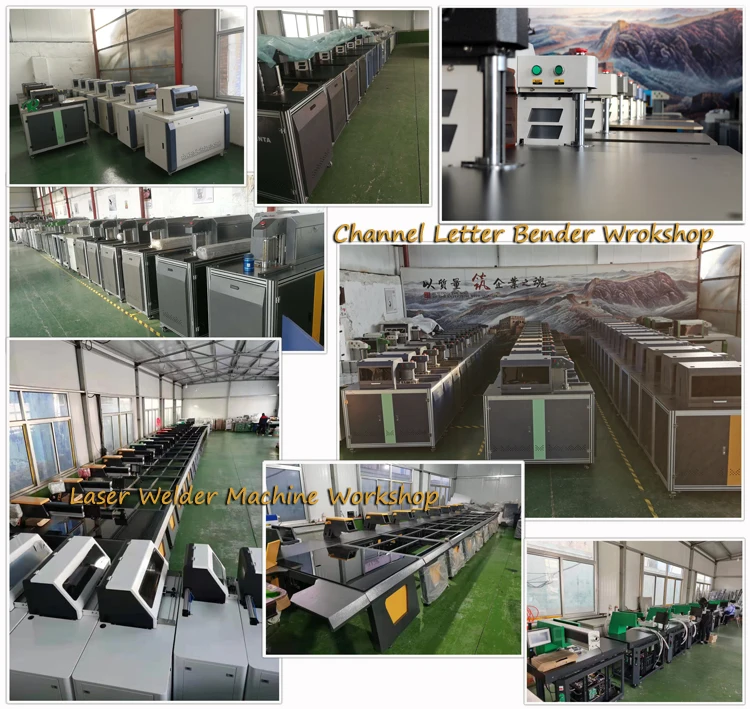

Cooperated with national and international reliable reputation enterprises and research institutions. to make sure that we could supply the good machine professional team to service our customers.
5150 Channel Bender Application
Available Materials: Flat Aluminum and Aluminum with pre-designed shapes.
Good for outdoor and indoor sign fabrication
Available on aluminum sign, signbox, resign signs, supper letters, 3D Signs, Logo, Channel Letters; Can make any shape, any font, and any language. Outdoor and indoor sign making.
5150 Channel Bender Parameters
5150 Channel Bender used for making aluminum channels with different shape design.
Machine Model | DH-5150 Channel Letter Bender |
Available Material | Aluminum |
Processing Material Width | ≤150mm(5.9’)（Custom-made Height on option） |
Processing Material Thickness | ≤1.5mm(0.059’) |
Cutting/Slotting Mode | Blade Tool and multiple degree and double side cutting |
Min Bending Diameter | 12mm(0.47’) |
Bending Mode | Coupled Extrusion |
Voltage | 220V,50-60HZ |
Power | ≤1500W |
Machine Size | 1300*600*1300mm(52’*24’*52’) |
Package Size | 1520*820*1450mm(60’*33’*58’) |
Machine Weight | 350kgs(771lb) |
Package Weight | 450kgs(992.25bl) |
File Format | AI, Dxf, PLT |
Working Air Pressure | 0.6 Mpa |
Warranty | 1 Year |
5150 Channel Bender Working Step
Step 1- Choose The Material
Accoridng to customer's request, your signage work, or installation environment to make choose on material type, color and width.
Step 2- Machine Process the Channel Letter Return
As we know, all 3D signage and channel letter include corners(angles) and curves. If a machine can make both at high accuracy, it can make all sign letters. Here showes how our machine make corners(angels) and curves.
After machine finish the channel fabrication, you just install the pre-cut letter face and letter back. Led Light Sourch. Finished signage done here.
5150 Channel Bender Main Parts Introduction
Advanced Technology Researched and Developed by our company team. WIth this system, can adjust cutting depth automatically under software control. Also can separately adjust front and back cutting depth.
Copyrighted Software and Motion Card
Copyrighted Software and Leetro Motion Card. Reliable Peformance with anti-signal interference protection.
Software researched and developed by our own company team. Upgrade liftime freely.
Germery imported milling cutter with ally coating. Long lift-span. 1 to 3 years cutting lifetime. Cutter teeth made a special treatment to ensure a best cutting effect.
Double-Shaft Bending Tool to make the rooling bending with high bending speed.
Adopt two bending modes. Small curves to flap bending with high accuracy and bigger Curves to extrusion rooling with high speed.
High quality encoder, long lifespan, high anti-interference perfermance. Working together with our high precision motor, to make sure a accruacy feeding work.

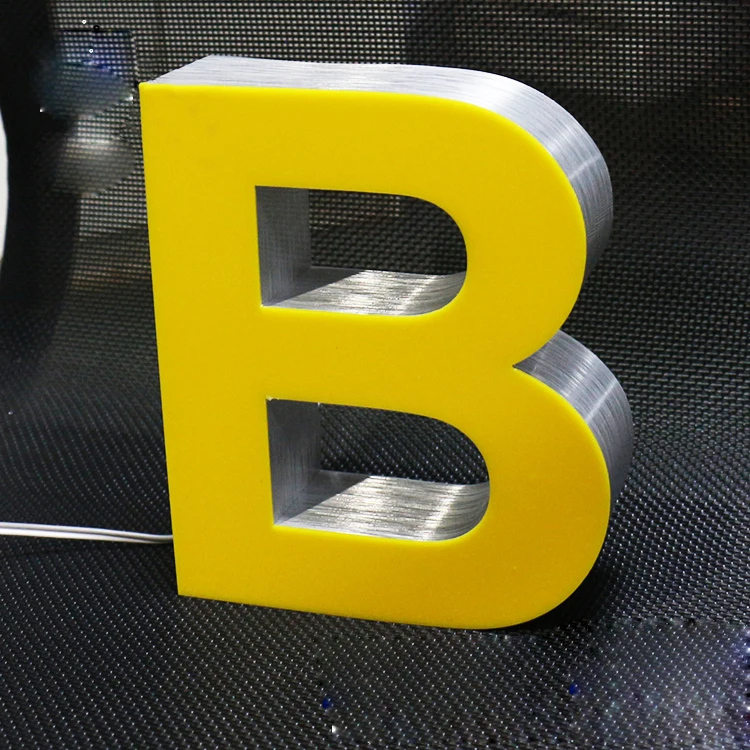

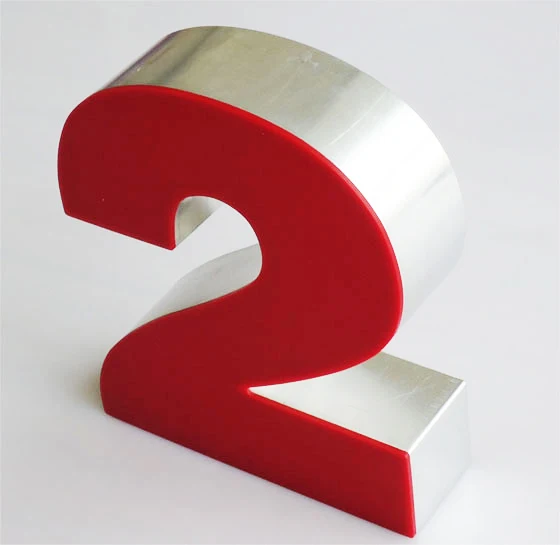

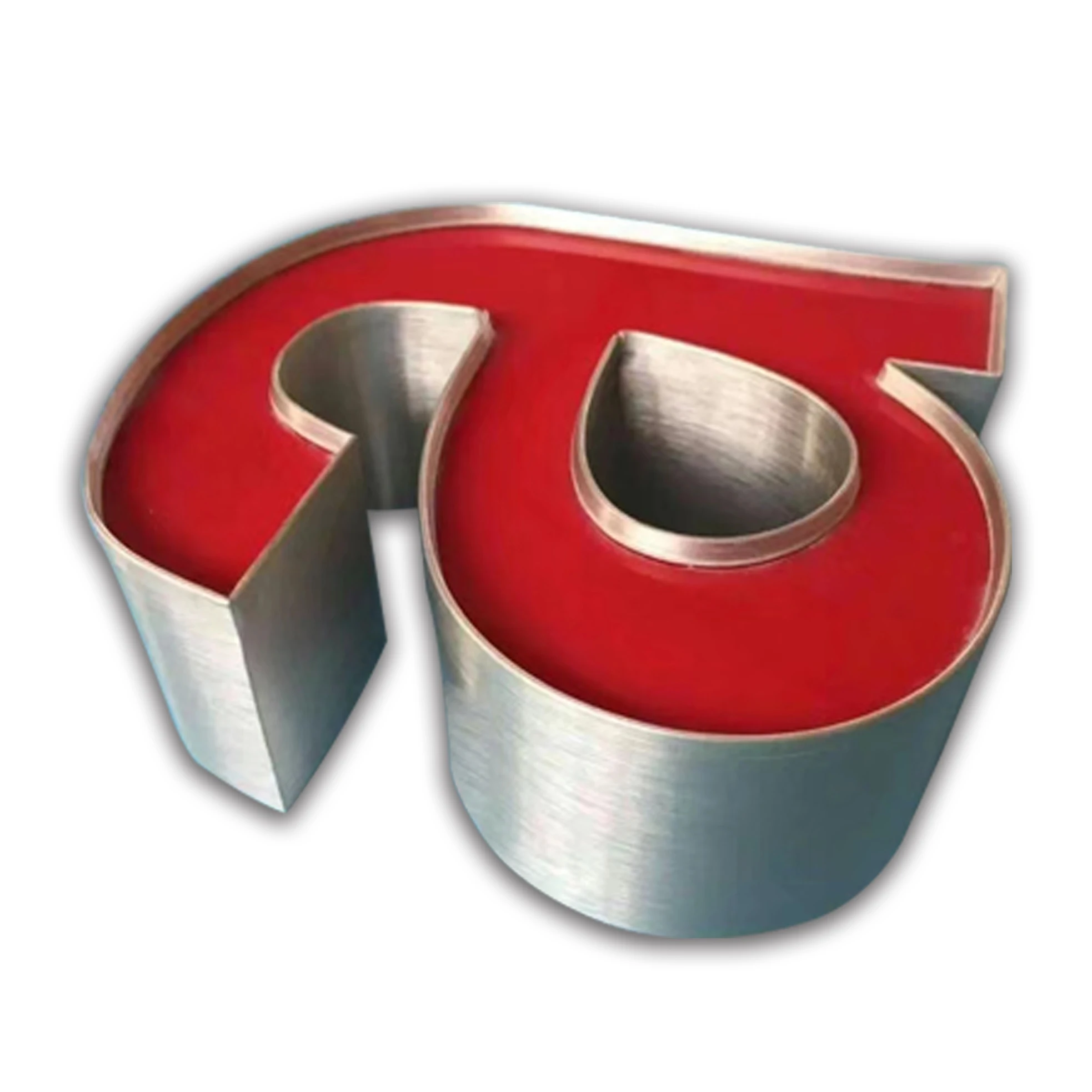

Available Material & Letter Sample
Flat Aluminum-Multiple Colors and Widths
Width: 3cm,4cm, 5cm, 6cm, 7cm, 8cm, 8.7cm
Color: Red, White, Black, Yellow, Green, Blue, Silver, Brush Silver, Brush Gold, Brush Rose Gold, Mirror Silver, Mirror Gold, Mirror Rose Gold
DF Aluminum Coil-Double Fold Edge to replace the trim cap
Width: 6cm, 8cm, 10.8cm
Color: Red, White, Black, Yellow, Green, Blue, Silver, Brush Silver, Brush Gold, Brush Rose Gold, Mirror Silver, Mirror Gold, Mirror Rose Gold.

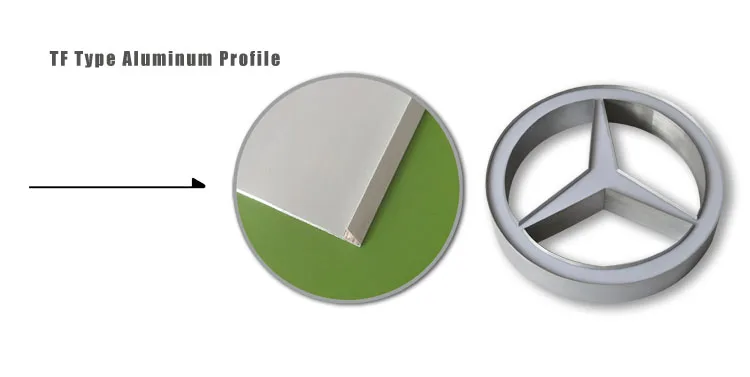

TF Aluminum Strip-With a solid trangile edge to replace the trim cap
Width: 6cm, 8cm, 10cm
Color: White, Black, Silver

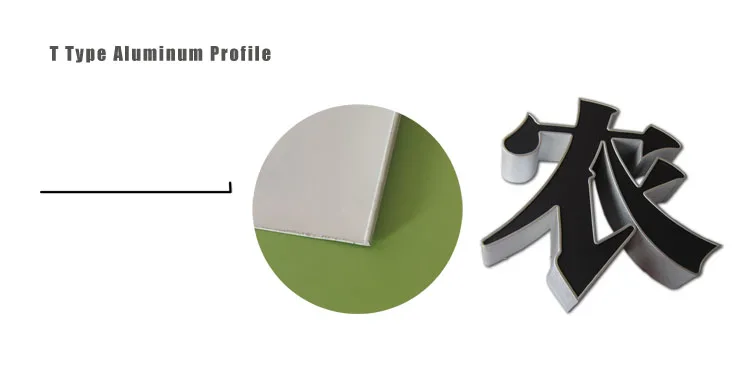

T Type Aluminum Strip-With a L Shape edge to replace the trim cap
Width: 6cm, 8cm, 10cm
Color: White, Black, Silver

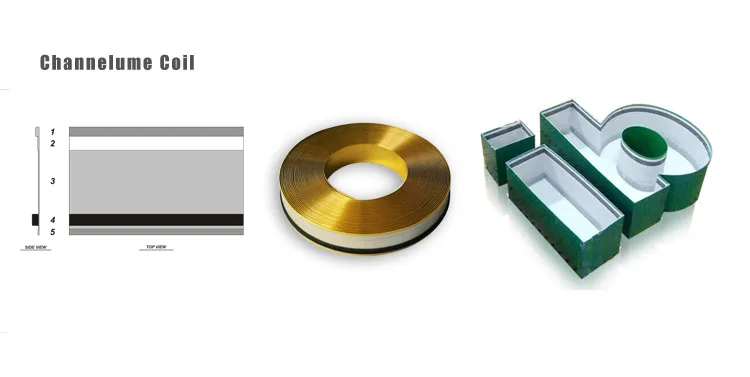

Channelume Coil
Width: 7cm, 9cm, 11cm
Color: Red, White, Black, Yellow, Green, Blue, Silver, Brush Silver, Brush Gold, Brush Rose Gold, Mirror Silver, Mirror Gold,
Mirror Rose Gold
Machine Package
Certification
FAQ
1. What about Warranty?
The machine warranty is one year, the motor warranty is 3 years.
2. What about after-sale service?
We will send you the detail English manual with the machi, if any doubt, our enginner speak English, he will use Teamview to control your software. Engineers also can give service overseas.
3.How is your delivery time ?
It takes 7 days after receive your deposit, if you need urgent, we can arrange delivery quickly.
