Name：agro agricultural sun shade make net machine price india
SJY leno fabric interweaving machine is mainly used for the interweaving and braiding of plastic round filaments and high-strength filaments. The machine adopts two heald frames and installs a half-healing device to move the brown frame up and down. At the same time, the half-horizontal movement is driven by the opening mechanism, so that the warp yarns form a weaving shed, and then the weft yarns are sprayed into the shed to form a mesh.

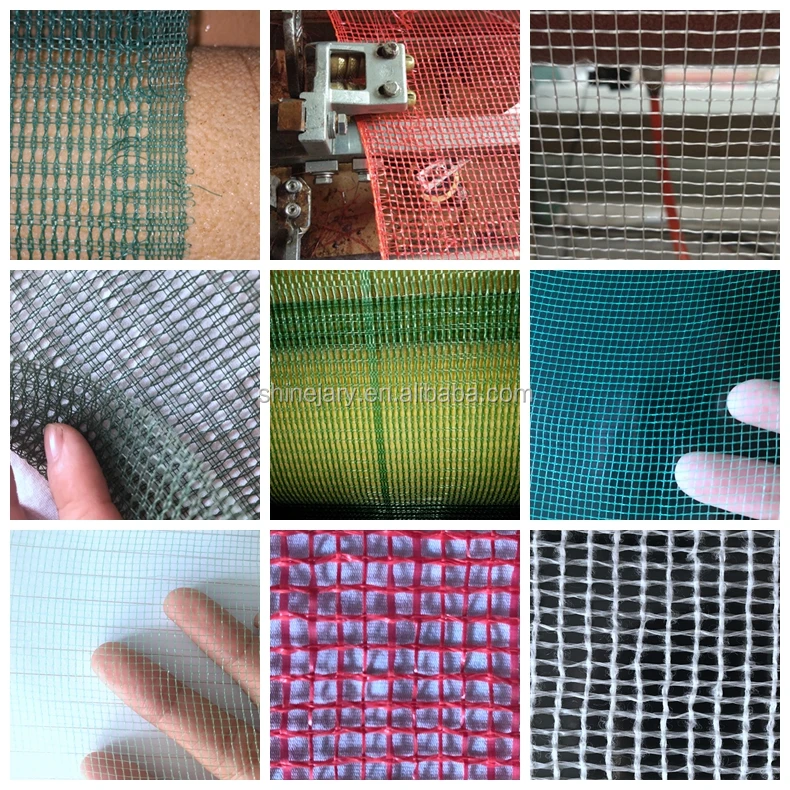

Based on this technology, we can also weave three-strand net, five-strand net, seven-strand net.
Specifications
Reed space
Nominal(cm)
150cm-500cm
Weft selection
mechanical or electronic feeder (electronic single nozzle, or electronic double nozzle)
Driving
Motor capacity
Main motor:1.8kw, 2.2kw Control motor:1.15kw Electric heating cutter:1.0kw
Power transmission
four crank levers
Yarn
500D-2000D round filaments
Speed
300-500rpm
Shedding
Cam shedding/Crank shedding
Let-off
directly from warp beam stands
Take-up
tensioning automatic control motor (max rolling diameter 1.2m)
Dehumidifying
squeezing and sucking

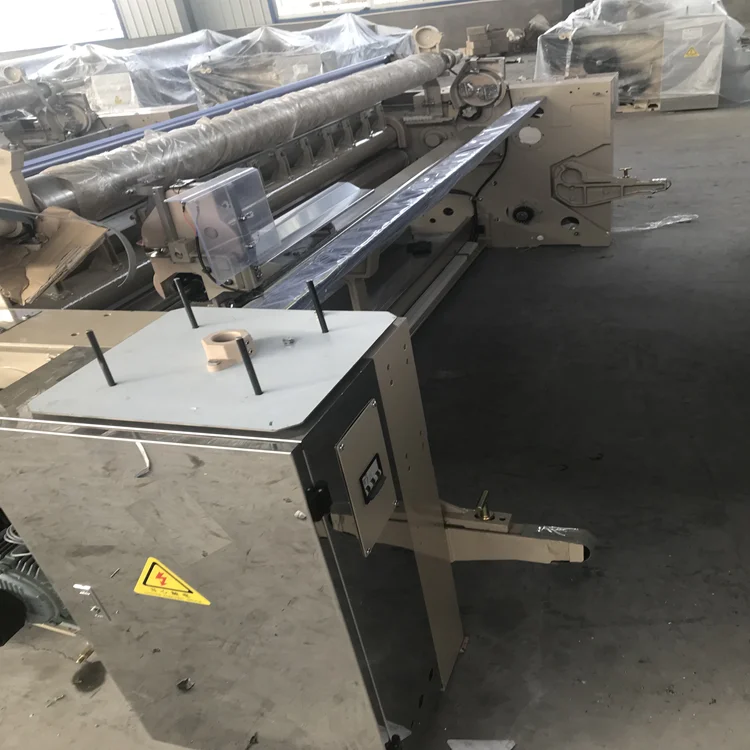

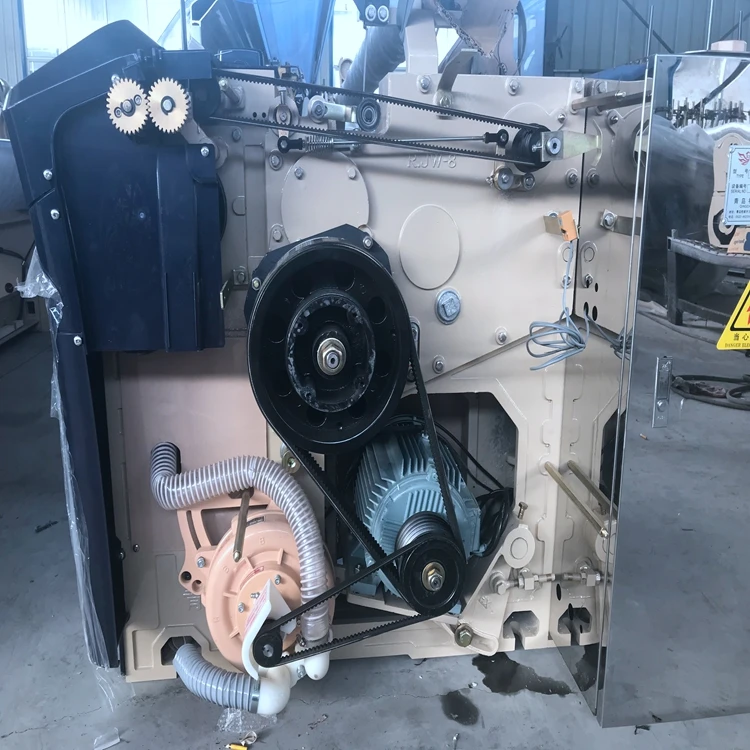

Detailed Images

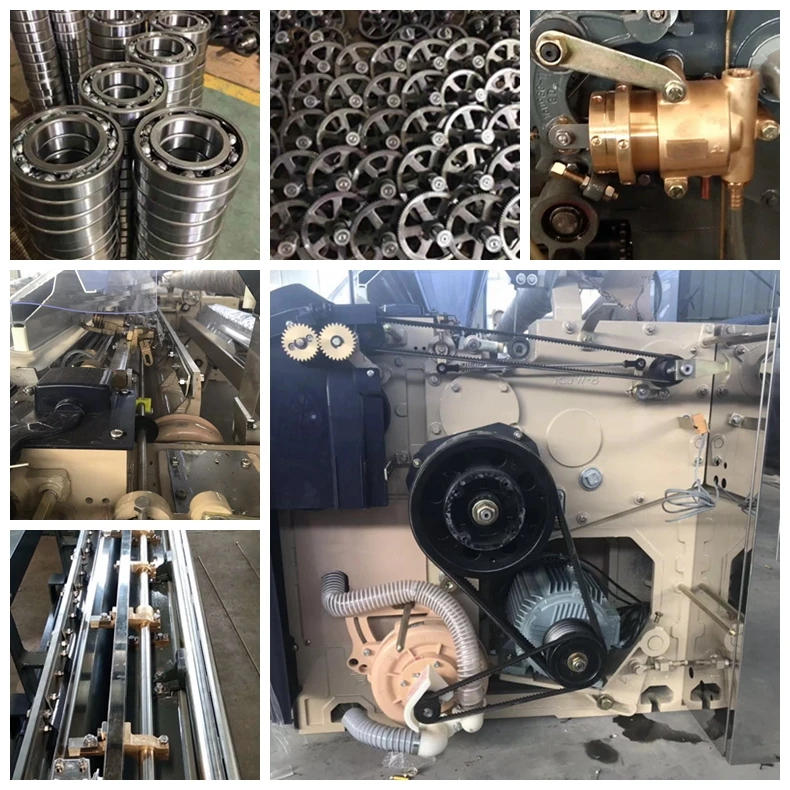

Parts
Brand
Parts
Brand
Bearing:
NSK made in Japan
Gears
Taiwan DATONG high precision
Feeder
Xinliao
Motor
Red flag or Guo fang
Zero-max
Shimpo Japan
Nozzle and Plunger
MDH-Korea, ceramic
1. High speed--New weft insertion, new frame structure and high speed CPU, ensure the running speed Max. 1200rpm. 2. Low energy consumption---New weft insertion and main nozzle energy saving optimal design realize less air consumption.
3. Low vibration---Using 3D design and computer analysis to optimize the frame structure, including the cross rail connections, and to realize lightening design and optimum balance of the beating motion. These improvements ensure lower vibration with high-speed operation.
4. Flexibility and wide applicability---A full range of standard equipment and a variety of options can weave fabrics that were previously mostly woven by rapier looms, including wide home furnishings fabric, stretch fabric, fabric of different yarn types and counts, airbags, seersucker and fabric with tuck-in selvages.
5. Easy operation and new electronics---Relatively lower machine, upper temple are both good for the operater; a new internet-ready color function panel with enhanced communication capability and a new faster CPU.
Related Products
Payment&Shipping
Payment
30% advance payment, the rest to be paid before shipment
Shipping
Standard export packaging, or as required by the customer
After Sales Service
1.One year warranty,
2.Overseas installation training,
3.24-hour network technical support
Company Introduction

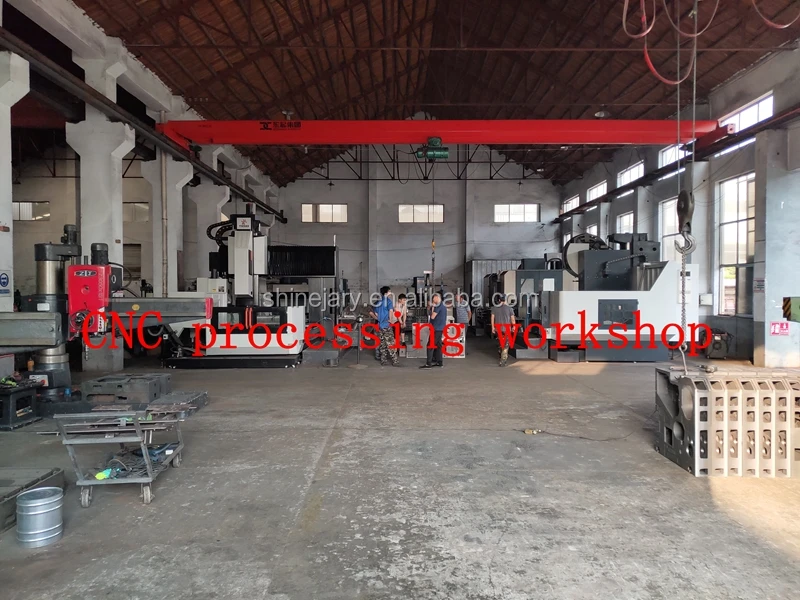

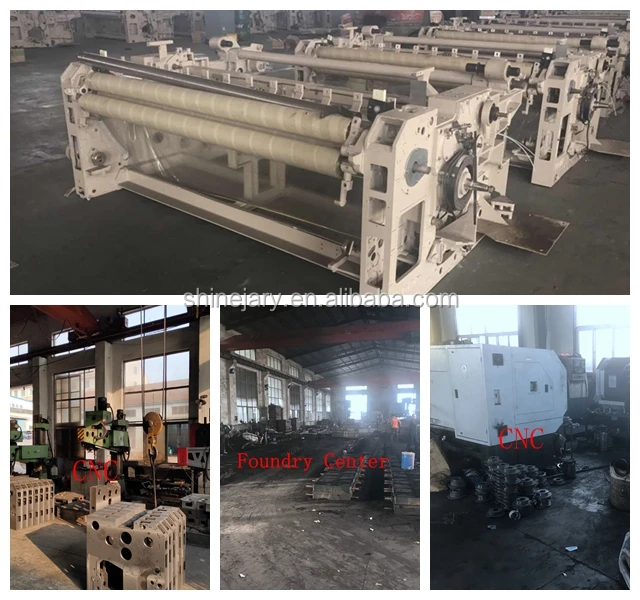

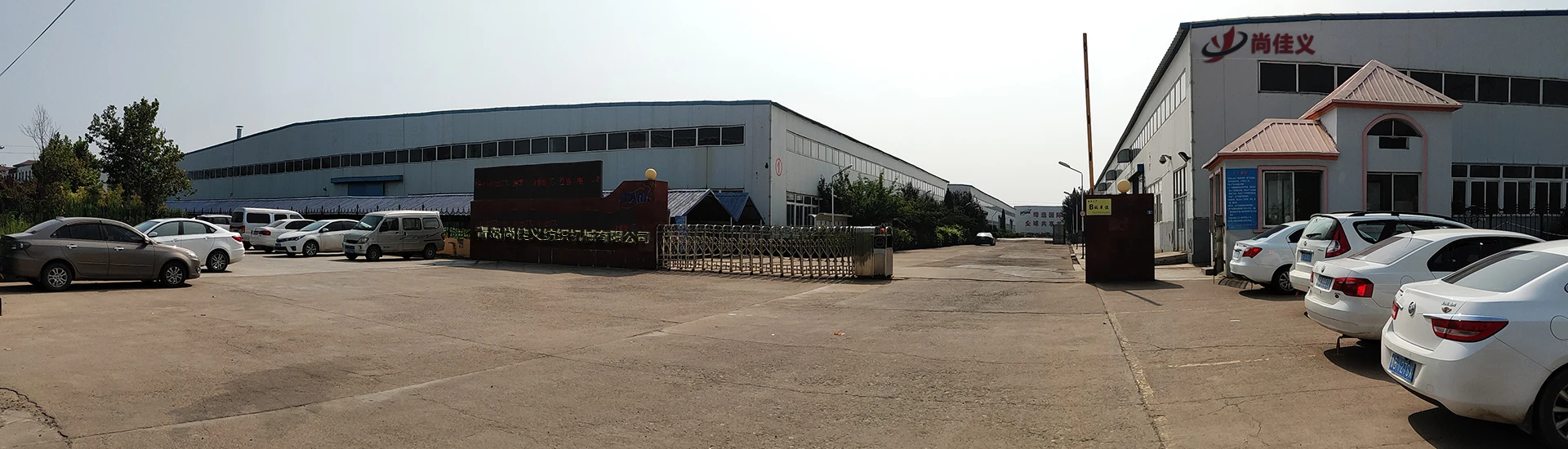

Qingdao Shinejary Textile Machinery Co, Ltd is located in Wangtai Town Huangdao District, Qingdao, which is a famous textile machinery Town in China.We are specialized in the manufacture of textile machinery for more than 20 years. With advanced CNC processing equipment and professional machinery production technology, our team can always offer research and development, production, sales and after sale service etc.
Quality and service are the foundation of the company. We have established friendly and long-term cooperation with customers all over the country and all over the world, such as Egypt, Pakistan, Turkey, Russia, Uzbekistanand so on. Technological innovation quality improvement and service optimization “is our development Concept we air to achieve customer satisfaction and to build long-term relationships with clients around the word.
FAQ
(1)Q: Are you a manufacturer or Trade Company? A: We are a professional manufacturer holding our own International Trade Department, for thatwe can better understand customer's needs and offer a reasonable price.
(2) Q: Are you available for on-the-spot invitation?
A: We warmly welcome our new and old friends to visit our company for detailed negotiation.Meanwhile,we would send our exposition and relative information to promote a face-to-face meeting. We offer reasonable price for every client, and the price is changeable according to purchasing amount. (3)Q: How about the quality? A:The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(4)Q:How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling.Our products have passed ISO9001 international quality system certification .
(5) Q:What about the delivery time?
A: Normally the delivery time is 20 days after getting down payment.If the order is small and we have some looms in stock,the delivery time is 10-15 days.If our factory is busy with many orders in hand,the delivery time will be negotiable or as per our production plan.
