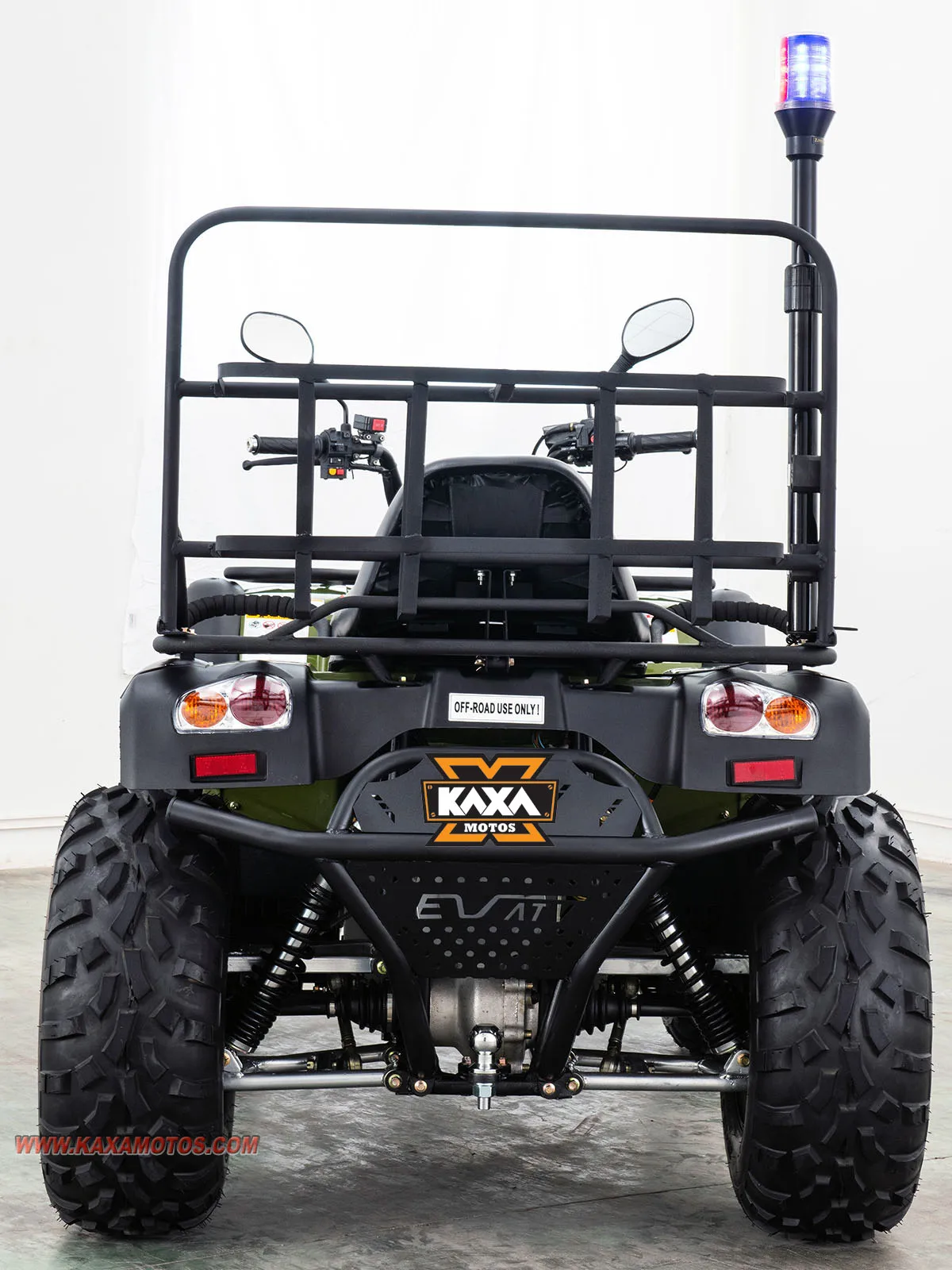

14kW Electric ATV 4x4 with 72V 120Ah Lithium Battery

Model: KXA-27 EV-ATV 14KW 4X4
Motor: PMSM (Permanent Magnet Synchronous Motor)
Power Rating: 14kW, 72V
Peak Power: 30kW, 360A
Rated Voltage: 72V DC
Rated Speed: 3000rmp
Peak Speed: 5800rmp
Rating Torque: 45.7N.m
Controller: App OBD
Battery Pack: 120Ah 72V Lithium-ion
IP Grade: IP65
Charger: Waterproof Vehicular 25A
Charge Time: 3.5-5 hours
Dimensions: 2250 x 1180 x 1270mm
Wheelbase: 1500mm
Net Weight: 380kg
Front & Rear Tire: 25x8-12; 25x10-12
Ground Clearance: 260mm
Max. Speed: High Speed 90km/h; Low Speed 35km/h
Distance Range: 100-120km
Max. Gradeability: 35〫
Max. Loading: 300kg
Front Suspension: Double A-rm Independent Suspensions
Drive System: Automatic Shaft Drive;
Selectable 4X2 / 4X4 / 4X4-Lock;
Front Differential with Lock, Rear Differential without Lock
Rear Suspension: Double A-arm Independent Suspensions
Parking Brake: Hand-Actuated
Brake System: Four Wheels Hydraulic Disc Brakes
Loading Quantity 20FCL: 10PCS; 40’HQ : 20PCS
Colors: Black, Red, White, Yellow, Green, Orange

        KXA-04 ELECTRIC QUAD BIKE ATV 3KW

                       KXA-R18 TRIKE SCOOTER 200CC

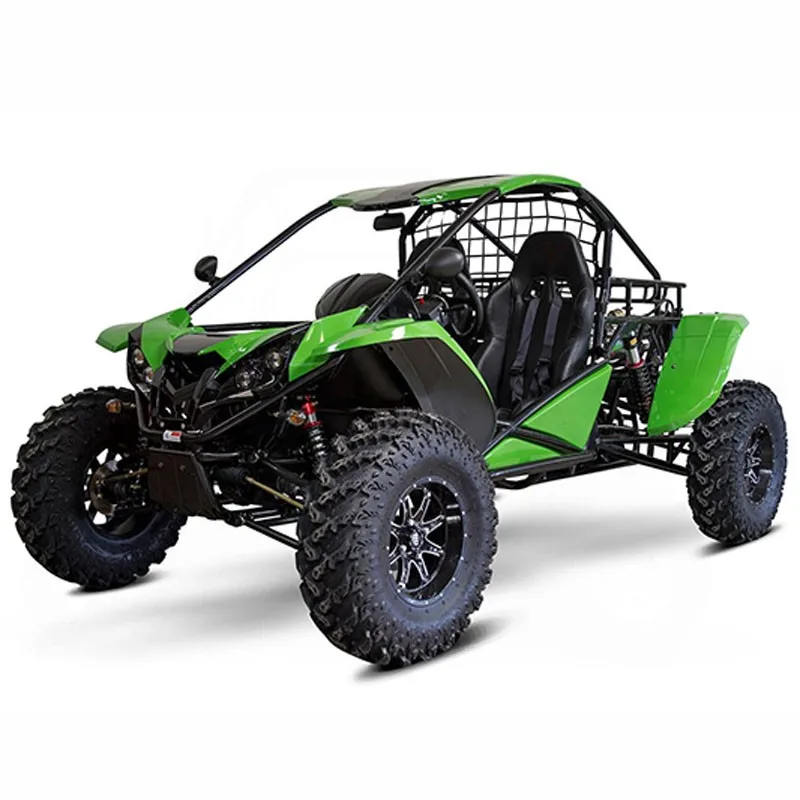

   KXB-18 OFF ROAD BUGGY 1100CC 4X4 with EEC

                 KXU-18 UTV SIDE BY SIDE 800CC 4X4

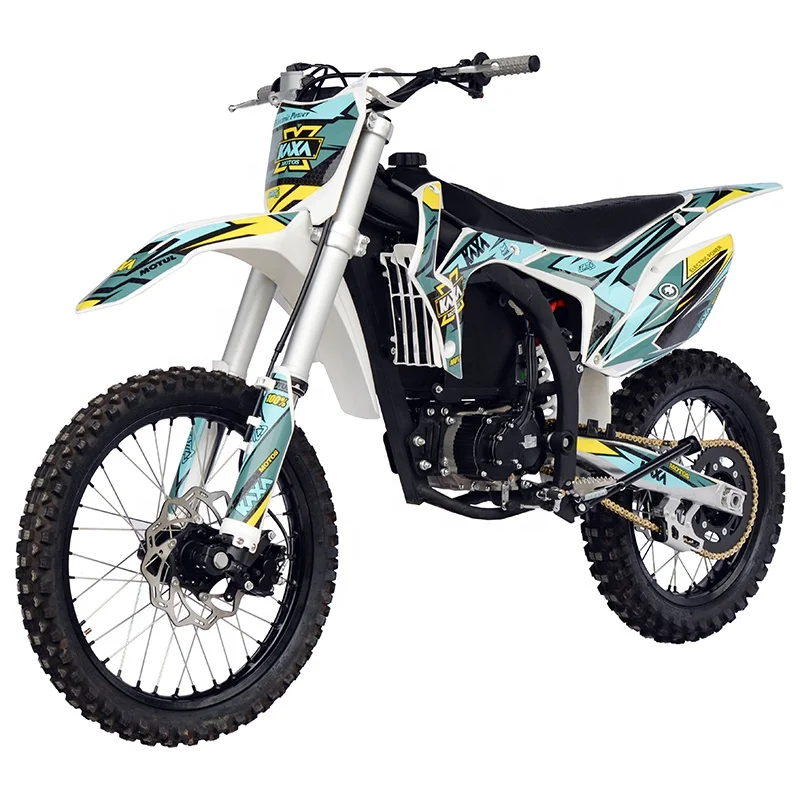

           KXP-D22 MOTOCROSS BIKE 250CC

  KXR-06 RACING GO KART 250CC 17HP MANUAL

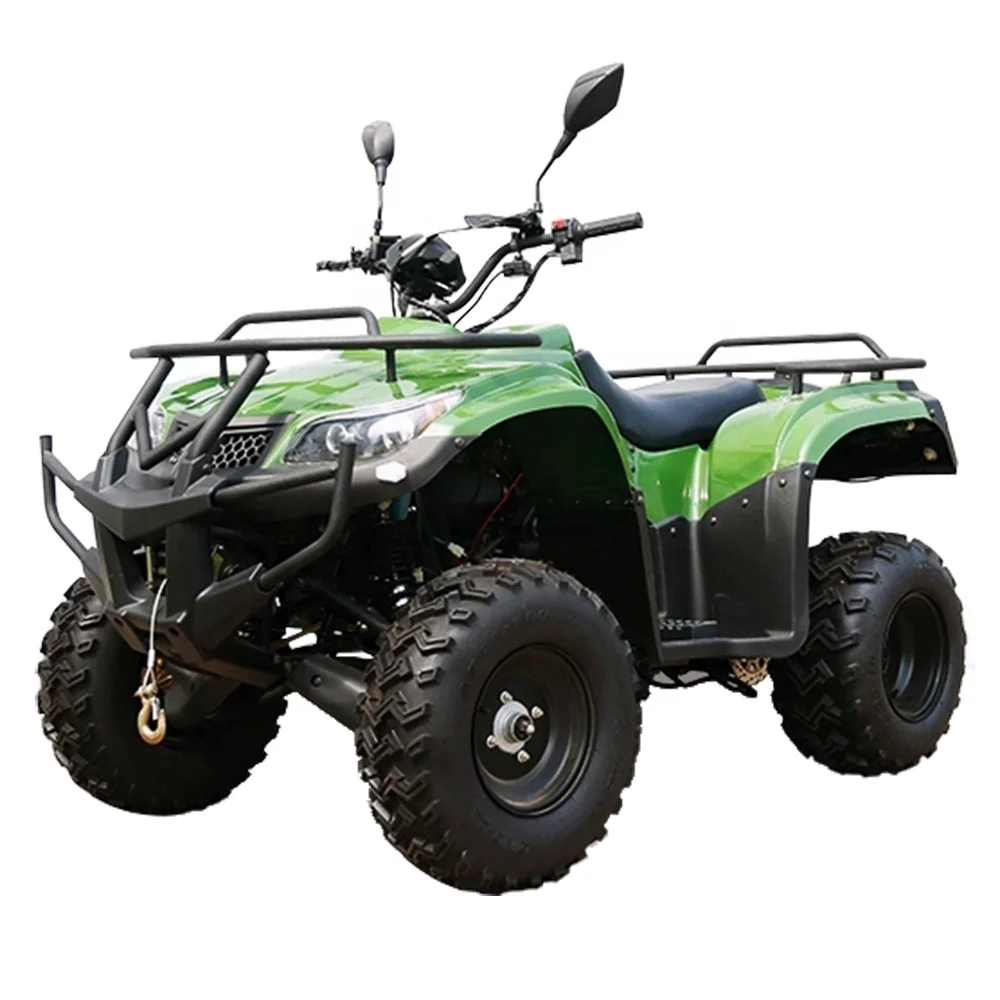

                     KXA-23 ATV 800CC 4X4 with T3

                       KXA-31 ATV 300CC 4X4 with EPA

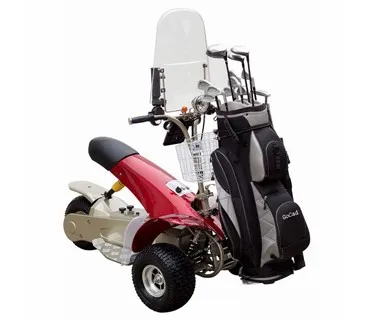

                 KXE-20 GOLF CRUISER 1000W

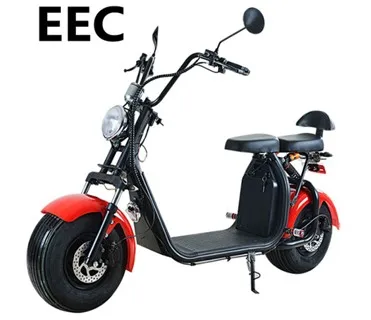

                KXE-06 CITYCOCO SCOOTER 1000W
