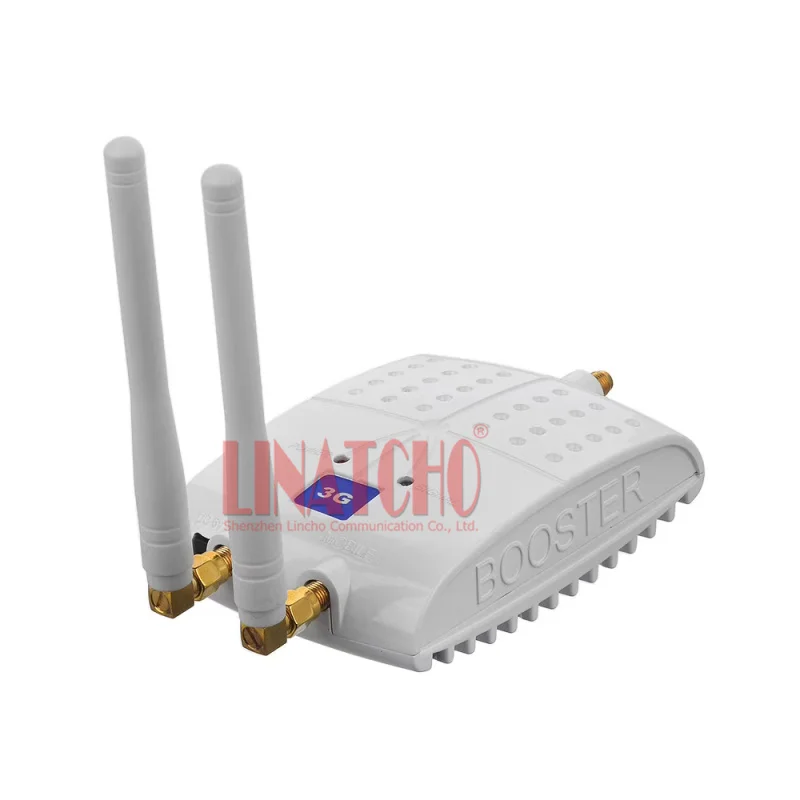

mini 3G wcdma signal amplifier indoor two antennas expander simple portable repeater

Product Overview

Description







ELECTRICAL SPECIFICATIONS
Frequency range	Uplink1920-1990 MHz Downlink 2110-2180 MHz
Gain	Uplink Gp≥50dB Downlink Gp≥55dB
Export power (Po)	Uplink 23dBm Downlink 27dBm
Stray radiation	<-36dBm
Pass band ripple	≤5dB
I/O impedance	50Ω/ SMA connector
Standing wave ratio	<=1.5
Noise figure	<=1.5dB
Ambient temperature	-10degrees -60degrees

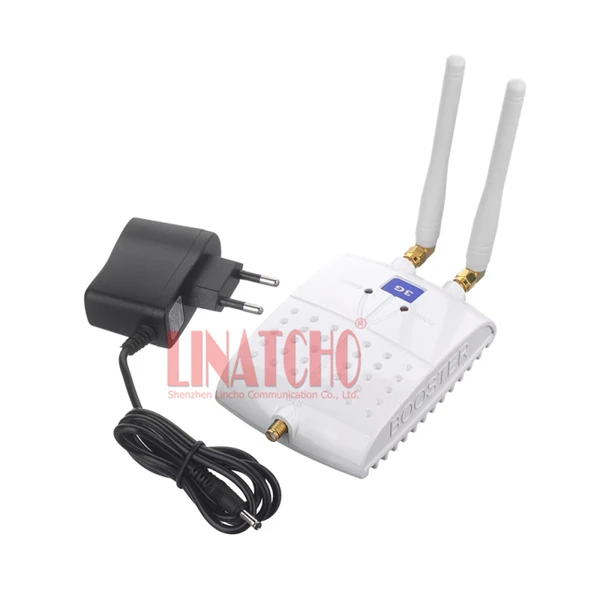

Power supply	AC220V/DC5V
MECHANICAL SPECIFICATIONS
Coverage area	300 m2 (Depend on the area condition)
Net Weight	0.6kg

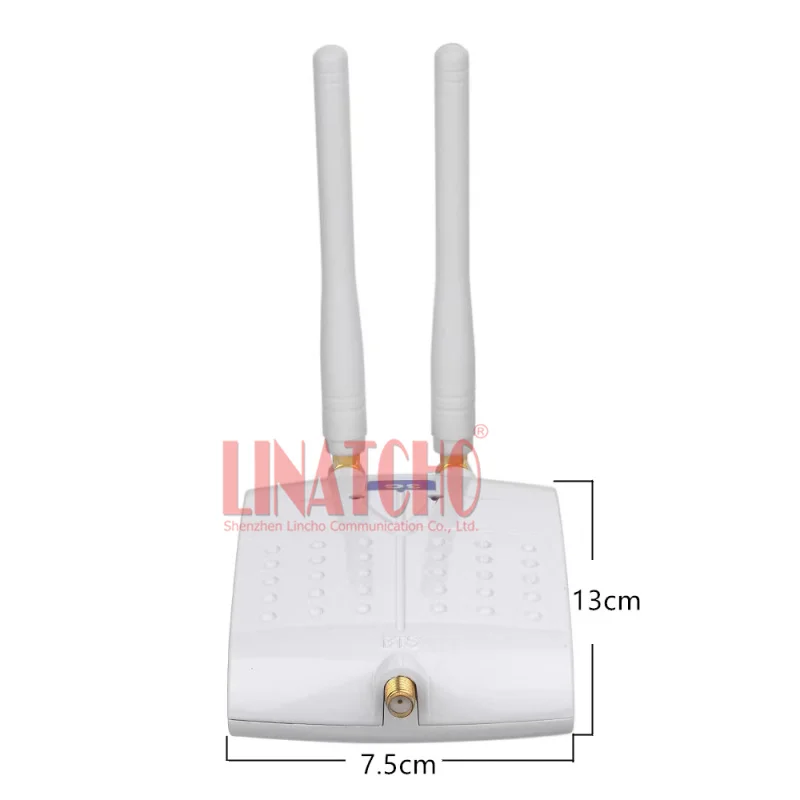

Size	14*7.5*3cm



How Booster/Repeater Works?



Repeaters are designed to fulfill the idea of one and main principle: to fill the areas with the weak or bad signal and to amplify these low signals in order to provide you with the communication suitable for you.





Reasons to Purchase Cell Phone Repeater.



1) The Signal Repeater provides the well-organized service that’s why after installation of the system the quality of the connection will be really great.



2) Signal Repeater require no additional wires being attached to your cell phone thus allowing you to use your cell phone without any extra troublesome accessories, in other worlds, no physical connection to your cell phone.



3) They are practical, beautiful and easy to install. You will not need to hire anybody to provide the installation of the equipment. You’ll be able to install it by yourself using only the manual list attached to your repeater.



4) The system can be used by multiple phones. All phones that are under the coverage and are suitable for the frequency of your repeater can use the amplified signals.



5) Signal Repeater is able to cover different coverage: from small to large. In this case you can decide which of our repeater is suitable for your office or supermarket.



6) Repeater works at full duplex. It means that they not only receive the weak signal from the mobile base station and then divert to mobile phone after amplifier. They also receive the signal from your mobile phone and then send it to the mobile base station.



7) Our equipment is completely safe. Mobile repeaters don’t produce any radiation.

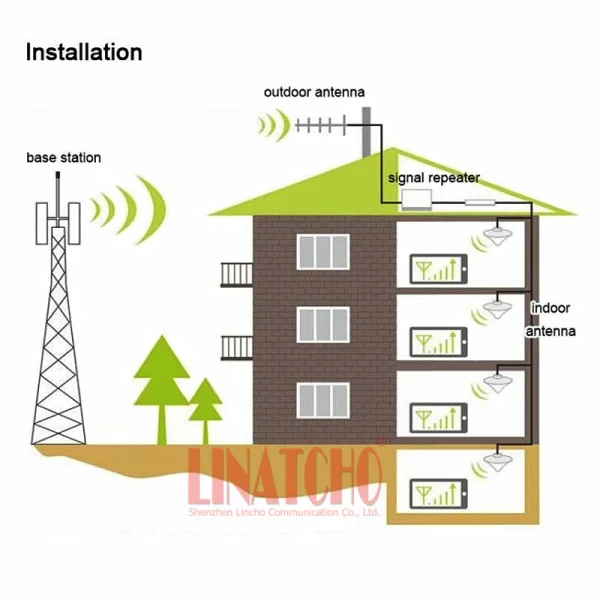

Steps that describe the work of Repeater.



1) The outside antenna receives the signal from the nearest mobile base station.



2) The outside antenna sends the received signal through the coax cable to the installed Repeater.



3) The Repeater accepts the low signal and improves it.



4) The improved signal goes to the inside antenna through the connection coax cable.



5) The inside antenna send the improved good signal to your mobile phone.







The repeater makes the signal stronger in places with poor signal coverage such as:



1) Underground areas: basements, parking lots, tunnels;



2) Other places where cellular signal is shielded by metal or concrete walls: offices, supermarkets, cinemas, hotels;



3) Places distant from the BTS like private houses.





Installation Approaches



1) Fix up outdoor antenna reception on housetop or outside the window and point it to the signal tower.



2) Connect outdoor antenna to “outdoor” port in repeater machine through cable.



3) Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.



4) Plug power adaptor into AC power socket and finish installation.





Technique Supporting



1) If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.



2) If can not call out, please adjust the direction of outdoor antenna.



3) If strength is not steady, please check if outdoor & indoor antennas are too close.  Please ensure the outdoor and indoor antennas have distance of 10 meters at least, with a wall between and not in a same horizontal line.



To use this product to enlarge your signal, the outdoor signal shall be as good as possible. The product will not work well if our outdoor signal is not good or bad.





Operation circumstance



1) Operation temperature: -10'C ~ +50'C



2) Relative humidity (RH): 30% ~ 95% (without frost)



3) Atmosphere pressure: 86 ~ 106KPa



4) Environment noise: Less than 6dB
