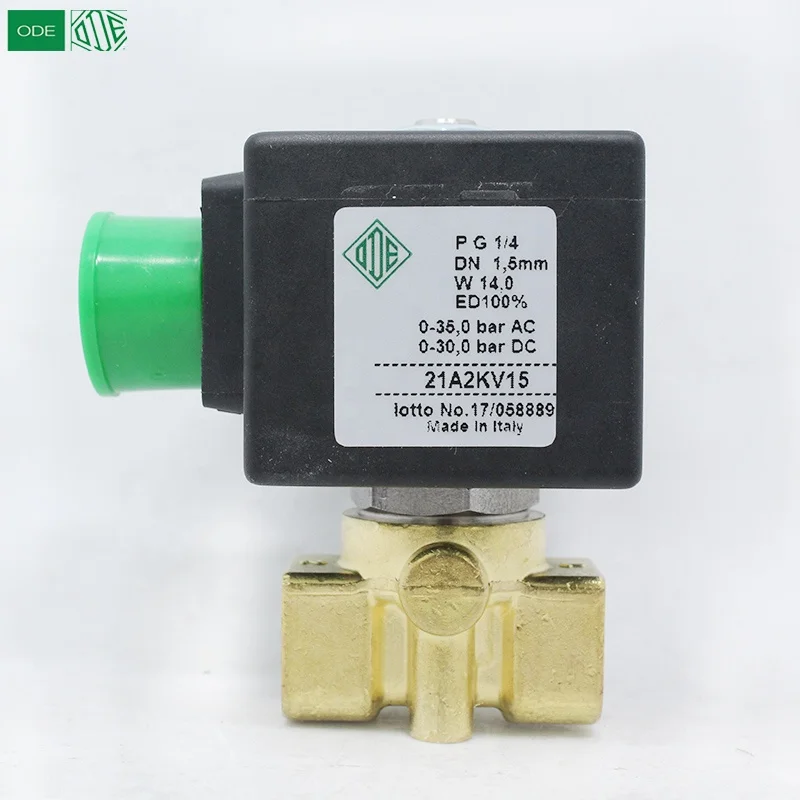

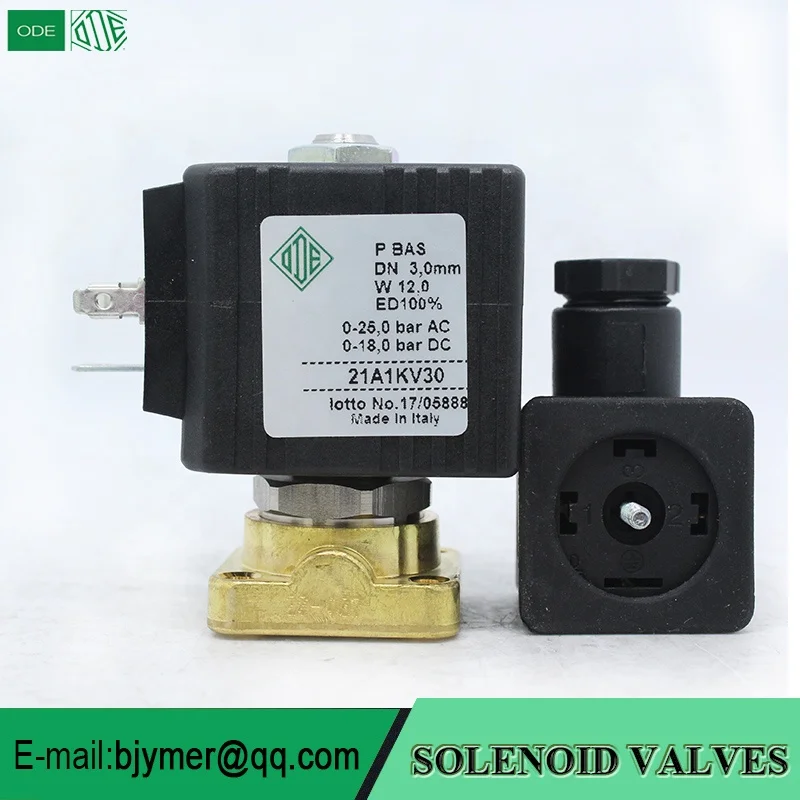

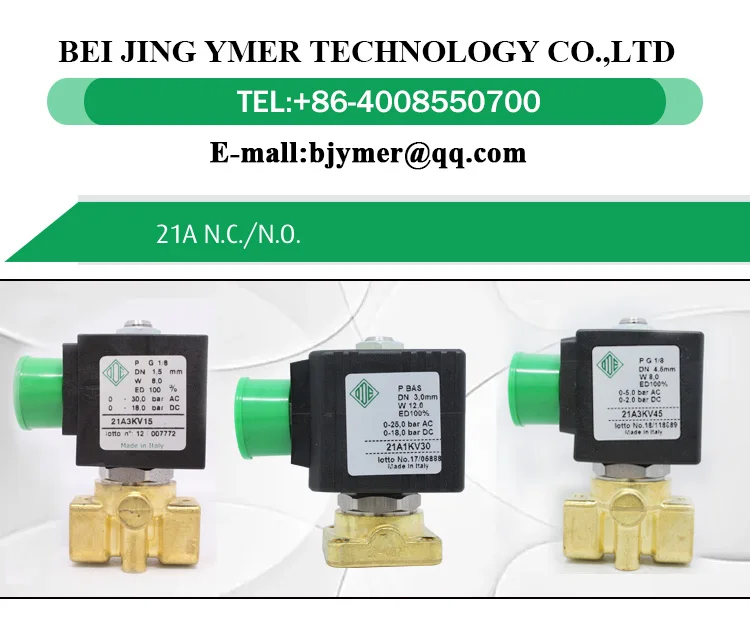

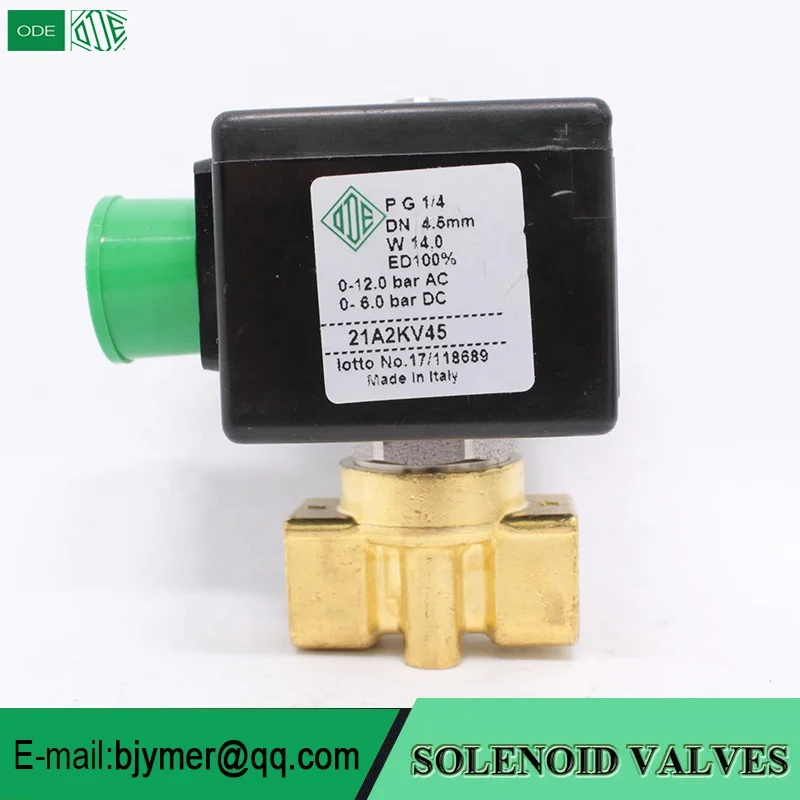

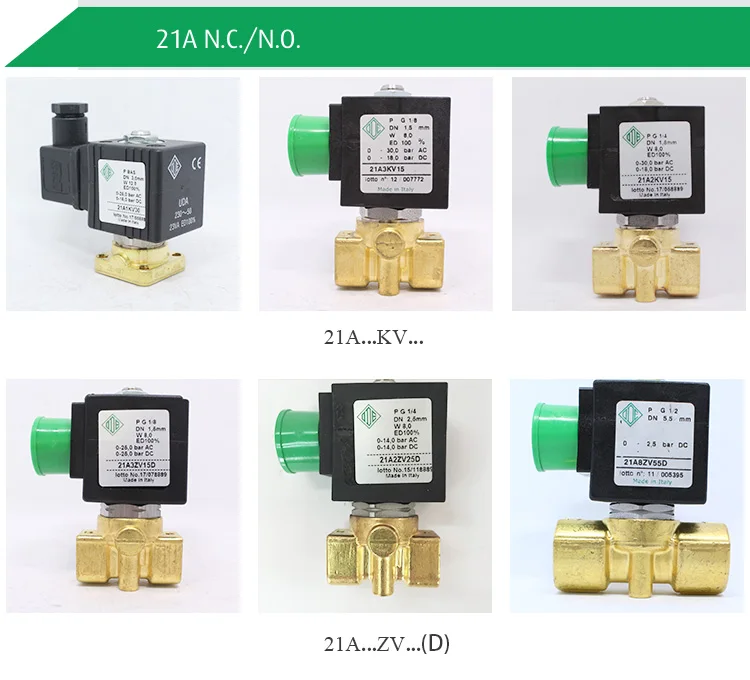

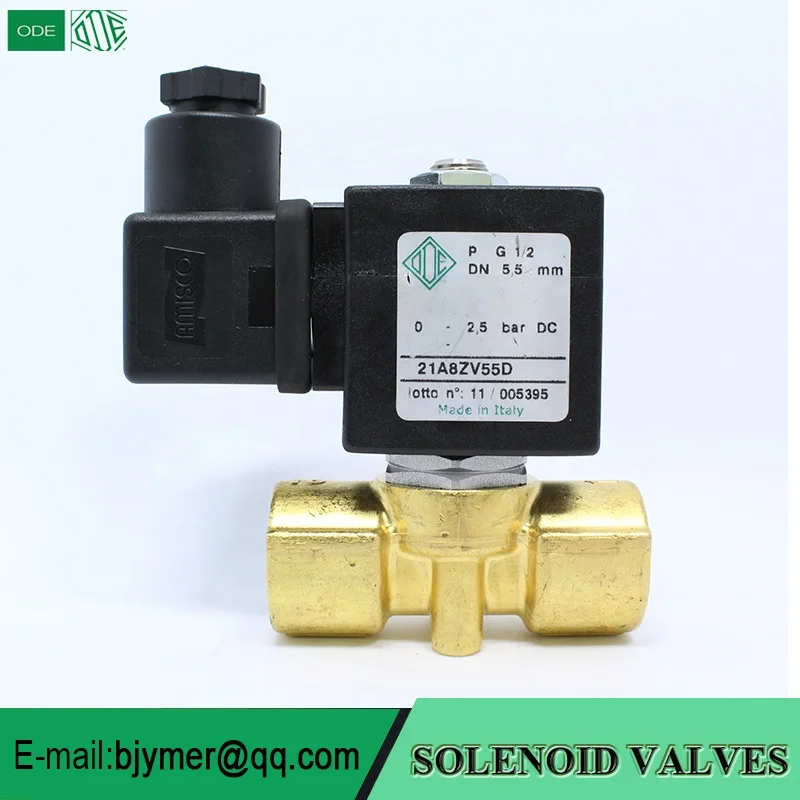

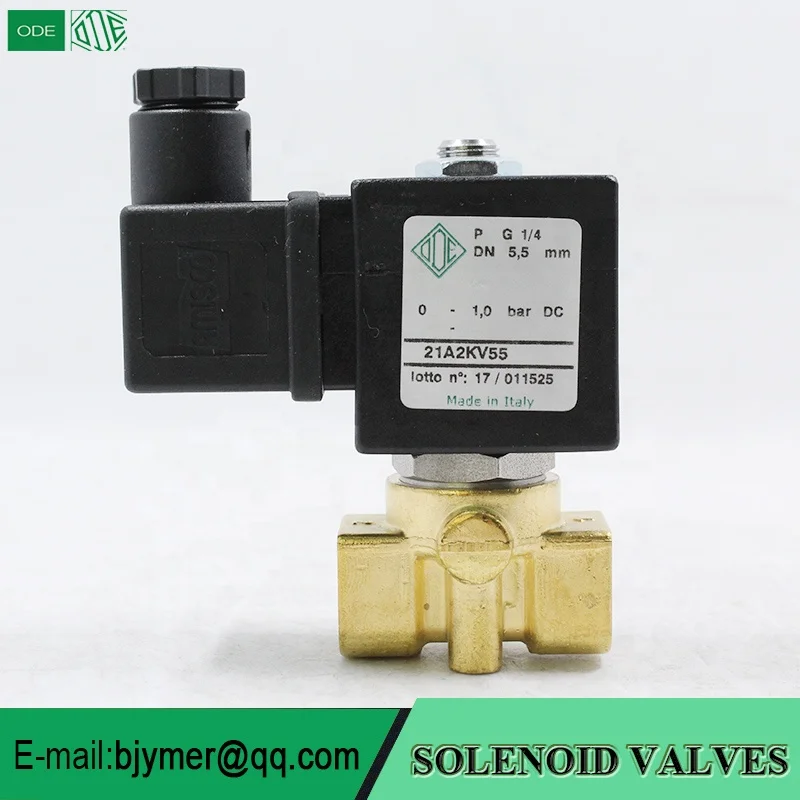

Wholesale Italy ODE 21A3KV15/21A3KV30/21A3KV45 General purpose AC24V solenoid valves

 FEATURES

1. Wide range of application valves for liquids and gas

2. Reliable proven design with high flow

3. Small poppet valve for tight shutoff

4. Wide range of elastomers 5. Mountable in any position

TECHNICAL SPECIFICATION

1. Body material: Brass UNI EN 12165 CW617N

2. Armature tube: Stainless Steel AISI 300 series

3. Plungers: Stainless Steel AISI 400 series

4. Spring: Stainless Steel AISI 300 series

5. Media: mineral oils, gasoline, diesel, fuel oils water, air, inert fluids, inert gases, steam

6. Ambient temperature: See coils catalogue page for its compatibility

7. Fluid temperature: -10°C +140°C with FKM and EPDM seals

   -10°C +90°C with NBR seals

                               -40°C +180°C with PTFE and RUBY seals

8. Max allowable pressure (PS): 40 bar

9. Protection class: IP65 (complete with electric plug) IP67 (with antiumidity kit can be rated to IP67)

10. Electrical conformity: IEC 335

11. Switching time: 20 - 40 msec (depending on pressure conditions)

AVAILABLE ON REQUEST

1. Low lead brass for food grade

2. Nickel plated version

3. NSF approved version

4. Double spring for higher operative pressure

5. High pressure up to 100bar (see High Pressure section)

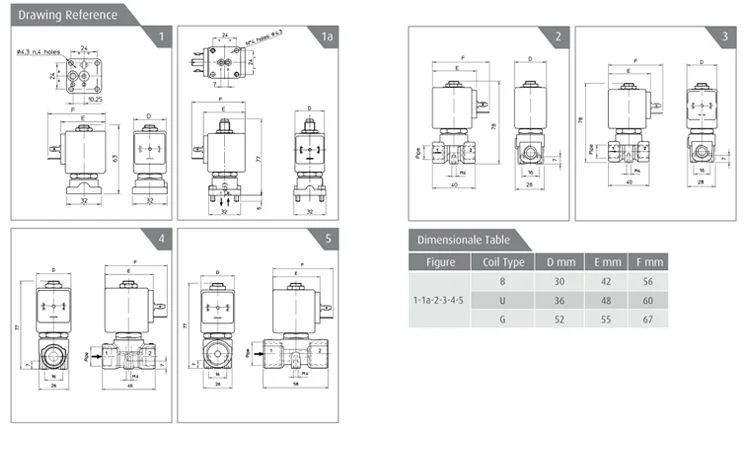

6. Compressor flange interface (i.e. 4690K0V20 see Drawing reference 1a)

7. Manual override (i.e. 21A3KV15-M)

8. Explosion proof coil Ex m (see Atex section)

9. Explosion proof coil Ex d (see Atex section)

10. Explosion proof coil Ex nA (see Atex section)

11. Latching coil (See coil section)

RELATED ITEMS

1. P990305: Electrical plug EN 175301-803 Pg9

2. P990306: Electrical plug EN 175301-803 Pg11

3. P992126: Electrical plug EN 175301-803 Pg9 (with OR screw)

4. P992127: Electrical plug EN 175301-803 Pg11 (with OR screw)

5. P992128: Electrical plug EN 175301-803 cable 2 wires, 53cm

6. R452714: Antihumidity kit (up to IP67 protection together with plugs P992126, P992127; P992128 & H          coil class)

7. P992087: Timer for automatic switch

INSTALLATION

1. The solenoid valves can be mounted in any position

2. Other port connections available on request

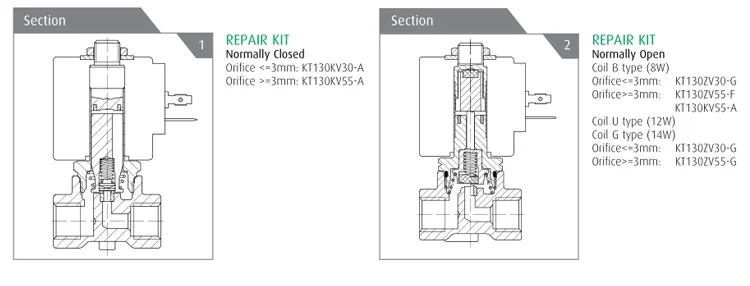

3. Maintenance and instruction sheet available in each solenoid valve box 4. Availability of repair kit and            coils as spares
