CQ6128 mini lathe machine
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (62473404066):
Product Overview
Description

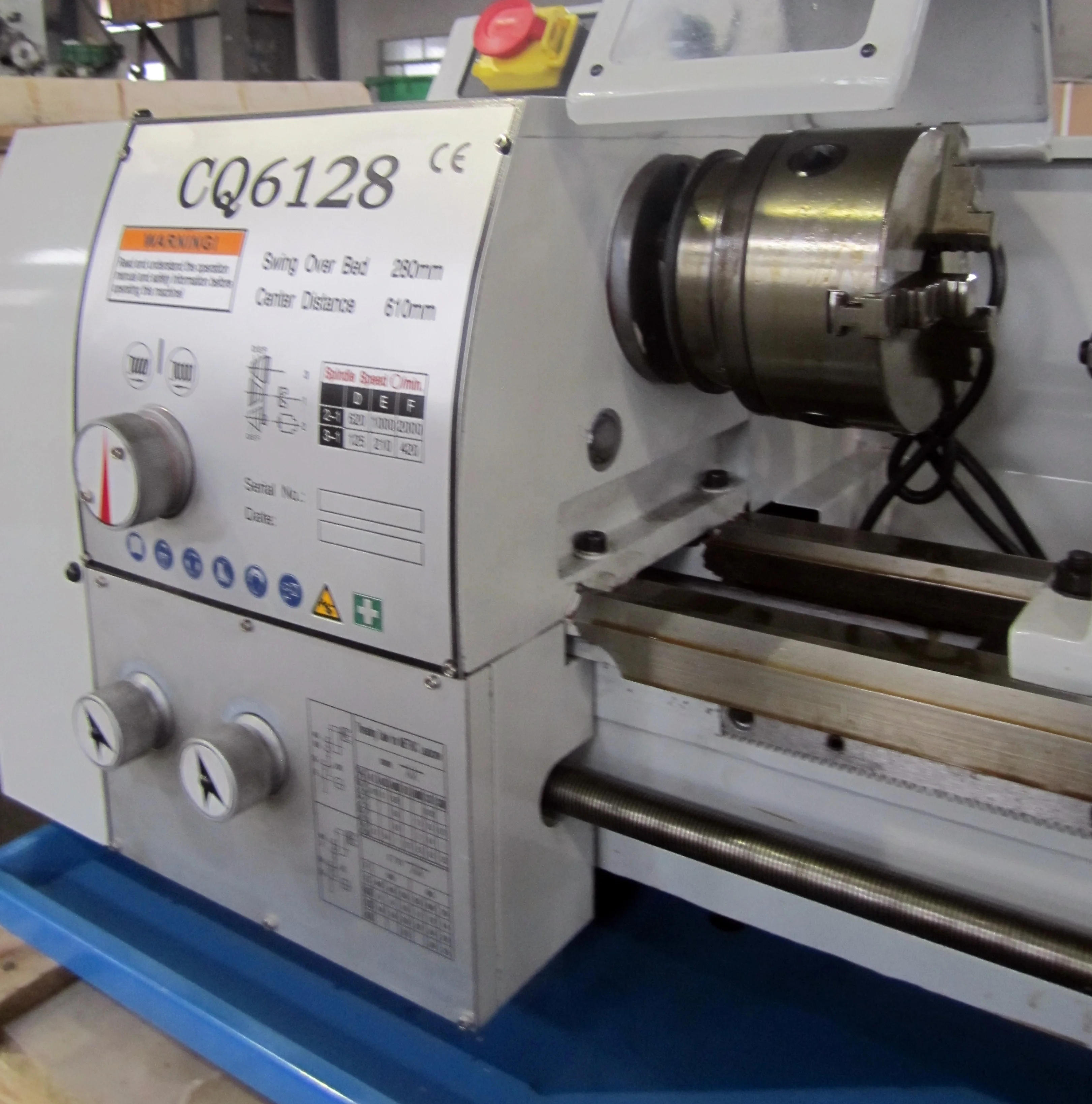

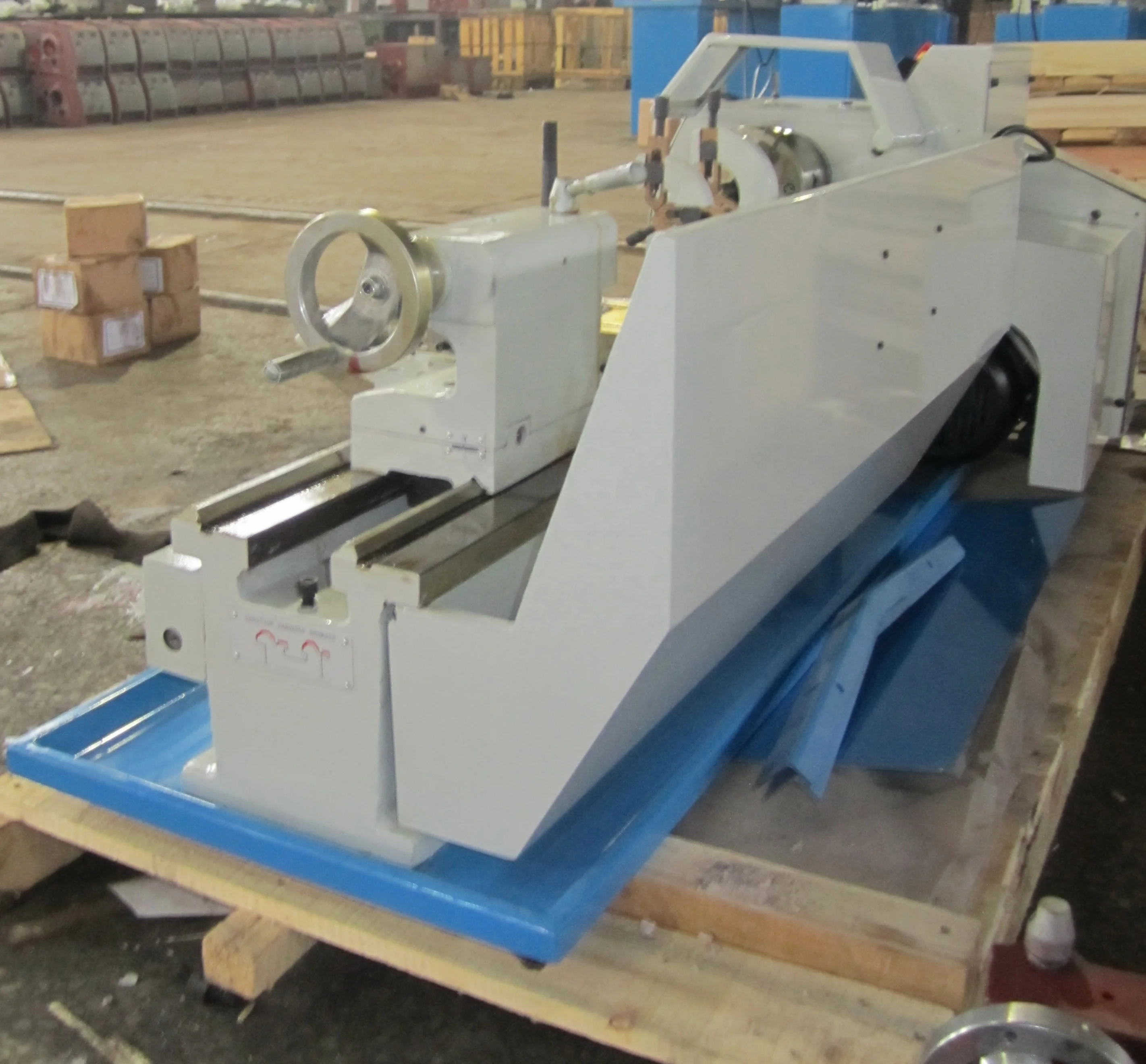

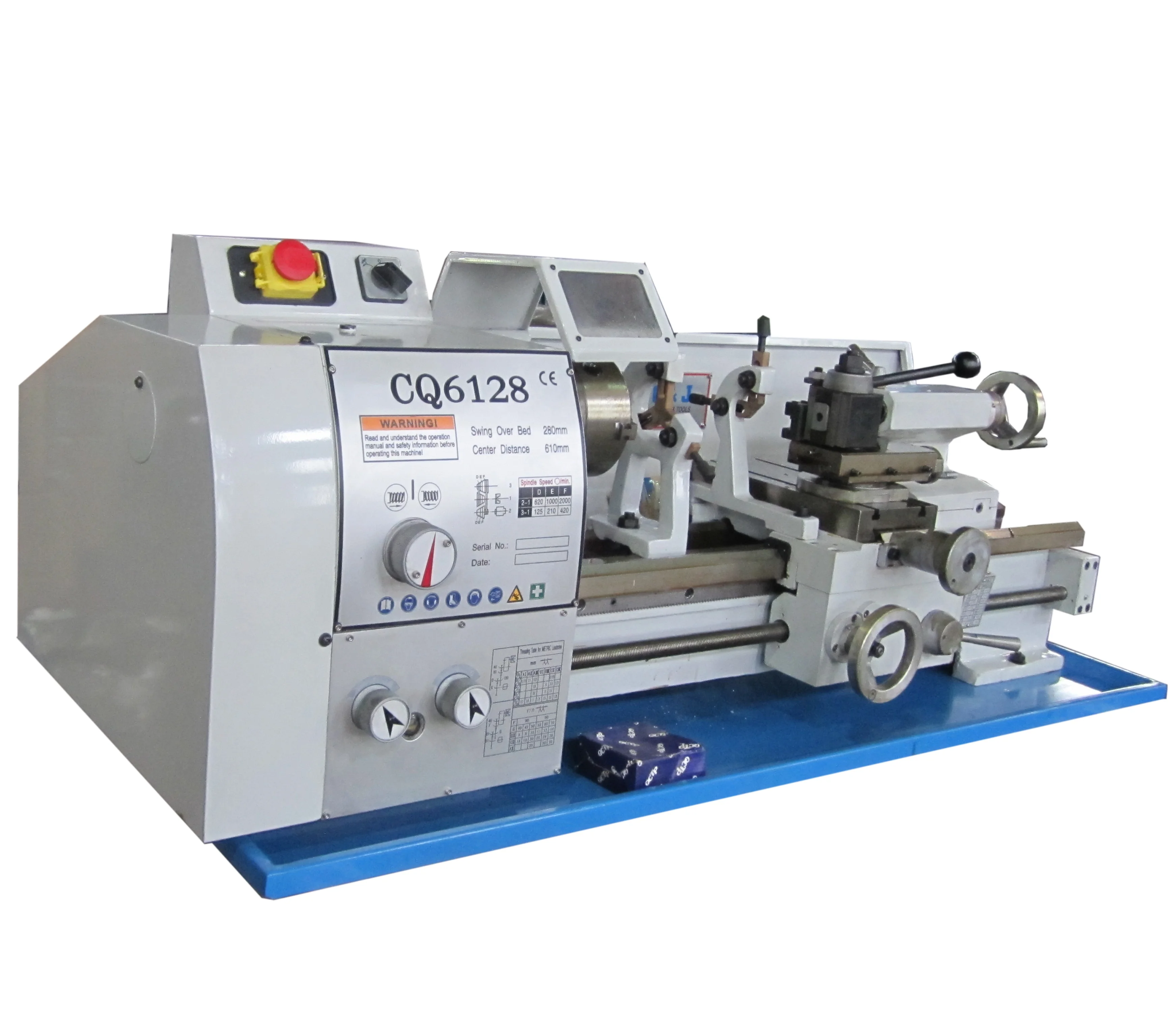

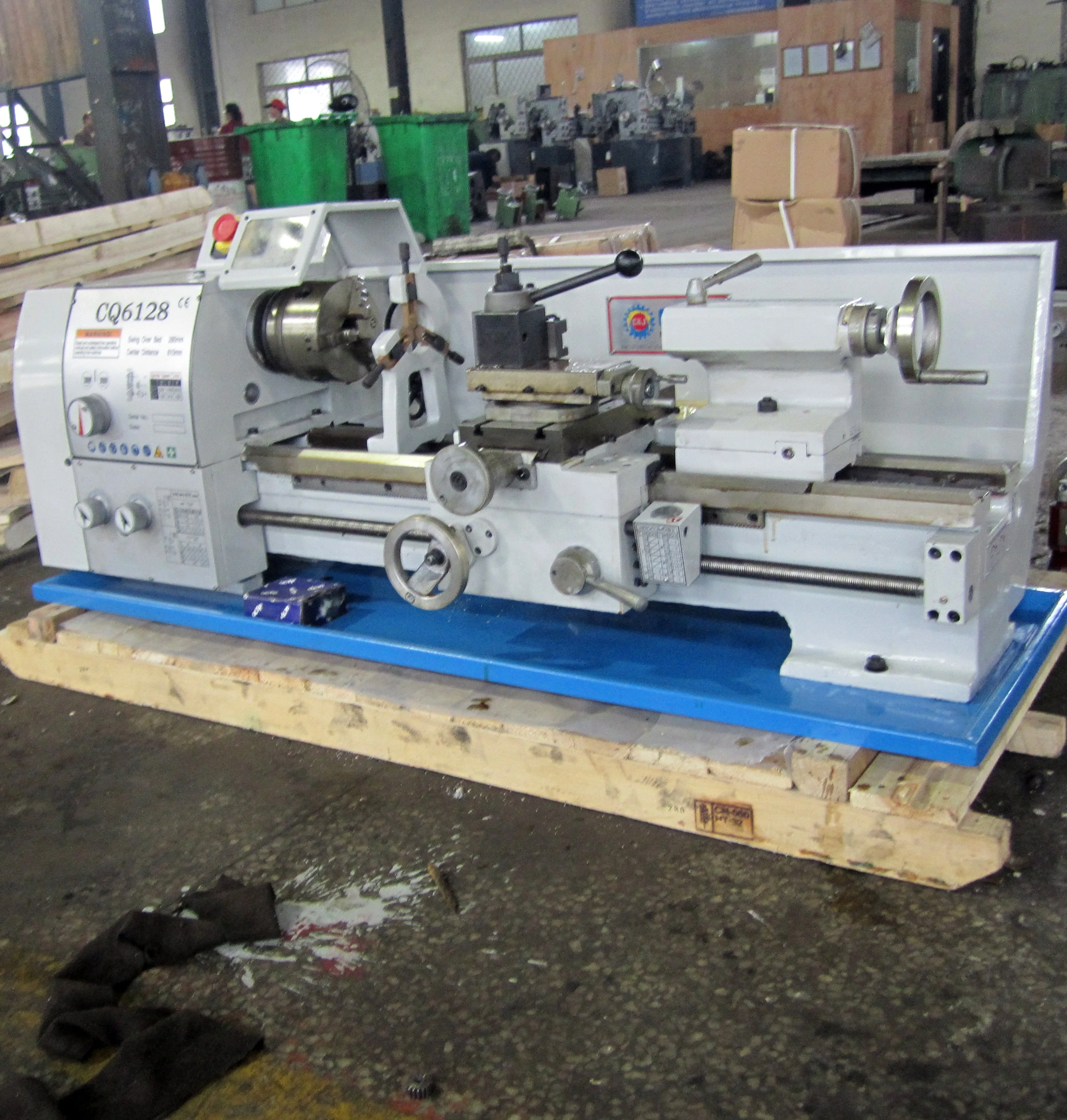

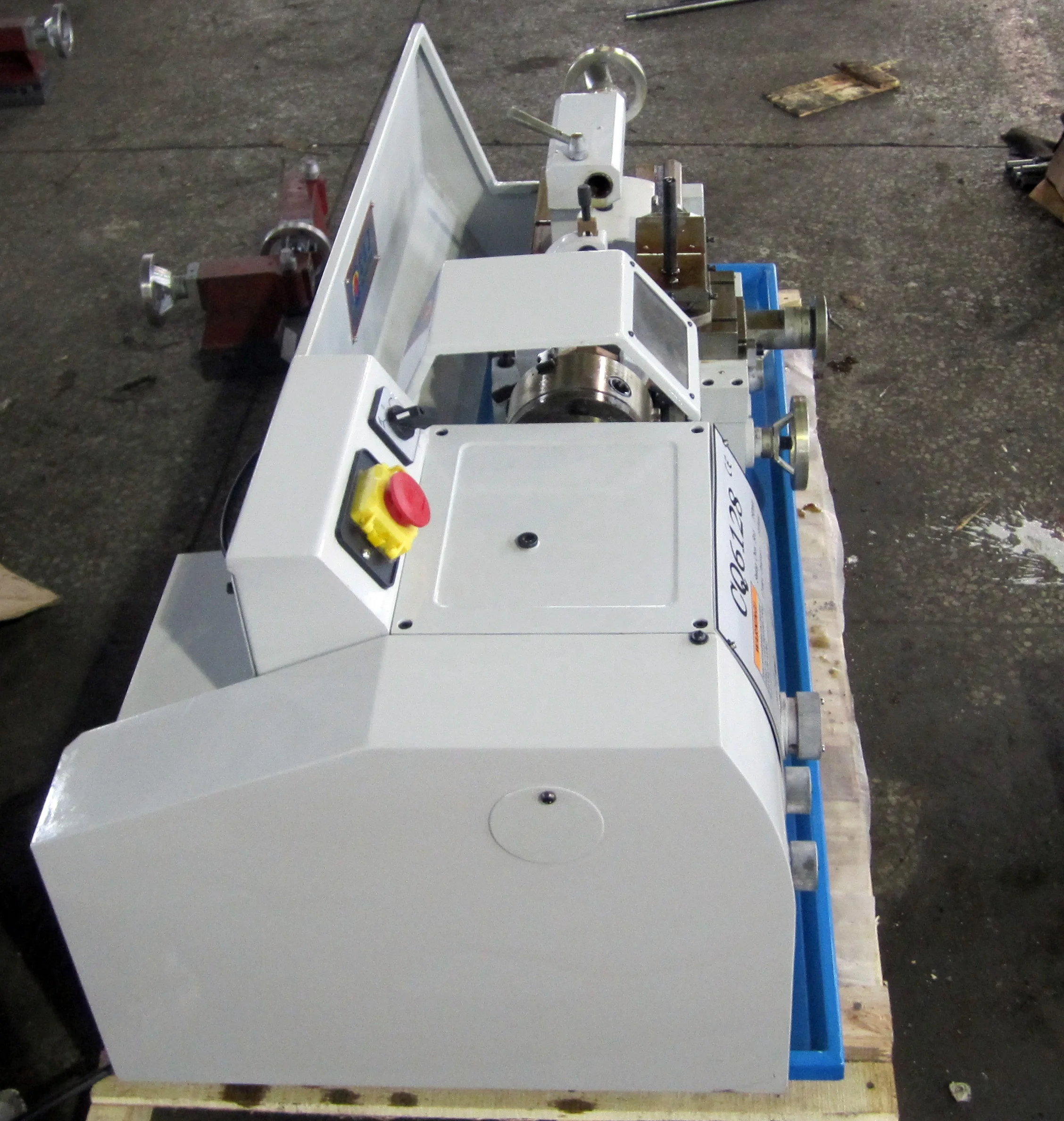

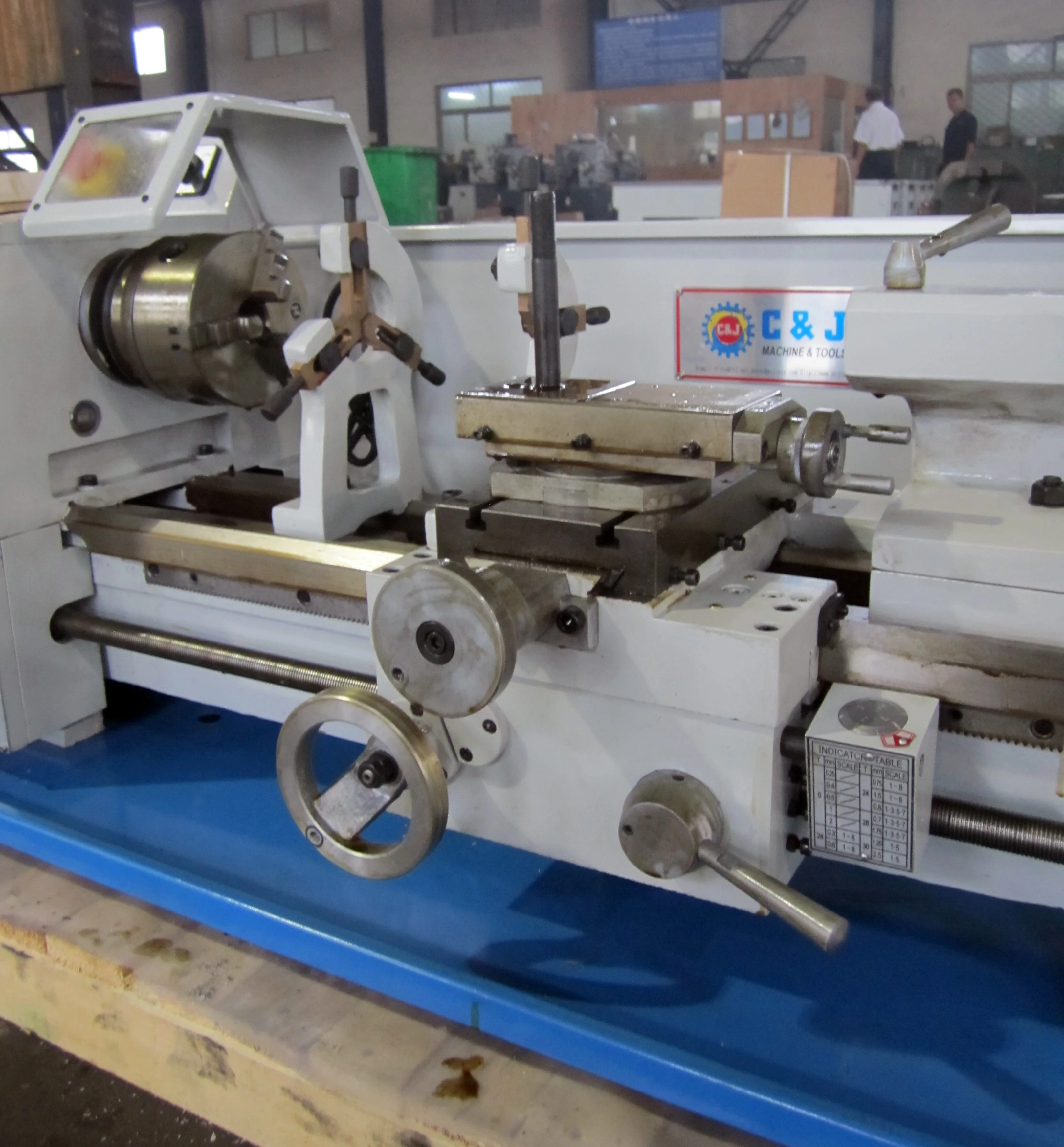

Machine photo:
Product Description
Feature:
1. Precision ground and supersonic frequency hardened bed ways.
2. With high accuracy and well wear-resisting
3. The spindle is supported with precision roller bearing
4. Safety magnetic switch or lock key switch
PRECISION&POWERFUL BENCH LATHE | CQ6125 | ||
Model | CQ6125x400 | CQ6125x550 | CQ6125x750 |
Swing over bed | Φ250mm | ||
Swing over cross slide | Φ150mm | ||
Max. length of workpiece | 400/550/750mm | ||
Width of bed | 135mm | ||
Spindle bore | Φ21mm | ||
Taper of spindle bore | M.T.#3 | ||
Range of spindle bore | 125-2000rpm | ||
Taper of tailstock quill | M.T.#2 | ||
Range of metric threads | 0.1-2.5mm | ||
Range of imperial threads | 8-56 T.P.I | ||
Range of longitudinal speeds | 0.10-0.20 mm/rev | ||
Cross slide travel | 115mm | ||
Compound rest travel | 70mm | ||
Max. travel of tailstock quill | 65mm | ||
Motor power | 550w | ||
Packing size | 1045×560×565mm | 1155×560×565mm | 1355×560×565mm |
N.W | 105kg | 109kg | 119kg |
G.W | 145kg | 149kg | 159kg |
Foot stands (L×W×H) | 500mm×300mm×750mm | ||
Foot stands(N.W) | 44kg | ||
Foot stands(G.W) | 48kg | ||
wezi
Quality Inspection:
*Each machine will be inspected well before leaving the factory.
Negotiation with customer:
* Inquiry and consulting support within 35 minutes .
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas
Guarantee:
*one year guarantee under the normal working condition ( not including th wearing spare parts)
*we can give you technology support within 24hours by call,e-mail/whatsapp/Wechat during the guarantee time.
