Product Overview

Description


Automatic Coating Machine for Motorcycle Helmet










































Power Load              • 380-415V, 3-phase
Spindle Conveyor

              • SS track
              • Sprocket: GI finish
              • VFD control
              • Speed: 3-11mtrs/min adjustable

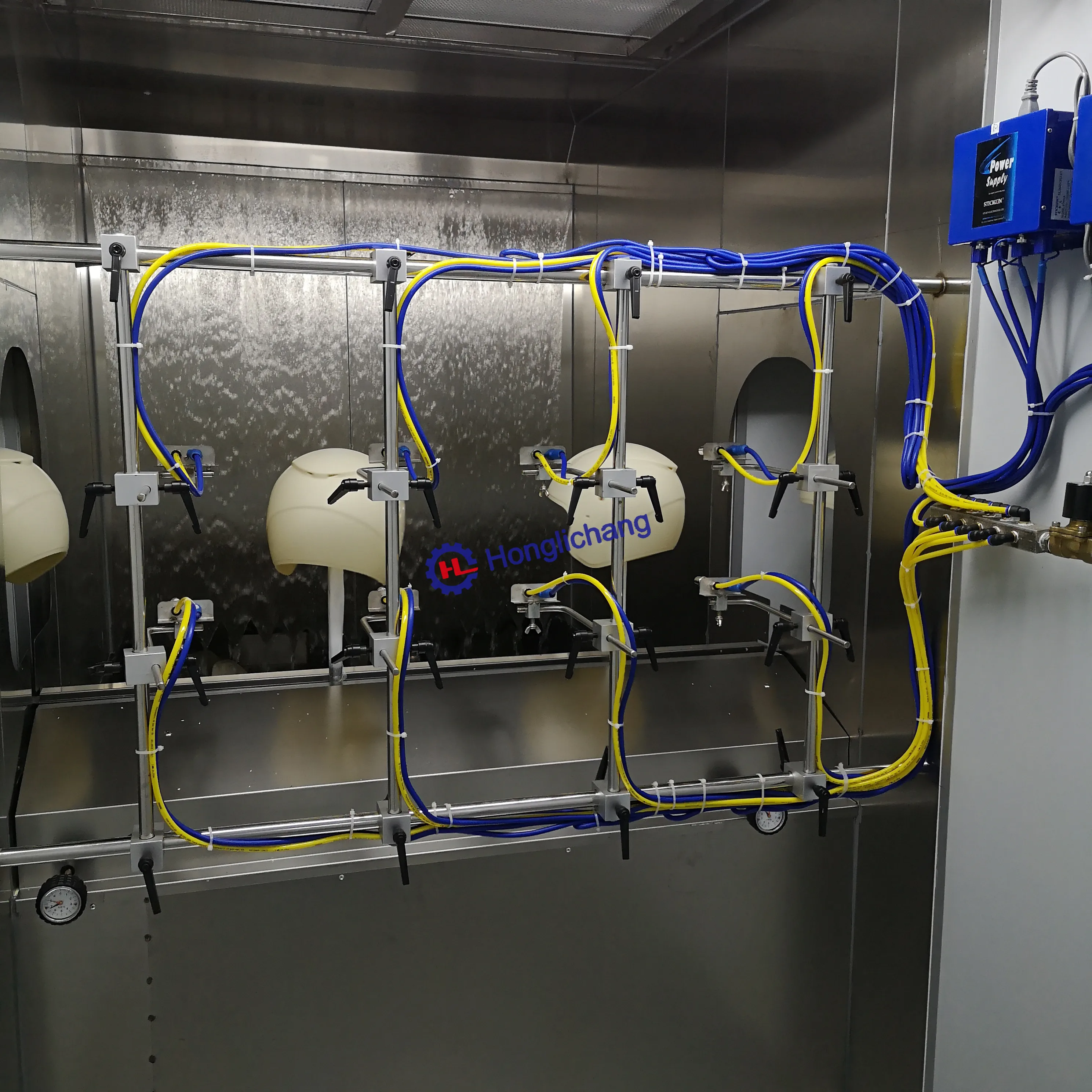

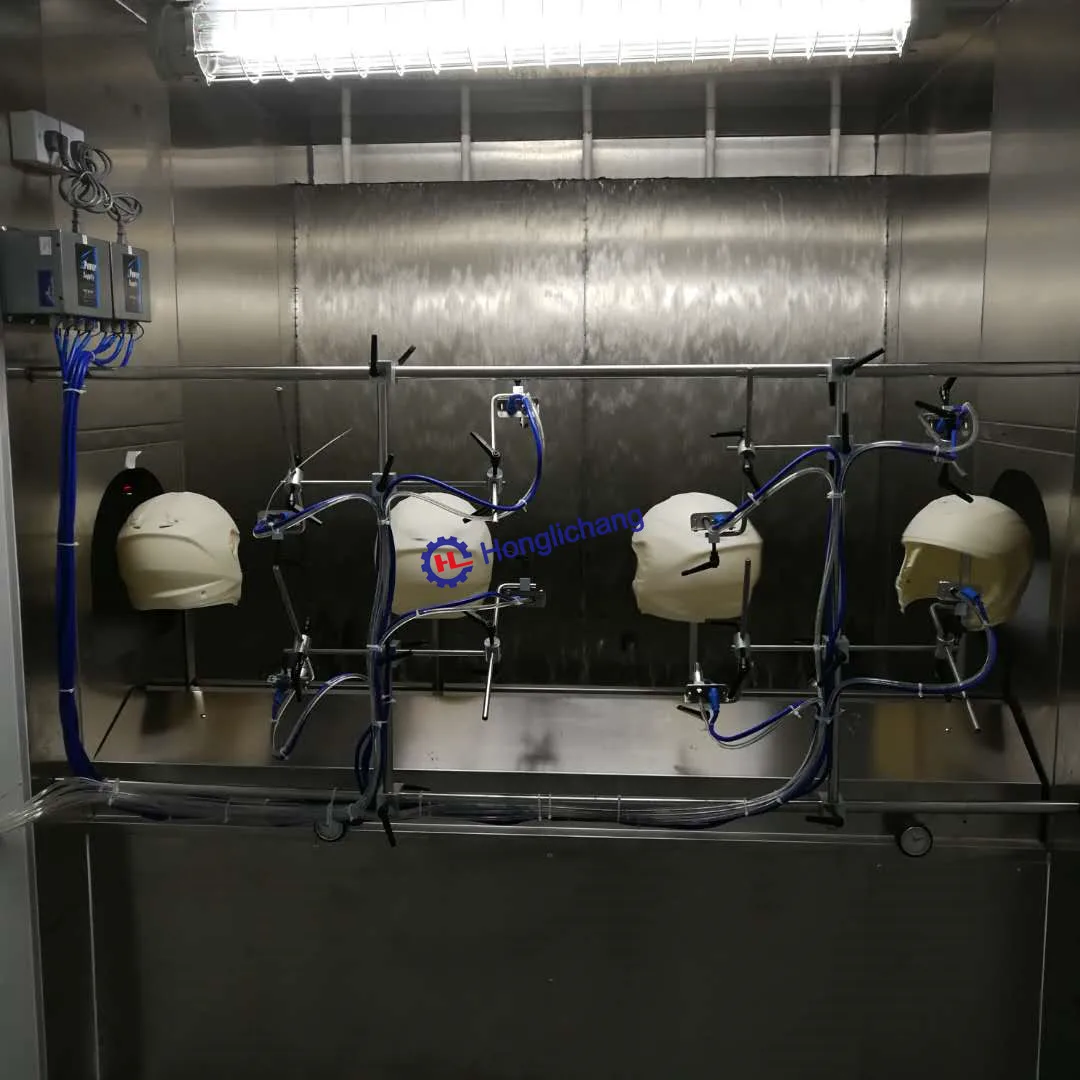

Deionzing Booth

             • W1.5m*D2.4m*H2.2m
              • Structure: SS304
              • Exhaust Blower: 8000 m³/hr
              • Ion Producer: with ion nozzle
              • photo sensor


Spray Booth

              • Size: 4.0*3.6*2.4m
              • SS structure: SS304
              • Water Tank: SS304
              • Explosion-proof lighting system
              • HEPA Filter: efficiency 99.99%
              • Exhaust fan, Air volume-15000 m³/hr
              • With explosion proof glass  observation window
              • Spray Gun: IWATA
              • Paint Pump: GRACO

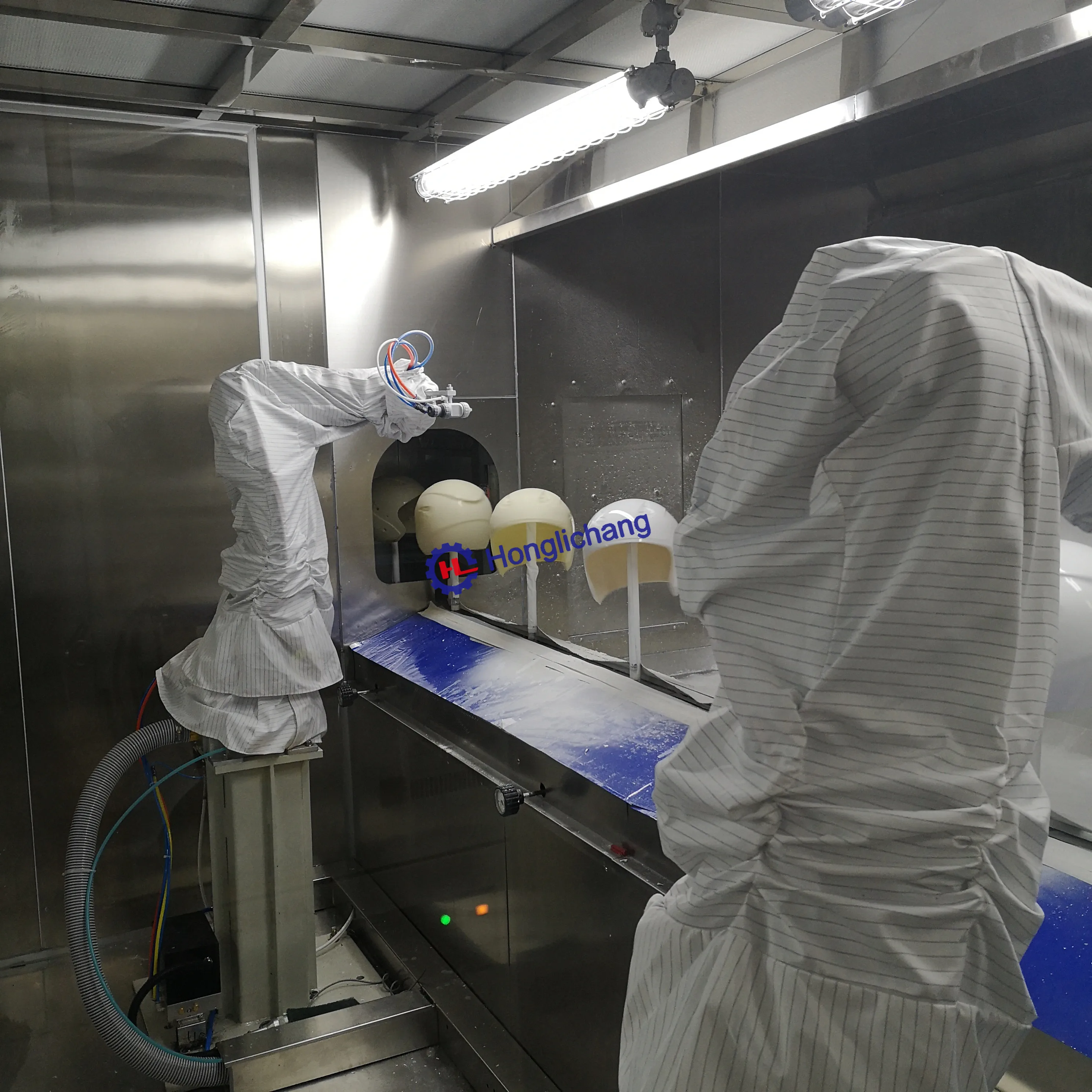

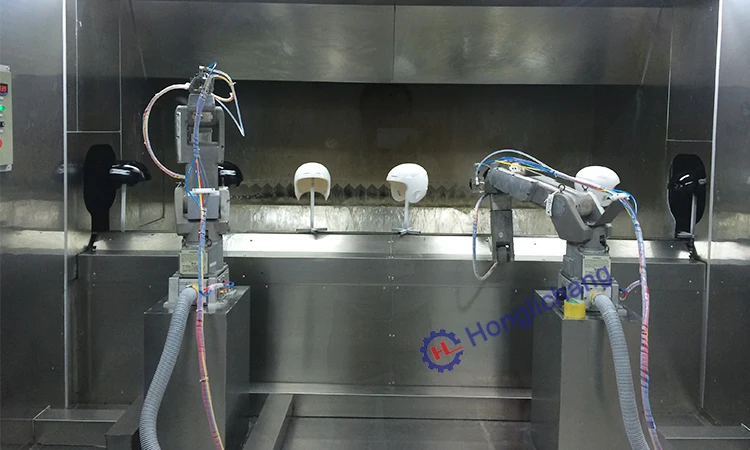

Painting Robot

              •  Brand: FANUC, USA make
              •  Axis: 6
              • Spray: inline tracking spray
              • Explosion-proof: Yes


Rotation Unit

              • Rotation sysem: 2 sets (clockwise and anti-clockwise)
              • Gun Stand: SS (with scale) and angle variable
              • Motor: 0.375KW
              • Photo Sensor

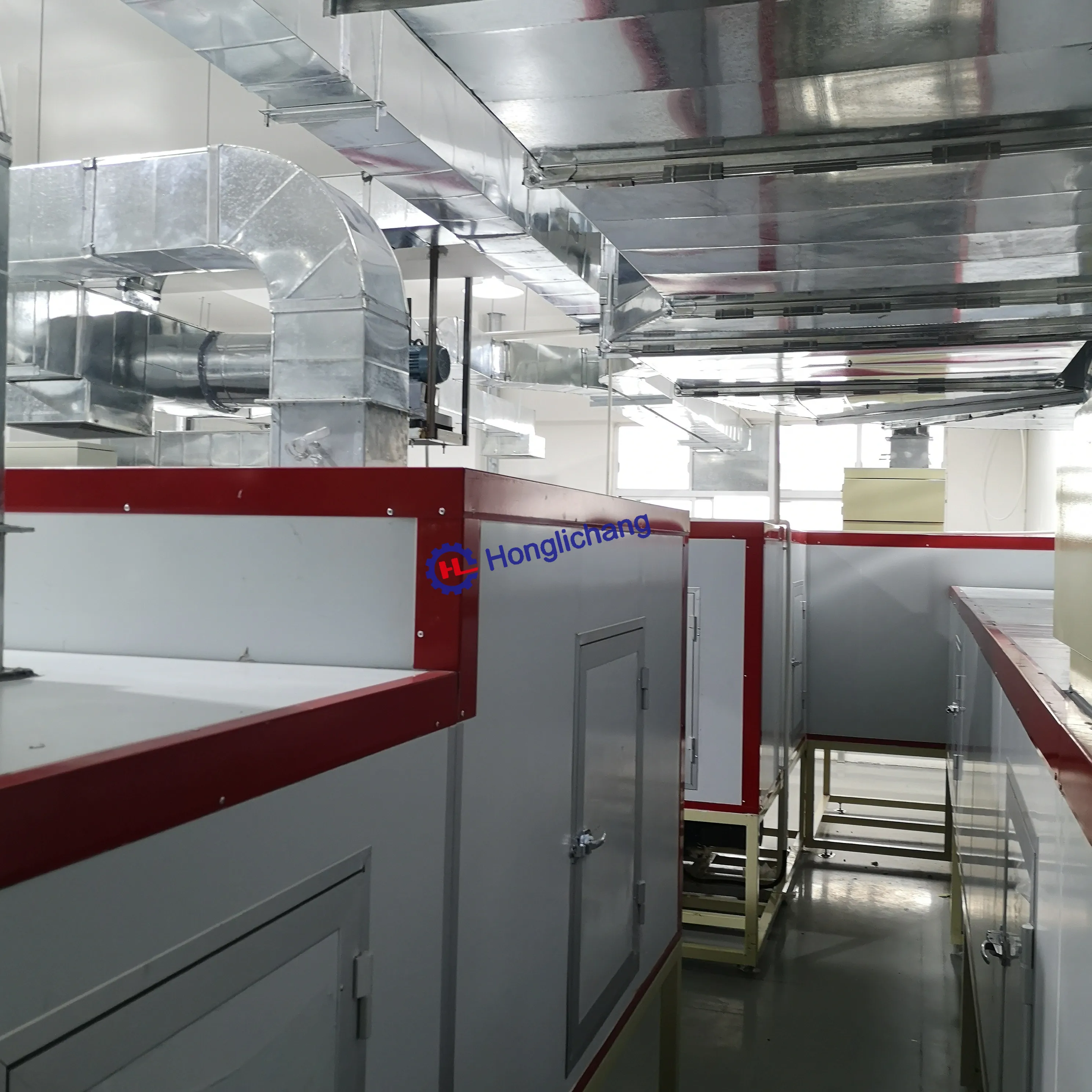

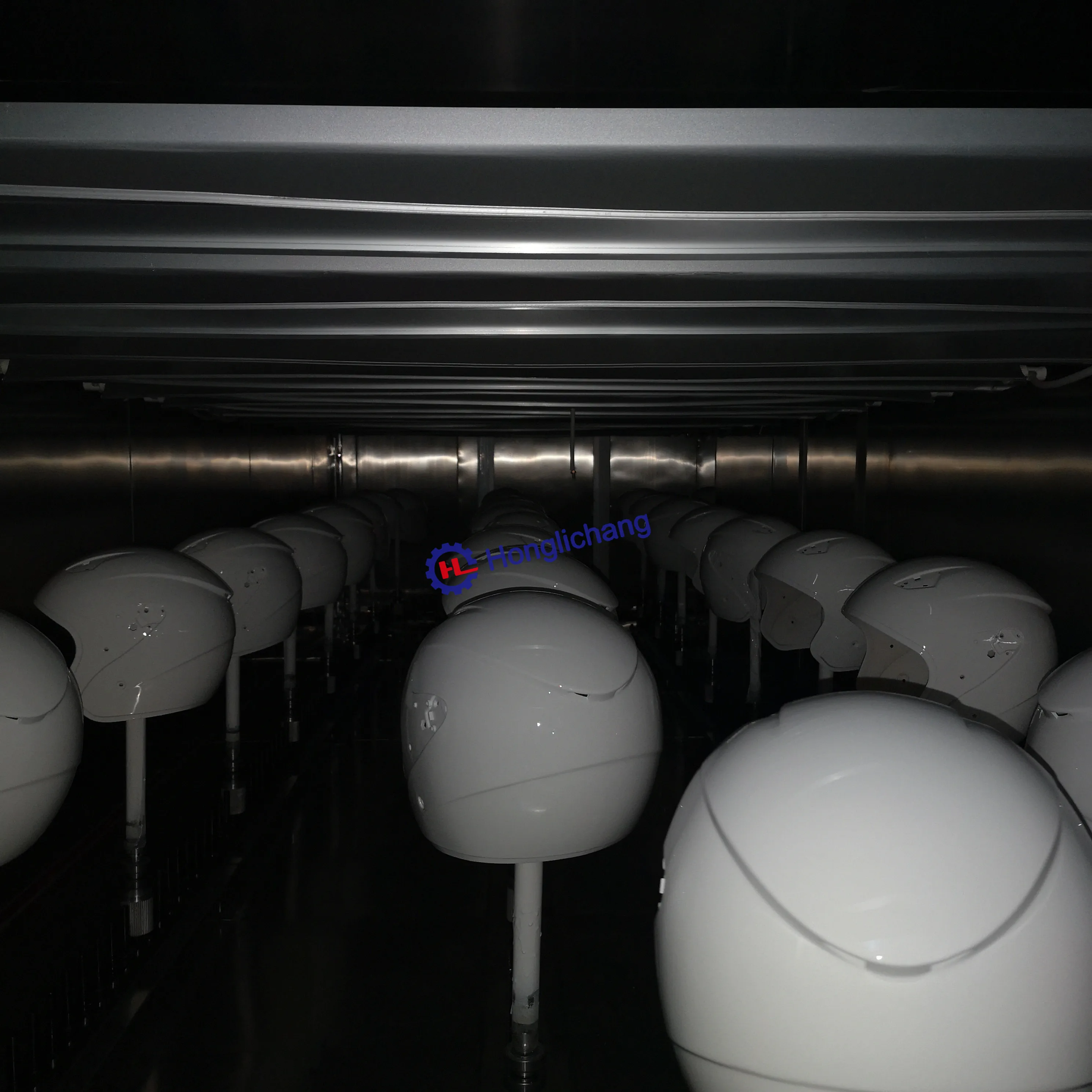

Paint Baking Oven

              • IR tunnel oven and UV curing oven
              • Temp.: 50-90 degree
              • IR Heater and UV lamp
              • Mirror finished SS inner cladding
              • Insulation: T50mm thermal panel
              • SCR unit for power saving


Control Panel

              • HMI
              • overload alarm
              • interlock for security
              • MCCB: international brand
              • VFD: well-known brand


              • PLC: international brand



Automatic Coating Machine for Motorcycle Helmet:

1. turnkey project of automatic coating machine for motorcycle helmets and various plastic components
2. main electronic components from Japan, Germany and USA
3. all design and layout considered for easy replacement, cleaning and maintenance in future
4. minimum man power required for mass production

5. 5. all design or electric component considered for power saving like electricity, water or gas





Product Description





01

02

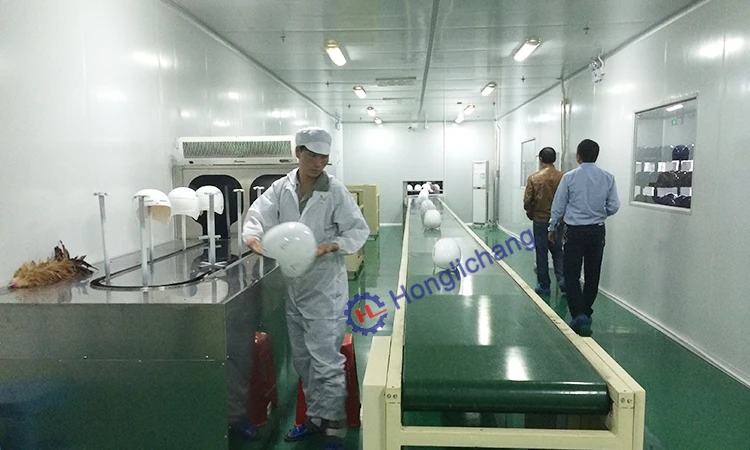

03

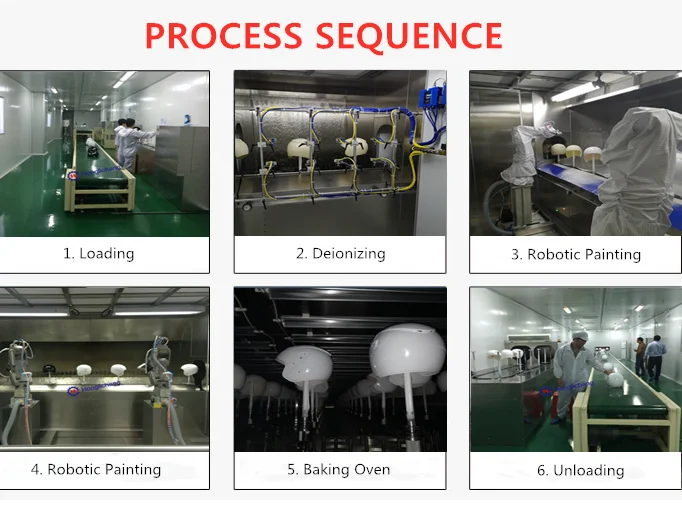

Process



Hot sale


Hot sale 5





Company Information


20FAC


08





Packaging & Shipping




FAQ





 FAQ


 Q1:Are you trading company or manufacturer?


  A1:We are 100% manufacturer,professional supplier of spray painting line for over 12   years.





Q2:How hong is your delivery time?


 A2:Generally it is 40-45 workdays,it is according to the layout.





Q3:What is your terms of payment?


 A3:Multiple,we can disscuss.





 Q4:What is your Pre-sales service?


 A4: *Inquiry and consulting support.


        *Technology solution and quotation.


        *Customer visit our factory and check our production.





Q5:Where is factory? Can visit?


A5:Yes, you are most welcome.


Office: A901, Building No.2, Tianan Digital Park, Longgang, Shenzhen, China - 518172 Factory: 11, Phase-2, Butterfly Ridge Industrial Park, Heyuan, Guangdong, China - 517583





Q6:Could you provide the design for me?


  A6:Absolutely,we can.We are a manufacturer and designer.Just let me know your product informations and requirements like product sizes,pictures,material,output,field map,technological process,or price budget and so on.We will make a layout according to your requirments.
