huawei 3g hspa usb datacard e3531i 2

Product Overview

Description

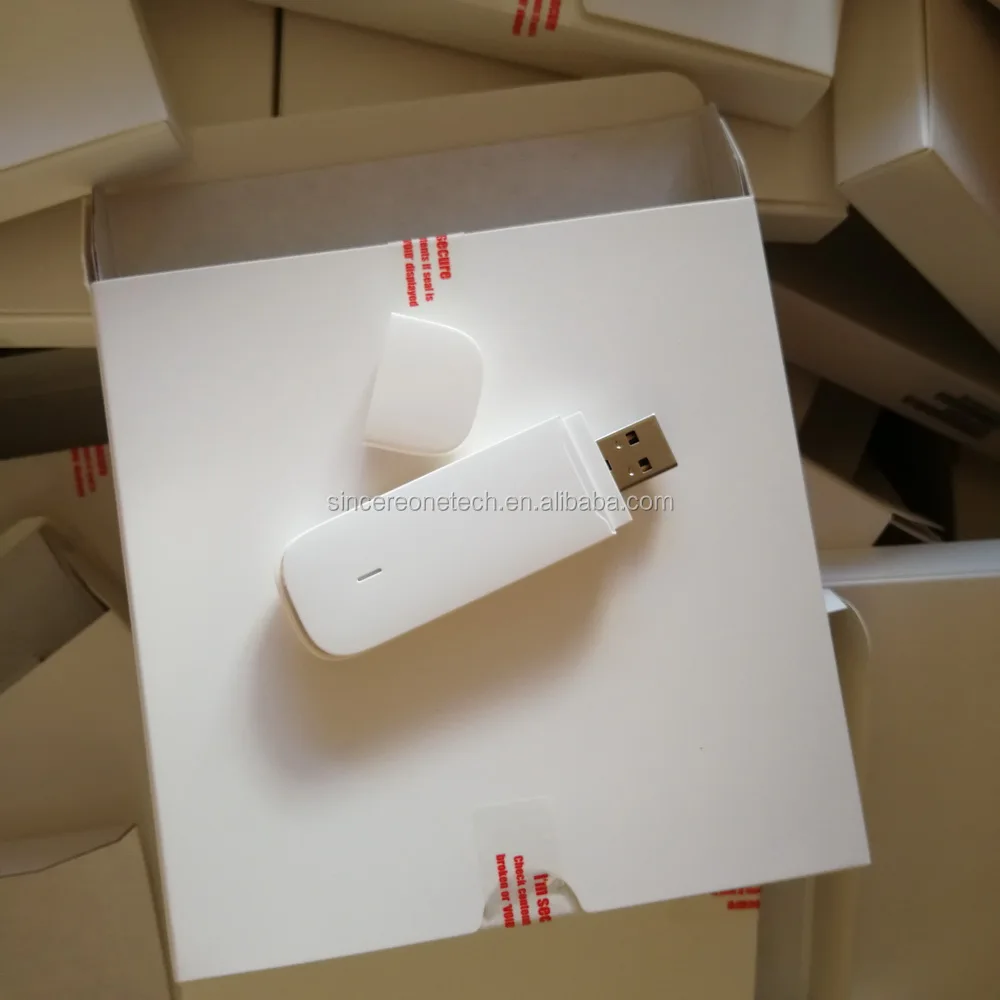

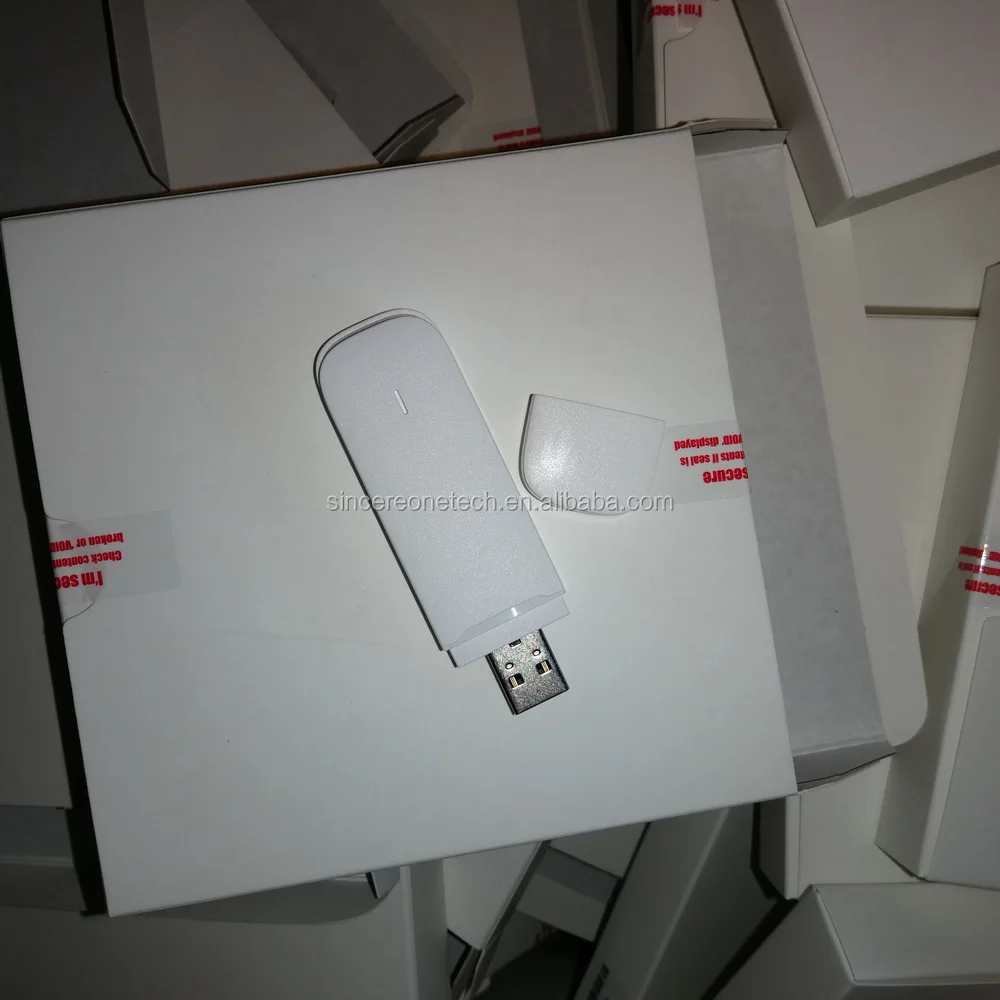

HUAWEI E3531i-2 3G HSPA+ 21Mbps USB SurfStick

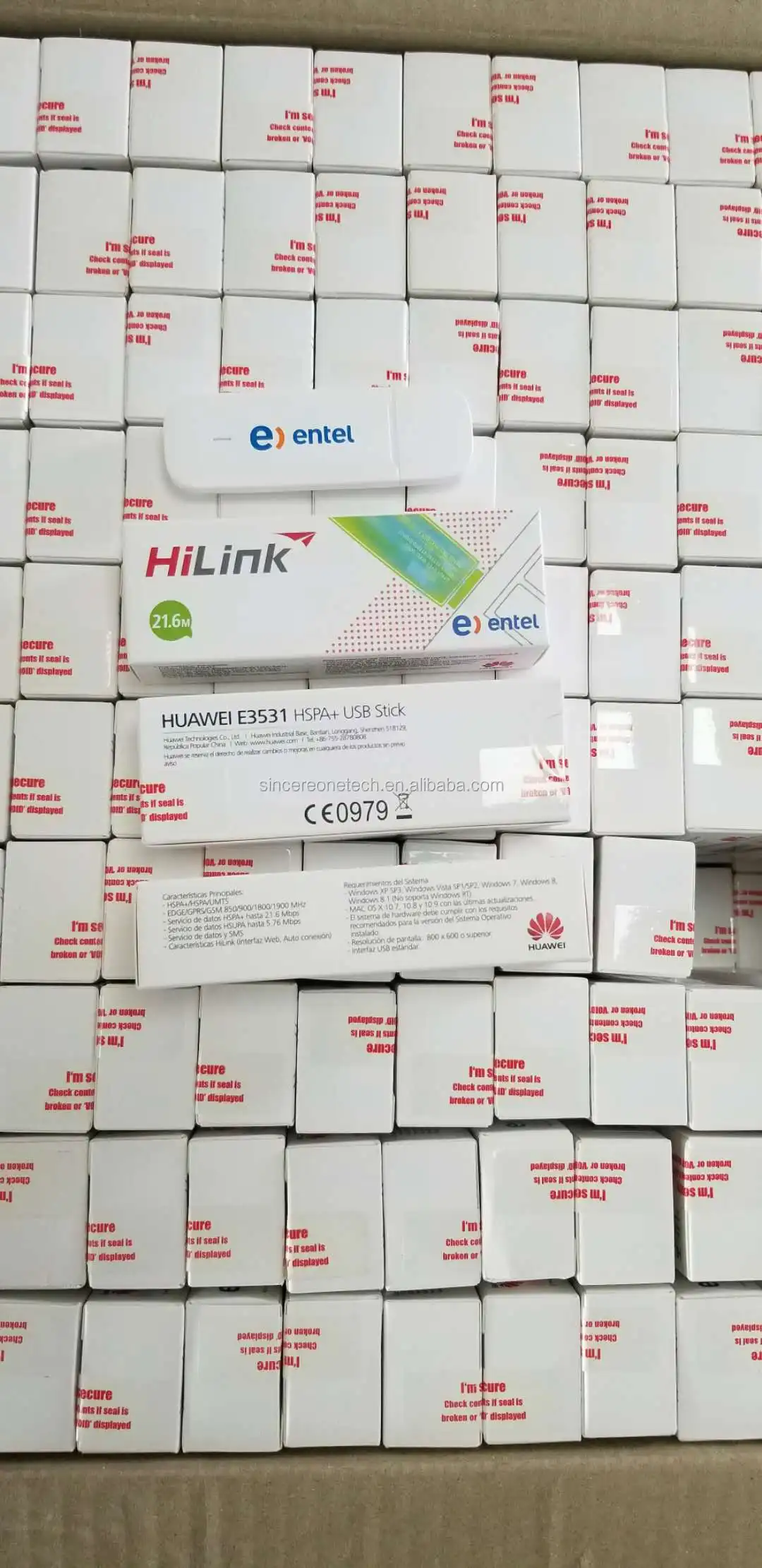

HUAWEI E3531 is a new 3G USB Surfstick with HiLink technology, which is plug and play. HUAWEI E3531 looks like the HUAWEI E3131 USB Stick, which is also supports the HSPA+ download speed up to 21Mbps and upload speed to 5.76Mbps. They can both auto connect internet in 15 seconds. As a high speed network access terminal product, in order to meet the requirement from different operators, the sub-products E3531s-1, E3531s-2, E3531s-3, E3531s-6 and E3531Ws-1 are included, which support different frequency bands, the detailed as below:

Huawei E3531s-1:
- HSPA+/UMTS 2100 MHz
- EDGE/GPRS/GSM 850/900/1800/1900 MHz

Huawei E3531s-2:
- HSPA+/UMTS 2100/900MHz
- EDGE/GPRS/GSM 850/900/1800/1900 MHz

Huawei E3531s-3:
- HSPA+/UMTS 2100/850MHz
- EDGE/GPRS/GSM 850/900/1800/1900 MHz

Huawei E3531s-6:
- HSPA+/UMTS 2100/1900/850MHz
- EDGE/GPRS/GSM 850/900/1800/1900 MHz

Huawei E3531Ws-1:
- HSPA+/UMTS 2100 MHz

HUAWEI E3531 3G USB Stick Specifications:

* HSPA+/UMTS 2100/1900/900/850MHz,

* GSM/GPRS/EDGE 850/900/1800/1900 MHz;

* Equalizer and receive diversity(TYPE 3i)

* HSPA+ data service of up to 21.6Mbps;

* HSUPA data service of up to 5.76Mbps;

* WCSMA PS domain data service of up to 384Kbps;

* EDGE PS domain data service of up to 236.8Kbps;

* GPRS PS domain data service of up to 85.6Kbps;

* Micro Secure Digital Memory (microSD) Card;

* USB Stick, easy to connect;

* Plug-and-Play;

* Standard USB interface(Type A)

* Supported OS: Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8(Does not support Windows RT);Mac OS X 10.6,10.7 and 10.8 with latest upgrades;

* HiLink features (Driverless, Zero installation, Auto connect)

* Maximum power consumption: <3.0W

* Power supply: 5V / 500mA

* Dimensions(D × W × H): 84x27x10.5 mm

* Weight: <30g

* Temperature
- Operating: –10℃ to +45℃
- Storage: –20℃ to +70℃

* Humidity: 5% to 95%







HUAWEI E3131 HiLink 3G USB Stick



HUAWEI E3131 21Mbps 3G USB Modem is the newest 3G USB Dongle from HUAWEI to meet some countries where the 4G network has not been rolling out and 3G network is still in use. It's a new star of 3G USB stick in HUAWEI HiLink Family. Upgraded from HUAWEI E303 Hilink USB stick, it could support up to 21.6Mbps download speed. With unlocked version, it could work well with all the providers' 3G network all over the world



There are different versions of HUAWEI E3131 available now in the market, the main difference between them is the 3G band frequency they could support:



HUAWEI E3131s-1: UMTS 2100MHz

HUAWEI E3131s-2: UMTS 2100/900MHz

HUAWEI E3131s-6: UMTS 2100/1900/850MHz

HUAWEI E3131s-65: UMTS 1900/850MHz



Features of E3131:



* uses HSPA+ technology
* use with a PC or Mac
* use it at home or on the go
* plug into USB port
* microSD card slot
* Standard Dongle



Specifications of E3131 dongle

:

* Hi Link Get Connected within 15 Seconds
* Network bands:
- 3G UMTS/WCDMA/HSPA+
- GSM/GPRS/EDGE 850/900/1800/1900 MHz
* HSPA+ up to 21Mbps
* HSUPA up to 5.76Mbps
* Works On Both 2G & 3G
* Micro Sd Card Slot Support Upto 32 Gb
* Built in and support external antennas
* Number of entries in the phonebook: up to 100
* SMS and Data Usage Viewer
* Weight: about 30g
* Compatible With Windows & Mac



Any interesting in our 3g/4g modem and routers, please feel free to contact us now, many thanks.
