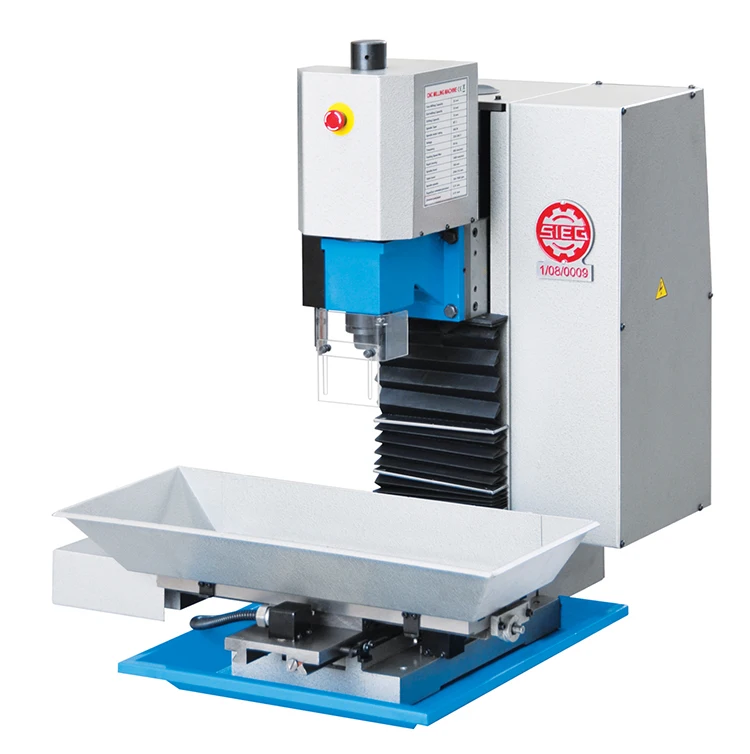

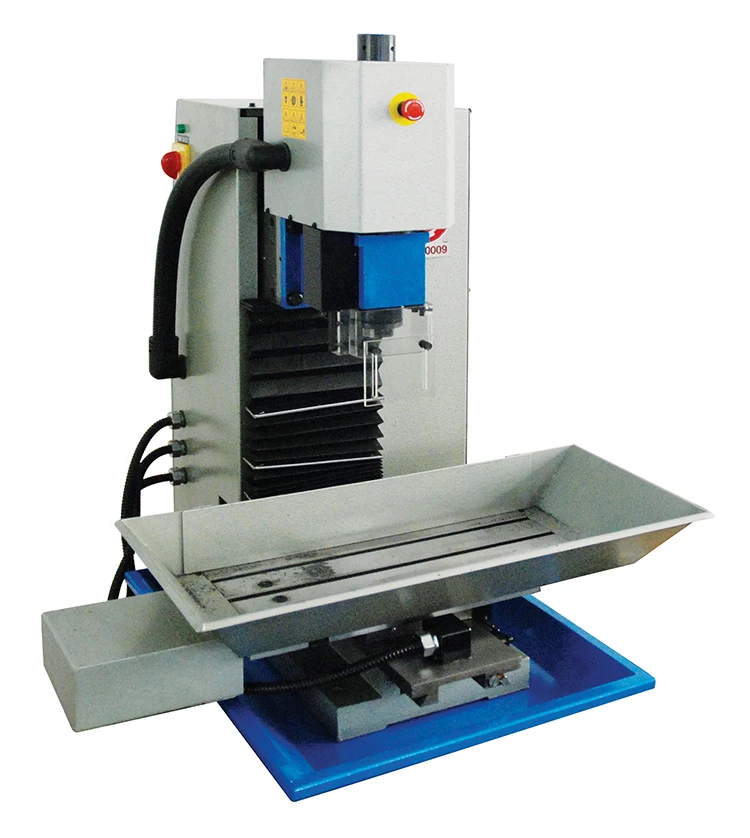

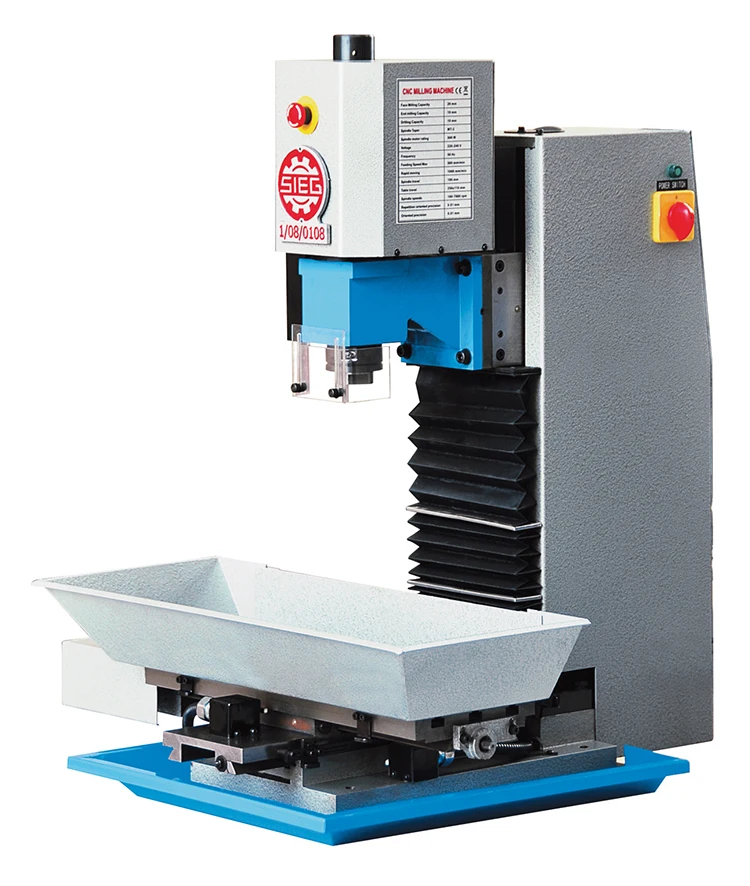

Mini benchtop CNC milling machine KX1S metal processing for DIY hobby users and family workshop
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (62473550803):
Product Overview
Description
TABLE | Table size | 400×125mm |
T slot (amount×width×distance) | 3×8×35mm | |
Max. load | 20kg | |
TRAVEL | X travel | 260mm |
Y travel | 110mm | |
Z travel | 180mm | |
Spindle nose to table | 60-240mm | |
Spindle center to column | 125mm | |
SPINDLE | Spindle taper | MT2 |
Spindle motor | 500w | |
Spindle speed | 100-7000r/min | |
FEED | The max moving speed | 2000mm/min |
The max feeding speed | 500mm/min | |
Power of X/Y | 1.35 Nm | |
Power of Z | 2.2Nm | |
ACCURACY | Positioning accuracy | 0.015mm |
Repeatability accuracy | 0.01mm | |
OTHERS | Power | 230/120V |
Weight（NW/GW） | 280/340kg | |
Overall dimension | 1040×860×940mm | |
Packing size | 1170×960×1100mm |
CNC lathe machines | |||||
Swing over the bed (mm) | |||||
Center width (mm) | |||||
Chuck diameter (mm) | |||||
Spindle hole (mm) | |||||
Spindle motor (W) | |||||
X travel (mm) | |||||
Z travel (mm) | |||||
Tool position | |||||
Tool dimension (mm) |
CNC milling machines | |||||
X/Y/Z travel (mm) | |||||
Spindle motor (W) | |||||
Spindle type | |||||
Spindle speed (rpm) | |||||
Max moving speed (mm/min) | |||||
Table size | |||||
Max load |
- Port of loading: Shanghai China.
- Port of destination: As arranged.
- By Express, by Sea, by Air Cargo.
- Port of destination: As arranged.
- By Express, by Sea, by Air Cargo.
WE MAKE SURE THE PRODUCT’S
SAFE ARRIVAL !
FAQ
———————————————————————————————————————————————————————
Q1: Is your company a factory or a trading company?A1: We are a factory with more than 12 years of production experience.
It alsohas an office in Liuzhou City, Guangxi Province, China.
Q2: Where is the factory and how can I get there?
A2: Our factory is located in Shanghai, China. We warmly welcome you.
Q3: What are your main products?
A3: We focus on various CNC machine tools,such as CNC lathes, CNC
milling machines and CNC vertical machining centers.
Q4: What is the control of your lathe? Can I change it to another brand?
A4: The standard control of our lathe is GlaxoSmithKline. You can also
change other controls, such as FANUC, Siemens, etc.
Q5: How to select the most suitable machine?
A5: Please tell us your requirements for the machine, or you can send
us product drawings, and our engineers can help you choose Best
model.
Q6: What are your terms of payment?
A6: Our terms of payment are 30% t / T in advance and 70% t / T before
delivery.
Q7: When is your delivery time?
A7: After receiving the deposit, the machine order takes 30-45 days.
If some special models will be longer, we will give you the corresponding
answer.
Q8: What is the minimum order quantity and product warranty period?
A8: One year, one set (except for special models)
Q9: What is a delivery package?
A9: Carton packing, wooden case
Q10: How does your company conduct quality control?
A10: ISO9001 and CE quality control
