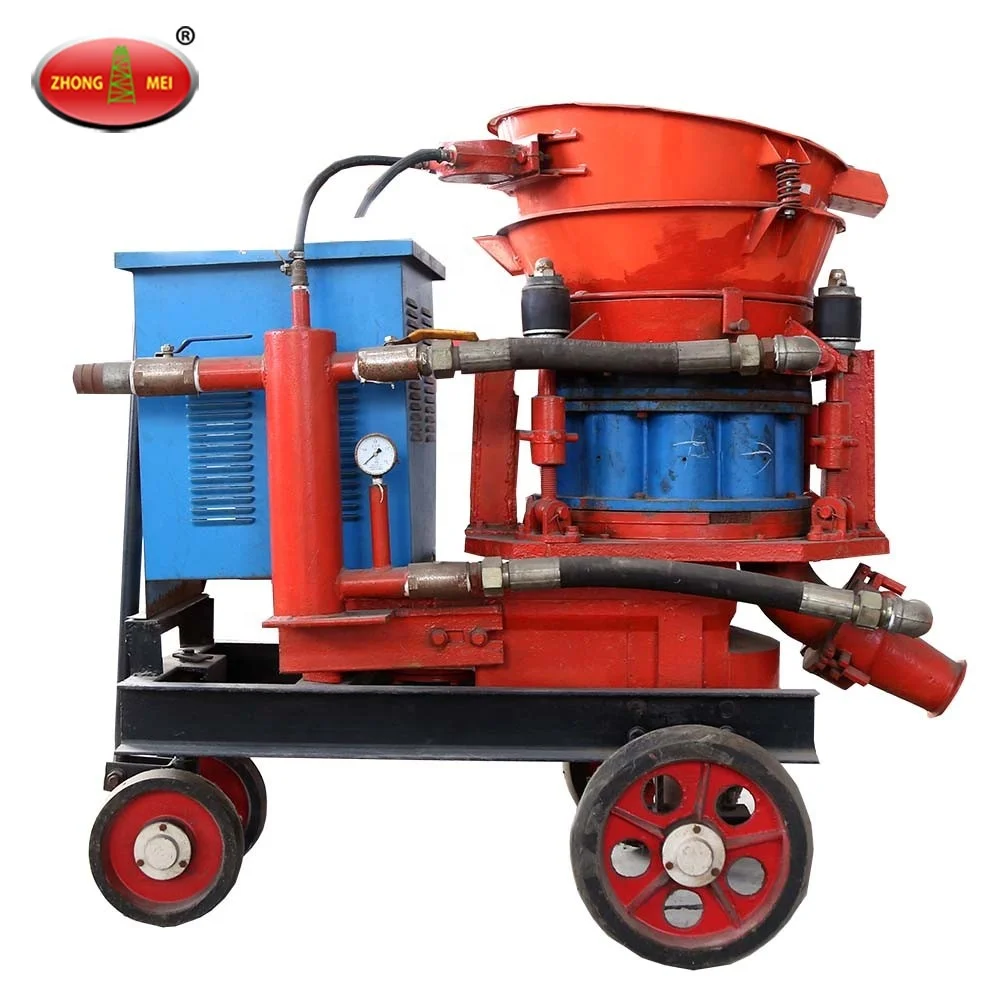

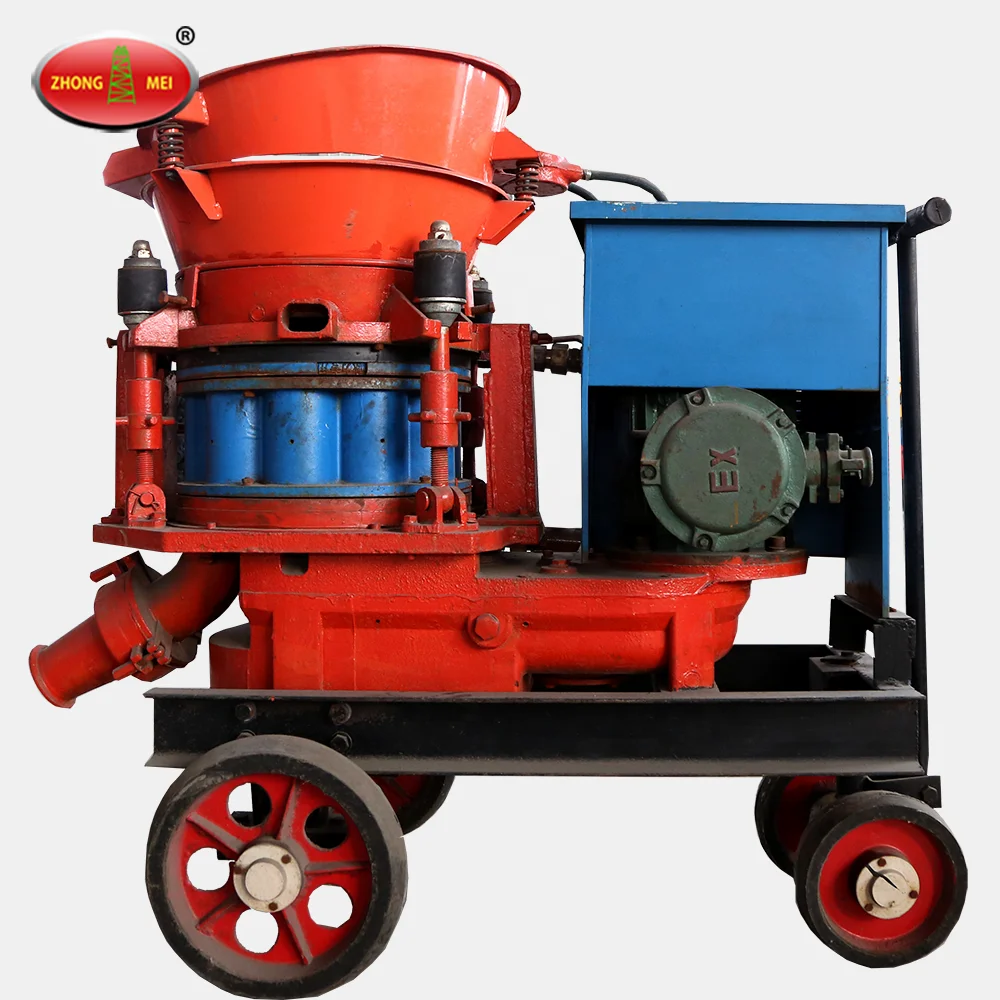

Widely Used PZ Series Dry Shotcrete Pump/ Gunite Machine For Sale

Product Overview

Description





Product Introduction of Shotcrete Machine

Shotcrete machine Application:

Shot Blasting Concrete are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc. It has many obvious advantages such as simple structures, easy operation and convenient after sales service and very long serviceable life etc.zmwm07

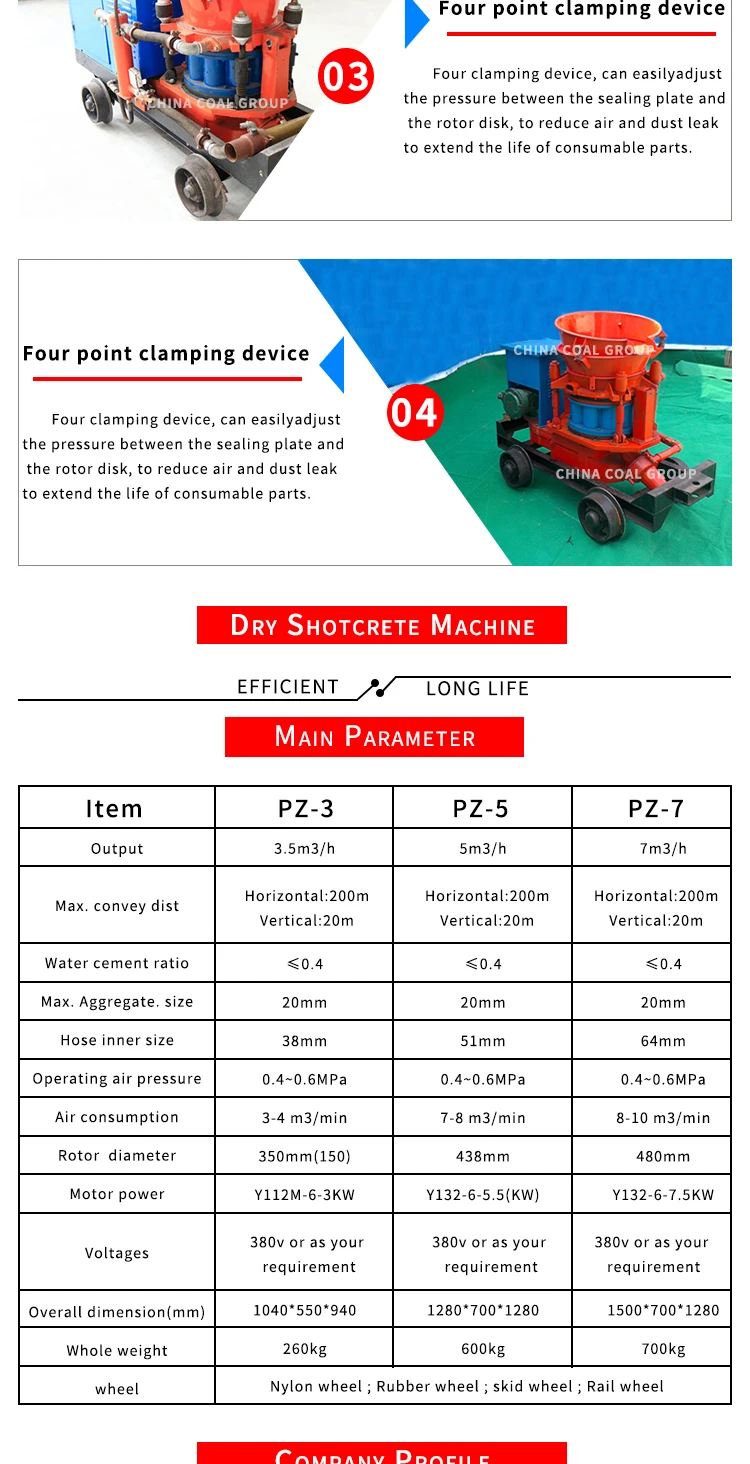

Main Parameter of  Shotcrete Machine

Model	PZ-5 Spray Shotcrete Machine	PZ-7 Spray Shotcrete Machine
Capacity	5 m³/h	7m³/h
Max Convey Distance	Horizontal:200m   Vertical 20m	Horizontal:200m  Vertical:20m
Water Cement Ratio	≤0.4	≤0.4
Max. Aggregate Size	20mm	20mm
Hose Inner Diameter	51mm	64mm
Rotor Diameter	438mm	480mm
Operating Air Pressure	0.4-0.6Mpa	0.4-0.6Mpa
Air Consumption	7-8m³/h	8-10m³/min
Motor Power	5.5kw	7.5kw
Voltage	380v or as your request	380v or as your request
Dimension	1280*700*1280mm	1500*700*1280mm
Net Weight	600kg	700kg
Wheel	Nylon Wheel, Rubber Wheel, Skid Wheel, Rail Wheel

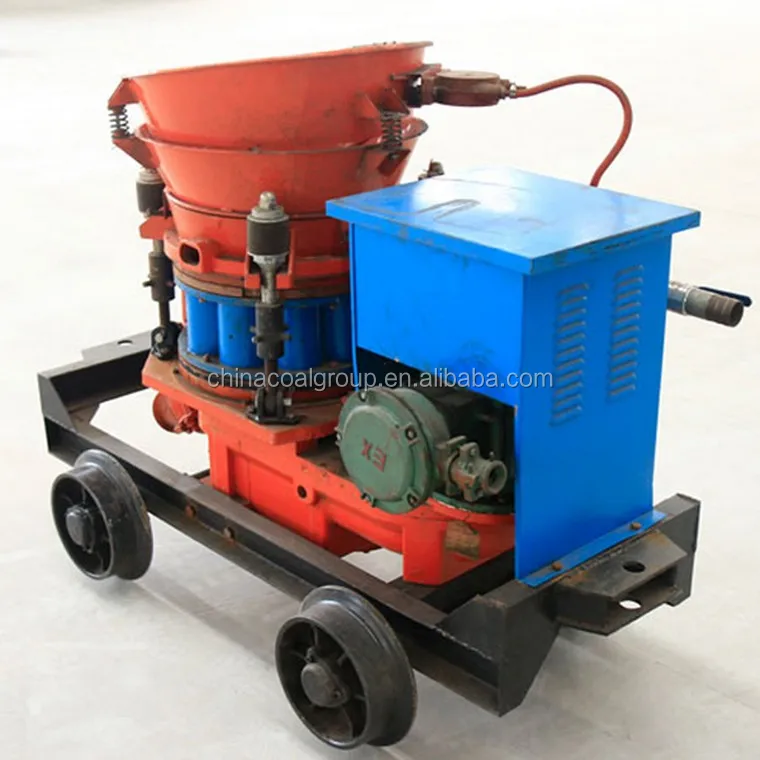

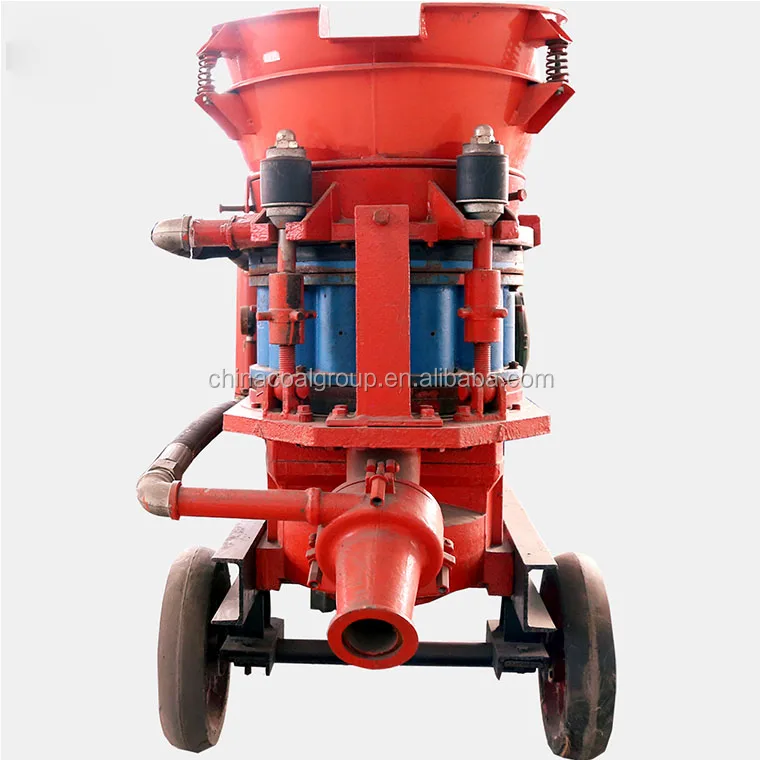

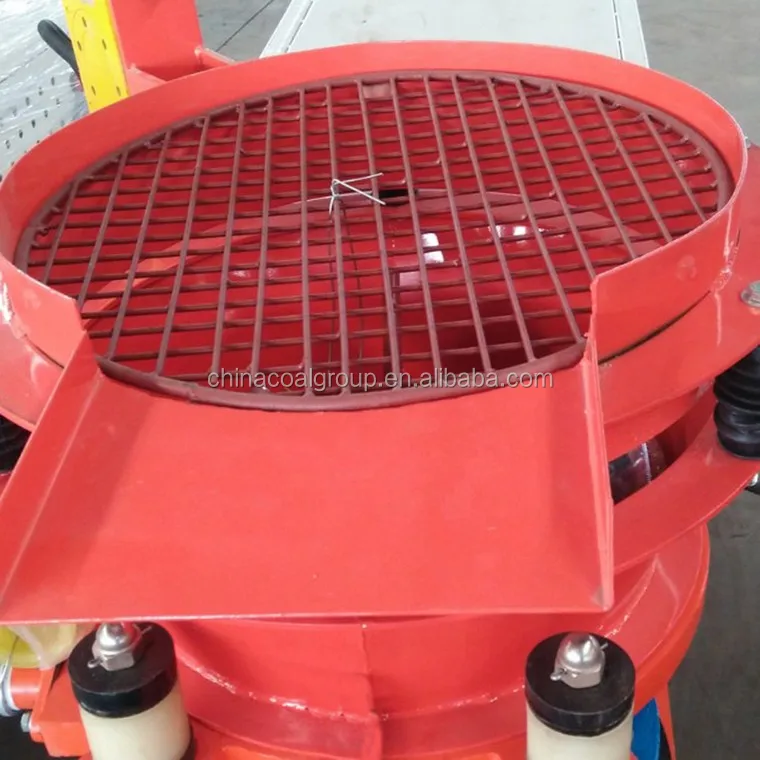

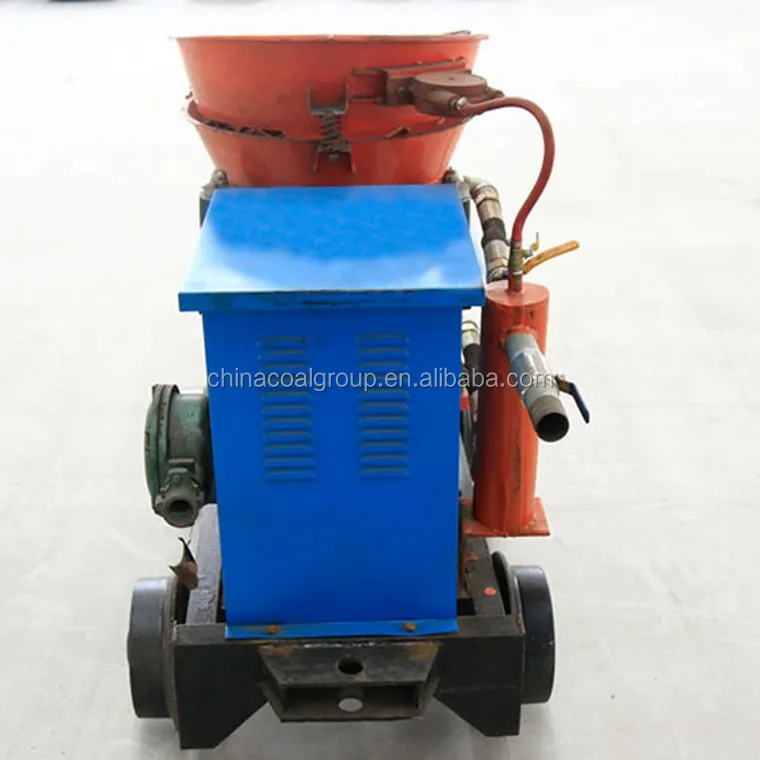

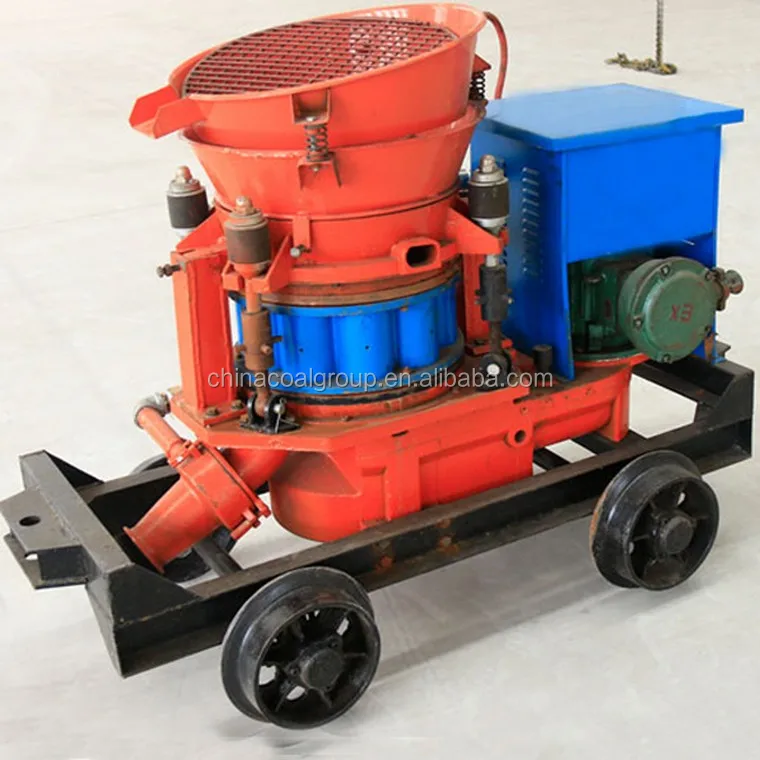

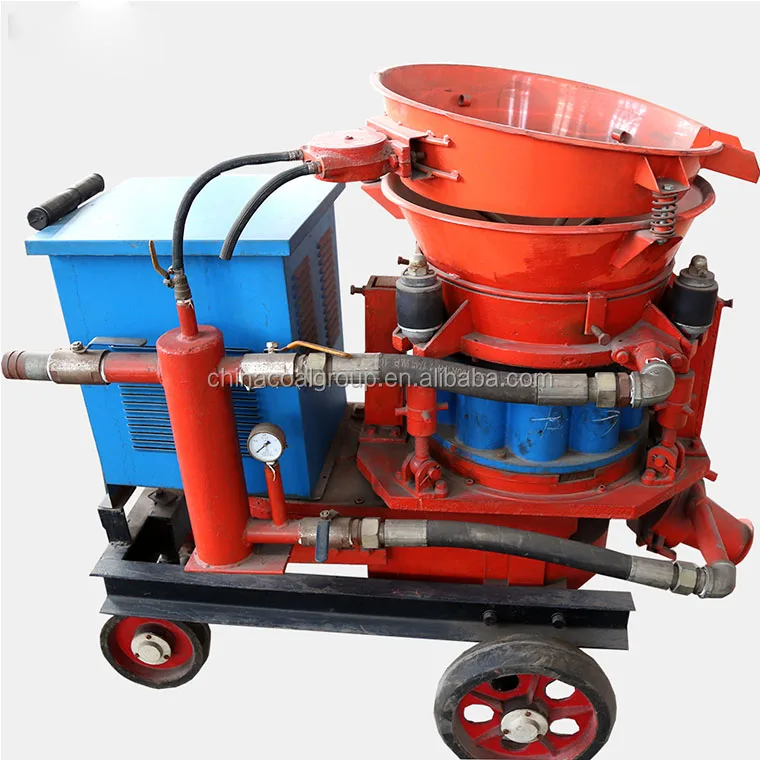

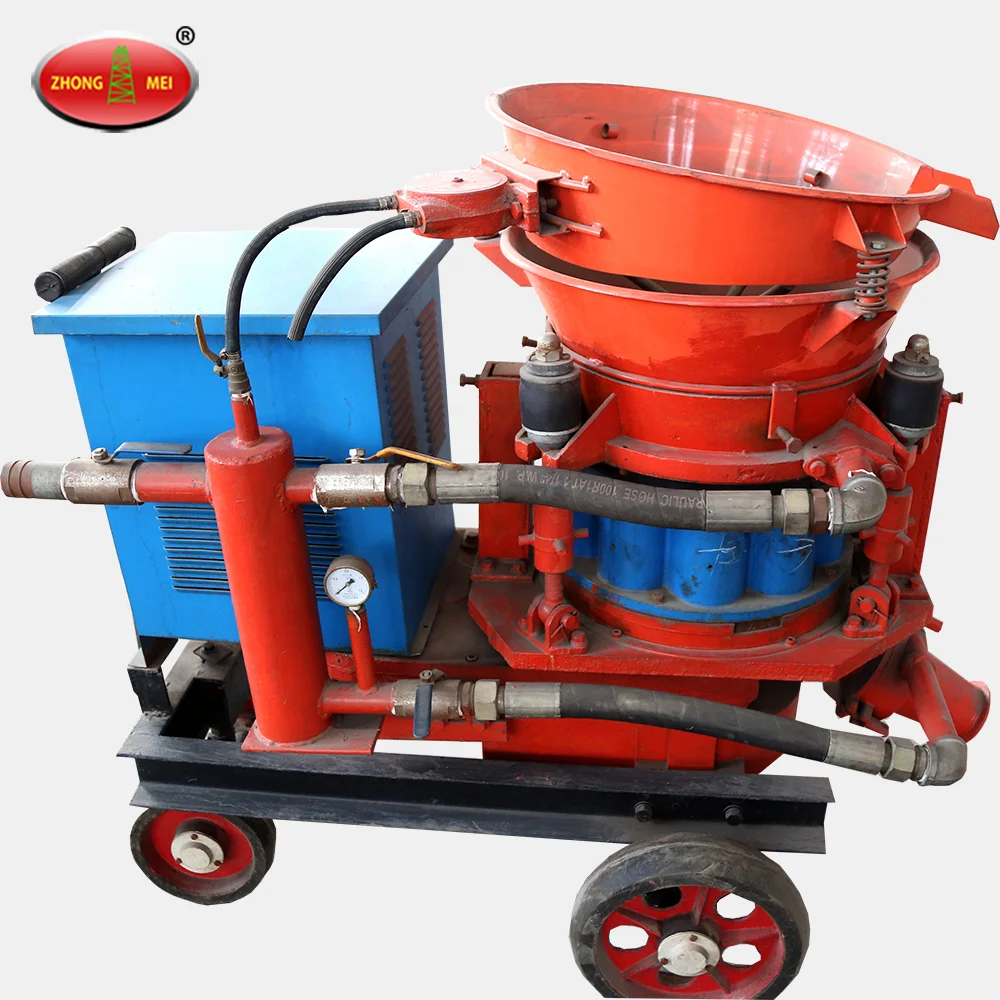

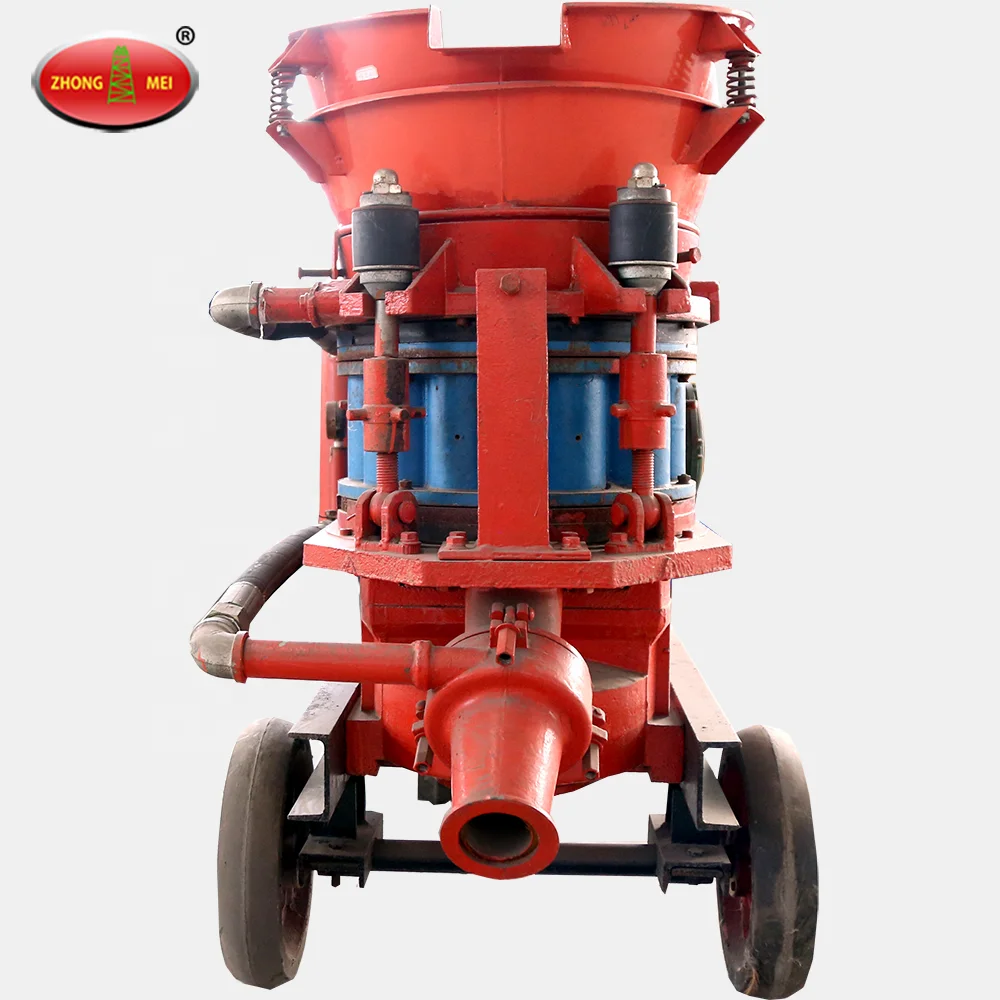

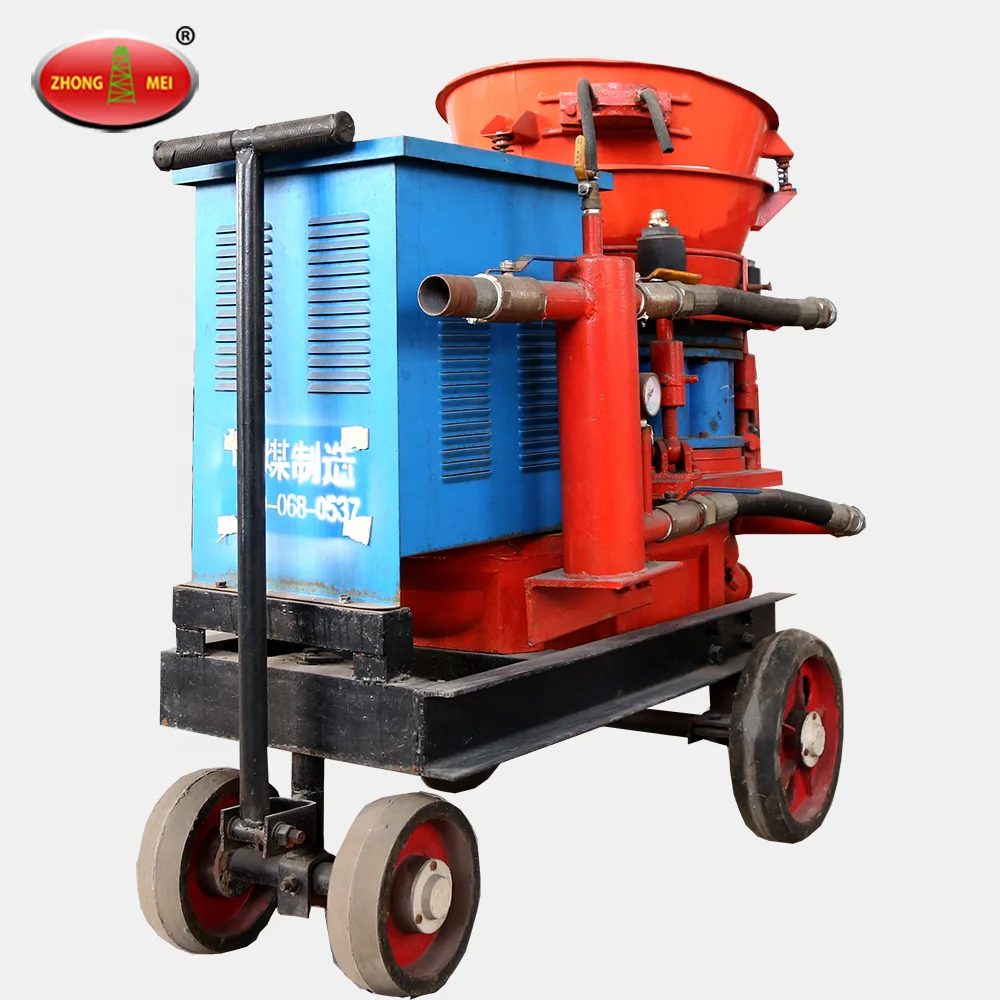

Figure Photos of  Shotcrete Machine
