Product Overview
Description
Gerntek
China Automotive Vehicle Car Diagnostic Tools Current Tester
| Item code | AE150 |

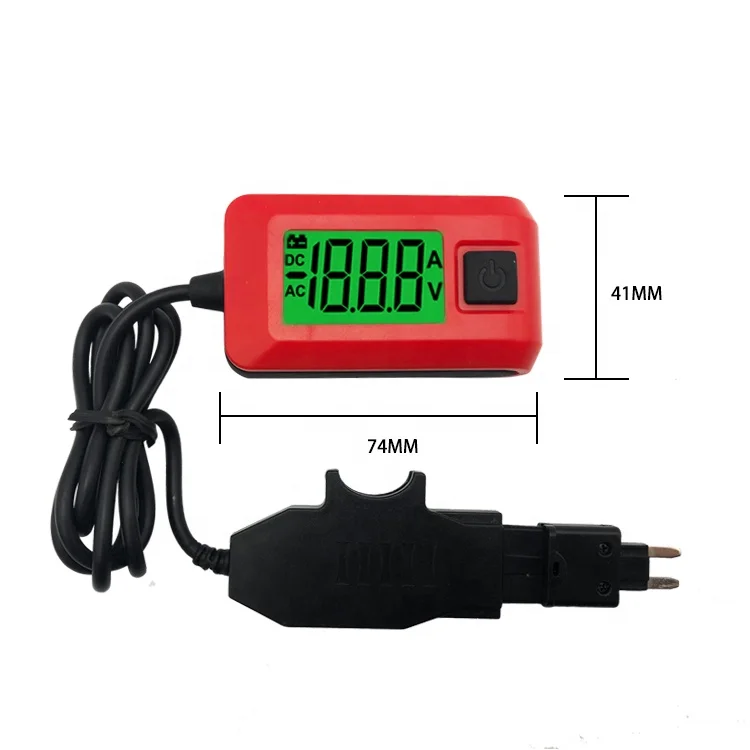

| Item size (cm) | 74x23x41mm |
| Net weight(g) | 73g |
| Body Material | ABS + TPR |
| Packing details | Double blister + color card |
| Carton size (CBM)/Qty | 0.075cbm/80pcs |
| MOQ | 100pcs |
| Cable wire Size | 800mm |
| Measurement range | 0.01-19.99A |
| Max load | 20A/48V DC for maximum 10 seconds |
| Operating Condition | Temperature 0°C~40°C, relative humidity<75% |
| General Description | The tester can be used to measure current at the fuse box of standard blade fuse. It is ideal for fault finding on automotive or commercial vehicle circuit. It features quick measurement and high accuracy. It is very easy to use. |
| Operation Instruction | 1. Switch off the vehicle’s ignition. 2. Take the blade fuse supplied with the tester out of the fuse jack. Then remove the vehicle’s fuse from the circuit to be tested and insert it into the fuse jack of the tester, this ensures the correct level of circuit protection. (The rating of the blade fuse supplied with the tester: 20A/48V, standard type) 3. Insert the plug of the tester into the vehicle fuse socket. 4. Switch on the vehicle’s ignition if necessary, to energize the circuit. Then turn on the tester (by press the power button) 5. Operate the circuit under measurement, the display will show the measured current. 6. Turn off the tester (by press the power button again) when you finish measurement. |
| Operated Power | a 23A 12V batteries |
| Payment terms | 1) T/T (30% deposit before production, 70% balance against copy of B/L) 2) L/C at sight |
| Lead time | 25-45days after receiving the deposit |
| Service | OEM/OEM avaiable, Customized service |
| Samples | Available |
