Huawei Router NE40E X3 1port 10GBase LAN/WAN XFP flexible card B (P20 B) CR5M0L1XXB20 03030HVH

The NE40E Series routers run on the Versatile Routing Platform operating system and use
Huawei-developed NP chips and hardware-based forwarding and non-blocking switching technologies. Based on distributed hardware forwarding, non-blocking switching technologies, distributed Clos architecture, and
industry-leading 2T bps platform, the NE40E Series routers have the following features:

1.Support for 1T routing line cards in each slot, with excellent compatibility with currently used line cards to
   protect carriers' investments to the largest extent.
2.Line speed forwarding capabilities, industry-leading reliability, excellent scalability, a well-designed quality of
   service (QoS) mechanism, and strong service processing capabilities.
3.Powerful service access and aggregation capabilities and various features, such as Layer 2 virtual private
   network (L2VPN), L3VPN, multicast, multicast VPN (MVPN), and Multiprotocol Label Switching - Traffic
   Engineering (MPLS-TE).

4.Various service features, such as IP Security (IPSec), Network Address Translation (NAT), and NetStream     5. Support for IPv6 and smooth transition from IPv4 to IPv6.
The NE40E can be flexibly deployed at the edge or core of IP or MPLS networks, simplifying network structure.
With its ability to provide an extensive range of services and reliable service quality, the NE40E is driving IP and
MPLS bearer networks to develop greater broadband capacity and to become more secure, more intelligent, and more service-oriented.

Features of the Huawei NE40E Series Routers.

Powerful Service Support

Comprehensive access and aggregation capabilities

Powerful routing capabilities

Strong service bearer capabilities

Powerful and expansible multicast capabilities

Future-Oriented IPv6-Compatible Solutions

High Availability

Equipment-level reliability

Network-level reliability

Service-level reliability

High Security

Device security

Service security

Flexible VS technologies

QoS

Well-designed QoS mechanism

Flexible and Scalable, Investment Protection

Industry-leading 2T platform

Commercial-ready SDN capabilities

Flexible VS technologies

Control- and forwarding-plane separation

Huawei-developed chips, service on demand

Energy Saving Design

Regulation Compliance

Dynamic energy-saving design

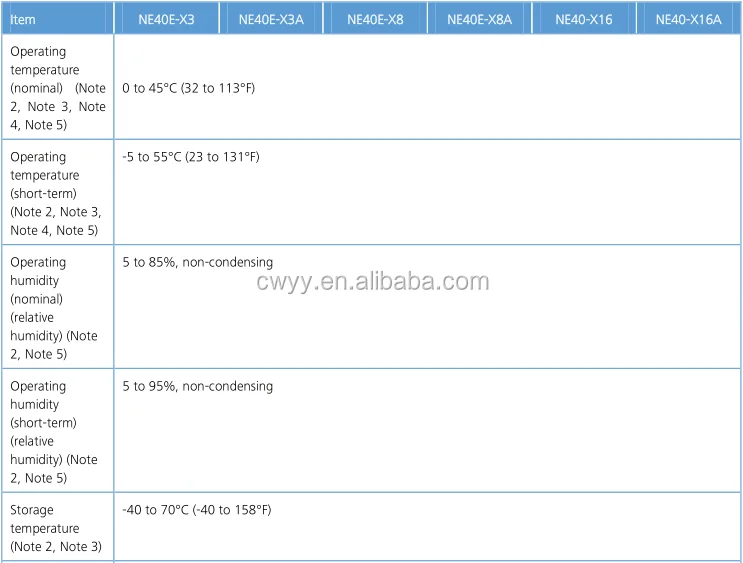

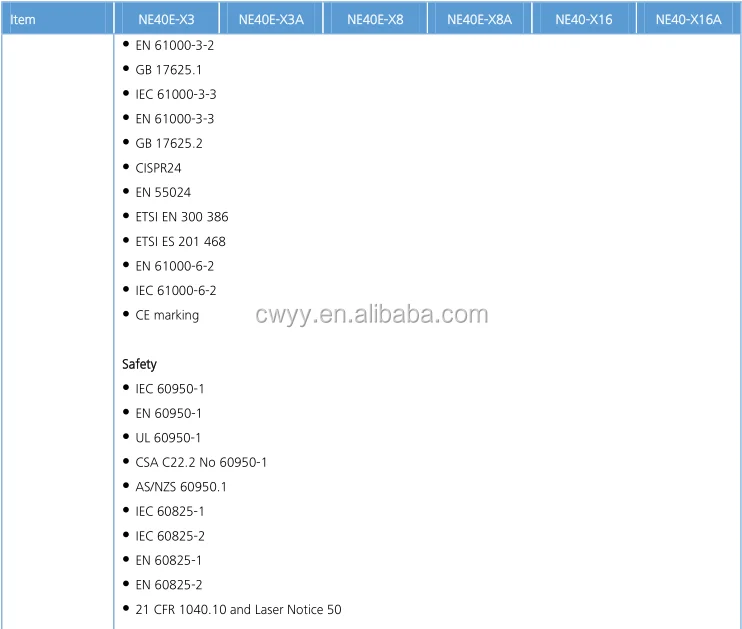

Specifications of Huawei NE40E Series Routers

The NE40E Series includes the NE40E-X3, NE40E-X8, NE40E-X16, NE40E-X3A, NE40E-X8A and NE40E-X16A

Notes

Note 1: In the physical dimensions shown in the table, the width (W) does not include the rack-mounting ears.
Note 2: Temperature and humidity are measured at 1.5 m (4.92 ft.) above the floor and 0.4 m (1.31 ft.) in front of the cabinet.
There should be no protection board on the front or back of the cabinet.
Note 3: Temperature change rate limit: 30°C/hour (86°F/hour).
Note 4: The use of optical components may limit the ambient temperature range.
Note 5: "Short-term" refers to continuous working time that does not exceed 96 hours and accumulated working time per year
that does not exceed 15 days. If the working time exceeds either of these values, it is considered "nominal" or "long-term".
