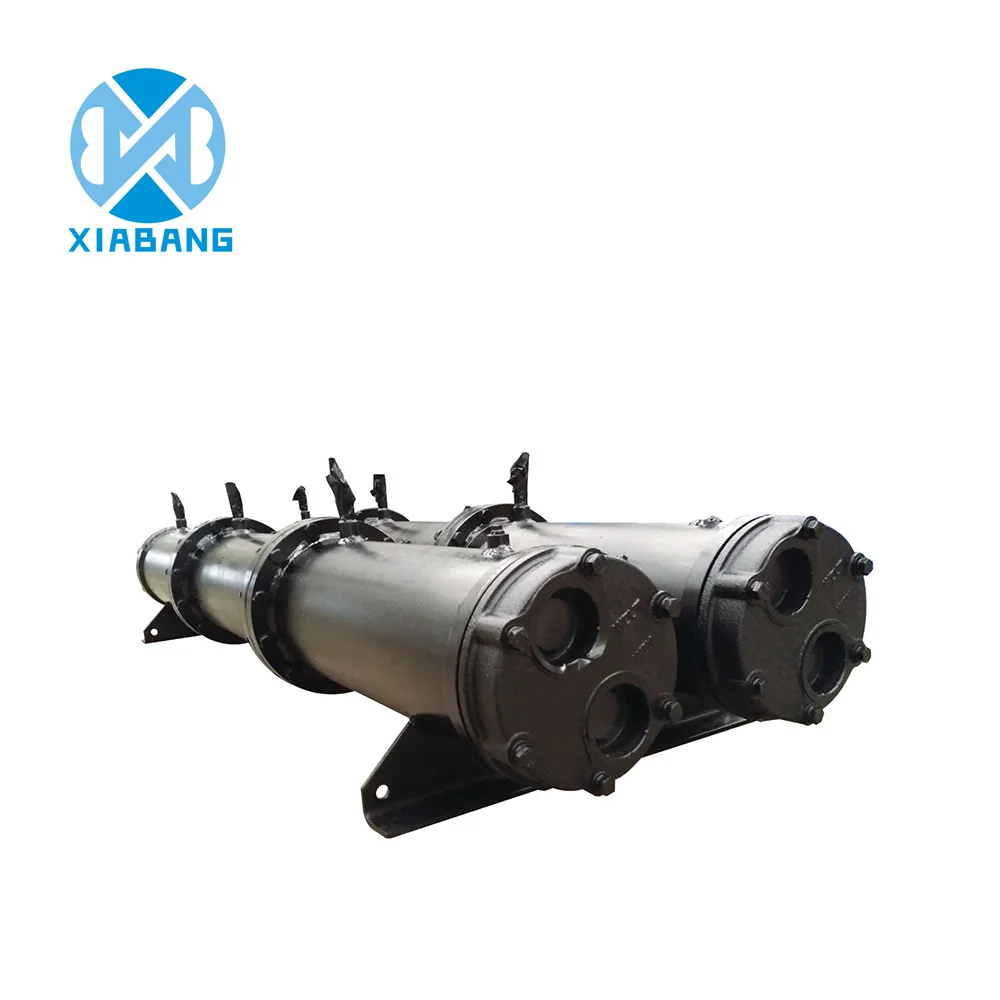

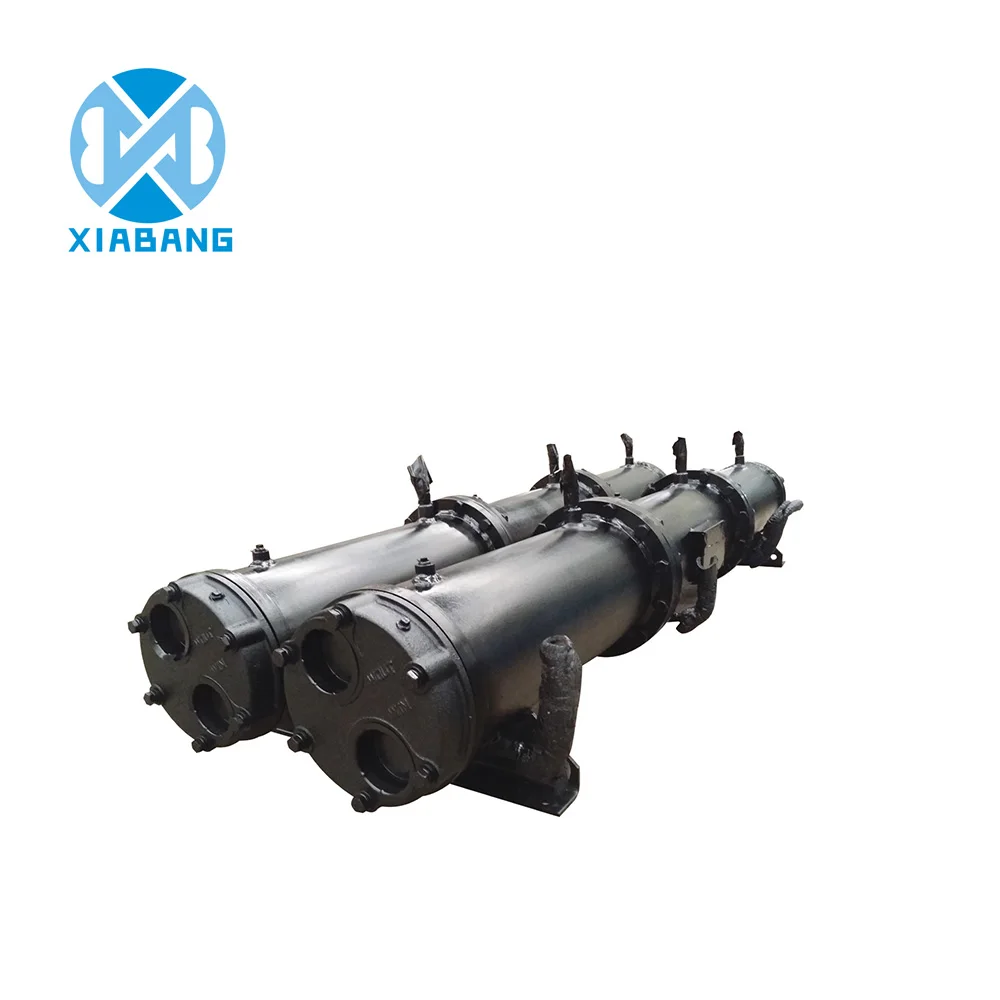

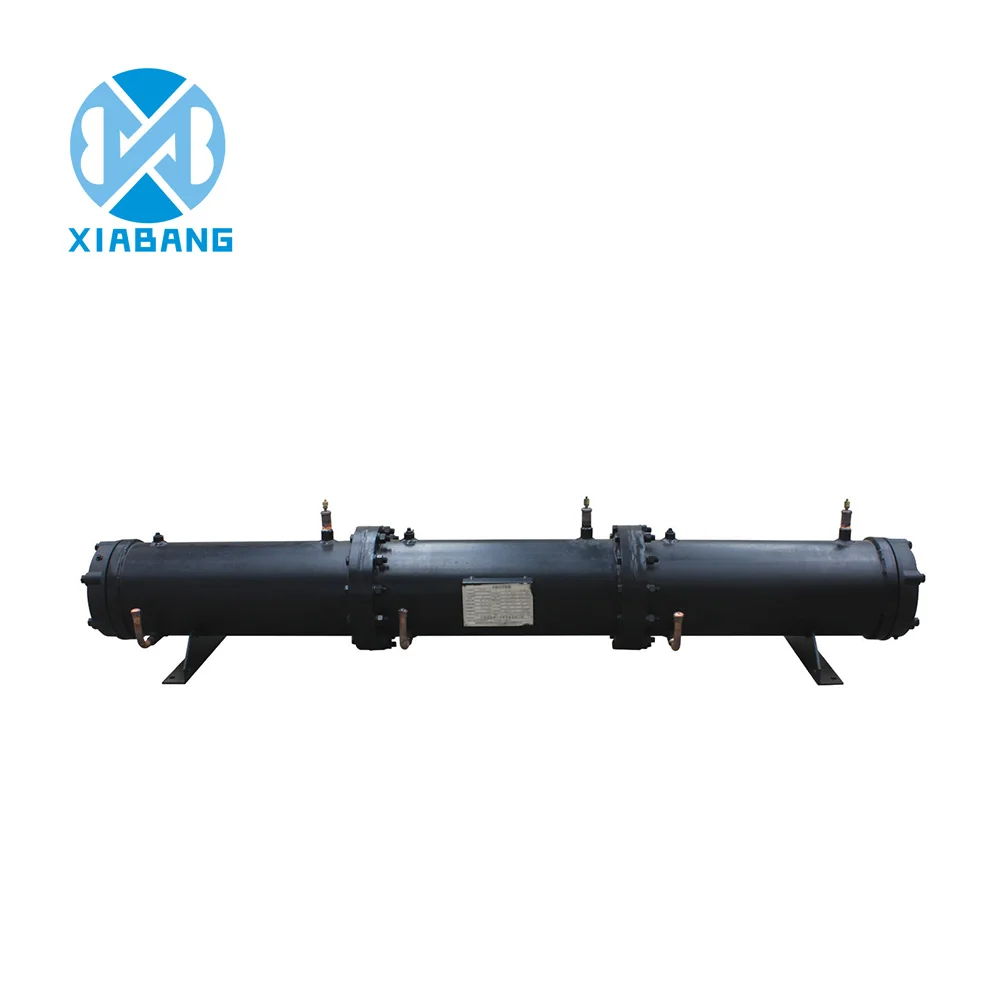

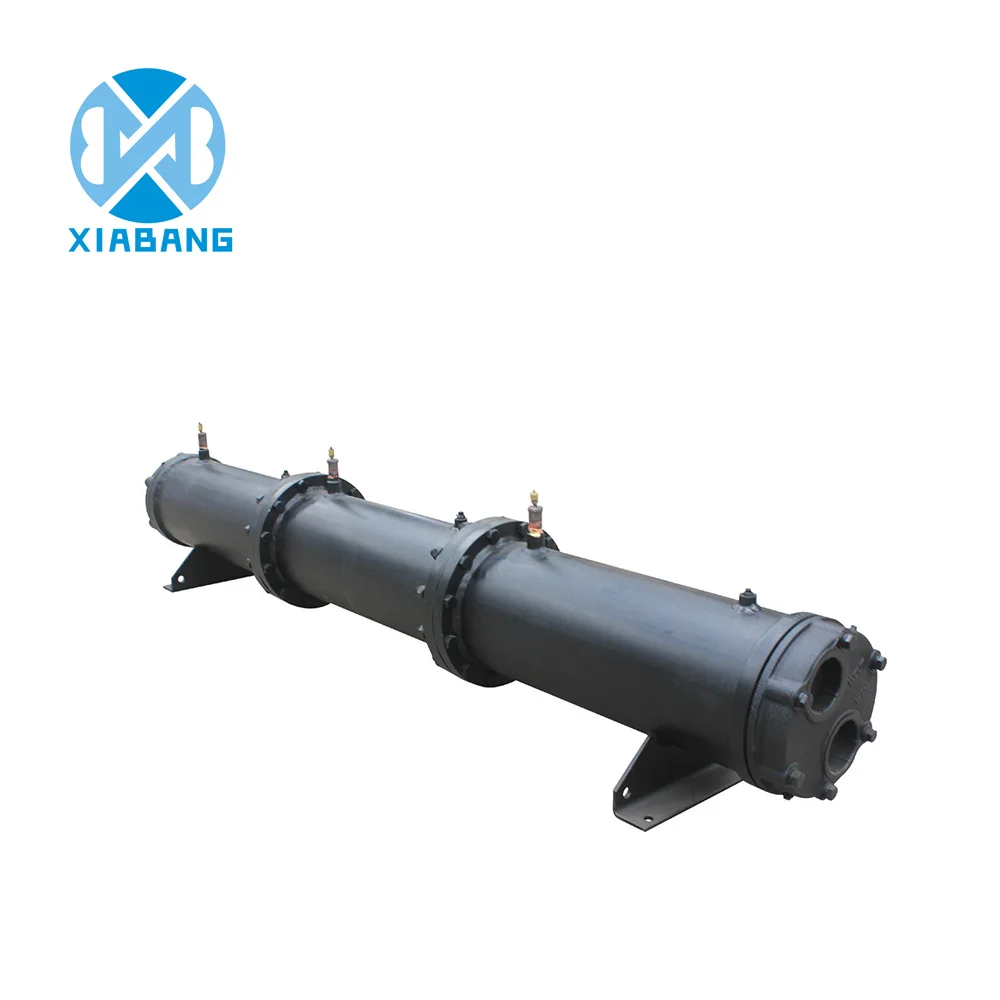

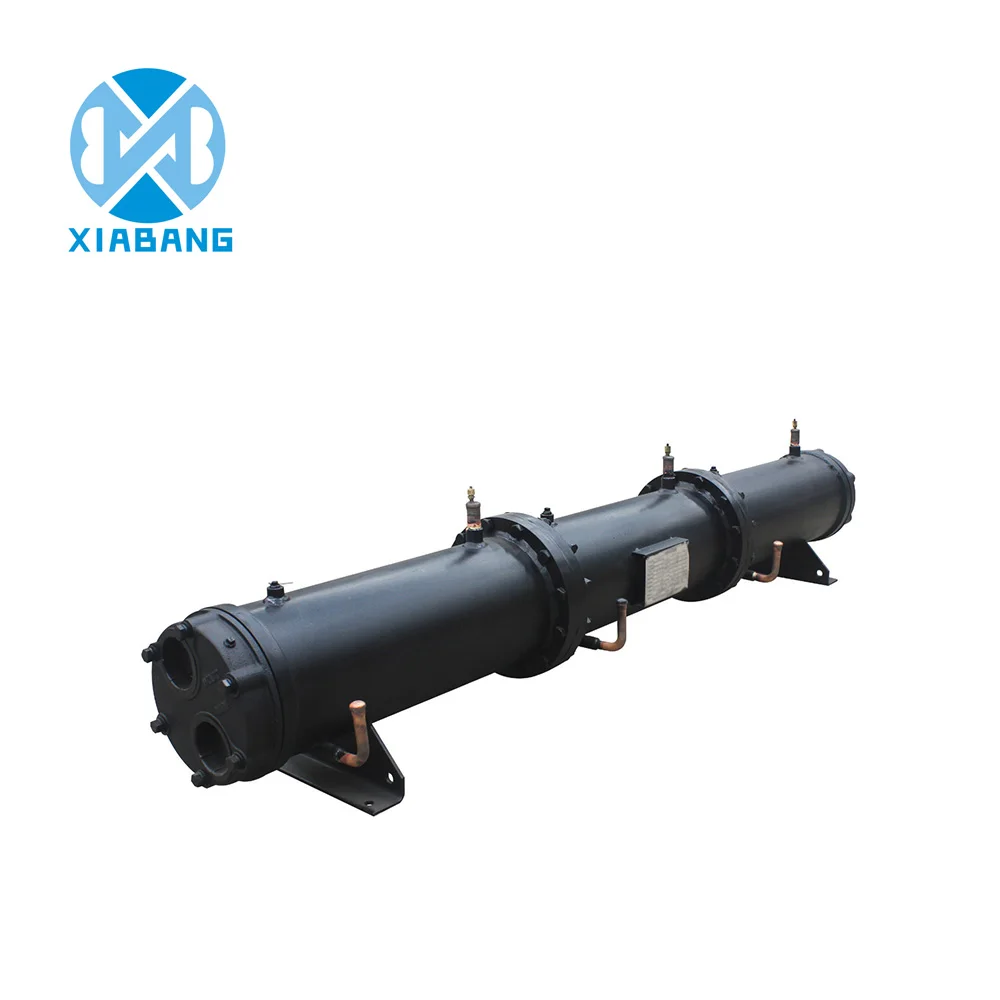

60 Tons Shell and Tube Marine Sea Water Cooled Condenser
- Category: >>>
- Supplier: Jiangsu Xiabang Refrigeration Equipment Co. Ltd.
Share on (62473965756):
Product Overview
Description
| Model | XBWOS | 440S | 560S | 670S | 780S | 850S | 1040S | 1160S | |
| R22 refrigerant | Qn* | KW | 449 | 556 | 670 | 782 | 853 | 1042 | 1160 |
| Ti=12℃ To=7℃ | 104Kcal/h | 38.6 | 47.8 | 57.6 | 67.3 | 73.4 | 89.6 | 99.8 | |
| Tc=40℃ Te=2℃ | Wn | m³/h | 77.6 | 96.1 | 115.8 | 135.2 | 147.4 | 180.1 | 200.5 |
| FF=0.018 m²K/KW | Wm | m³/h | 129.3 | 160.2 | 193.0 | 225.3 | 245.7 | 300.2 | 334.1 |
| Dimensios | A | mm | 3345 | 3345 | 3380 | 3585 | 3585 | 3600 | 3600 |
| C | mm | 3170 | 3170 | 3170 | 3370 | 3370 | 3370 | 3370 | |
| F | mm | 660 | 660 | 700 | 750 | 750 | 810 | 810 | |
| G | mm | 580 | 580 | 620 | 660 | 660 | 720 | 720 | |
| H | mm | 240 | 240 | 260 | 300 | 300 | 320 | 320 | |
| I | mm | 410 | 410 | 425 | 450 | 450 | 480 | 480 | |
| Connections | a/b | mm | 125 | 125 | 125 | 150 | 150 | 150 | 150 |
| c | mm | 54 | 67 | 67 | 80 | 80 | 80 | 80 | |
| d | mm | 42 | 42 | 42 | 42 | 42 | 42 | 42 | |
| Weight | Wnt | Kg | 684 | 717 | 828 | 982 | 1007 | 1167 | 1202 |
 |  |  |
 |  |  |
Q1: Could you give me your best price?
A1:Definitely, we are a professional manufacturer, so we could give you competitive price.
Q2: How long would the delivery time?
A2: It is based on production season and order quantity.
Q3: How can you guarantee the quality?
A3: We have a powerful QC team to control the quality in every production process. We believe the best quality is our enterprise life.
That’s why we have lots of big group companies.
Q4: I want to buy your products, how can I make the payment?
A4: We can accept the T/T, LC and western union.
