Product Overview

Description

MODEL	TY20780
MODEL NUMBERING DESIGNATION	2, Cutting Tools 0, Bevelers 7, Metal Bevelers 80, Free Speed (8,300 rpm)
MAX SPEED	8,300RPM
WEIGHT	2.8kg(6.2lb)
DIMENSION	PRESSURE DISC:ø150mm(5.9”)
CUTTING TIPS	3 piece
BEVEL	ROUNDING R, 45°
BEVEL CAPACITY	3m/min (9.8ft / min)
POWER	1.5 hp
MINIMAL DIAMETER OF THE HOLE	17 mm
MINIMAL THICKNESS OF WORK PIECE	9 mm
RADIUS	R 1- R 4
BEVEL HEIGHT	C 0.1mm - C 5.0mm
CURRENT	PNEUMATIC
SOUND POWER	90dB
AIR INLET	1/4"
AIR CONSUMPTION	32 CFM @ 90PSI
AIR HOSE	3/8”
SKU	353224
EXHAUST VENT	Side

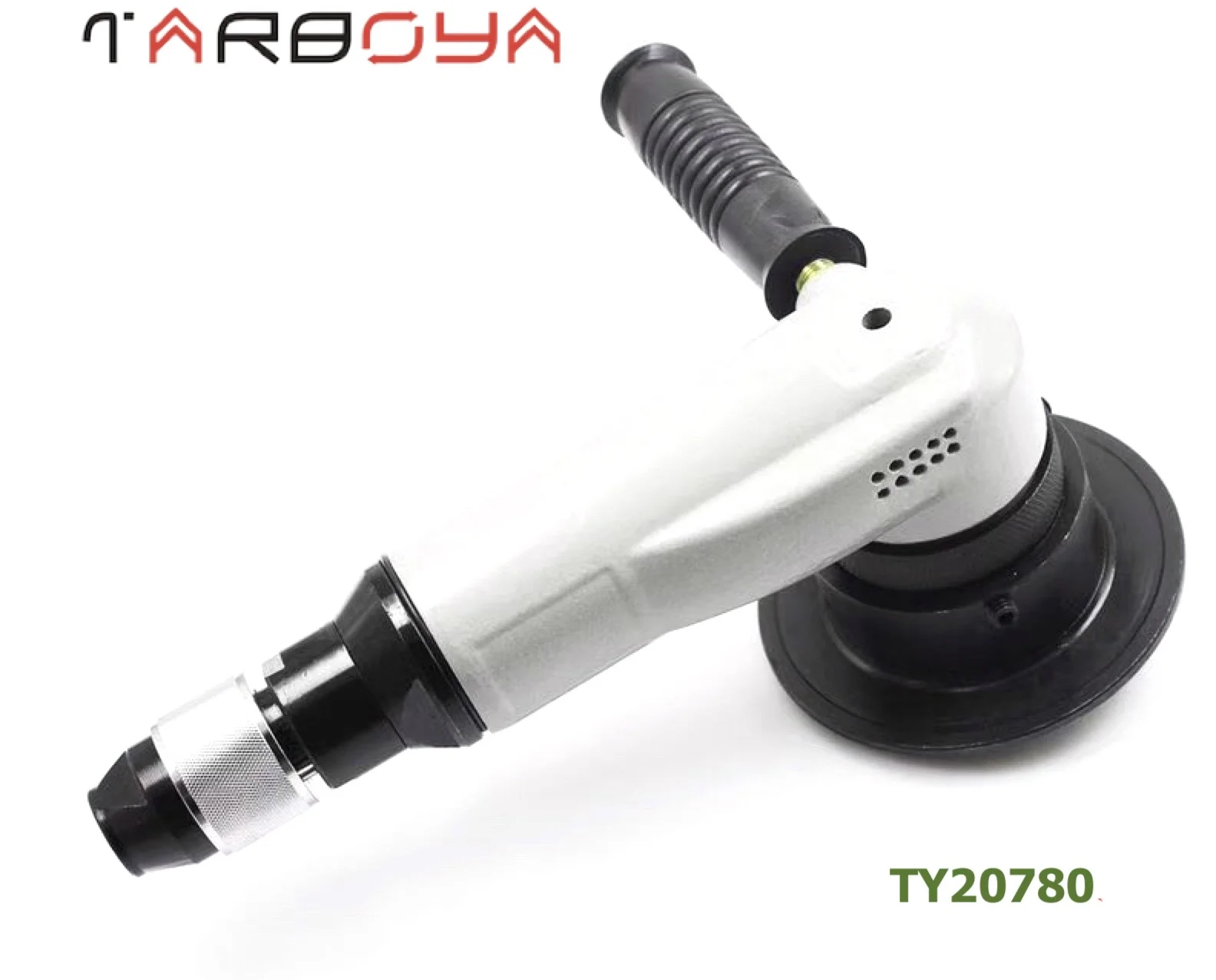

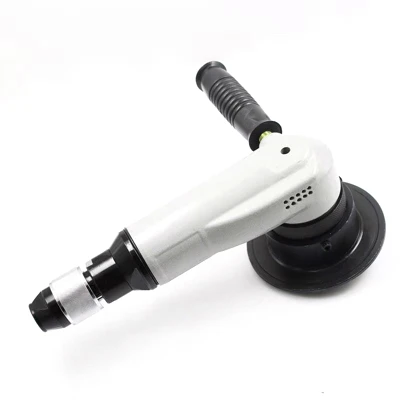

-Hand held pneumatic beveler, uses 3 indexable carbide inserts.

-Lightweight design for portable edge beveling appications,contours and contours to be beveled with ease, suitable also for radius.
-High performance pneumatic motor offers huge power for all applications
-Works with steel, stainless steel, aluminium, copper, plastic and other materials. Ideal for fillet chamfering and C-face chamfering of edges, holes, corners of sheet metal in shipbuilding, frame, bridge and other fields
-For angle 45° and Rounding R Beveling.

-Powerful, smooth running, 8 working facets available

-Meets or exceeds PSPC requirements on surface preparation of steel materials prior to coating

(PSPC stands for Performance Standard for Protective Coatings regulated by International Marine Organization)



Tarboya Cutting Tools Brochure could be downloaded from www.tarboya.com

At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY20780 Air Beveler will not have any material or manufacturing defects for the period of 18 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 18 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,


• Use contrary to national or international standards,


• Incorrect installation,


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance,


• Unauthorized modifications and/or interventions,


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others.
