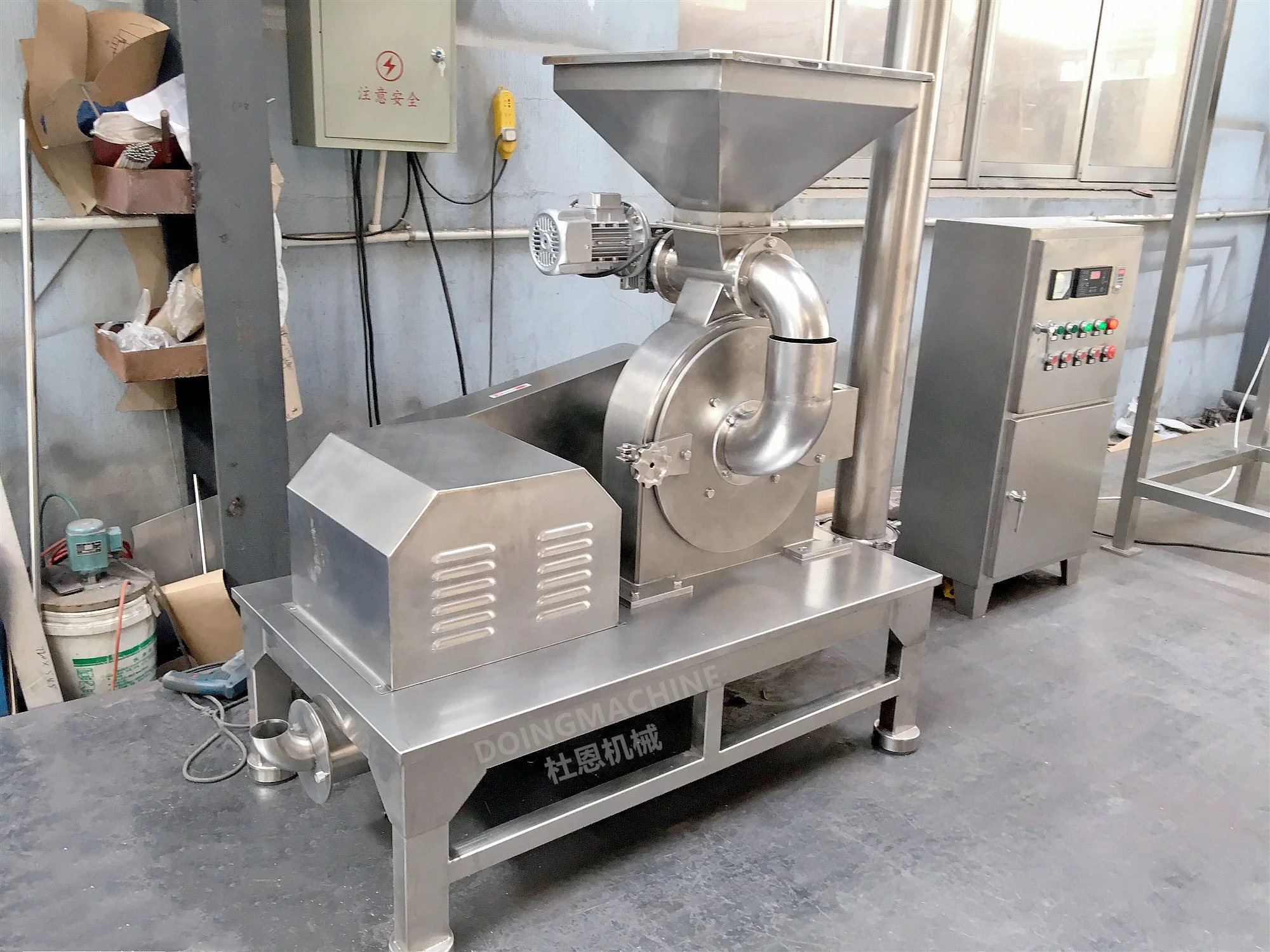

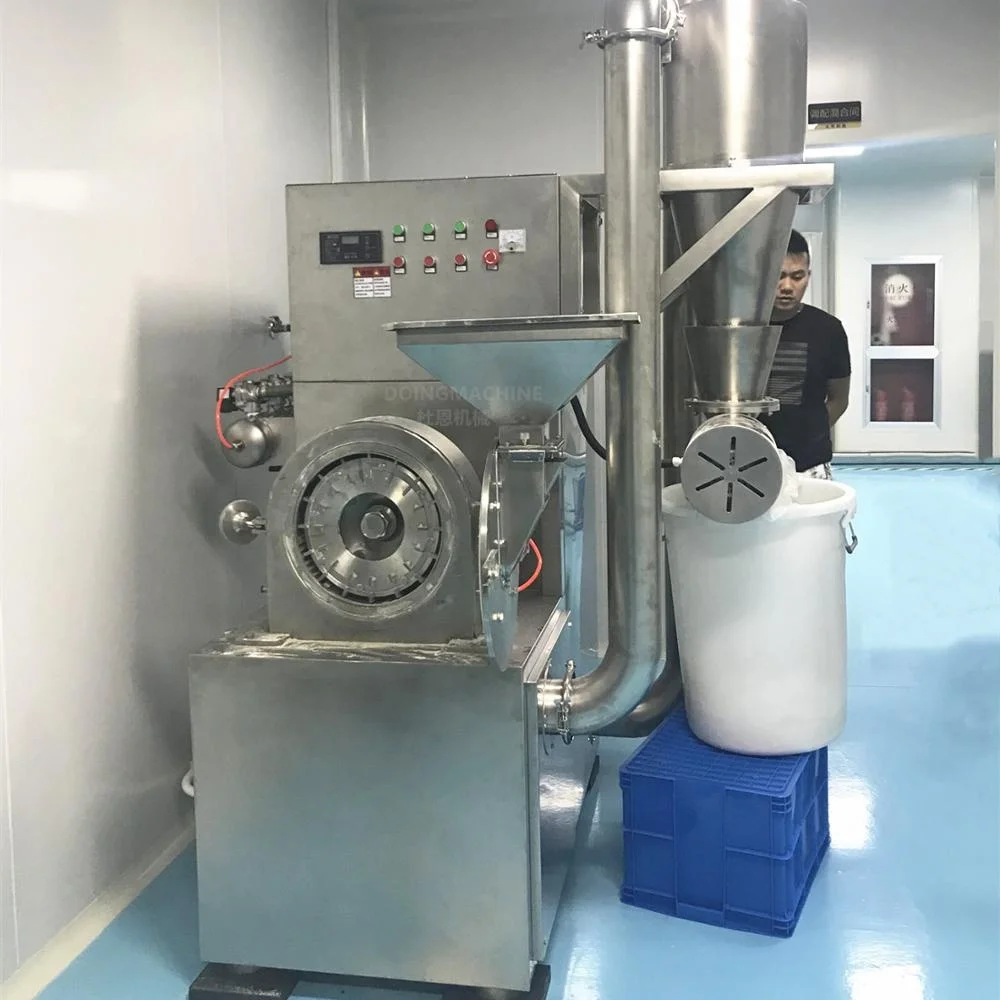

Industrial turbo disc impact mill for wet rice powder sugar

2. Size of output product: 20-150 mesh (adjustable by changing sieves)

3. Capacity: 60-500 kg/h

4. GMP design

5. Different types of dust collector can be equipped

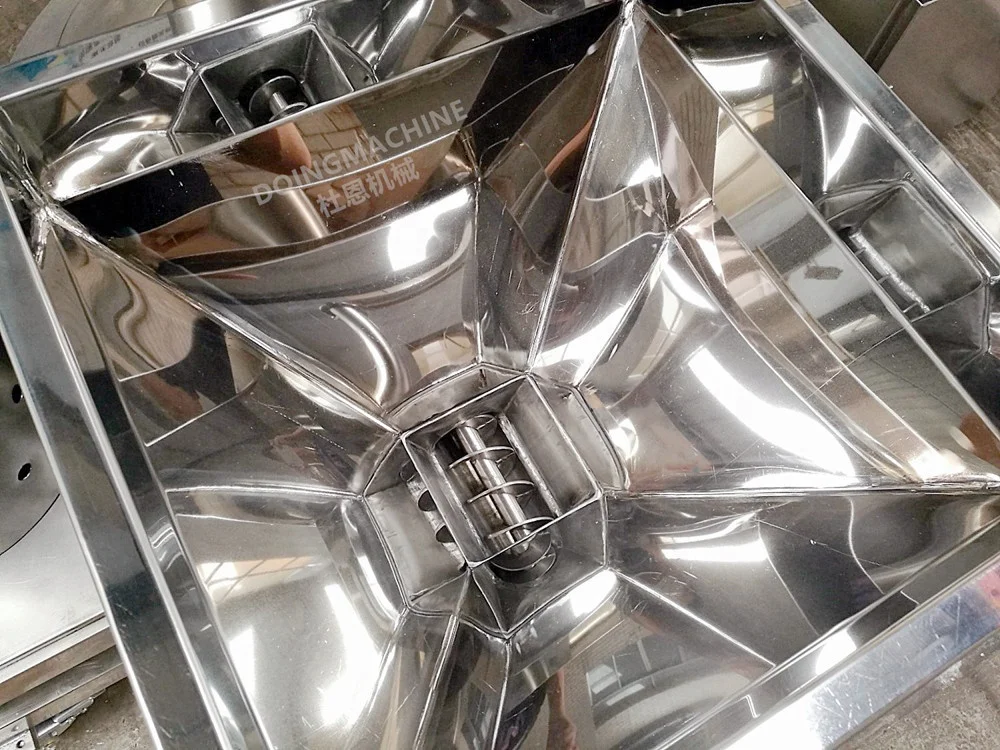

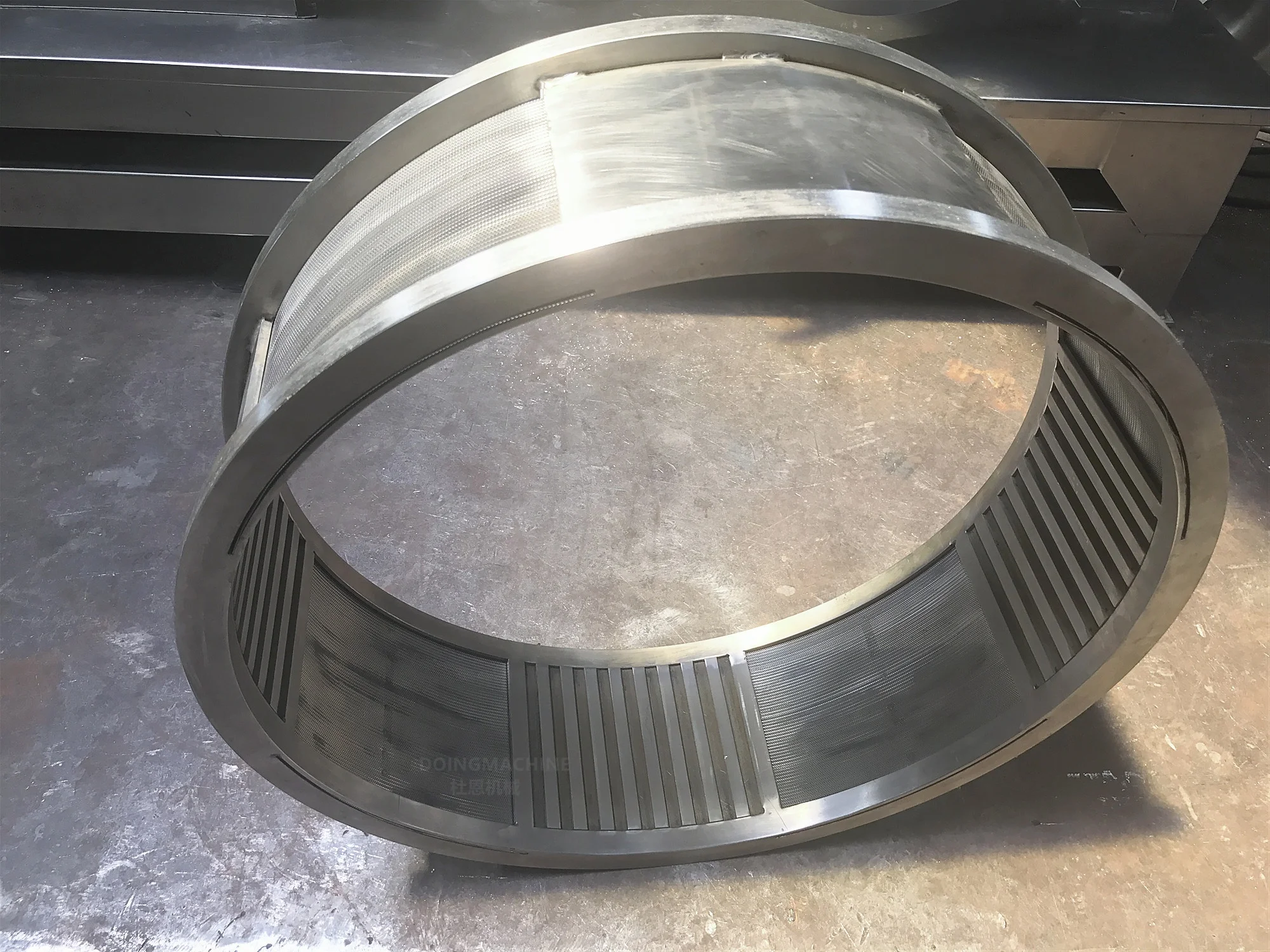

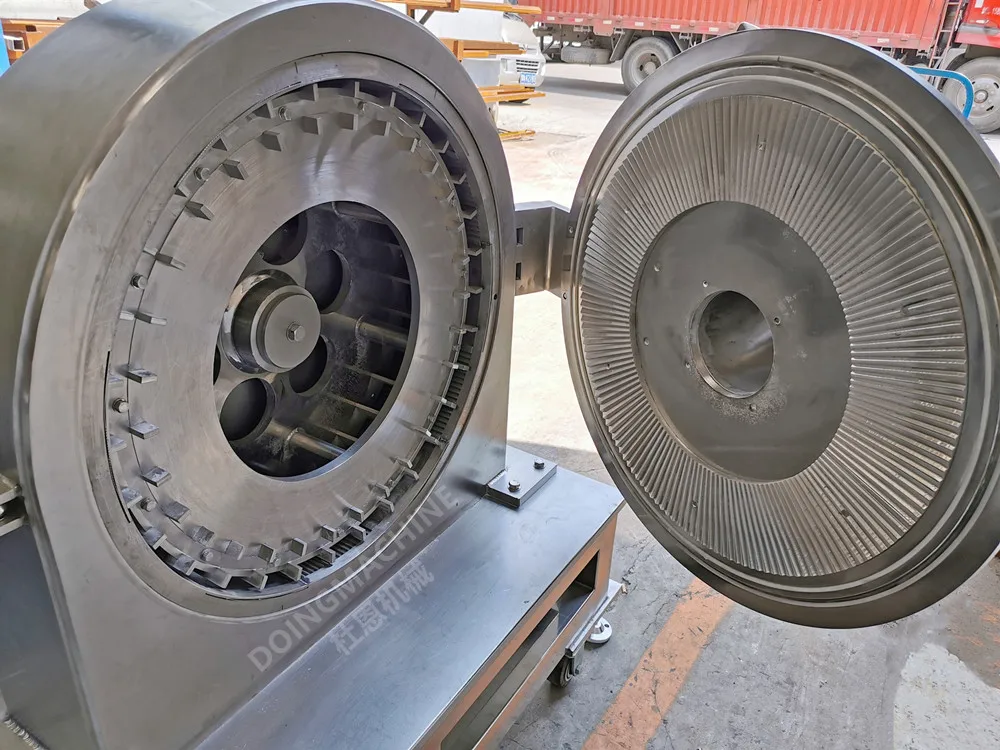

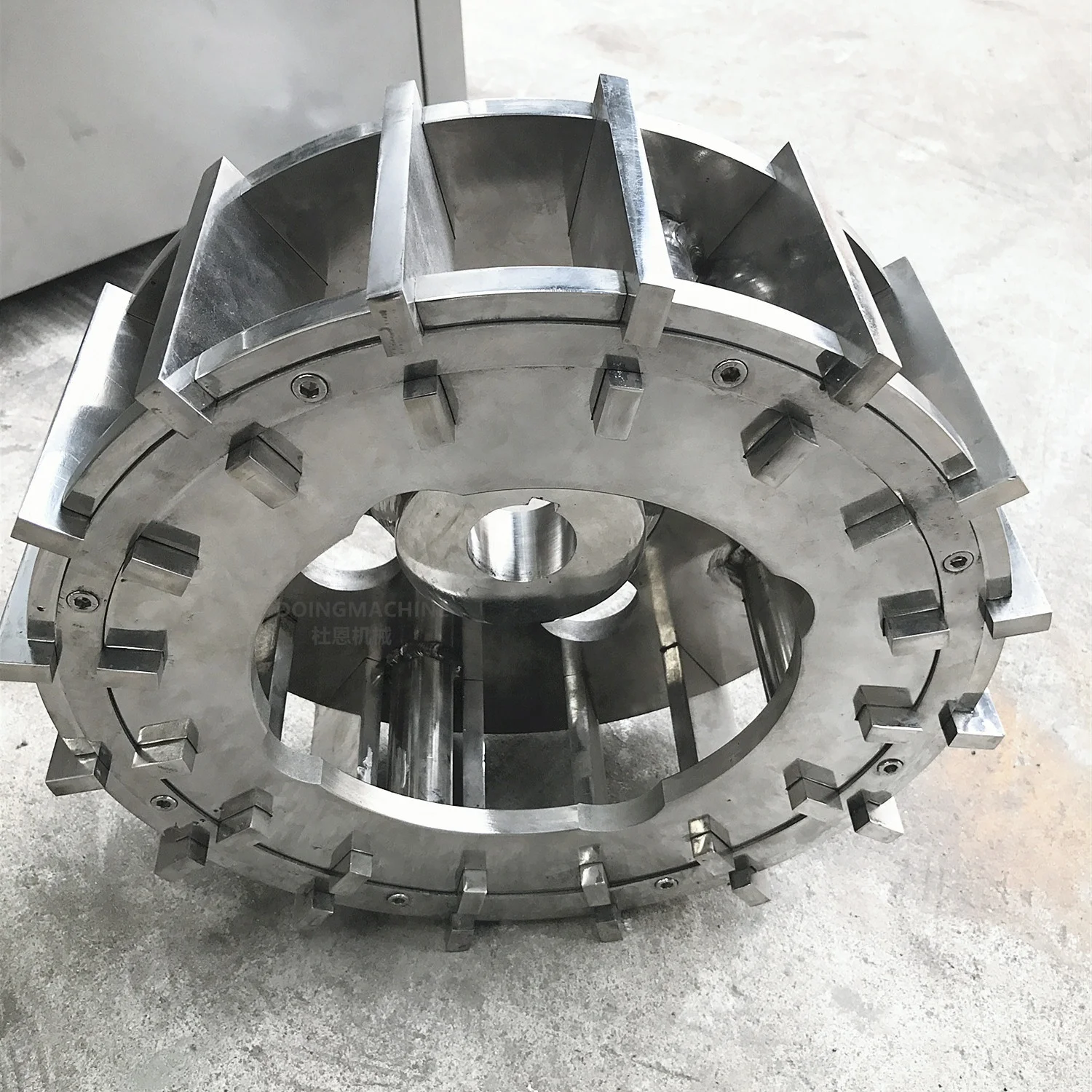

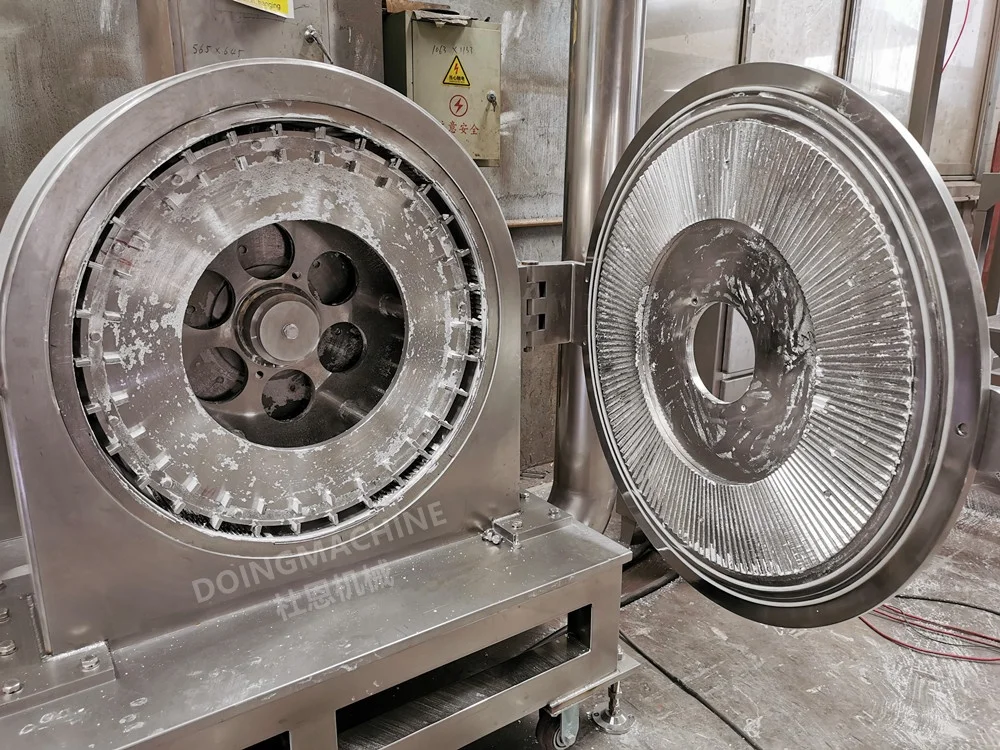

Material is fed into the grinding chamber via the central inlet by gravity or screw feeder. High speed rotation of the turbo rotor creates centrifugal force that accelerates bulk material moving from the center to the periphery of the discs at high speed, where size reduction is done by strong impact and shearing between turbo beaters and inner teeth liner. The strong air stream generated by turbo rotor and draft fan forces the product go through a filtering sieve which is around the grinding chamber to get required particle size.

WF turbo disc/rotor mill has been commonly used for coarse to fine grinding of soft to medium hard, brittle, crystalline even sticky, low-oily and heat sensitive materials in food, chemical and pharmaceutical industry.

A: Our turbo disc impact mill can be customized according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:

1) Detailed information of materials to be ground. We may ask you to provide samples for grinding test.

2) Raw material size

3) Your required particle size after grinding

4) Grinding capacity in kg/h

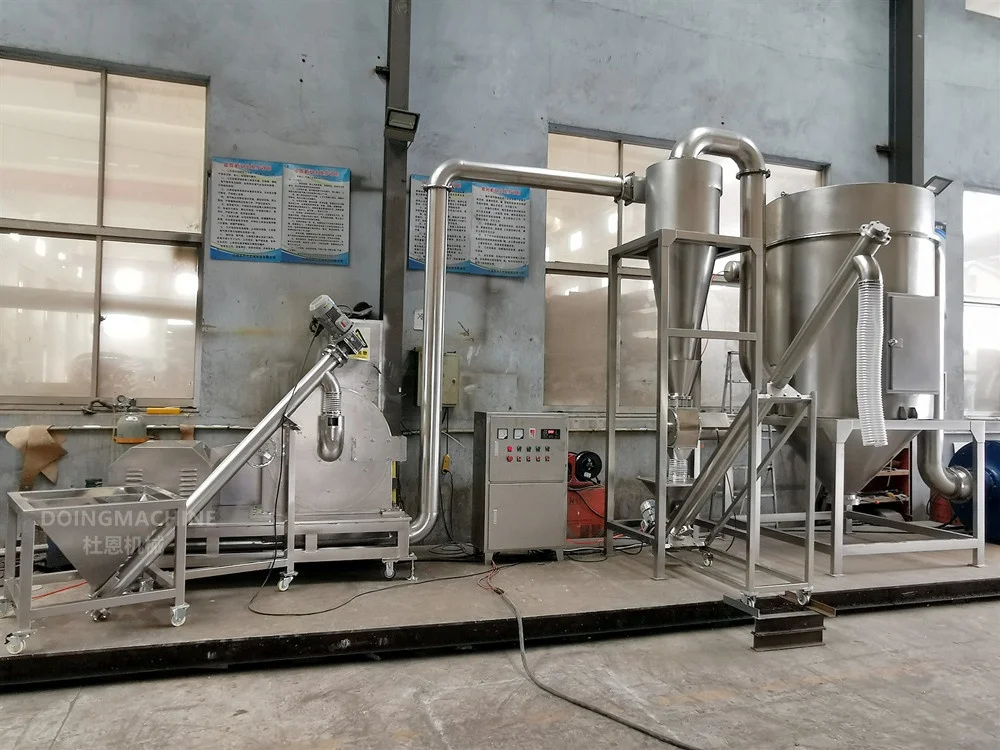

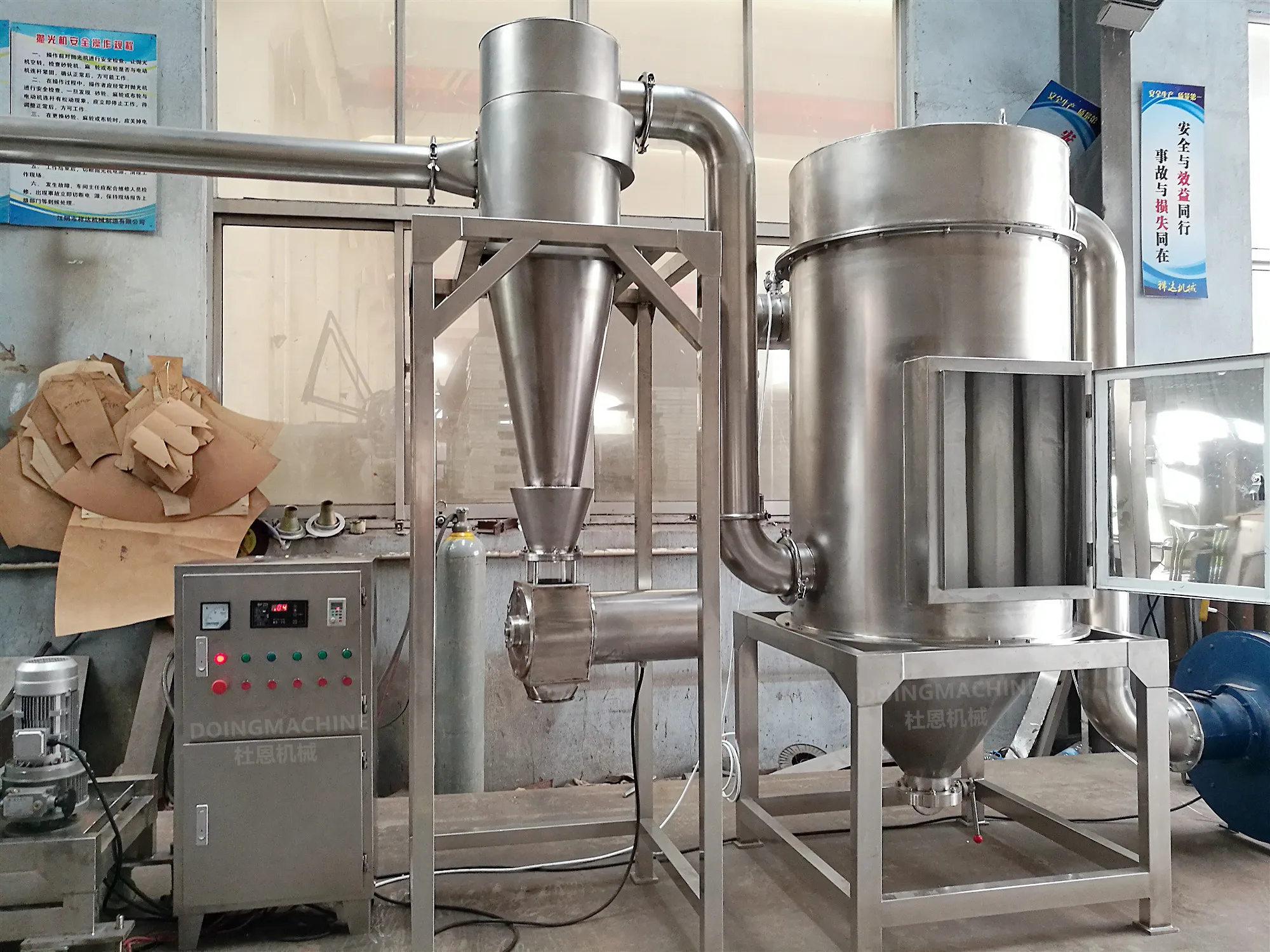

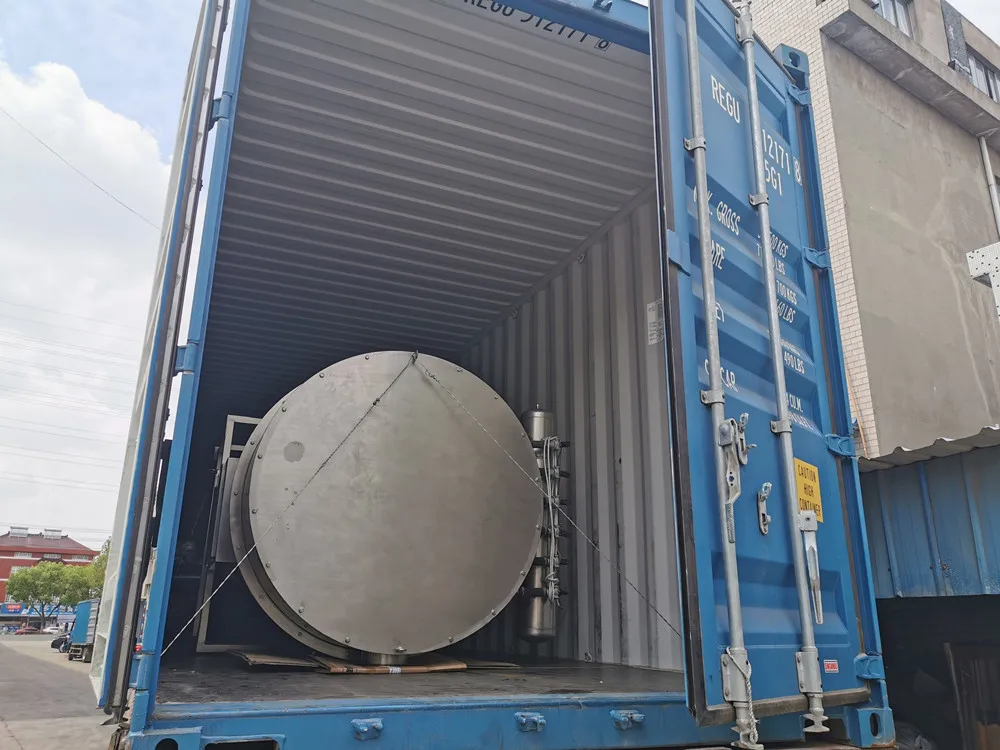

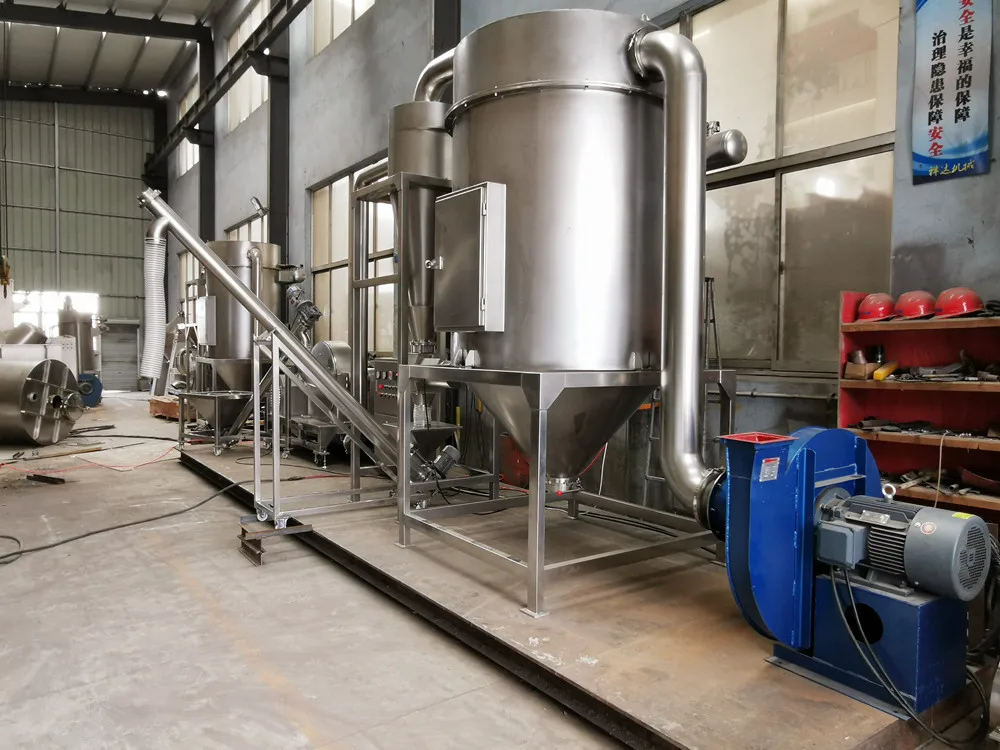

A: The system is usually dismantled into grinding unit, cyclone, bag house, draft fan and control cabinet for shipping. Each part is packed in box made by plywood.

A: We have professional after sale service team who can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
