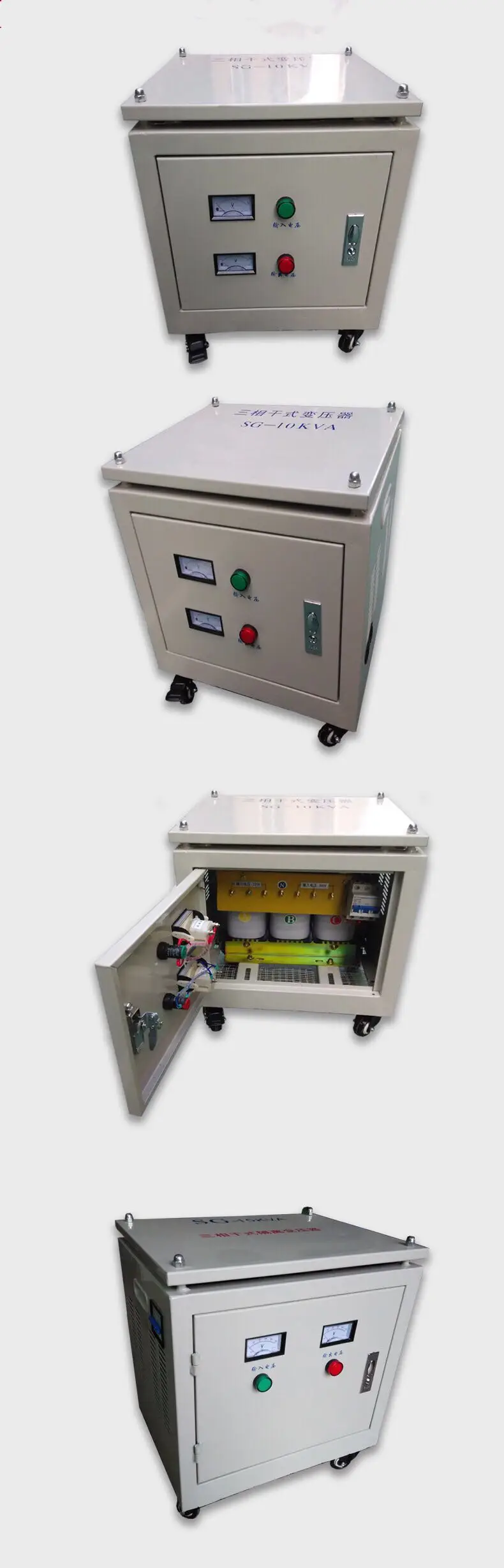

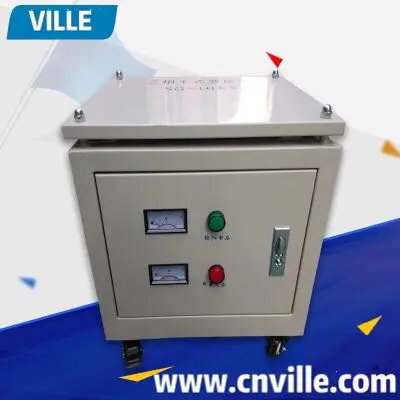

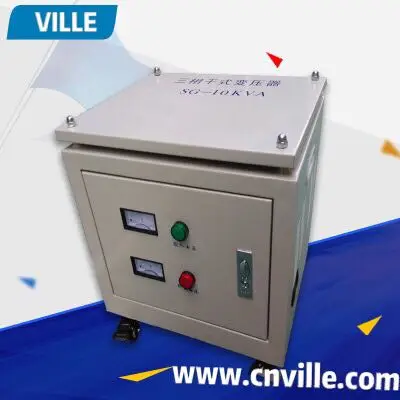

Three phase dry type isolation transformer sg 10kva input 380V output 220V 10K
- Category: >>>
- Supplier: Ningbo Ville Electric Co. Ltd.
Share on (62474213166):
Product Overview
Description
Product Description
The three-phase isolation transformer is the main component of various power supplies and electrical equipment. It is manufactured using high-quality materials and advanced technology. The transformer completely insulates the electrical between the primary and secondary sides and isolates the circuit. That way, a short circuit on the primary side does not affect the secondary side. The three-phase isolation transformer not only has the function of voltage transformation in the power grid, but also isolates the third harmonic of the power grid from the equipment, and the primary and secondary plus copper foil shielding, effectively protecting the power grid harmonics from interfering with the equipment. It is especially suitable for import and export equipment between 0.1KVA-1600KVA, suitable for various three-phase power supply occasions with AC 50 ~ 60HZ, input and output voltage not exceeding 1600V. Product input and output voltage (three-phase or multi-channel input and output, etc.), connection method, adjusting tap position, winding capacity allocation, secondary winding equipment, outer box (selected according to different use environments), can be based on user Requires careful design and manufacturing.
Product Paramenters
Capacity: 0.5KVA-1600KVA | Noise: ≤35dB (within one meter) | |
Input voltage: 380V (various voltages can be customized according to needs) | Temperature rise: ≤60 ℃ | |
Output voltage: 220V (various voltages can be customized according to needs) | Insulation resistance: ≥50MΩ | |
Applicable frequency: 50 / 60Hz | Electric strength: 3000VAC / 1min | |
Voltage change rate: ± 1% | Design life: 20 years | |
Distortion of output waveform: no distortion (compared with input waveform) | Connection method: Y/△ Y/Y | |
Working efficiency: (isolated) ≥98% | Cooling method: dry air cooling | |
Overload capacity: 2 times of rated current for 1 minute | Overload capacity: 2 times of rated current for 1 minute | |
Our Advantages

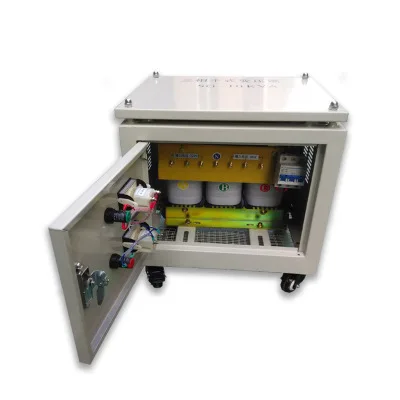

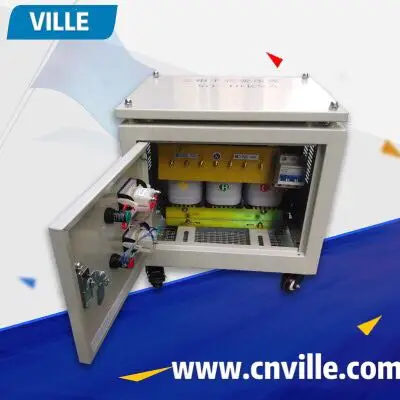

New cold-rolled oriented silicon steel sheets are used for stacking; H-class temperature-resistant 180 ° enameled wire, bare coil winding is beautiful and elegant, primary secondary air duct fan is fast, galvanized tripod, vacuum dipping paint, oven drying! Effectively reduce vibration and noise during operation, increase electrical strength, and introduce new processes and technologies such as the design of high-temperature-resistant insulating materials, making the product more energy-efficient and quieter. The energy-saving and low-noise coil has a ventilation slot, and the air flow is smooth, and the coil temperature is quickly and effectively reduced.
Company Introduction
NingboVille Enterprise Co.,Ltd.
is a combination of Transformer R&D center, production, sales and after sales service, possesses of strong technical strength andexcellent manufacturing equipments, as well as modern Office facilities. It specially produces large scale power transformer and industrial transformers of high quality and reliability. A large share of its resources are devoted to research and development of industrial and special transformers and reactors for any special application,such as the iron and steel and electrometallurgical industries.
The company main working is suppling, engineering, designing, manufacturing, executing, and commissioning for transformer .
Why Choose Us
FIRST-CLASS PROCESSING AND TEST EQUIPMENT
We have more than 500 sets of sophisticated, advance production and test equipments, complete and perfect processing
equipments, and scientific and rational processing technology, which guarantee first-class products, Authorized by the Bureau of Zhejiang Technology Supervision, Quzhou Fangyuan Inspection Company of Power Transmission and Transformation Equipment, whick is based on our testing center, undertakes the quality inspection of the industry in our province, this is a solid guarantee for our excellent product quality.
equipments, and scientific and rational processing technology, which guarantee first-class products, Authorized by the Bureau of Zhejiang Technology Supervision, Quzhou Fangyuan Inspection Company of Power Transmission and Transformation Equipment, whick is based on our testing center, undertakes the quality inspection of the industry in our province, this is a solid guarantee for our excellent product quality.
BEAUTIFUL ENVIRONMENT
We are confident that good products come from good personnel, and good environment makes qualified personnel. The company is committed to creating a garden-like working environment for employees. We have green belts, modern standardized workshops and well-planned parks where we sow our youth; we work hard, so we are harvesting the future.
With the first-class quality products, reasonable price and excellent after-sale services.product not only best-selling all over the country,but also in the international market have higher credit, such as Thailand, Vietnam, Myanmar, Indonesia, Malaysia,Philippines, Ethiopia and Nigeria, Saxonstan, Uzbekistan, Korea, Turkey, Sudan, Iran etc. especially in the steel enterprises, VILLE production of transformers already have high reputation.
FAQ
About the price: The product is a customized product, the price is for reference only.
