600W Outdoor Assemblies Thermoelectric Peltier Cooler Industry Cabinet Cooler UPDATED

Product Overview

Description

600W Outdoor Assemblies Thermoelectric Peltier Cooler Industry Cabinet Cooler

                                 PRODUCT DESCRIPTION

Product Characteristic

  Thermoelectric air conditioner operate by the Peltier effect(which also goes by the more general name thermoelectric effect).The device has two sides,and when DC current flows through the device,it brings heat from one side to the other,so that one side gets cooler while the other gets hotter.The ' hot' side is attached to a heat sink so that it remains at ambient temperature,while the cool side goes below room temperature.In some applictions,multiple coolers can be cascaded together for lower temperature.

Product Specification


Proudct Feature

 1 Using semiconductor electronic cooling, small volume, light weight.

 2 No compressor, no Freon, no pollution, no vibration, no leak.

 3.Using no pollution material, compliance CE.

 4.Free mounting, applicable to a variety of places.

 5.Working ambient temperature: -10C~+50℃.

 6.Dense fin extrusion heat sink, high efficiency.

 7.High-dense foam insulation between heat sink and cooled heat sink.
 8.Hot-side heat sink overheat protection temperature setting +75℃± 5℃.
 9.Applied in sealing, vibration or rotation places such as compressors do not work.

NOTES WITH USE

1. Please use 12/24VDC switching power, and the ripple factor is less than 10%

2. Dont drop from than 30cm height, the Bi2Te3 will be damaged

3. Not waterproof, only aplied in indoor or outdoor of rainscreen (Except IPgS)

4. Please keep away from wall or other objects more than 10cm when install it.

5. No starting up, when the ambient temperature and the heat sink over 70C, or it will be damaged

6. Please read the specification and other accessories carefull

                                 PRODUCT SHOW

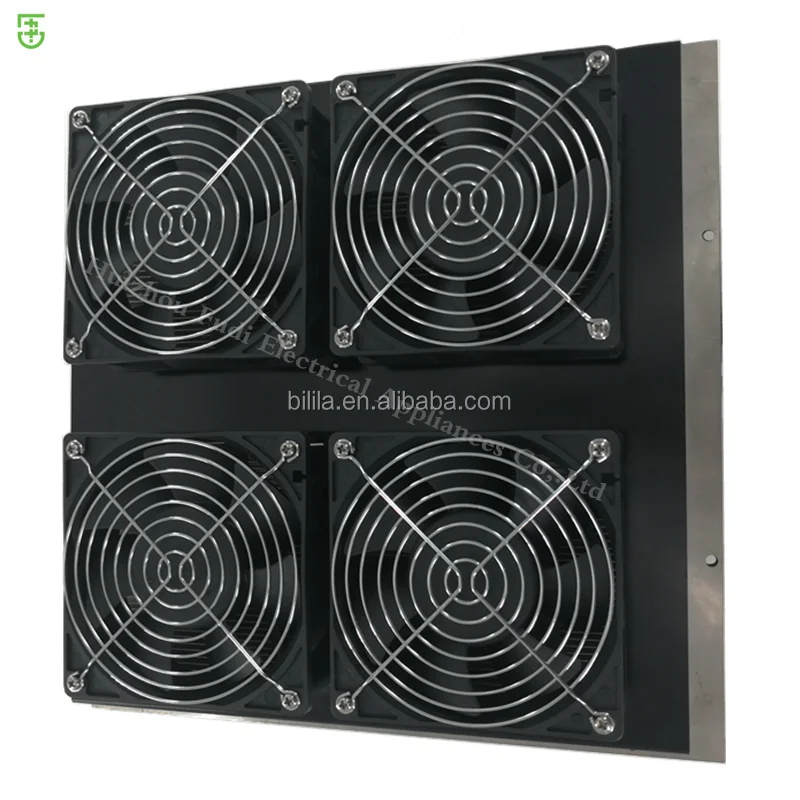

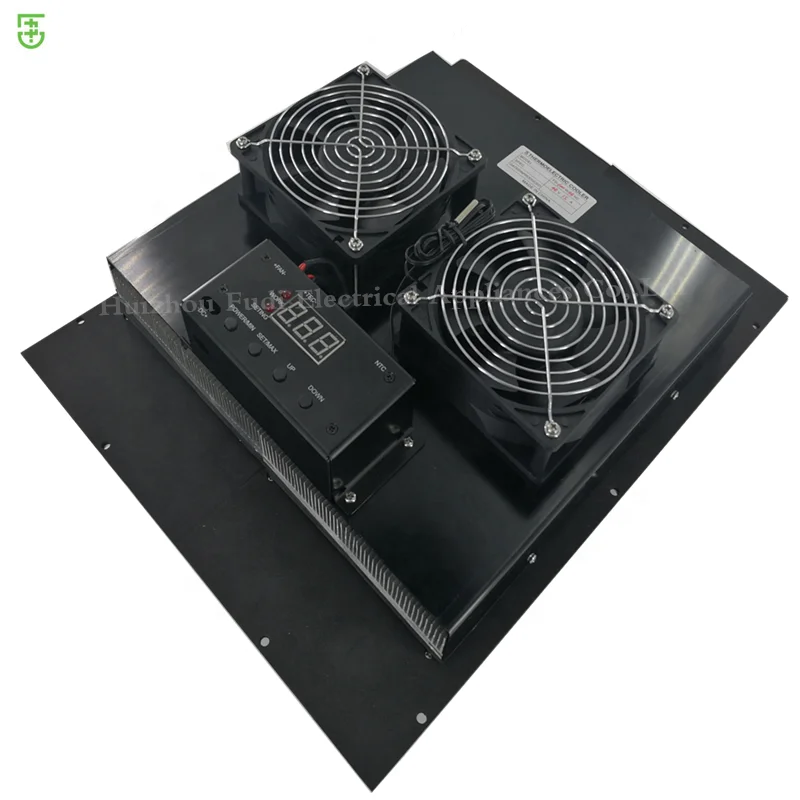

Product Picture

 About mounting

                          Product mounting

About mounting

                      Company information

Company profile

Huizhou Fudi Electrical Appliance Company Limited, founded in 1999, is a manufacturer and exporter speclalized in the seach evement and production of semiconductor refrigeration chip. There are 28 kinds of electronic ice and gallbladder products with capacity from 0.3L to 2.0L. It is suitable for all kinds of different sizes of drinking machines, straight drinking machines, coffee machines, juice drinks, medical ice bags, cold boxes and so on. We have a professional team, strong technology, advanced processes, modern equipment and efficient management systems, we commit to providing customers with advanced, complete, customized thermal management and thermal power generation solutions.

                                        FAQ

1. How do we know which model is suitable for us?
a. Confirm the ambient temperature (Th);
b. Confirm the required temperature of the cooling space or objects (Tc);
c. Confirm the application’s heat load power (Q, the heat need to be removed or lowered);
d. Determine the required cooling capacity (Qc, considering heat loss, it is recommended Qc = 1.5 * Q);
e. Find out TE products from the catalog, whose maximum heat pumping capacity (Qmax) matches with the Qc worked out by step #4 (±5W), and then refer to the expected Current and Voltage to pick out a suitable product.
If the single product could not meet the requirement, you can also use series or parallel connect multiple products to get higher performance, the quantity = Qc / Qmax (Single products).
2. What service we can support to our customers?
Our products including TEM ( Thermoelectric Module) and TEA(Thermoelectric Assembly), we can customize according to special requirement from customers, normally, we offer professional thermoelectric solutions within 24 hours.
3. Besides MOQ, what we can do for trail order quantity?
Our MOQ is 10PCS, however, we would like to support our customer even 1 PC sample for testing.
4. How long is the delivery time for samples and bulk orders?
Generally within 3 working days for samples, 5-15 working days for bulk orders after receiving deposit.
5. What is the packing method?
Loaded into trays(hard pearl cotton) and packed into cardboard boxes.
6. How to delivery?
Samples delivered by express such as DHL, UPS, FedEx, TNT , EMS,ARAMEX,SF express, we will use the way you prefer.
Bulk orders delivered by air cargo or shipping.
7. What is the payment terms?
we accept Bank Transfer, Paypal, Western Union, MoneyGram, Alipay ,Cash and Ecrow terms,
the freight, insurance and both sides bank fee are borne by the buyer.
8. Where is thermoelectric cooler applied?
Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom outdoor cabinet, battery cabinet, industry control cabinet, precision instrument, telecommunication parts, medicine equipment, military equipment, etc.
