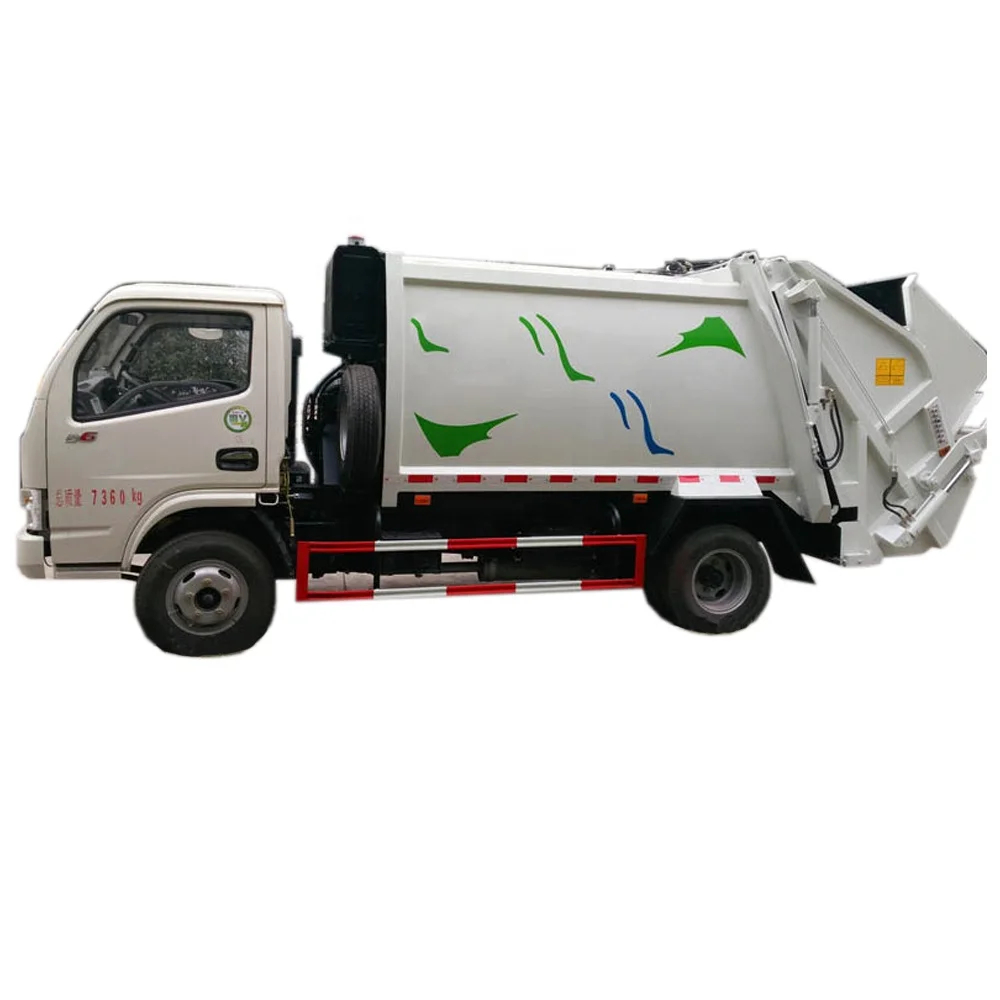

Popular JAC Mini Garbage Truck Compactor Truck for Sale
- Category: >>>
- Supplier: JC Automobile Co. Limited (Shanghai)
Share on (62474290093):
Product Overview
Description

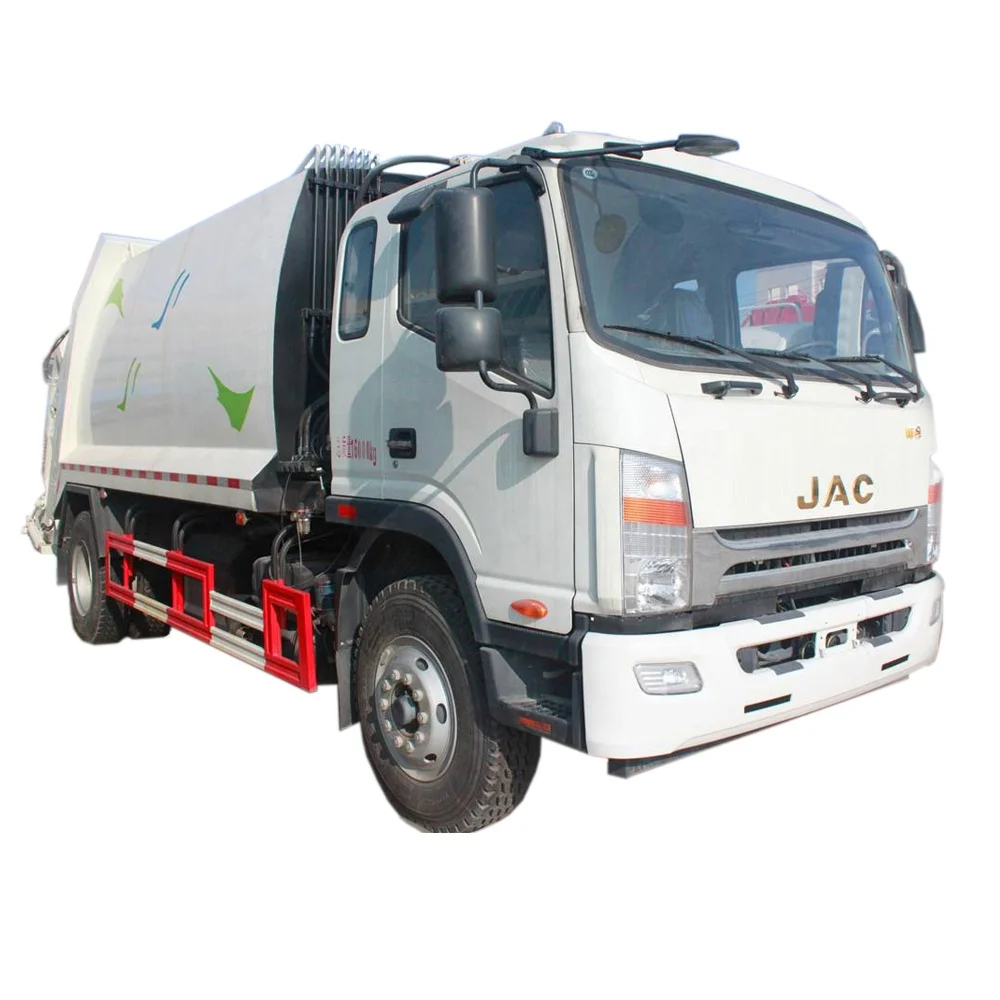

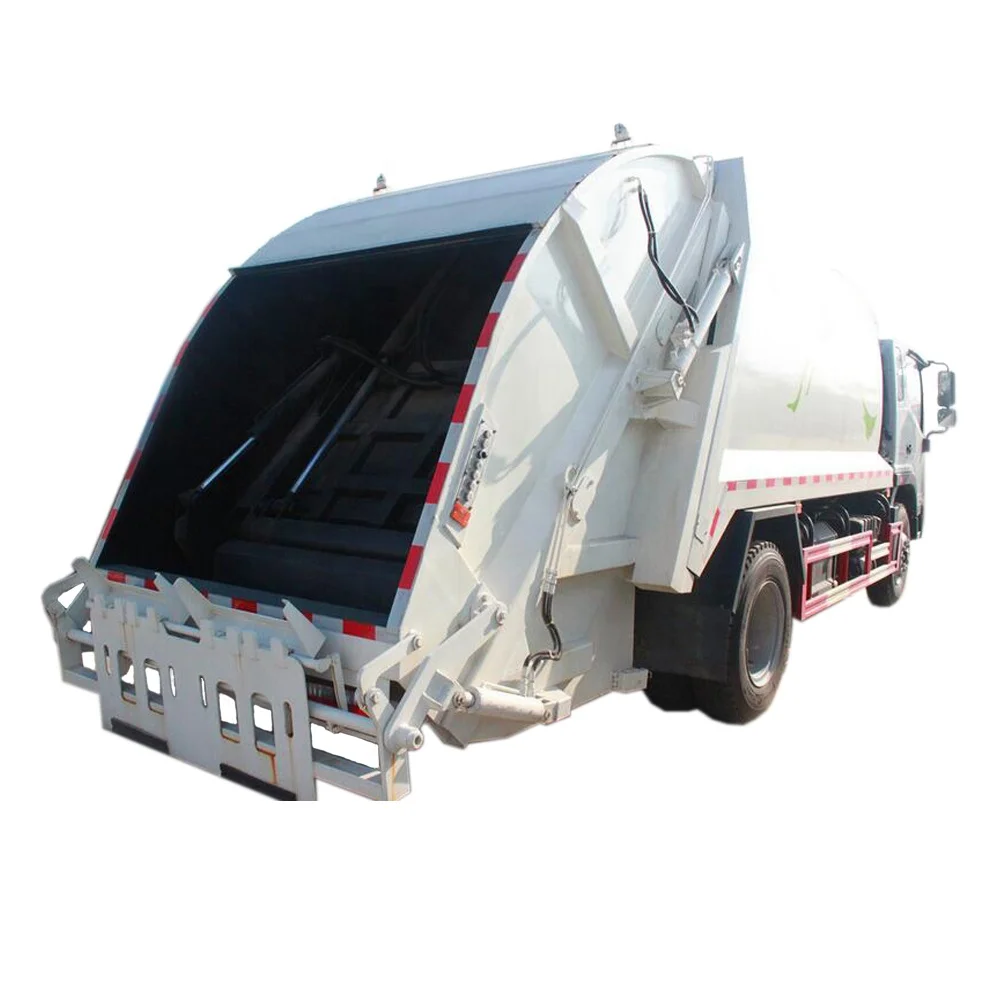

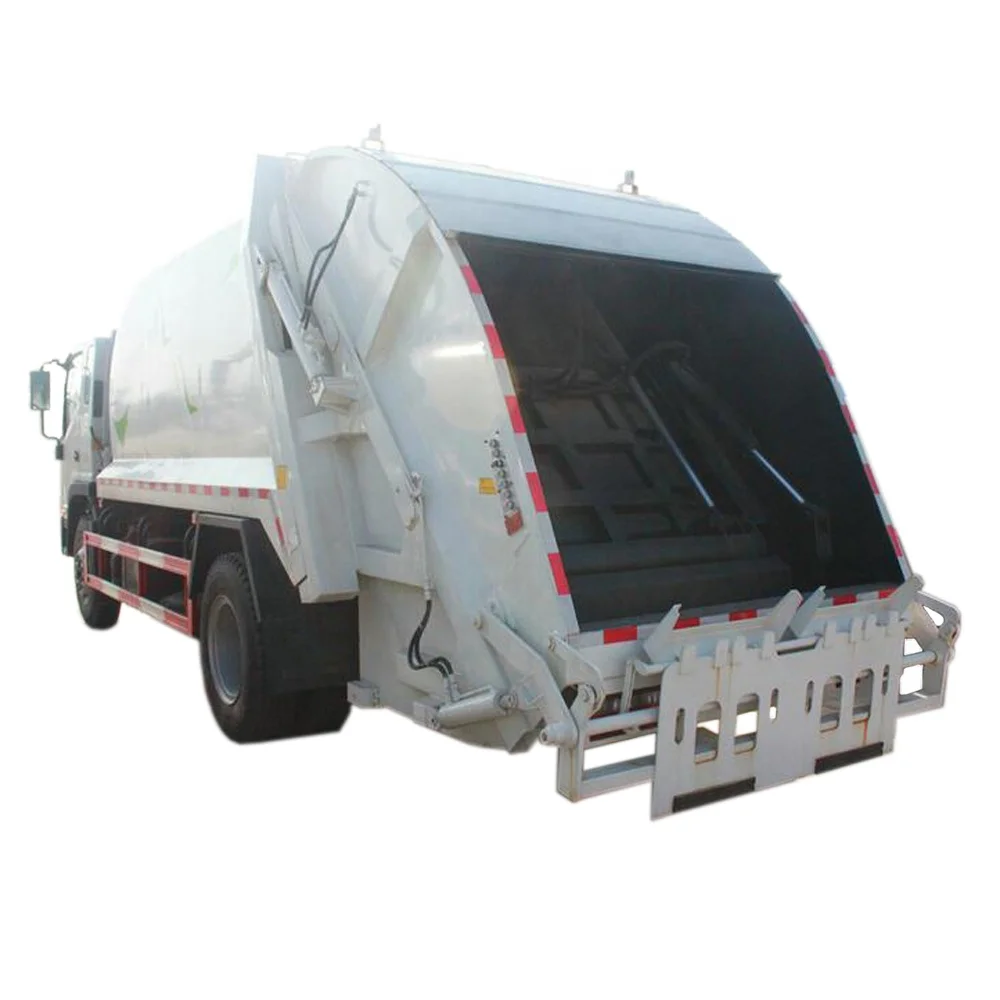

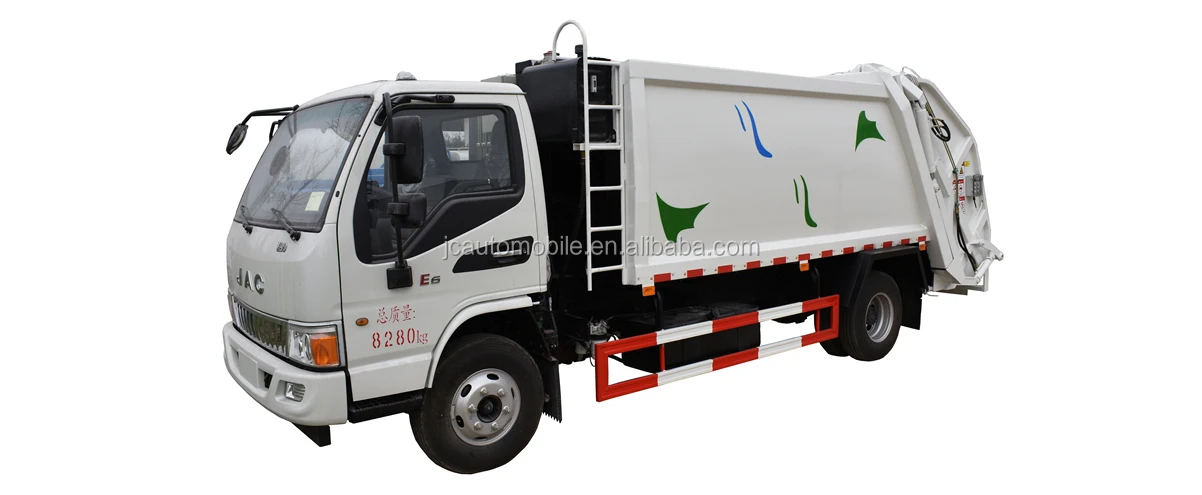

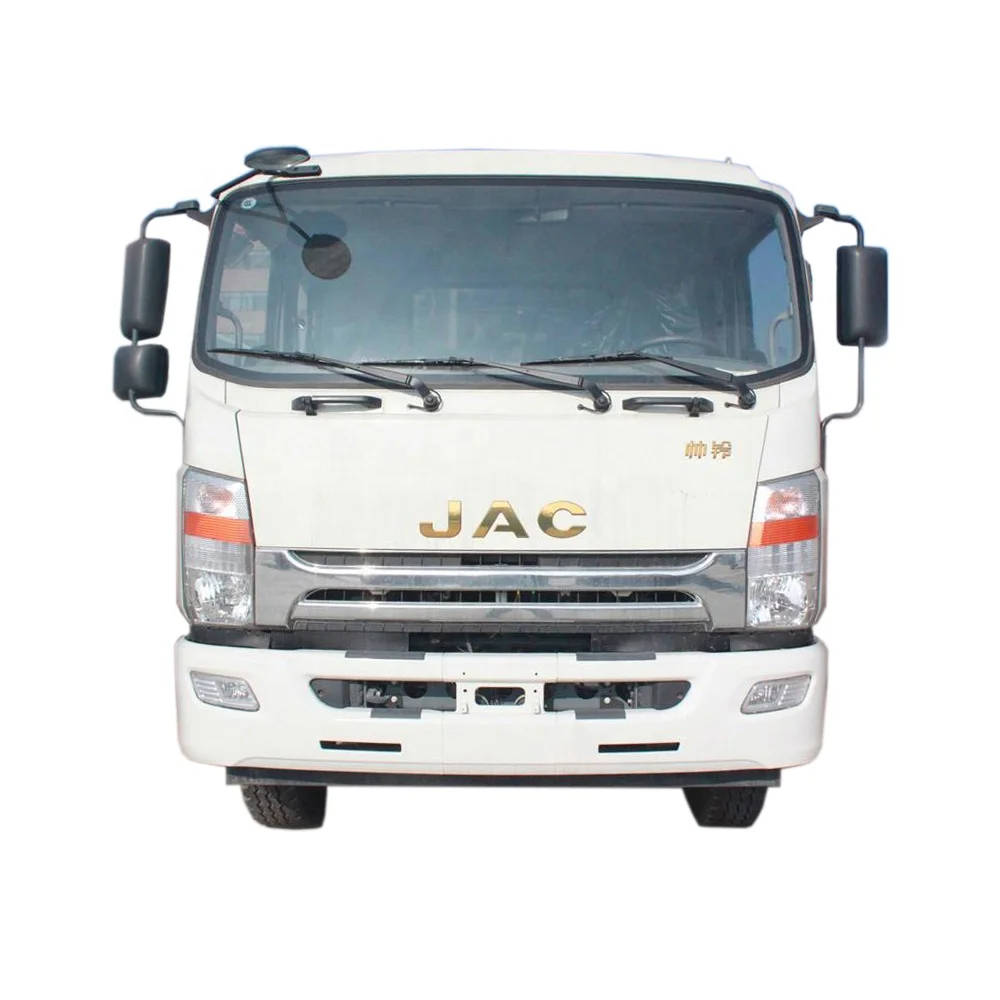

Popular JAC Mini Garbage Truck Compactor Truck for Sale
| Specifications Sheet | ||
| Cabin | Single | |
| Drive mode | Left or Right | |
| Dimension Parametes | ||
| Overall Dimensions (mm) | 6045x1900x2330 | |
| Chassis Dimensions (mm) | 5952x1861x2239 | |
| Box size (inner)(mm) | 4230X1790X400 | |
| Wheelbase (mm) | 3360 | |
| Tread (front/rear) FT/RT (mm) | 1440/1425 | |
| FF/RF (mm) | 1110/1575 | |
| Chassis FF/RF (mm) | 1110/1370 | |
| Min Ground Clearance (mm) | 190 | |
| Frame ground clearance H1 (mm) | 691 | |
| Cab wide W1 (mm) | 1725 | |
| Load Parameters | ||
| GVW (kg) | 4490 | |
| Curb Weight (kg) | 2560 | |
| Play load (kg) | 1930 | |
| Chassis Weight (kg) | 1980 | |
| Front axle/Rear axle (kg) | 1460/1100 | |
| Performance Parameters | ||
| Max speed (Km/h) | 100 | |
| Maximum Gradeability (%) | 30 | |
| Min Turning Radius (m) | 7 | |
| Main Configurations | ||
| Engine | Model | HFC4DA1-1 |
| Emission | Euro 2 to Euro 5 | |
| Type | turbocharged | |
| Max power (Kw/rpm) | 68/3600 | |
| Max torque (Nm/rpm) | 216/1800-2200 | |
| Displacement (cc) | 2771 | |
| Clutch | Type | Dry single plate with diaphragm spring |
| Clutch assistance type | vacuum assistance | |
| Transmission | Model | LC5T255M3 |
| Front Axle | axle capacity (kg) | 2000 |
| Rear Axle | axle capacity (kg) | 4000 |
| Steering | recirculating ball type | |
| power steering | YES | |
| Suspension | Type | front/rear leaf spring |
| Frame | front/rear | 671/700 |
| Frame Section Size | 170x65x5 | |
| Oil tank | Fuel tank material | plastic |
| Fuel tank capacity (L) | 100 | |
| Brake | Type | hydraulic brake |
| Tire | Model | 6.50R16 10PR 7.00R16 12PR 205/75R17.5 12PR |
| Cargo | Iron Cargo | YES |
| Electrical | Batteries | 100A·h |
| Altemator | 14V 60A | |
| Starter | 12V 2.8kw | |
| Product Configuration | ||
| Safty configuration | Reverse alarm | YES |
| Seat Belt warning | YES | |
| Acoustical equipment | Radio+MP3 | YES |
| Air Condition | warm air | YES |
| Interior | mannal window | YES |
| Fission ceiling | YES | |
