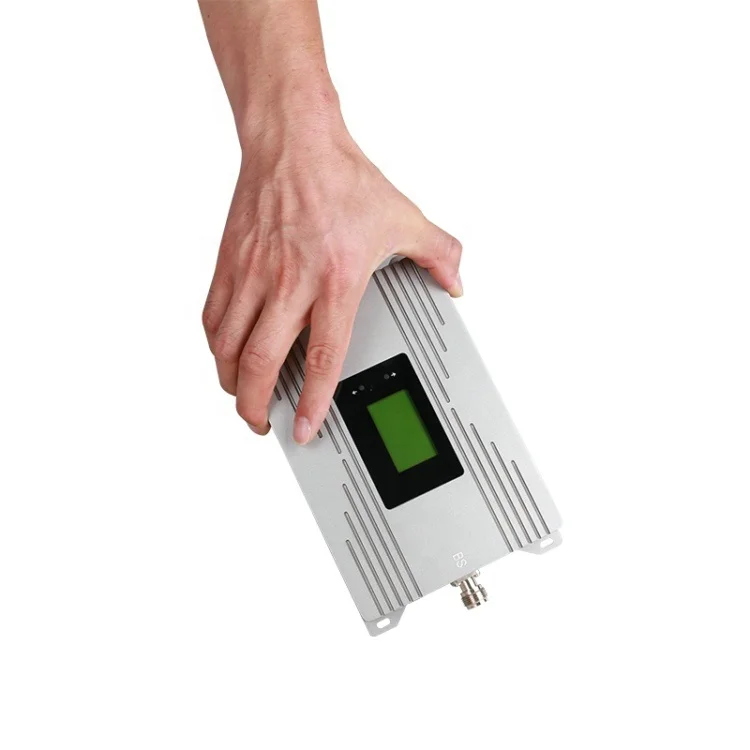

800 mhz cdma signal cellular repeaters 5g signal booster for pico cell gsm 850 900 UK Kuwait Saudi Arabia UAE egypt
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (62474335361):
Product Overview
Description
 |  | |
 |  | |
| ||

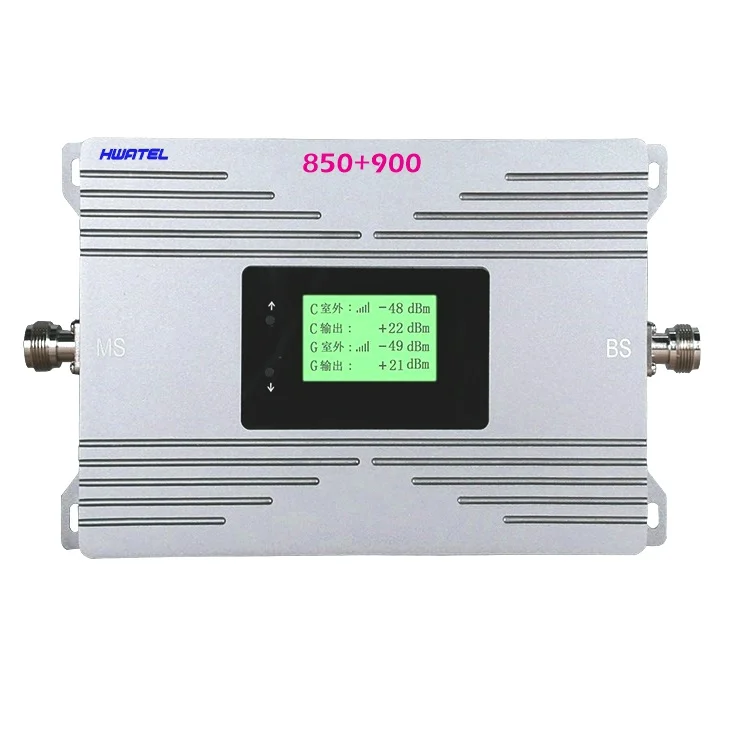

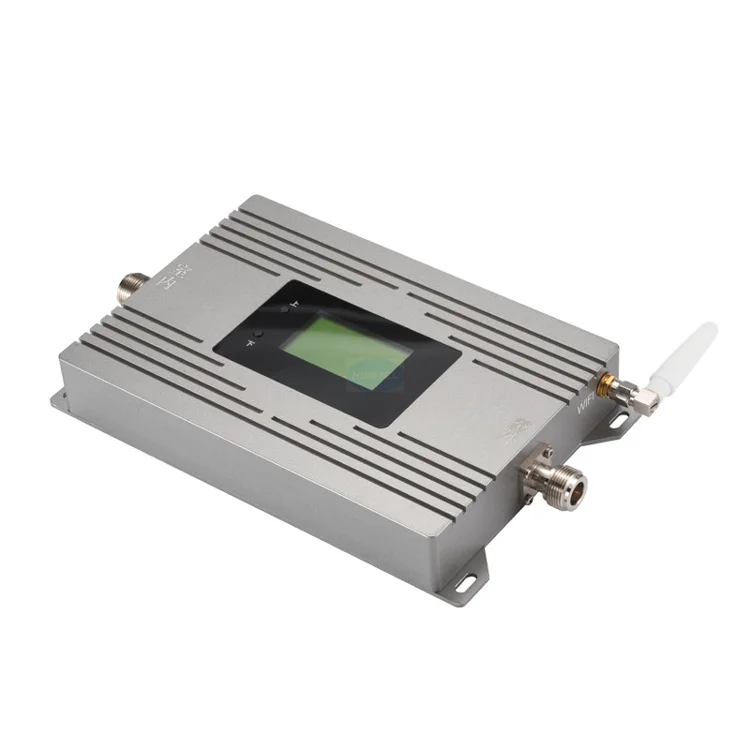

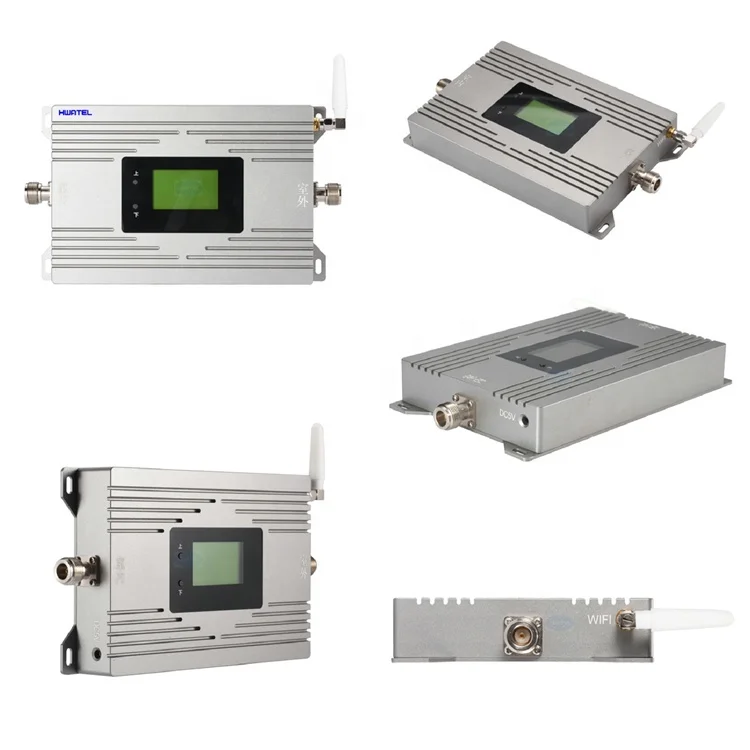

Dual Band Industrial Booster 2G/4G 850/900MHz, Band 5/Band8 23dBm 70dBi 300 Square Meter/3000 Square Feet
| ||
| Technical Specification | |||
| Tech Parameter | Uplink | Downlink | |
| Frequency Range | band 5+8 | ||
| Output Power | 20+20 ±2dBm | 23+23 ±2dBm | |
| Gain | 60 ±2 dB | 70±2dB | |
| Ripple in Band | GSM≤4dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||

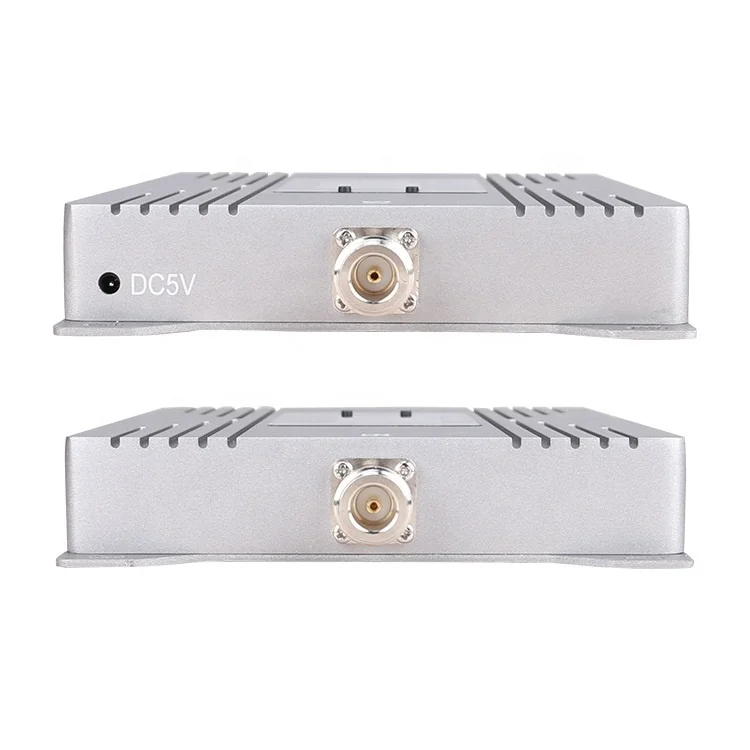

| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||

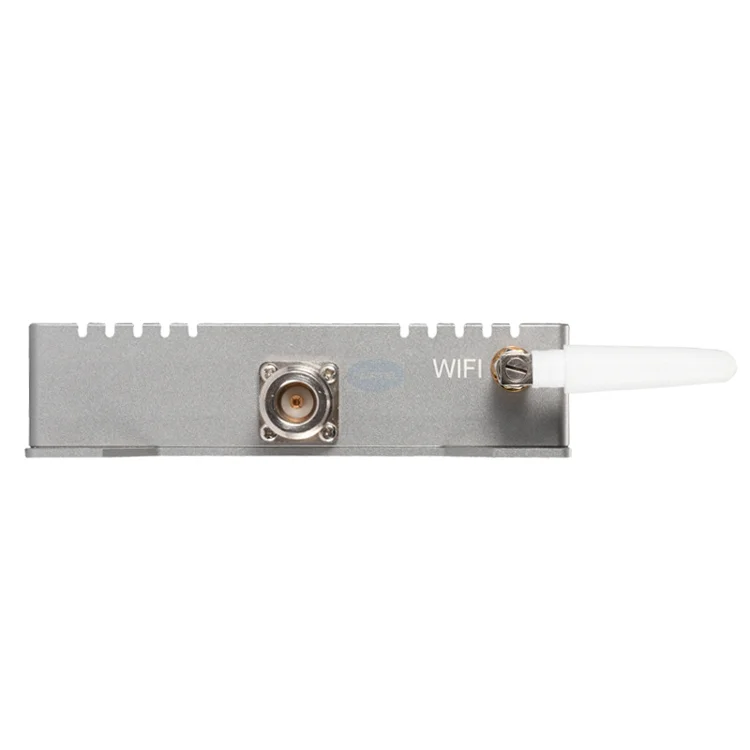

| RF Connector | N-Female | ||
| Dimensions (D*W*H ) | 145*100*20(mm) | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | < 0.7Kg | ||
| Packing size (D*W*H ) | 240*140*75(mm) | ||
| Gross weight | < 1Kg | ||

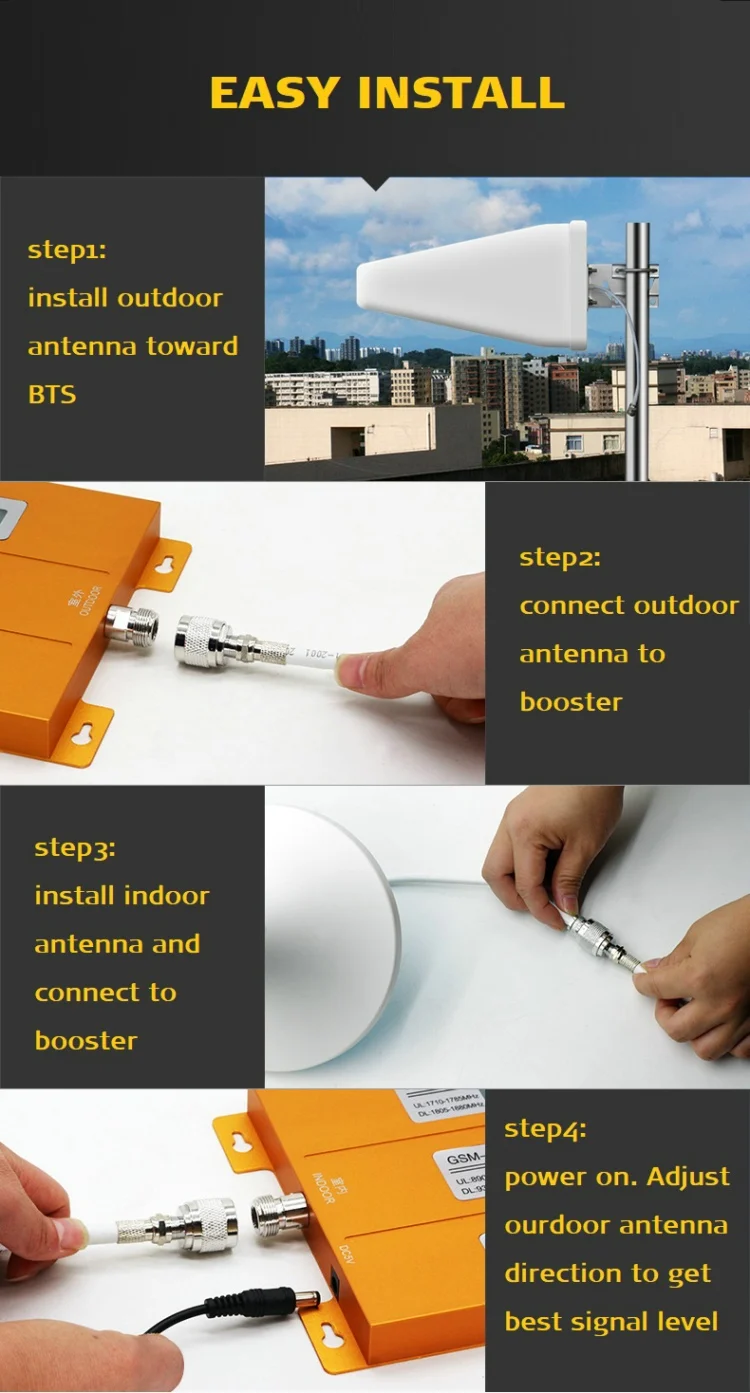

| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
