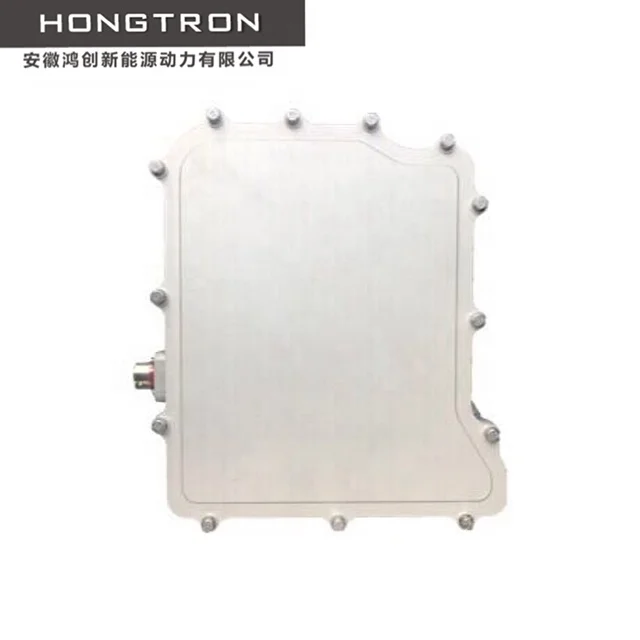

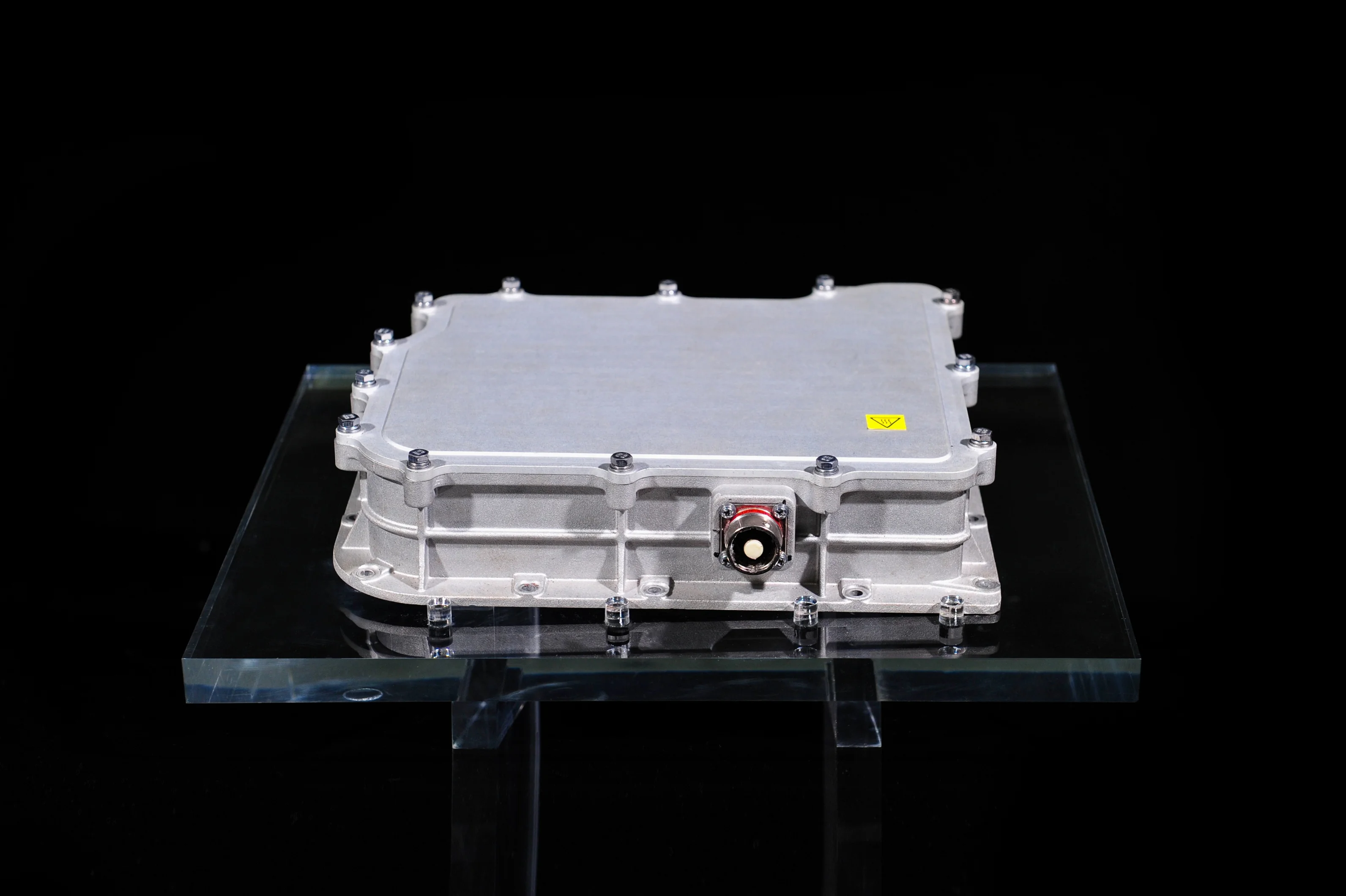

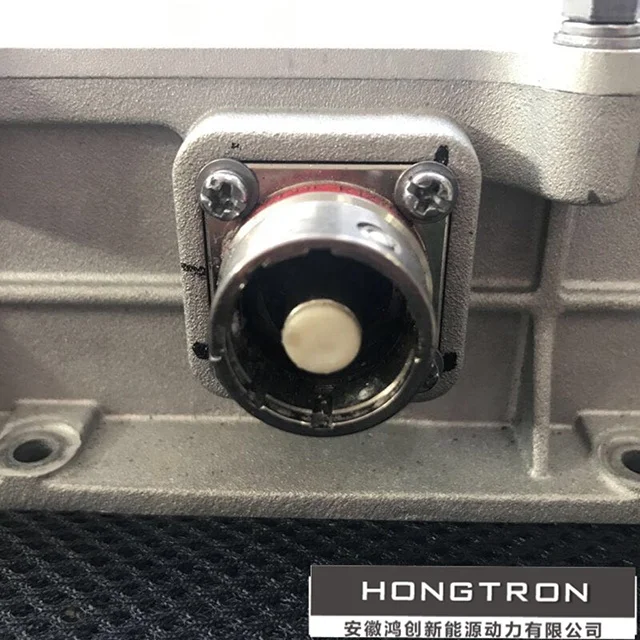

Electric vehicle DC/DC converter of Anhui Hong Tron:

Product Overview

Description

Electric vehicle DC/DC converter of Anhui Hong Tron:
Introduction

The power supply is applied to HEV, PHEV and EV electric vehicles. By receiving the control signal of the vehicle controller, the adjustable output from the high voltage system to the low voltage 12-16v can be realized, which can meet the charging demand and load demand of the later stage vehicle battery, and can realize its own state feedback and load state feedback.

Working performance:

1) Operating voltage range:

240VDC-400VDC;minimum voltage of full power output bus: 290V. Rated voltage: 305V.

2) Low voltage power supply range

In the low-voltage power supply range of 9VDC ~ 16VDC, it should work normally; in the range of 6.5VDC ~ 9VDC, it should be able to maintain the normal can communication.

3) Cooling condition

Liquid cooling, cooling liquid: ethylene glycol diluted with water, volume ratio 45% to 55%; cooling temperature ≮70 ° C, rate of flow 8L / min ~ 12L / min.

4) Rated power

DC / DC rated output power: ≥1300W.

5) Input Current

   When DC / DC is turned on, the input impulse current at the minimum working voltage is ≤15A, and the adjustment time is ≤50ms.

6) Output current

Within the output voltage range, the maximum continuous non-fault output current is ≥95A.

7) Output voltage

When the input voltage is 240VDC to 400VDC, the output voltage range is 10.5VDC to 15.5VDC, which can be adjusted by instructions; the typical output voltage is 14.5VDC.

8) Output voltage ripple

DC / DC steady-state output voltage ripple ≤ 500mv.

Functions:

1. High / low voltage DC conversion function

2. Output voltage continuously adjustable function

3. Controllable working process and status

4. Passive discharge function

5. CAN communication function

6. Status monitoring function

DC / DC can carry out real-time monitoring and reporting in standby, working and fault states.

7. UDS diagnostic function

8. Protection function

Input over voltage protection, input under voltage protection, over temperature protection, output over voltage protection, output under voltage protection, output current limit protection, output short circuit protection, communication interruption protection.

The protection thresholds meet the requirements of the following table:

System	Protection value	Recovery conditions	Remark
Input over voltage protection	420±10V	>410V	When the input is over voltage, the module turns off the output and recovers automatically
Input under voltage protection	<235V	<240V	When the input is under voltage, the module turns off the output and recovers automatically
Over temperature protection	100℃	85℃	The module turns off the output when over temperature, and recovers automatically
Output over voltage protection	17V	16V	When the output is over voltage, the module turns off the output and recovers automatically
Output under voltage protection	<9.5V	9.5V	When the output is under voltage, the module turns off the output and recovers automatically
Output current limit protection	110A	100A	When over current occurs, the constant current of hardware is limited to the protection value without reporting
Output short circuit protection	——	Short circuit elimination
Communication interruption protection	——	——



Working environment requirements:

1. Temperature

Working environment temperature: - 40 ℃ ~ 85 ℃ (cooling liquid outlet temperature ≤ 70 ℃).

Storage environment temperature: - 40 ℃ ~ 85 ℃. The storage environment shall be in a warehouse without exposure to the sun, rain and corrosive gas.

2. Humidity

Working relative humidity: ≤ 96%. When the external surface temperature is lower than the dew point and there is condensation phenomenon, it can work normally;

Storage relative humidity: ≤ 96%.

3. Altitude

4000m

Application range:

Applicable to A0 and A00 passenger cars, 2T logistics vehicles, special vehicles, etc.
