Tuya Smart WS2811 LED String 12V Addressable RGB Waterproof LED Strip Program

Share on (62474465277):


Price:

Quantity:


Product Overview

Description


Tuya Smart  WS2811 LED String 12V Addressable RGB Waterproof LED Strip Program














. 15 Years Manufacturing Experience of LED Lighting


. Over 1000 Customers Cooperate with Our Factory


. Factory Direct Supply with Best Technique and Service Support


. Every lamp 4-hours Aging Testing are Guaranteed Before Shipment

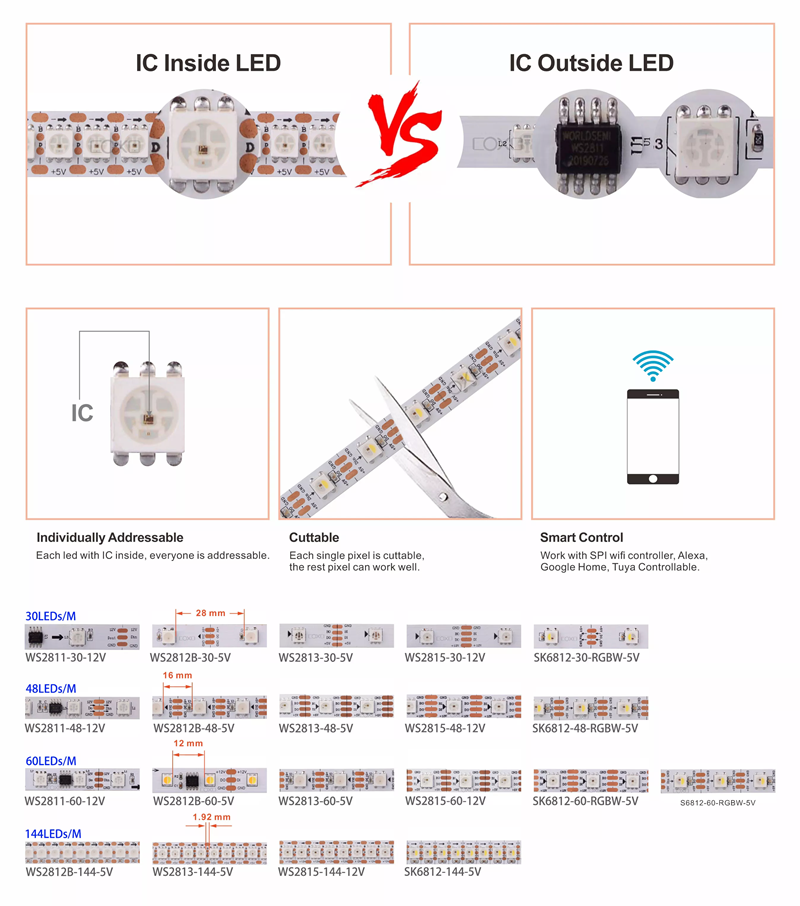

LED Type




ws2812




ws2811




S6812



LED Quantity (led/m)



30/60/96/144




30/48/60




30/60/144



LED Color



RGBIC




RGBIC




RGBIC+3/4/6000k



Work Voltage



5V DC




12V/24V DC




5V DC



Power



6W/12W/18W/20W




6W/9W/12W




7.2W/14.4W/20W



PCB Size



8/10mm




10/12mm




10/12mm





 Dream Color Pixel LED RGB WS2811 Copper Wire LED String 12V Addressable RGB Waterproof




Product Description


Dream Color Pixel LED RGB WS2811 Copper Wire LED String 12V Addressable RGB Waterproof











Features





1. Low-power consumption, 80% energy savings

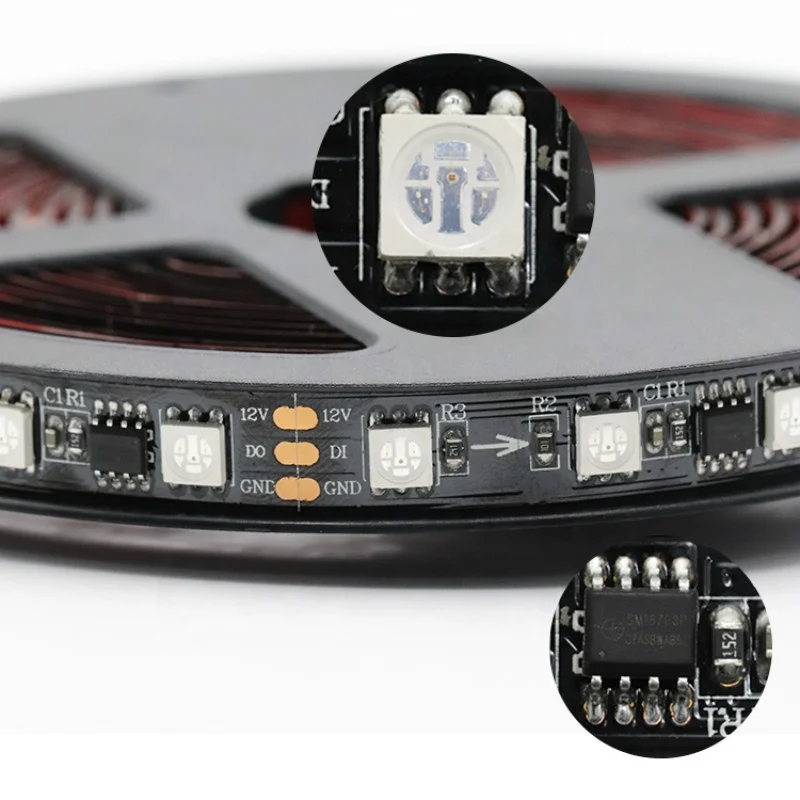

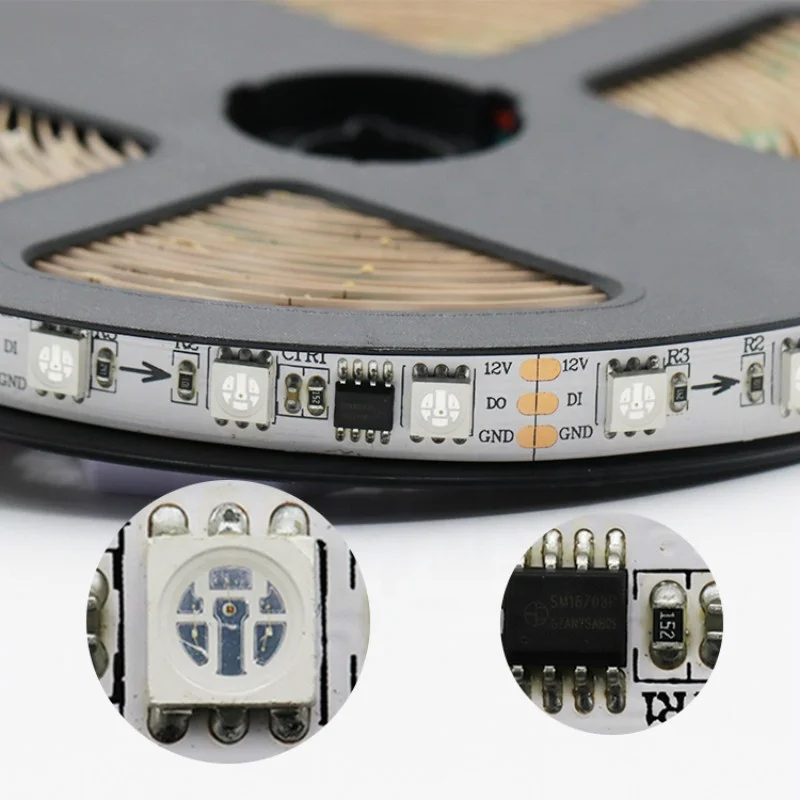

2. IC drivers 3 LED, each 3LEDs are addressable and cuttable


3. 3M Adhesive insures LED Strips last both indoors & outdoors


4. Waterproof IP rating: IP20, IP54, IP65,IP67,IP68


5. Extra power and ground wires for easy power distribution


6. Long lifespan, at least 50,000 hours


7. Quick and easy installation


8. Compatible with WS2811, WS2812 & WS2812B Controllers


Dream Color Pixel LED RGB WS2811 Copper Wire LED String 12V Addressable RGB WaterproofDream Color Pixel LED RGB WS2811 Copper Wire LED String 12V Addressable RGB WaterproofDream Color Pixel LED RGB WS2811 Copper Wire LED String 12V Addressable RGB Waterproof


Attention:


1)Addressable full color led strips—usc1903 IC/UCS1903 IC
2)60pcs led per one meter

3) individually control ———-1 ic& 3led chip

4)Standard Reel Length: 5meter/roll, also can be customized.
5) Cutted: 3 integrated RGB LEDs per segment, can be cutted per 3LED.you can cut this stuff pretty easily with wire cutters, there are cut-lines every 0.65”/3.33cm(1 LED each), Solder to the 0.1” copper pads and you’re good to go.
6)Power supply: You must use a 12 DC power supply to power this strip, do not use higher than 12V or you can destroy the entire strip

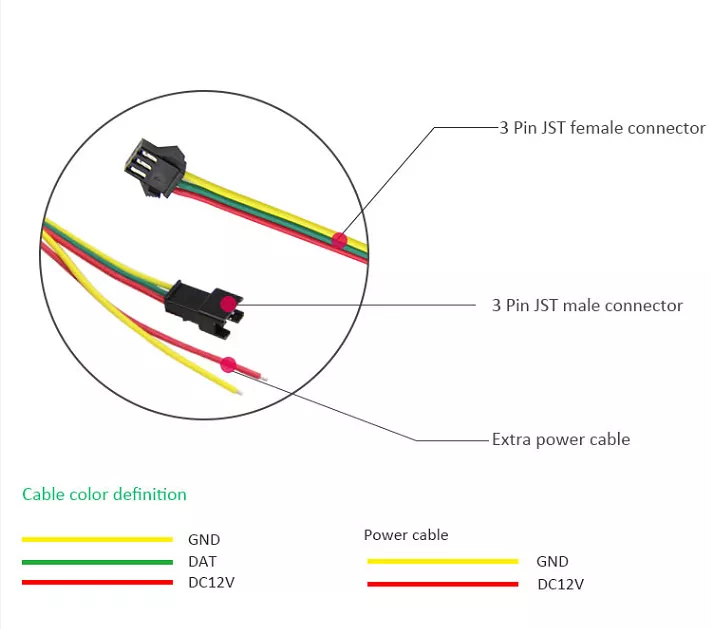

7)3PIN JST SM connector(non-waterproof)soldered in each end of strip,extra 2single wire for powering in input side
8)Customised length available

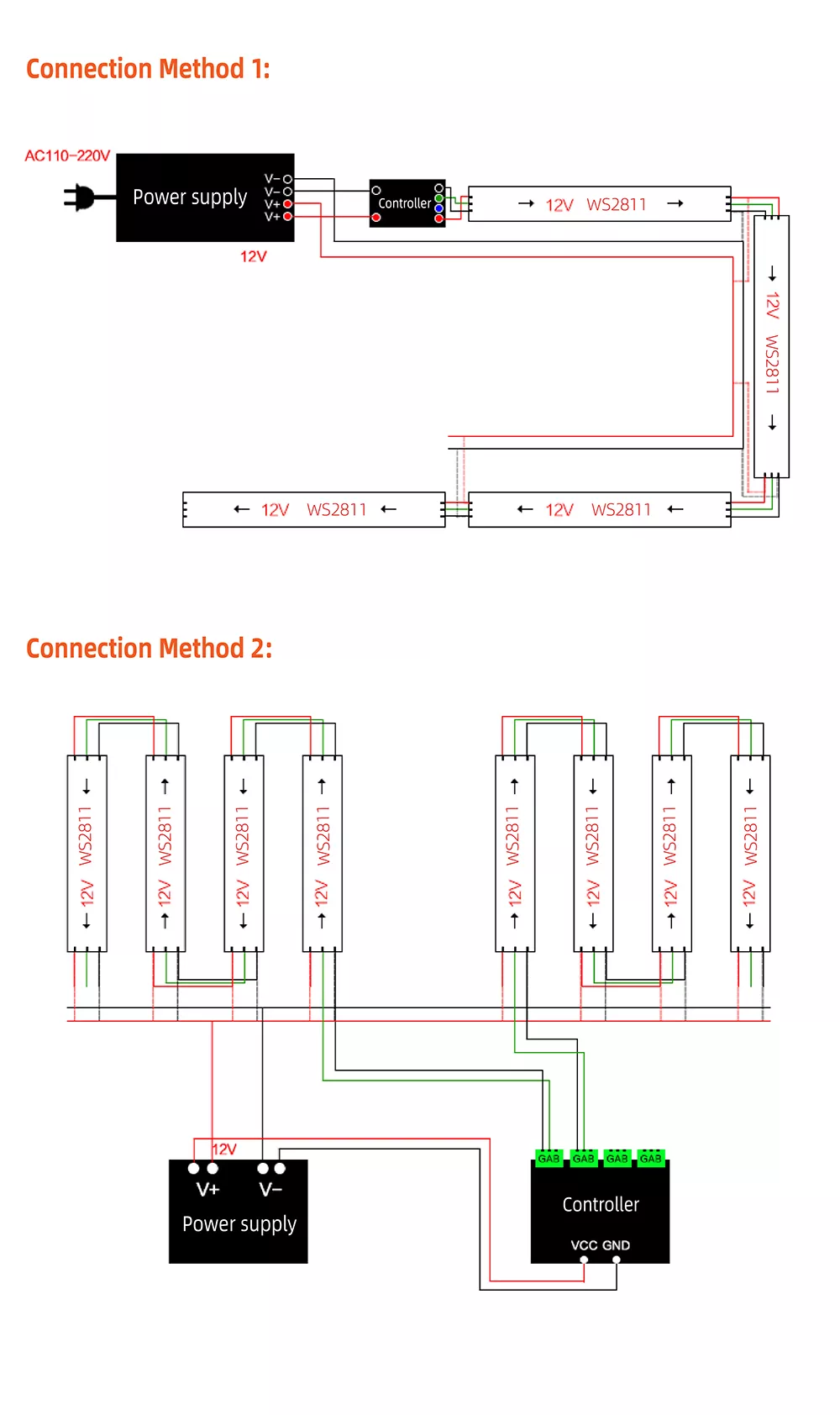

Connection:
SPI signal :LED strip+ LED power supply +led controller
DMX control :LED strip + LED power supply+DMX controller +DMX decoder
LED controller :T-series SD card controller ,RF remote controller .DMX controller,Arduino………(off line /PC online)
LED power supply :Meanwell power supply ,T- series ,A-series …. (waterproof /non-waterproof )







 Dream Color Pixel LED RGB WS2811 Copper Wire LED String 12V Addressable RGB Waterproof

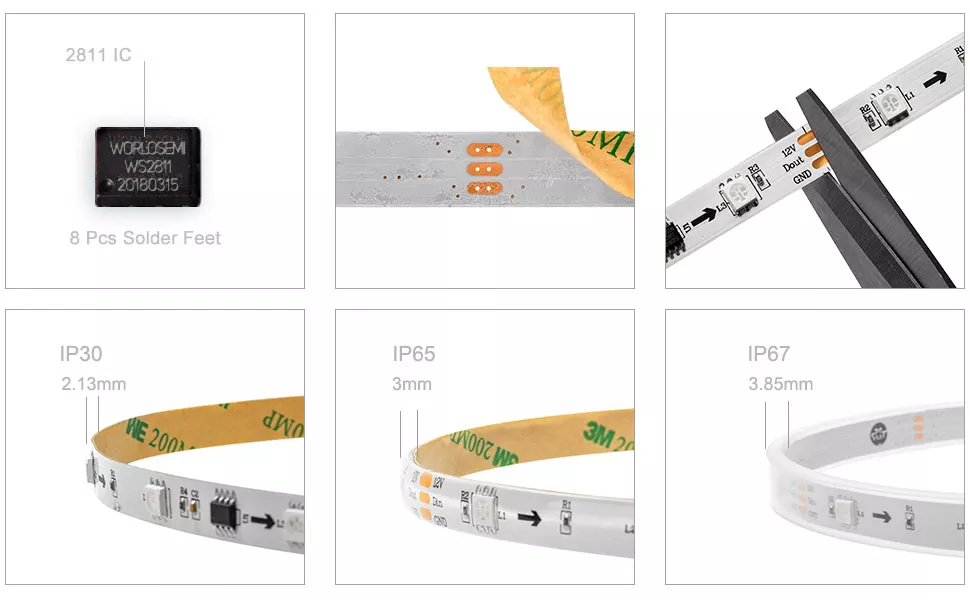

IP Rating

IP Rating

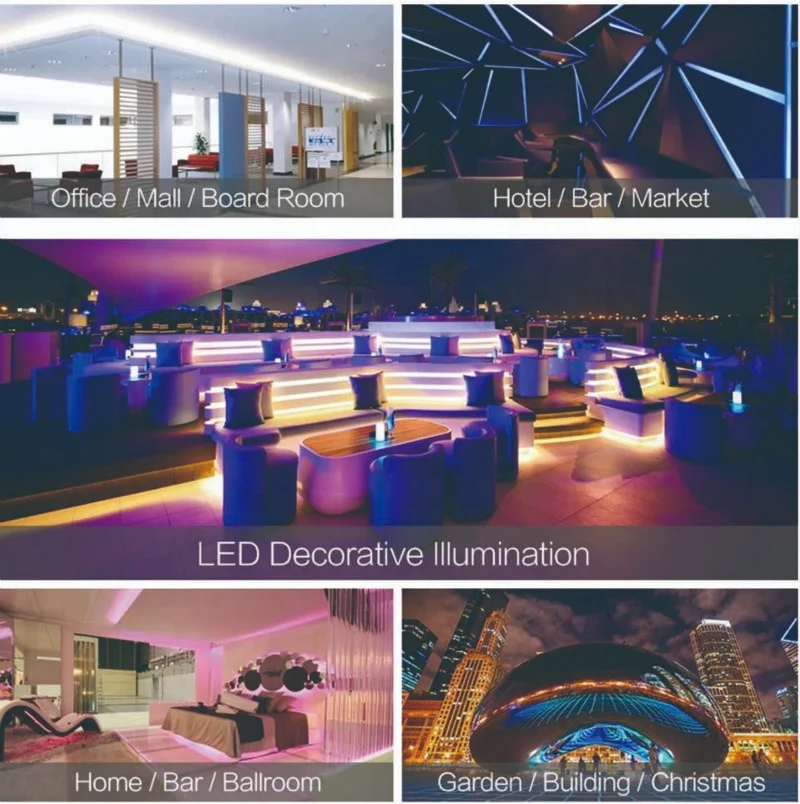

This is a fantastic product used for the place where need personal program color performance like Bar/KTV/SHOP TITLE/ CONCERT ETC.

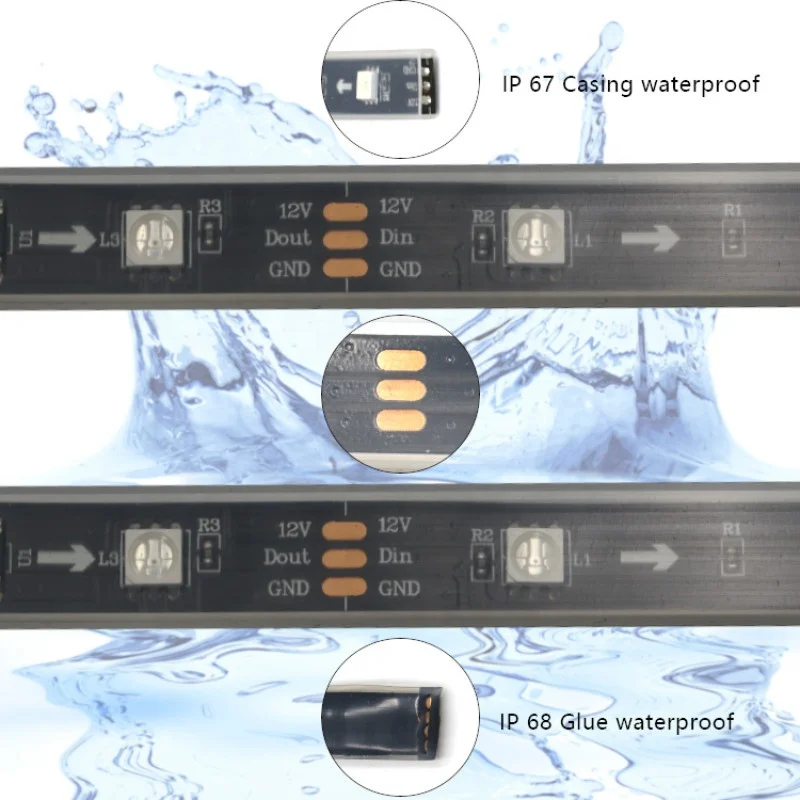

Protection grade:


1. IP20 —No waterproof, for indoor use

2. IP65 —Silicone coating, easy cut, outdoor use

3. IP67 —Silicone tube, need reseal after cut, outdoor use

4. IP68 —IP65+IP67, can work underwater(if you need we can offer for you !)
