720P 4 channels ahd Mobile DVR at the Wholesale Price

Share on (62474486733):


Price:

Quantity:


Product Overview

Description


Product Description

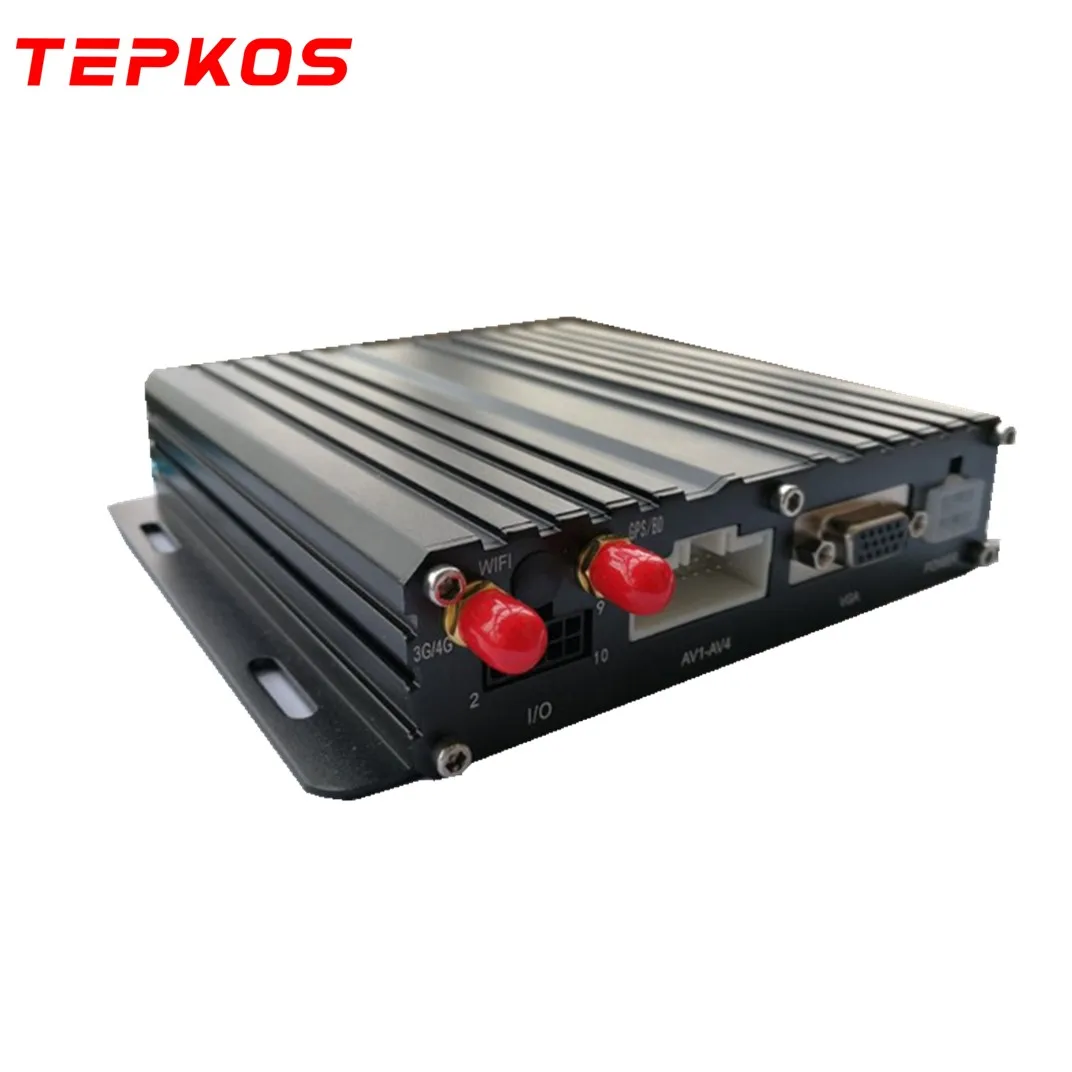

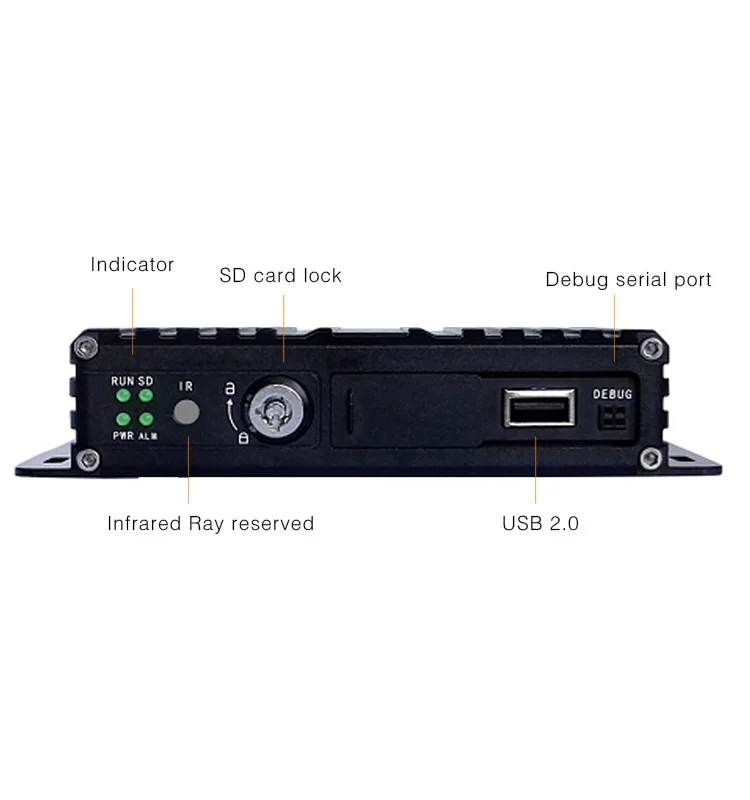

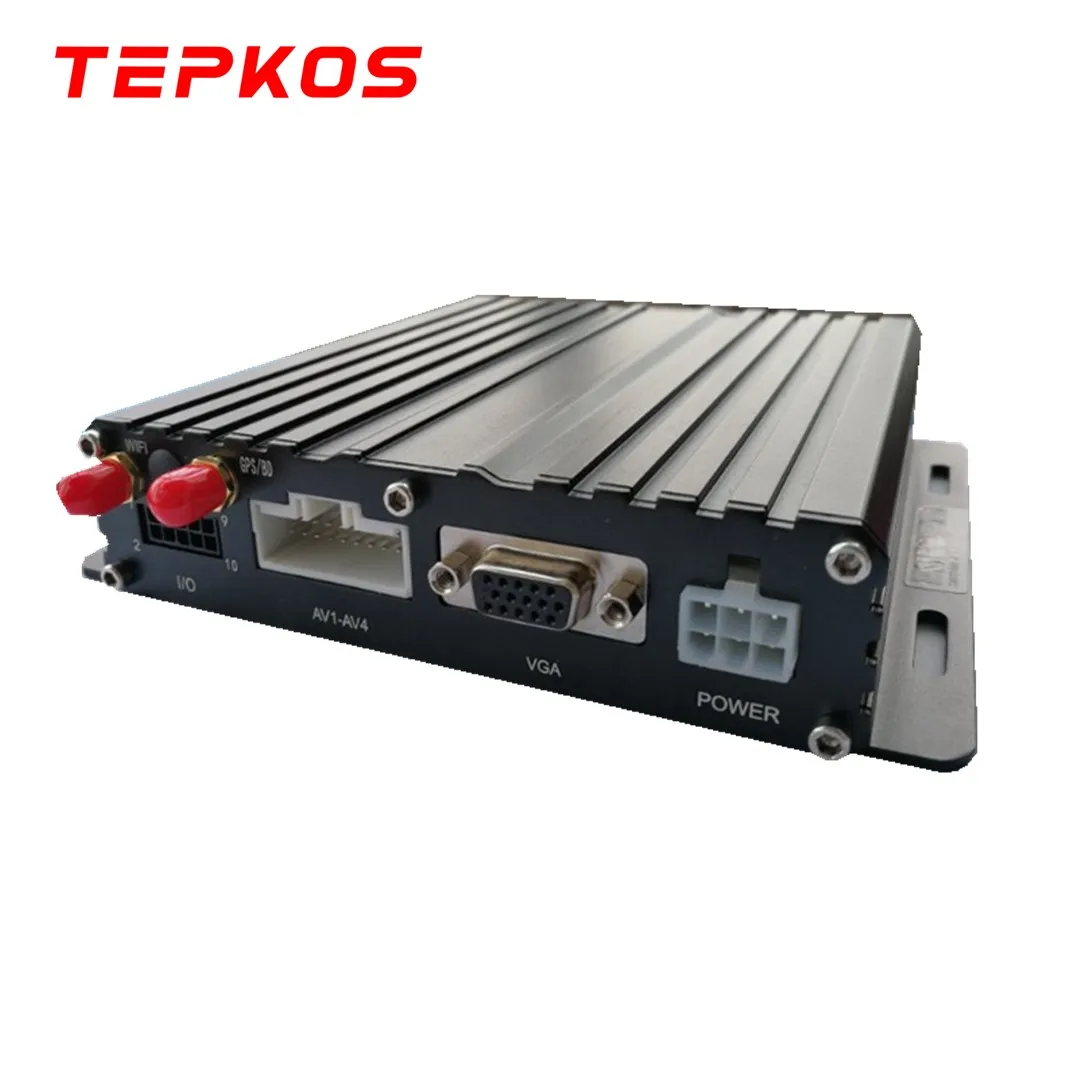

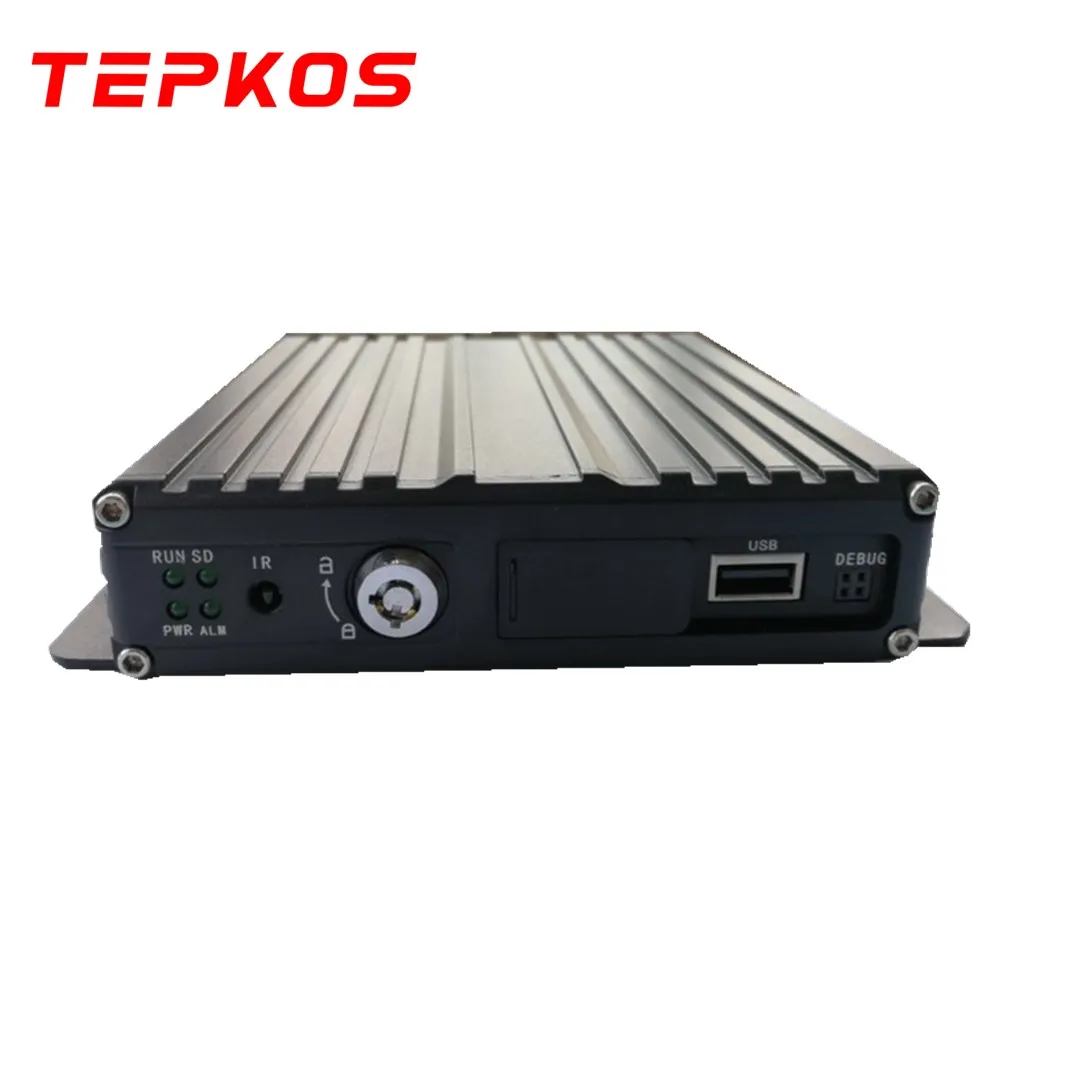

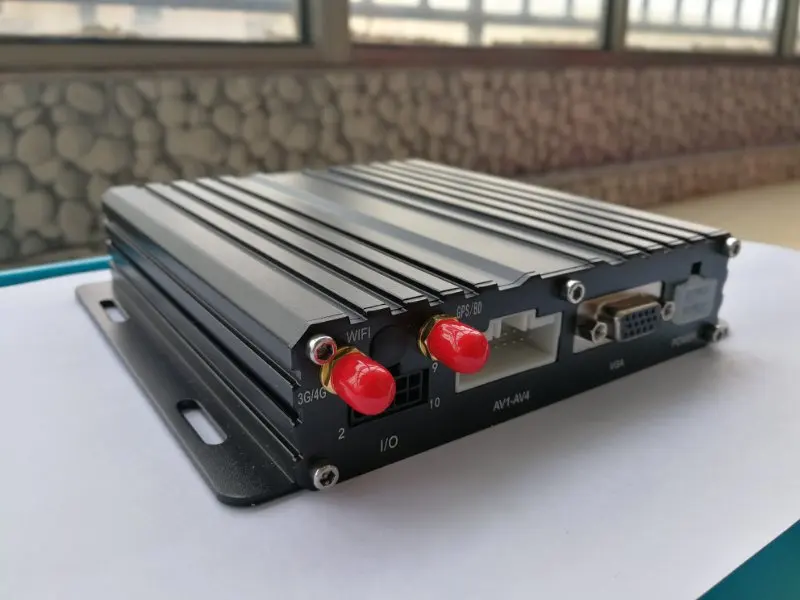

720P 4 channels ahd Mobile DVR at the Wholesale Price

Fast Delivery, Good Quality ,Good Service, Different Options

Functionality :


Embedded HiSilicon GPU, H.264 encoding, high compression ratio, clear image
Support 4 AHD Million HD/Analog SD video/audio inputs, 1 video/audio simultaneous output, 1 VGA output
Support 4 720P HD real-time local recording


Power:

Professional on-board power deign, 9-36V DC wide voltage input desigh
Various circuit protection on undervoltage, short circuit, reverse connection and so on, can be adapted on different vehicles.
Support intelligent power management: automatical power-off under low voltage, low consumption when cut-off


Data Storage:

Special file management mechnism, to realize data encryption and effective data protection
Specific SD card bad sectors inspection technology, which guarantees the continuity of recording and at the same time extend the SD card lifetime
Embedded super capacitor, to avoid data loss and SD card damage in case of abnormal outages
Support SD card storage, up to 256G


Interface:

Support GPS/BD positioning, high sensitivity, quick localisation
Support WIFI wireless downloading, support 802.11b/g/n, 2.4G frequency
Embedded 3G/4G module, support LTE/HSUPA/HSDPA/WCDMA/EVDO


Main Paramters:

TR5504 AHD High-definition on board DVR (4 Inputs SD Card )
Dimension
142mm *153mm * 33mm
Working temperature-20℃~ 70℃
Operating VoltageDC 9V-36V
StorageSD card (max 256 G)
Channel of camera4 channels
Encoding capacity 720P/960H/D1/CIF
External monitor1 or 4 windows display
Video recording bit ratesupport full frame 4096kbps (6 selectable levels)
I/O

1 ACC input

4 analog inputs

4 logical inputs

1 analog outputs

1 VGA

1 RS232

OptionsGPS/ 3G/4G/WIFI
Specialty

back-office platform supported

friendly HMI

Embedded super capacitor protection


ahd Mobile DVRahd Mobile DVR

Applications

ahd Mobile DVR

DVR Machine can be used on bus , car, coach , truck and various kinds vehicles

Company Information
ahd Mobile DVR

ABOUT

Shanghai TRION Industrial Co.,Ltd., located in Shanghai, China, is specialized in the R&D and manufature of automotive parts, covering R&D, manufature, sales and service. We focus on the automotive body parts ,electronics and our products are widely equipped on different type of vehicles. We have been concentrating ourselves in automotive part domain for more than 10 years, and have accumulated abundant experience and resources.


We strive our best to satify our customers on various demands of functionality, performance and price. Meanwhile, we have set up dedicated teams for body, chasis and electical parts, which enbales us communicate with our customers effectively and efficiently on technical subjects, for example the customized development.


Our purpose is to serve our customers by developing the best cost performance products with accurate understanding of their requirements via efficient communication, professional know-how and abundant resources; by providing high quality products through excellent project management skills and quality control methods.

We adhere to the management philosophy that quality makes survival,technology brings development, market shows direction and service strengthens purpose. We are willing to provide customers with completed,pluralistic and multi-level service, and willing to work sincerely with all partners to create brilliant future!

READ MORE →

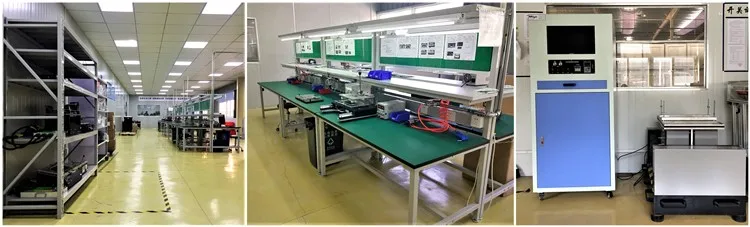

Factory Show
