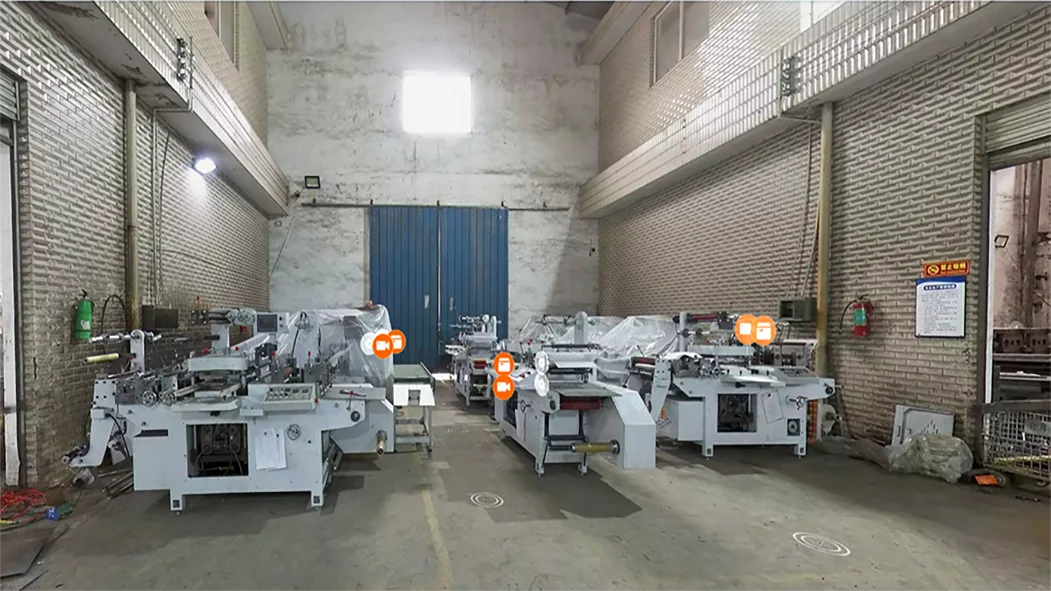

VR


Product Description

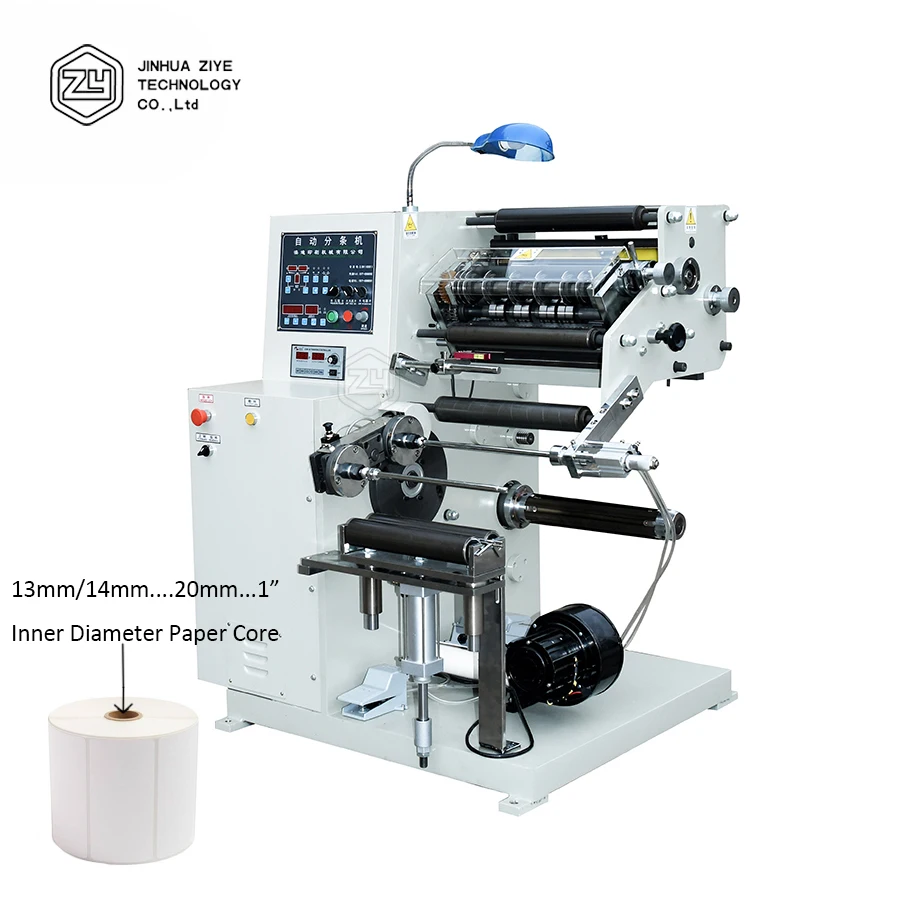

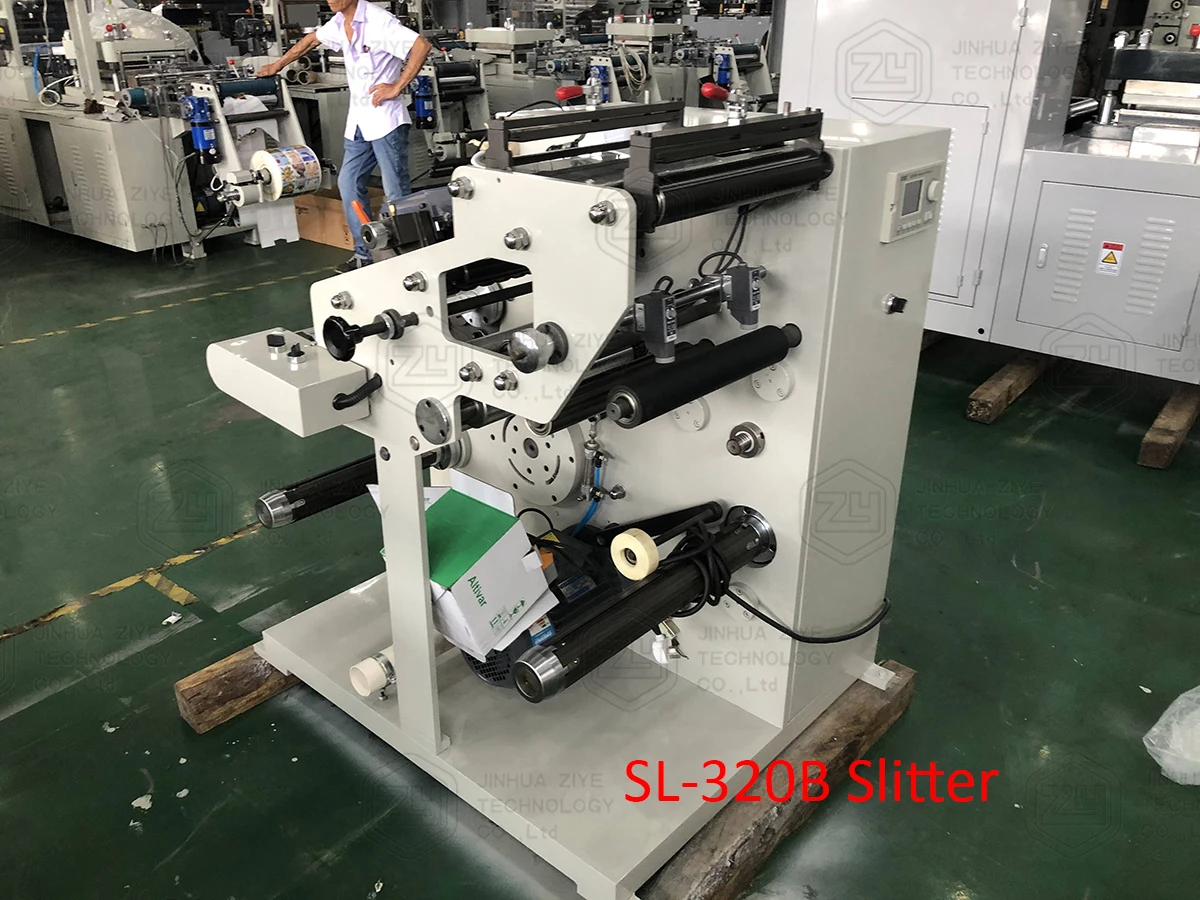

SL320B Printing Thermal Paper Label Slitting Roll Cutting Machine For Sale
The SL-320B automatic slitting machine is the auxiliary product of the automatic die cutting machine. This machine is suitable for slitting narrow pieces of paper with turret rewinder for small reels. It has meter counter and number counter. The unwinding is controlled by two photoelectric eyes, the structure of the complete machine is compact, fast, with high efficiency, operate the characteristic simply, operate steadily.


Main Configuration:
1.ONE SET SLITTING UNIT.
2.ONE 3” UNWIND SHAFT, TWO 1.5” REWIND SHAFTS + ONE 3” REWIND SHAFT.
3.LENGTH COUNTER & QUANTITY COUNTER
4.TWO PHOTOELECTRIC EYES – WEB GUIDE SYSTEM
5.ONE SET MAGNETIC BRAKE AND CLUTCH
6.ONE SET AIR BLOWER
7.TWO AUTOMATIC CONSTANT TENSION CONTROLLER

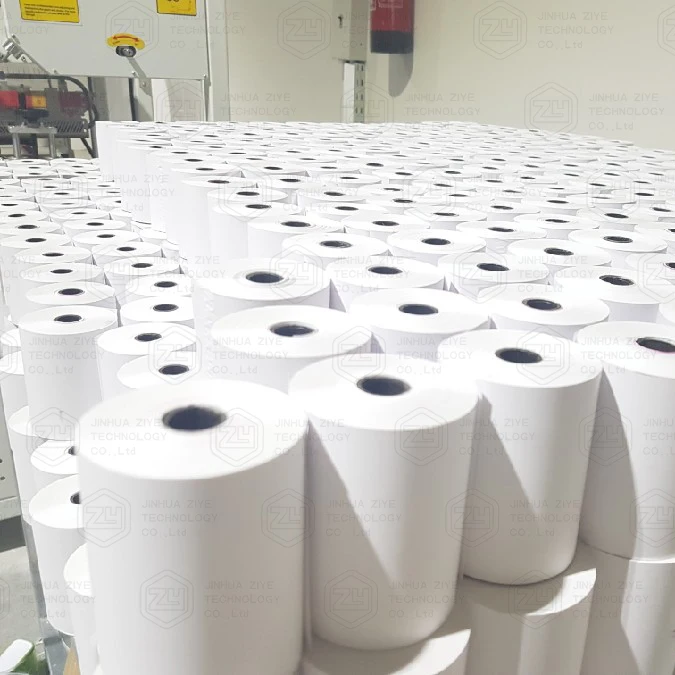

Samples


Label Stickers Roll


Aluminum Foil Roll
Plastic Film Roll: PET, BOPP, PE....

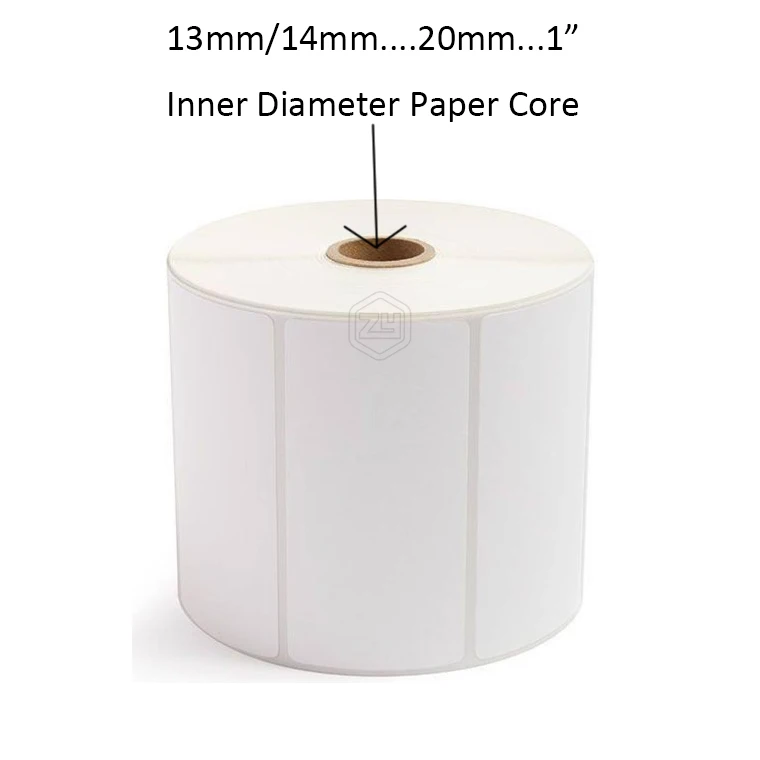

Paper Roll: Kraft Paper, Thermal Paper....


Product Paramenters


Machine Model
SL320B
SL-420B
Slitting speed
120m/min
120m/min
Max. Web Width
320mm
420mm
Max. Unwinding Diameter
600mm
600mm
Max. Rewinding diameter for big roll
500mm
500mm
Max. Rewinding diameter for small roll
200mm
200mm
Dimensions
1100*900*1300mm
1100*1000*1300mm
Main motor
2.2 KW
2.2 KW
Voltage
220V/380V
220V/380V
Min. Slitting width
10mm
10mm
Machine weight
500kg
600kg


Details Images


Slitting Unit
1-Set Slitting Unit comes with 8 Sets Rotary Knives in standard configuration.
Web Guide System
With Two Photoelectric Eyes to control paper move straightly.


Unwind Unit
With 1 pc 3" Air Expanding Shaft.
Can accept max diameter 600mm material jumbo roll. (can be customized)

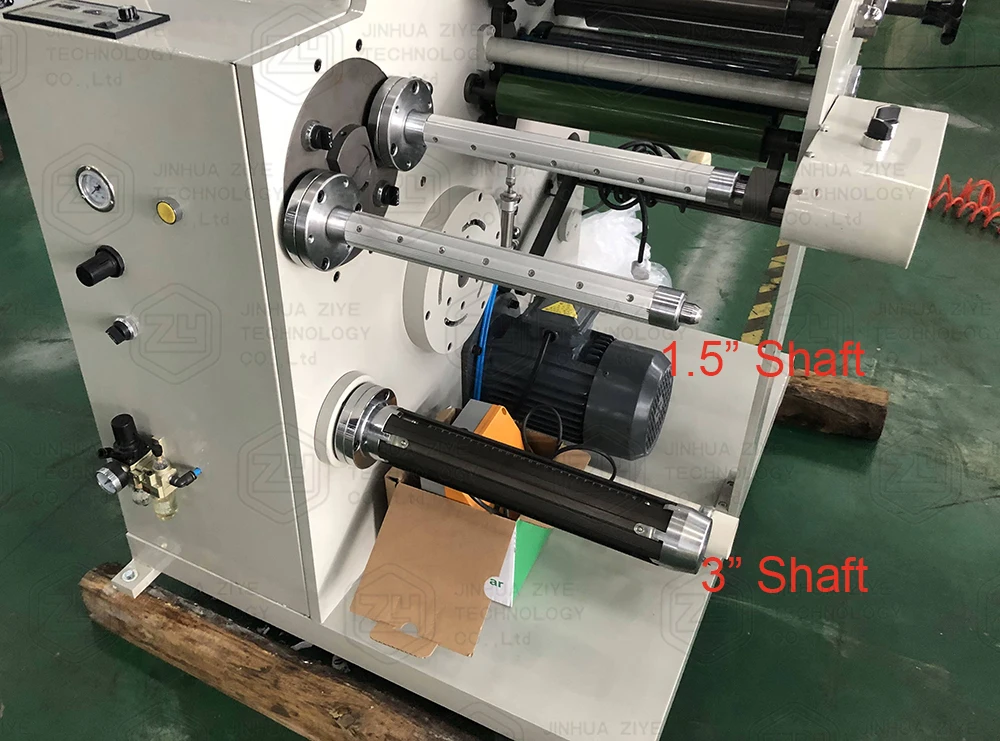

Rewind Unit
With 2pcs 1.5” Air shaft, (Turret Rewind), can accept 200mm diameter roll.
With 1 pc 3" Air Expanding Shaft., can accept 500mm diameter roll.



Magnetic Brake and Clutch
With One 25 N.M Magnetic Brake, One 50 N.M Magnetic Clutch
Machine Drive By Synchronous Belt. Low Noise and Stable Operation
Auto Constant Tension Controller
With 2 Set ZXT Auto Constant Tapper Tension Controller For Unwind and Rewind


Blower Fan
Machine Has Blower Fan To Blow Away The Trimmed Sides to collect waste.
Counter
Machine can count with meter or quantity.


Razor Knife Set
Often used for cutting plastic film
Groove Roller
Cooperate with razor knife

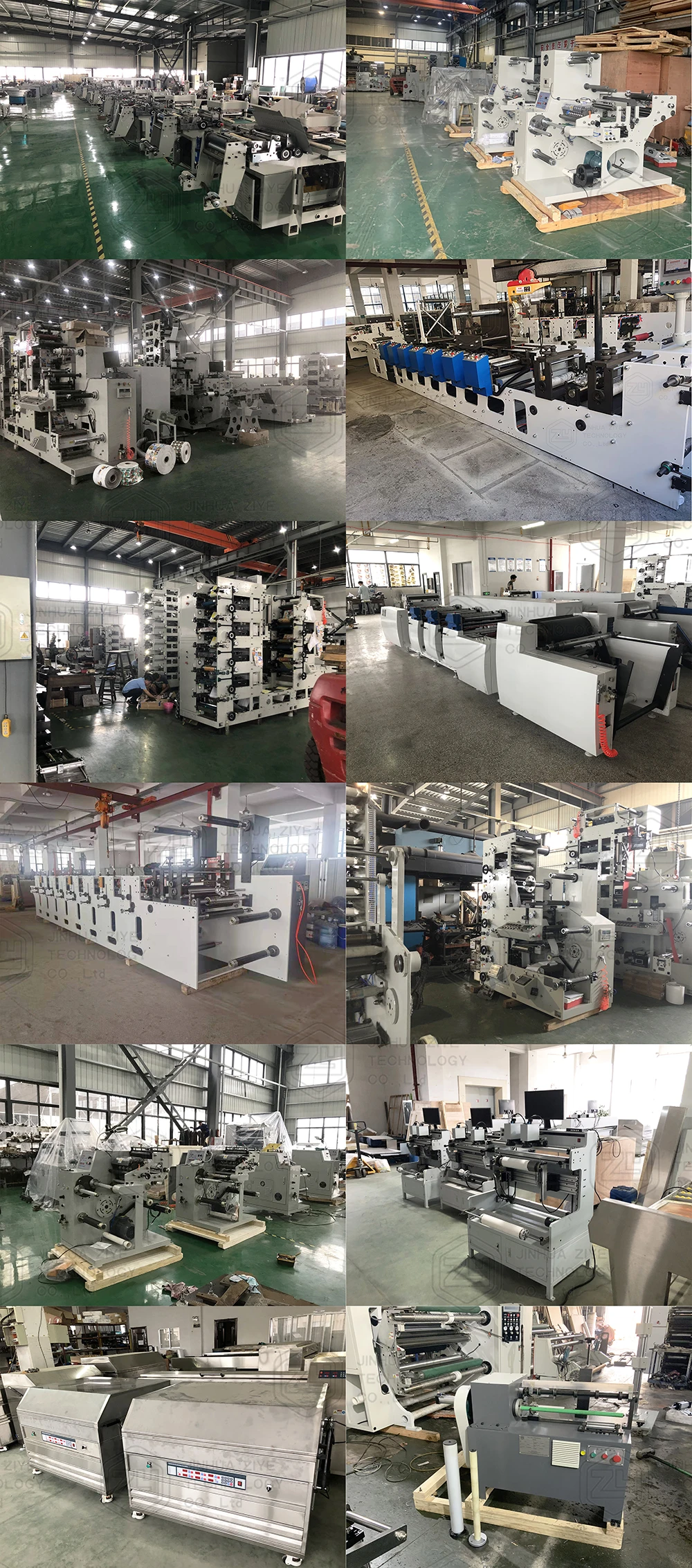

Company Profile


Jinhua Ziye
professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national
brand’ as development strategy, to make company as the leader in after printing machinery line.

Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!


Why Choose Us


Professional Team
For slitting machine, we can provide you in 5-20days.
Factory Monthly Output is 50 sets.

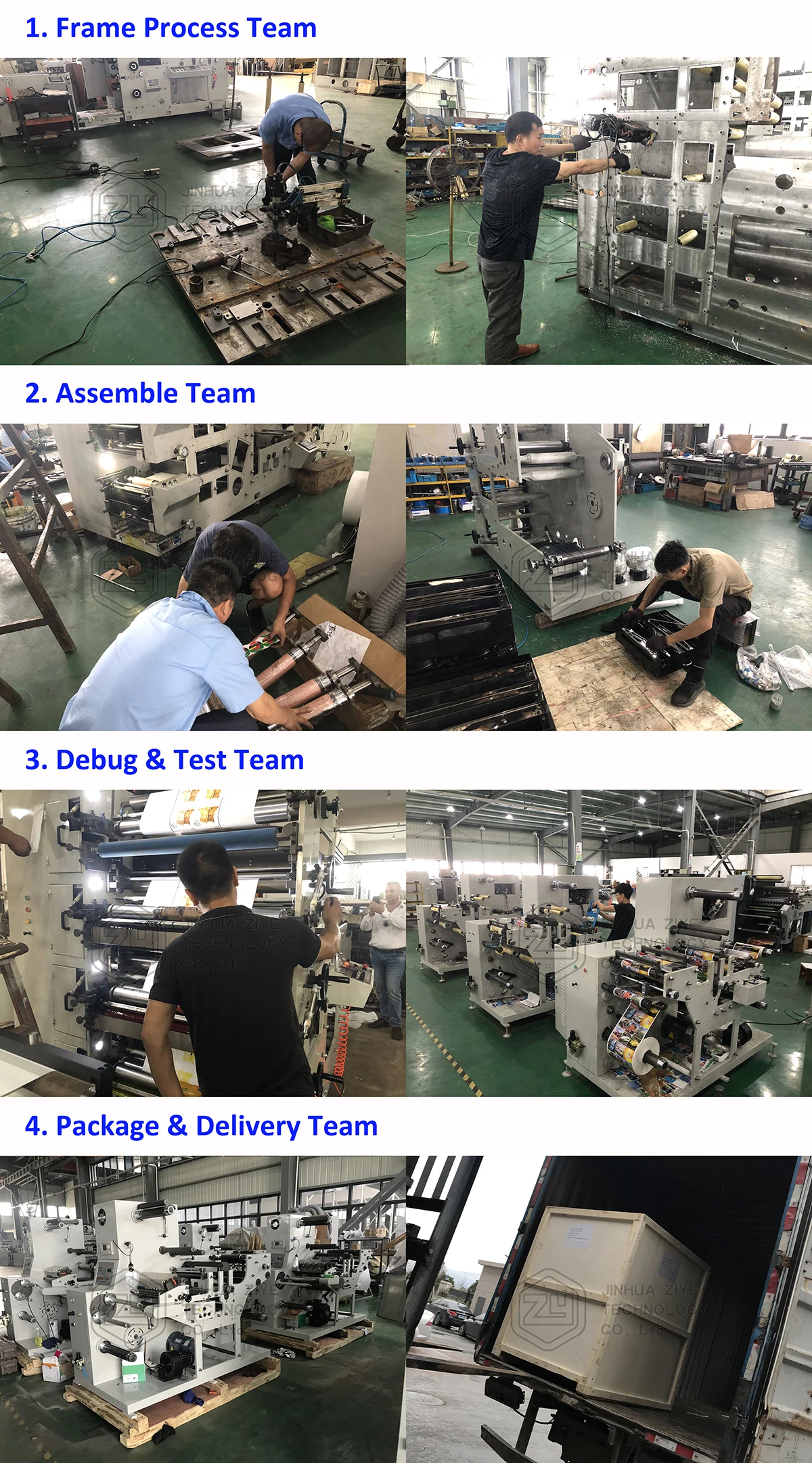

Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you:

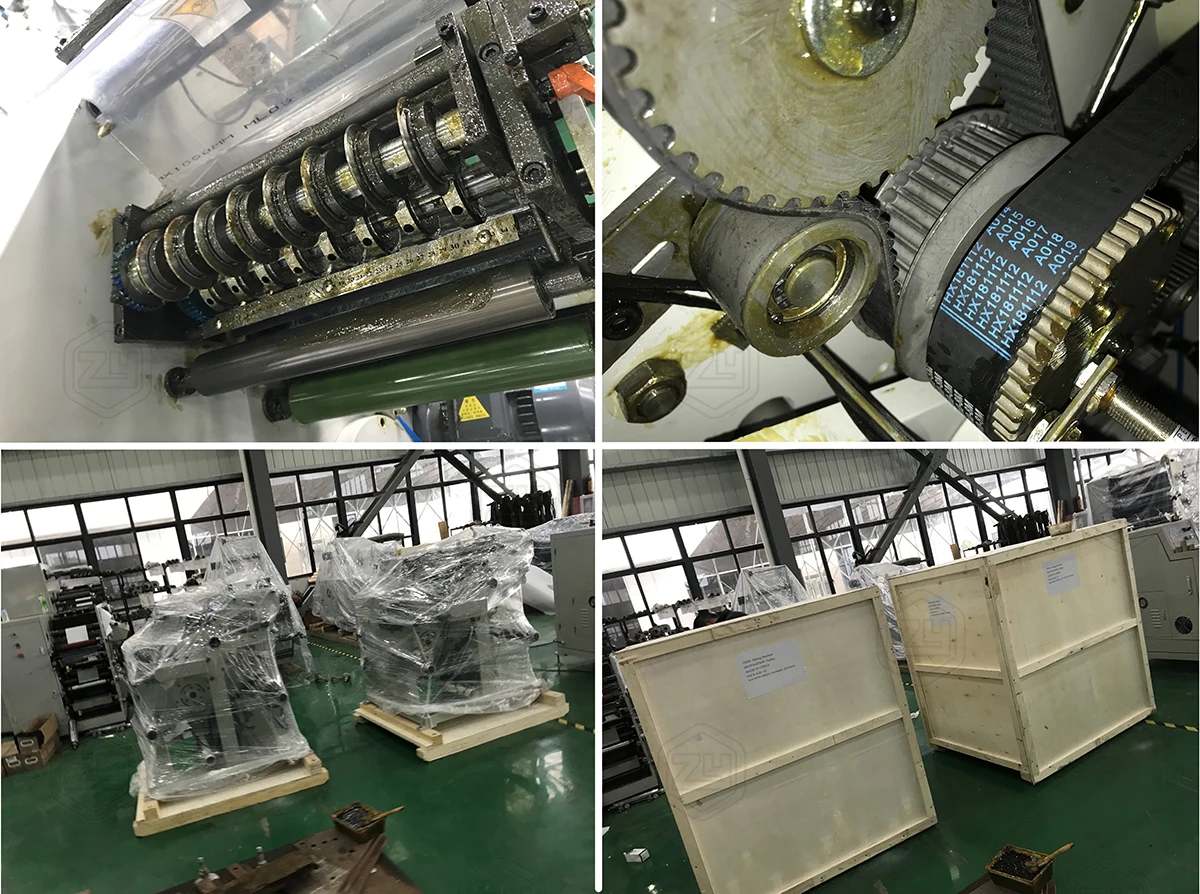

Package
Interior: Wraping Film to keep dry and prevent from rusty
Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
