Price:RUB 751,417.94

Quantity:


Product Overview

Description

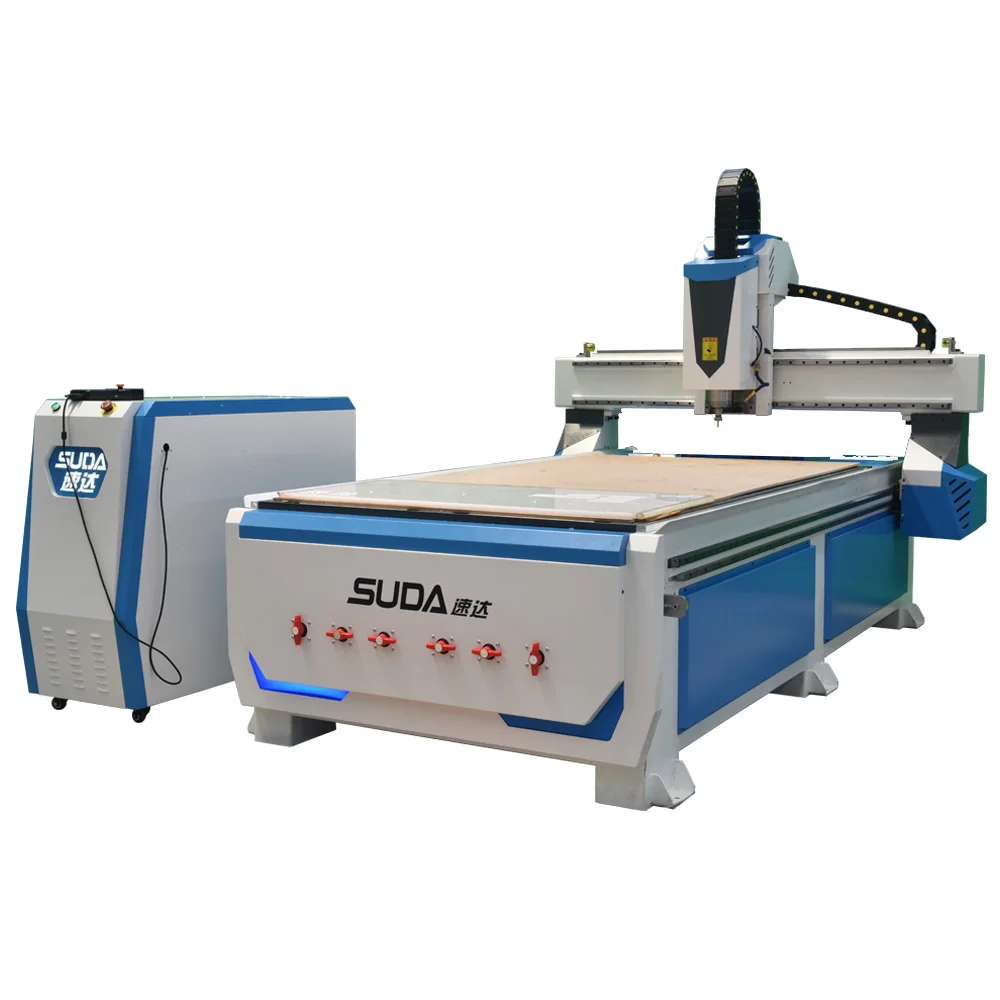

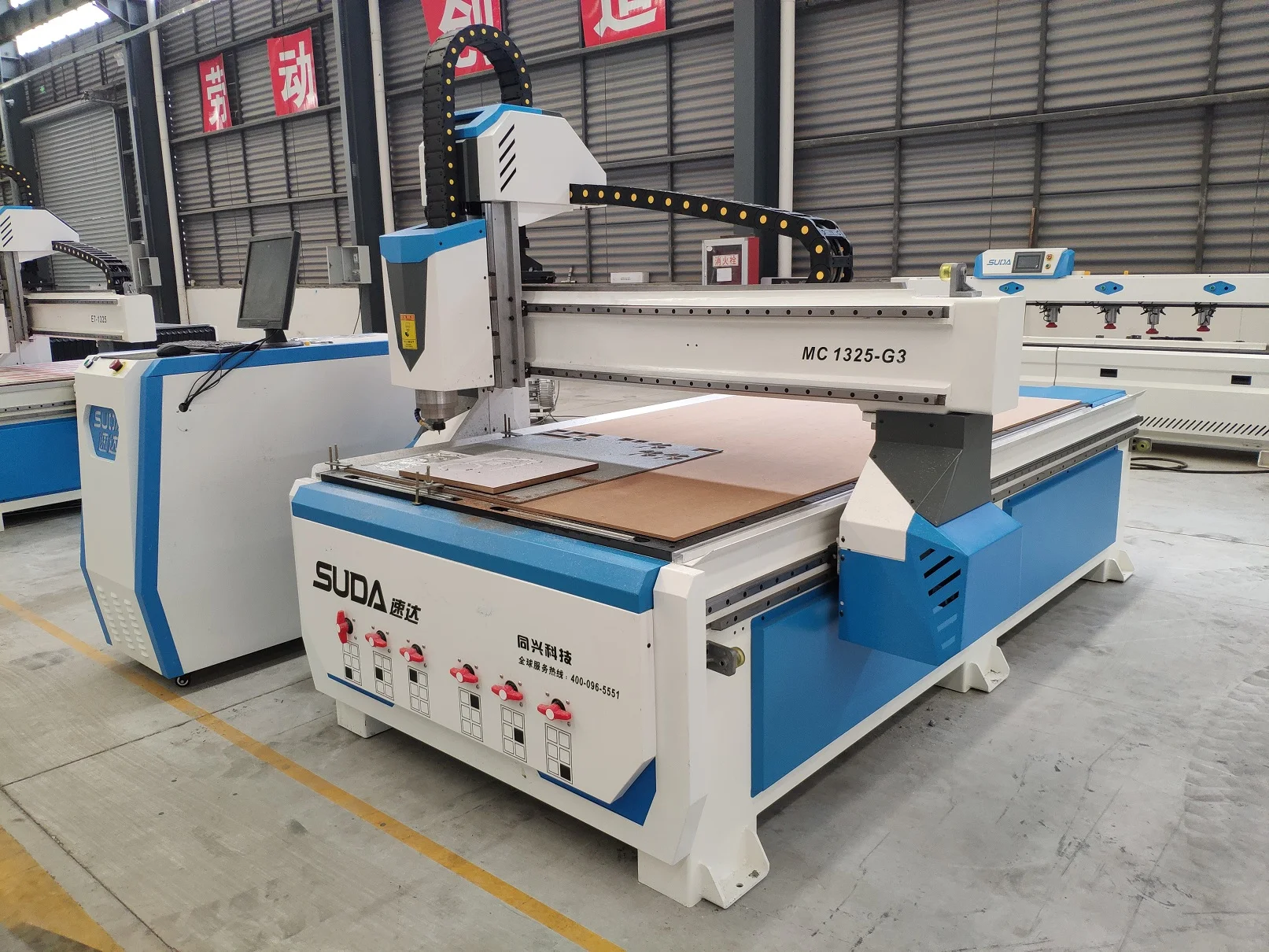

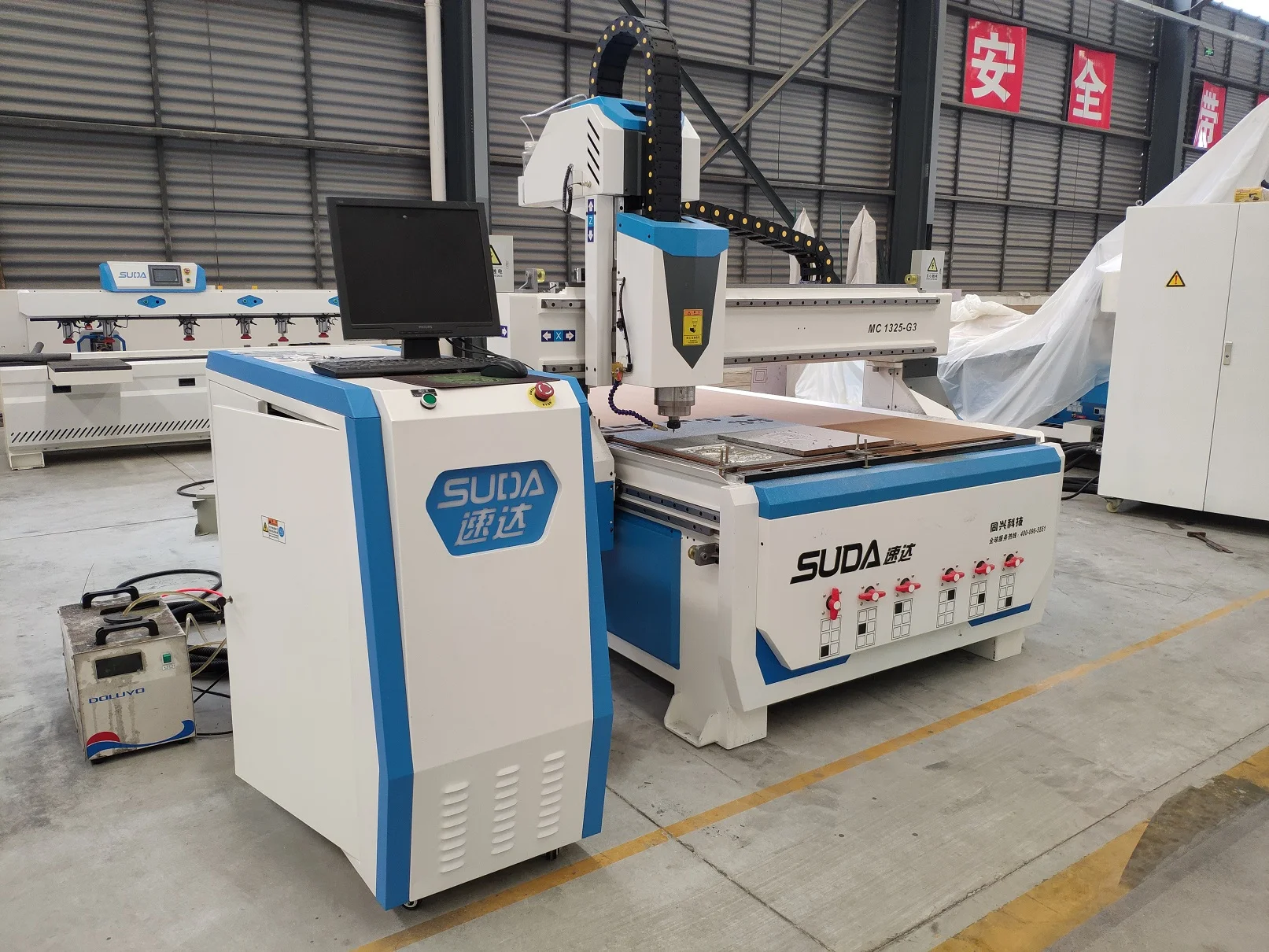

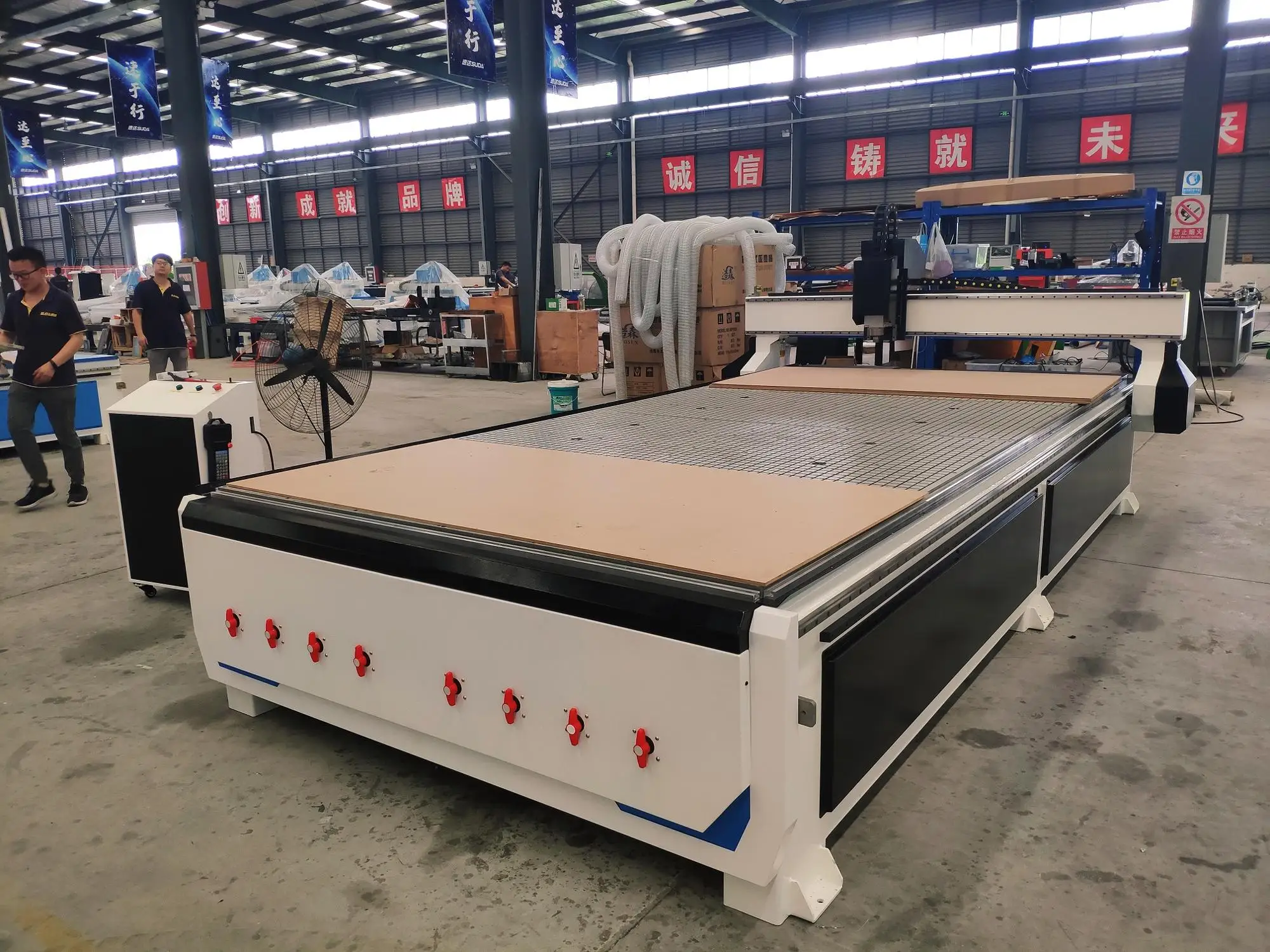

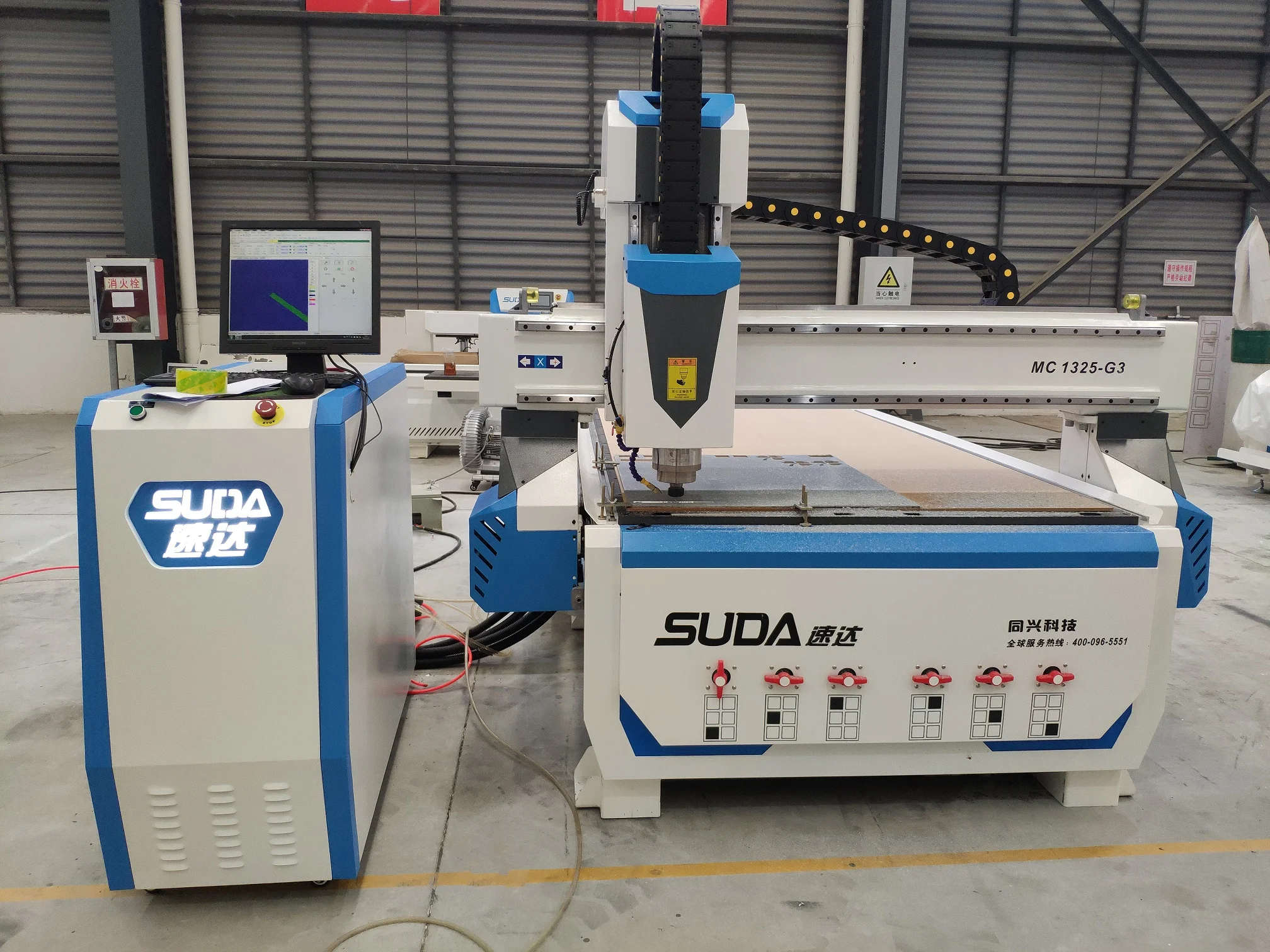

SUDA MC1325-G3 CNC Router

Model Features

1. Adopt industrial heavy duty structure design, combined with the finite element method calculation, annealing and destressing strictly according to process requirements, thus to ensure the strength and rigidity of the machine body.
2. Standard configured with independent 6 zone matrix vacuum table with high strength, optimized partition management, suitable for different size processing.
3. Adopt gantry transmission structure, to ensure fast speed and high effciency.
4. Adopt Japan THK linear rail with lubrication system, more wearable.
5. Configured with Taiwan Delta servo system, to ensure the transmission stronger and noise lower.
6. Independent control cabinet, separation of strong electricity and weak electricity to make the maintenance more convenient.
7. Configure with high performance Taiwan TECO inverter, speed control uniform and cutting edge smooth.
Model
MC1325-G3
Machine structure
Heavy-duty
Table size
1300*2500mm
Z axis travel
170mm
Transmitting way
X, Y axis adopt high precision grinding gear rack transmission, Z axis configured with high precision grinding rolling ball screw.
Linear rail
Japan THK linear rail from Taiwan
Max running speed
20m/min
Repeat precision
0.025mm
Spindle motor
5.5KW water cooling spindle
Auto feeding device
equipped with an auto surface detector
Working table
Matrix Vacuum table
Driver system
Taiwan Delta servo system
Control system
NC control system, can optional DSP controller
Reducer
Japan Shimpo
Inverter
Taiwan TECO
Software
Router 8 from Type 3/Ucancam
Detailed Images
Machine structure
the heavy duty machine structure undergoes heat treatment, to ensure won't deform after long time use.
vacuum table
Standard with 6 independent vacuum zone, and 7.5kw vacuum pump.

Name: Linear rail

Brand: THK

Original: Japan

High quality linear rail to make sure the processing more precisice.

Name: 5.5KW Spindle motor
Brand: LINNAN
Original: China

Economic and pratical, high power, fast speed to make sure the high working effciency, can optional HSD air cooling spindle.

with little jitter and low noise.

Name: Servo system
Brand: Delta
Original: Taiwan
to ensure the transmission stronger and noise lower.

Pratical servo system, with feedback when the machine stop working.

Name: control system
Brand: DSP
Original: China

this handheld controller is easy to learn and use, developed by ourselves, more convenient for maintaining, free upgrade in the future.

Customized Size

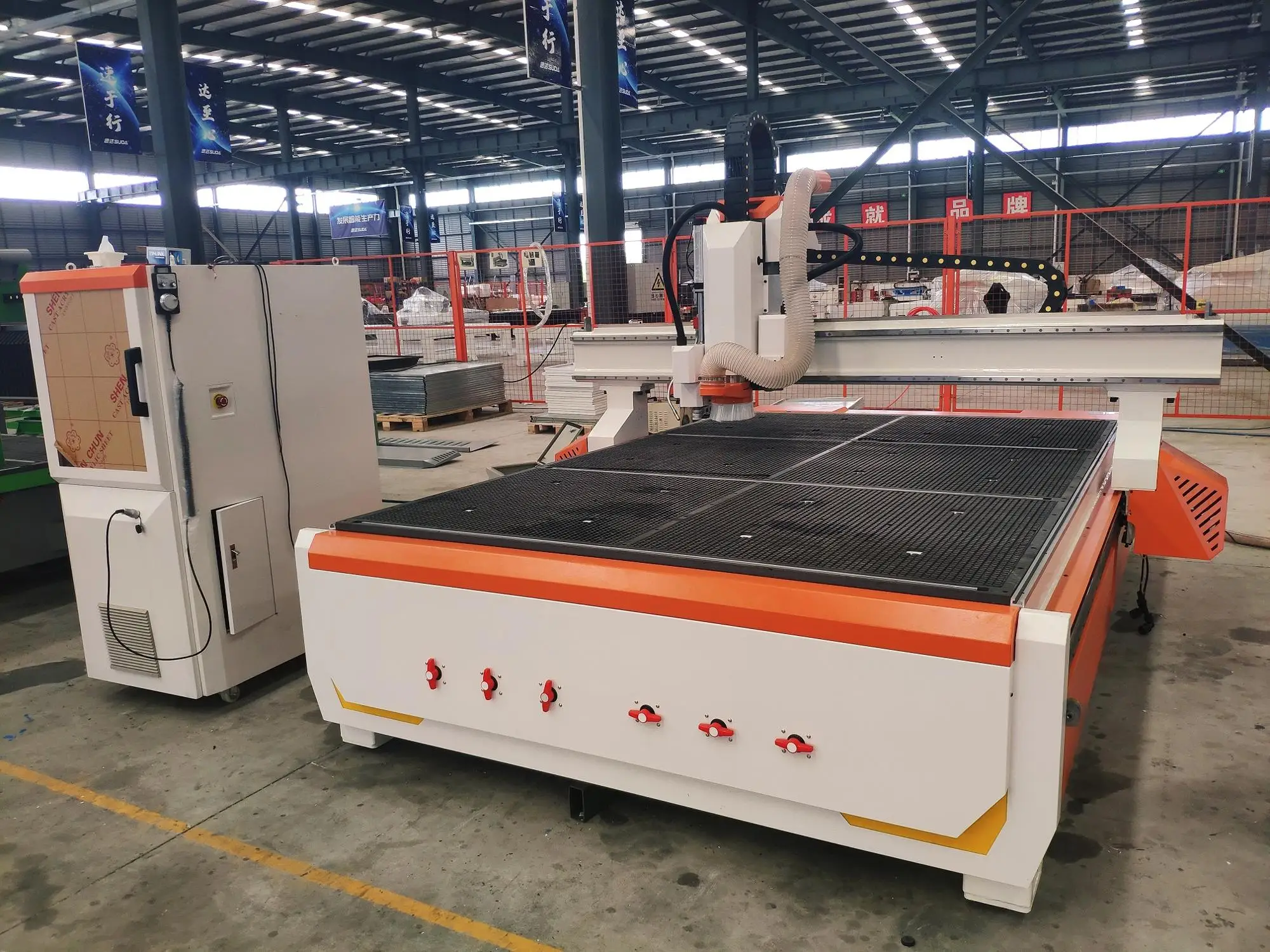

2000x3000mm for European agent
We know this customer on exhibition, a powerful company, chose the big size with their company color, orange color.
2000x3000mm working size

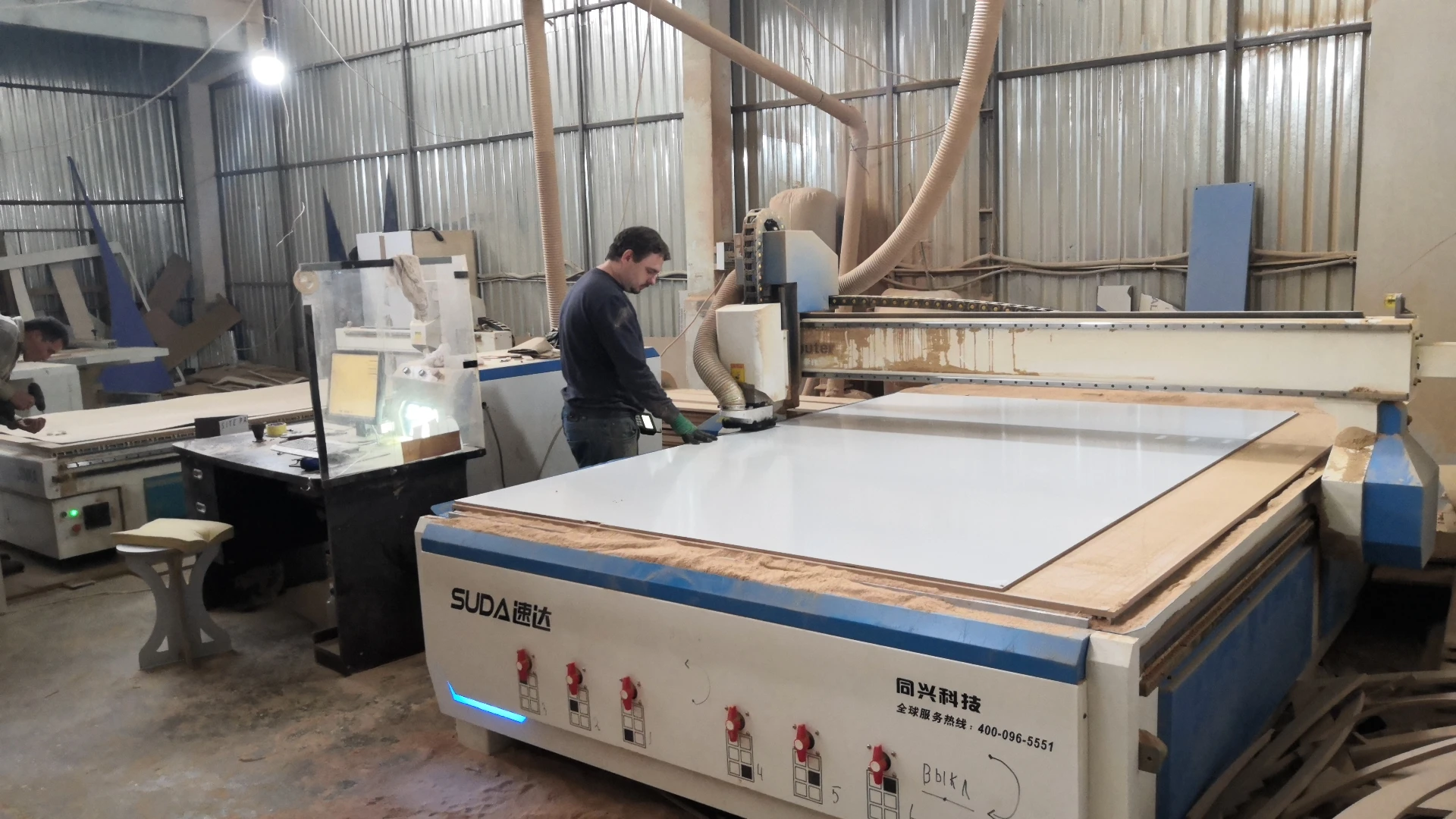

The customer from Uzbekistan, doing advertising, a smart technician is operating the machine, after one year, still in good condition.

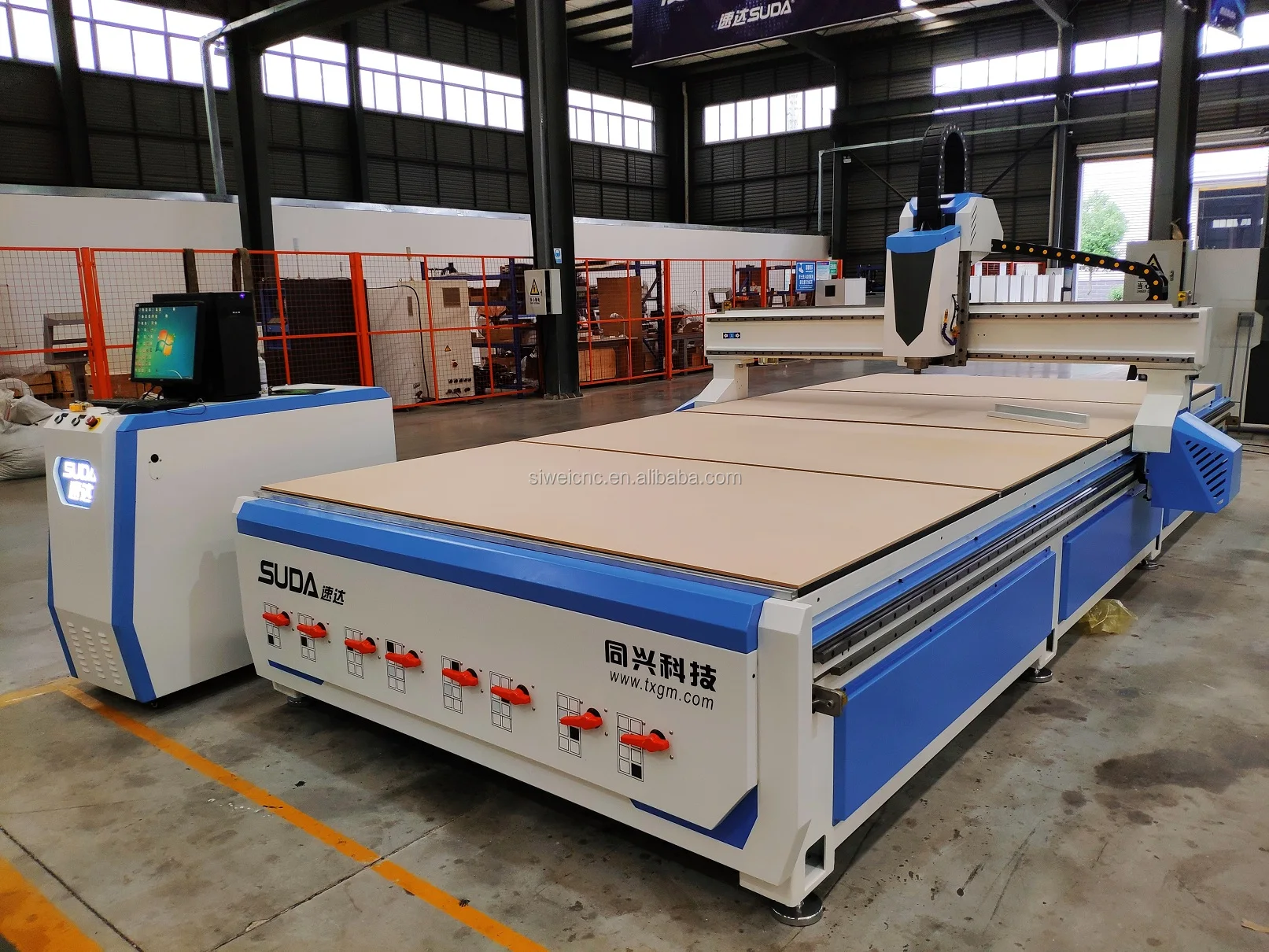

2000x4000mm working size
It seems that the customer from Saudi Arabia like black color, this one is also big size, and the customer upgrade the spindle motor into Italy HSD spindle motor, he doesn't ask for our engineering to their factory, he installed the machine by himself.
2000x5000mm for Saudi Arabia customer
The customer asked for such big size for doing advertising, that request heavy duty machine structure for this size.
Aplication & Sample

Application:

Advertising industry: MINI LED word, bevel edge word, acrylic lighting word, high-end advertising word and sign processing.
Other industry: building model, plastic and wood, instrument, 3D surface processing of masical instrument.
Also applies the carving on cooper, aluminum, iron plate and cutting processing.

               Aluminum engraving

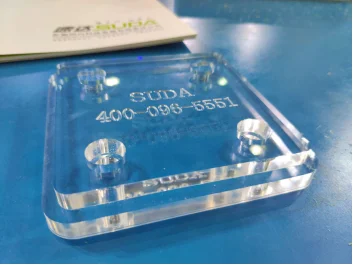

                     Acrylic cutting

                      Metal cutting

                  Wood cutting

                 Metal engraving

                LED word making

Clients&Exhibitions
Our Company

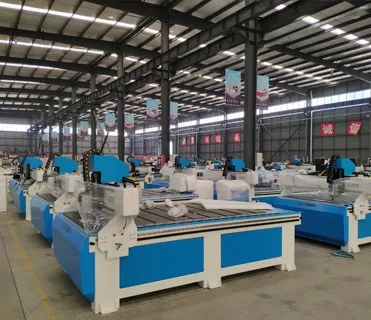

HEFEI SIWEI CNC MACHINERY CO.,LTD

established in 1992, lies in HEFEI --One of Chinese scientific and technology cities. It has been working on researching and manufacturing CNC machinery in field of woodworking, stone engraving, metal processing, glass cutting and advertising etc over 20 years.

The main products: Heavy moving column CNC machining center, Heavy static column CNC machining center, High accuracy metal cutting machine, High precision fiber laser machine, Vanguard series CNC engraver, Multistage CNC machine center, high accuracy CNC engraver, laser cutting machine, plasma cutting machine, totally 23 series, more than 100 models.

Our sales net not only covers all Chinese provinces and municipalities, including HongKong, Taiwan&Macao, also the products are exported to more than 120 countries and regions such as Europe, America, Middle-east, South-east Asia etc.

CNC Packing
Packing size
3.3*2.26*2.2m
Packing weight
2500kg
Packing details
Standard with plywood case, for special packing, case by case.
FAQ

Q1.How do you get the best price?
As you may know,the different type of CNC machine apply to the different material,and the different model apply to the different material.
Please tell me what's material you want to cutting or engraving ?
And what's MAX size of carved material ?
Then I wil recommand the most suitable model and the best price for you.

Q2:How long is the delivery time?
For standard machines, it would be 15-20days; For non-standard machines and customized machines according to client s specific requirements, it would be 20 to 30 days.

Q3.In case of failure,how to do?
Call us----our enginners are online for 24-hours,and ready to serve you.
Replacement of damaged parts for free---For more information,please contact us
The CD and operation manual----It show the most common failure in working processing and how to solve this problems.


Q4:How is the packing?
1) For CNC engraving machine: Machine body covered with plastic film, control cabinet packed with plywood case and put on the machine body.
2) For fiber laser cutting machine:Machine body covered with plastic film, laser source, control cabinet packed with plywood case and put on the machine body, chiller packed with plywood alone.

IF YOU ARE INTERESTED IN THIS MACHINE, PLS CONTACT WITH US IN ANY TIME, THANK YOU!
