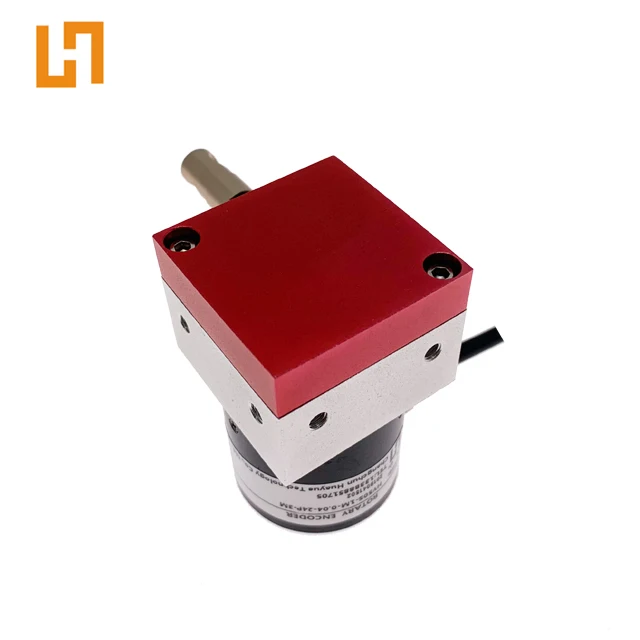

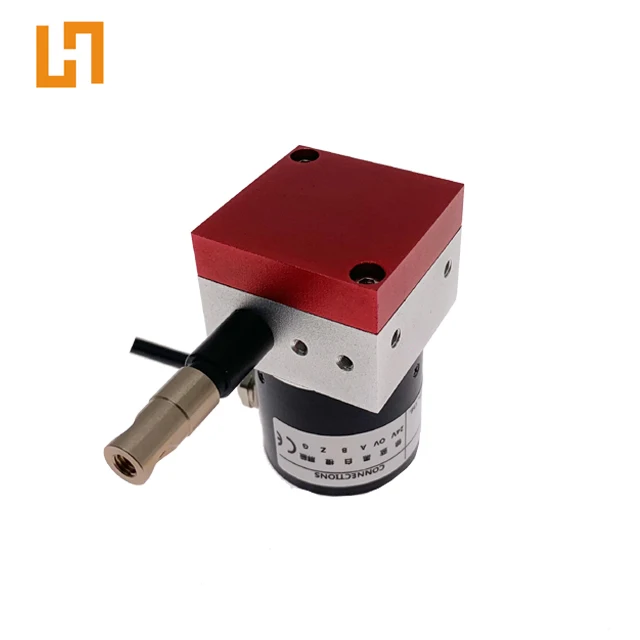

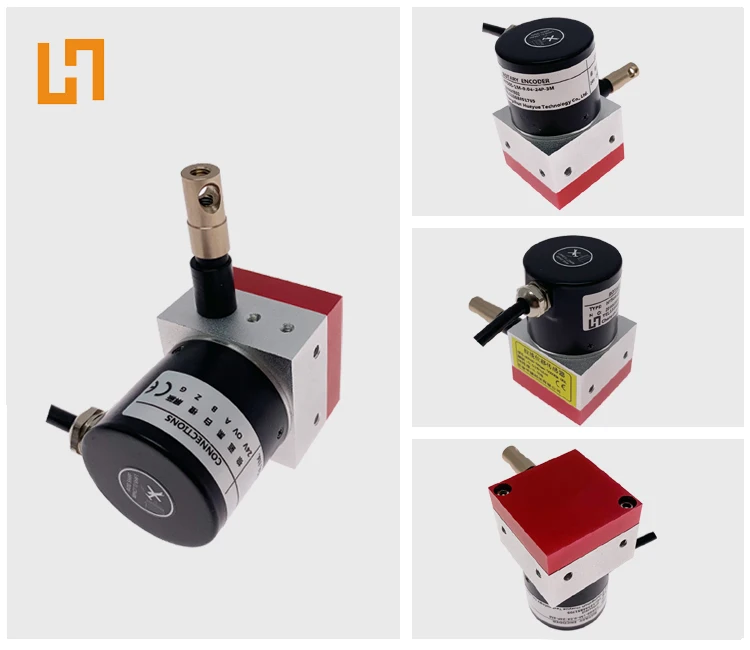

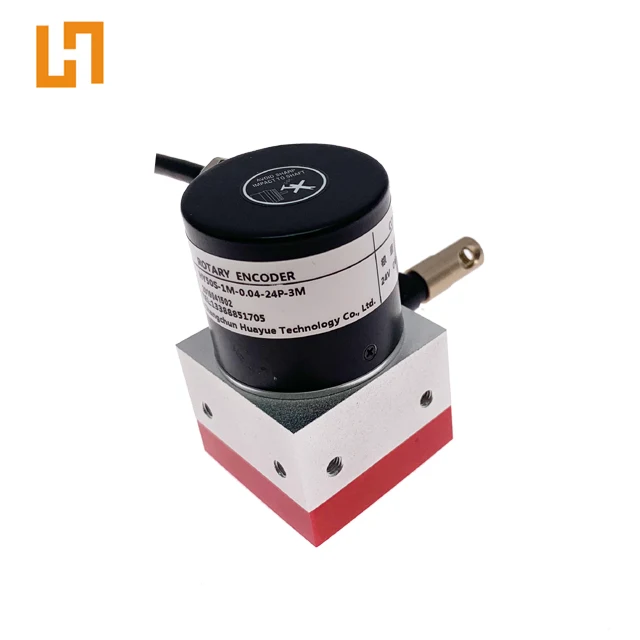

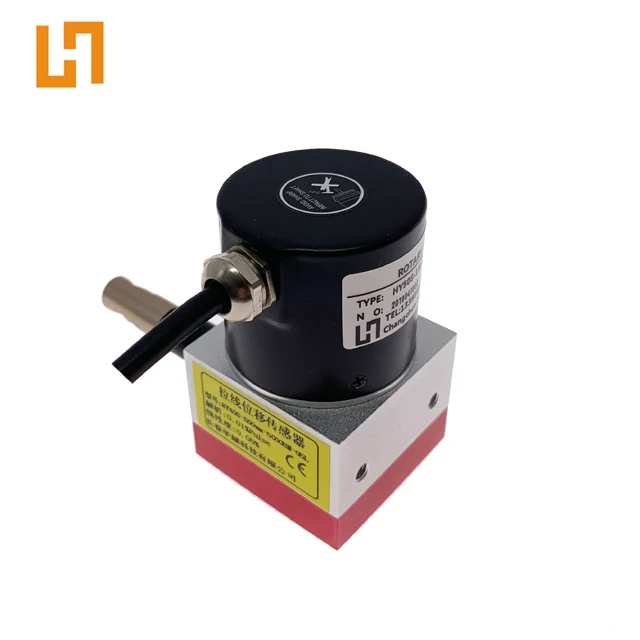

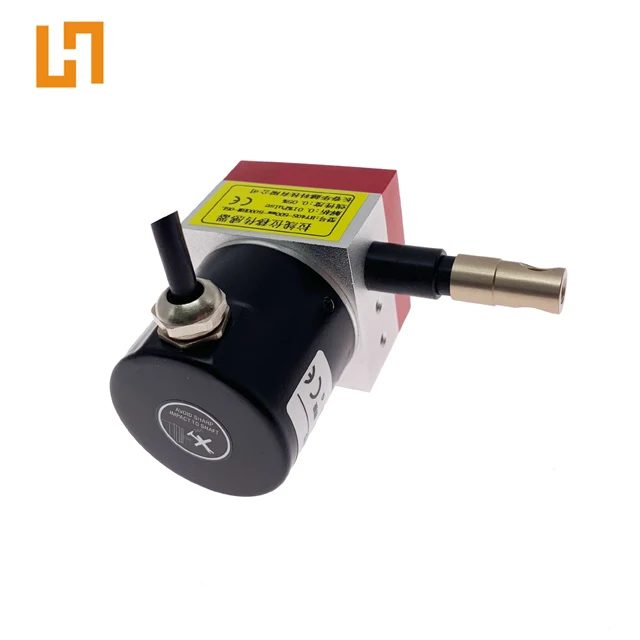

HY40S 500mm 24F push pull out put linear speed transducer

Share on (62474705154):


Price:

Quantity:


Product Overview

Description


Sensor type
Optical Linear Encoder
Measuring Range
0-500mm
Resolution(mm)
0.1(500ppr),0.05(1000ppr),0.025(2000ppr), 0.02(2500ppr), 0.01(5000ppr)
Hub circumference
 50mm
Linear Accuracy
0.1% -0.05% FS
Repeatability Accuracy
0.01%
Frequency Response
50Hz (See Reciprocating Amplitude)
Power
100kHz - 300kHz
Vibration
10Hz ~ 1500Hz 10G
Life
>10 million times
Wire retraction force
2N ~ 4N
Cable Length
Optional
Housing Material
Aluminium alloy, oxidation surface treating,wear and corrosion prevention

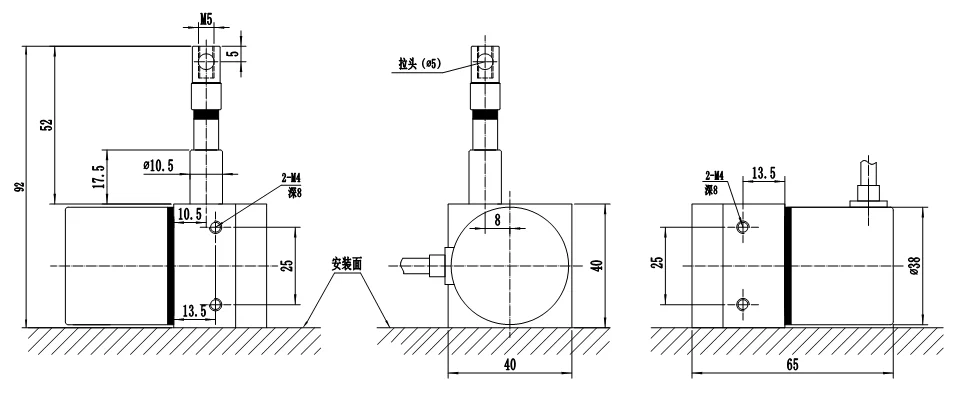

Model Code


Company Information

 Changchun Huayue Technology Co., Ltd., located in Changchun City, Jilin Province, was established in 2016. Huayue is a high-tech
enterprise integrating R&D, design, production and sales.
Huayue is mainly engaged in the research and development and sales of photoelectric sensor products, adapted to the development of
mechanical automation industry, providing good photoelectric products for new and old customers. The company's main products are:
photoelectric encoder, coupling, absolute encoder, linear displacement sensor (rope displacement encoder), grating ruler, etc.,
widely used in elevators, machine tools, pressure, paper, textile, printing, packaging, stone, metallurgy, lifting, metal
products, plastic, horizontal control, construction machinery and other fields.
Huayue actively participates in the promotion and industry exchange activities, and pursues the policy of "aggressive, realistic,
rigorous and united", constantly pioneering and innovating, taking technology as the core, striving for survival with quality,
striving for development with service, and aiming at respecting contracts and keeping promises, wholeheartedly providing you with
high-quality industrial automation products.1.jpg.jpg

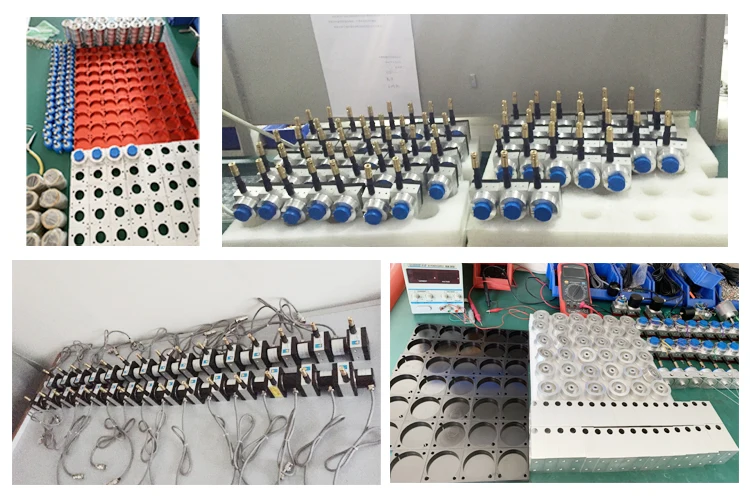

Packaging & Shipping

 .jpg

Our Services

 1. The questions about the encoder will be answered within 24 hours.
2. One-stop solution will offer to meet all your requirements on budget, designing and shipment.
3. Warranty 12 months: Free replacement of defective products within 12 months.
4.OEM solution will be offered to meet all your requirement.

FAQ

 Q1:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.

Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you. The price
is the same for 1-20 sets including the sample


Q3:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us. But you should send us the Trademark authorization letter.
Q5 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing

Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send the spare
parts,but you should pay. For our range hood motors it is lifelong maintenance.
