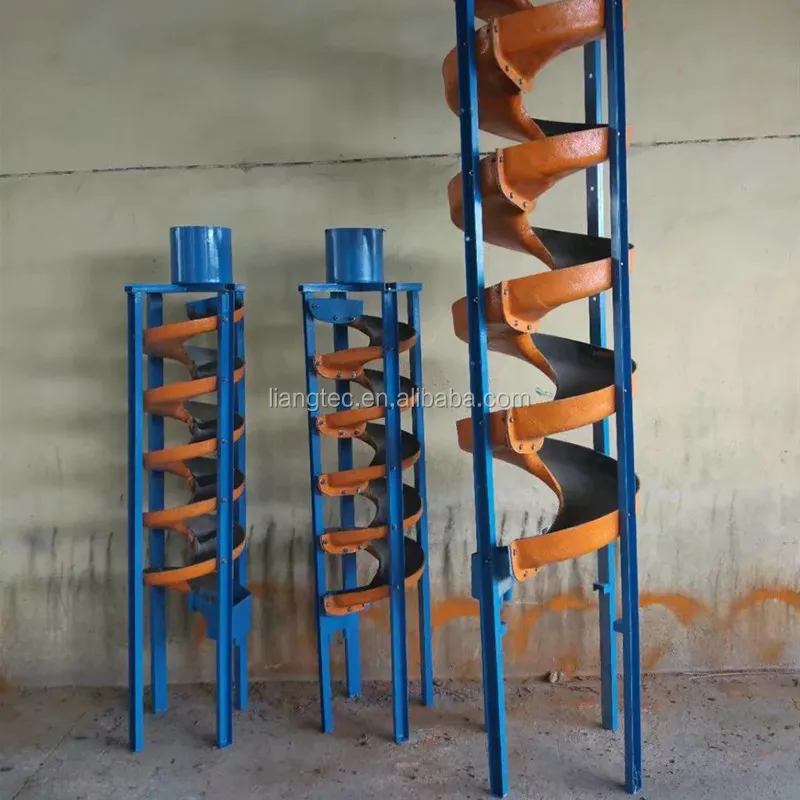

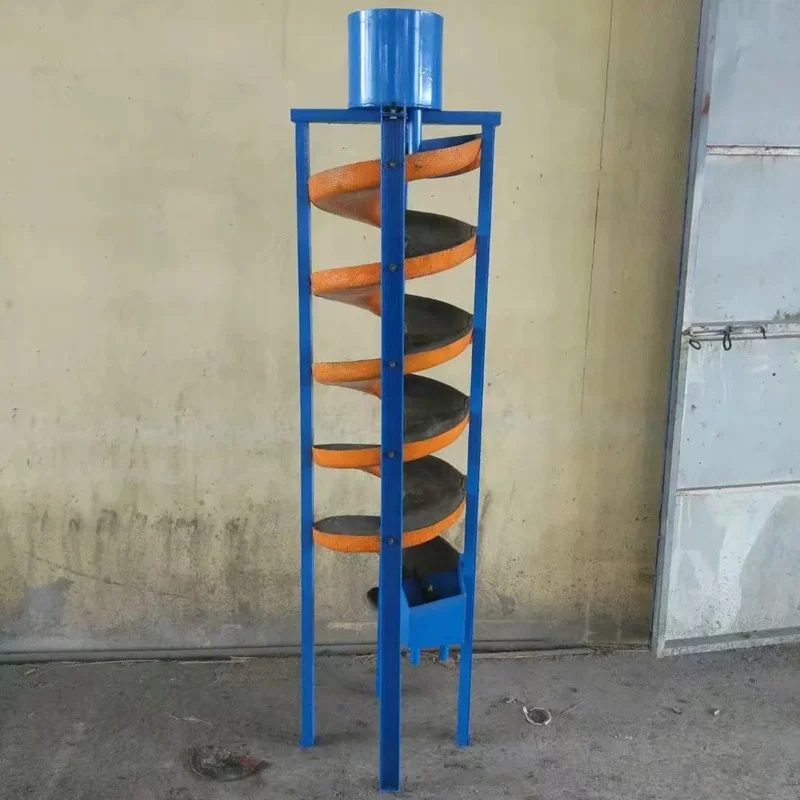

Lab Spiral Chute High Efficiency Spiral fiberglass chute Small Scale Separator Machine for Ilmenite Ore
- Category: >>>
- Supplier: Ganzhou Li Ang Machinery Co. Ltd.
Share on (62474789599):
Product Overview
Description
Products Description
Spiral Separator introduction
LiAng Spiral Separators/ Spiral Concentrator incorporate state-of-the-art design and manufacturing technology. Our spiral separators are made of high quality polyurethane with fiberglass supporting and wearable corundum inner surface.
Spiral Concentrator Working Principle

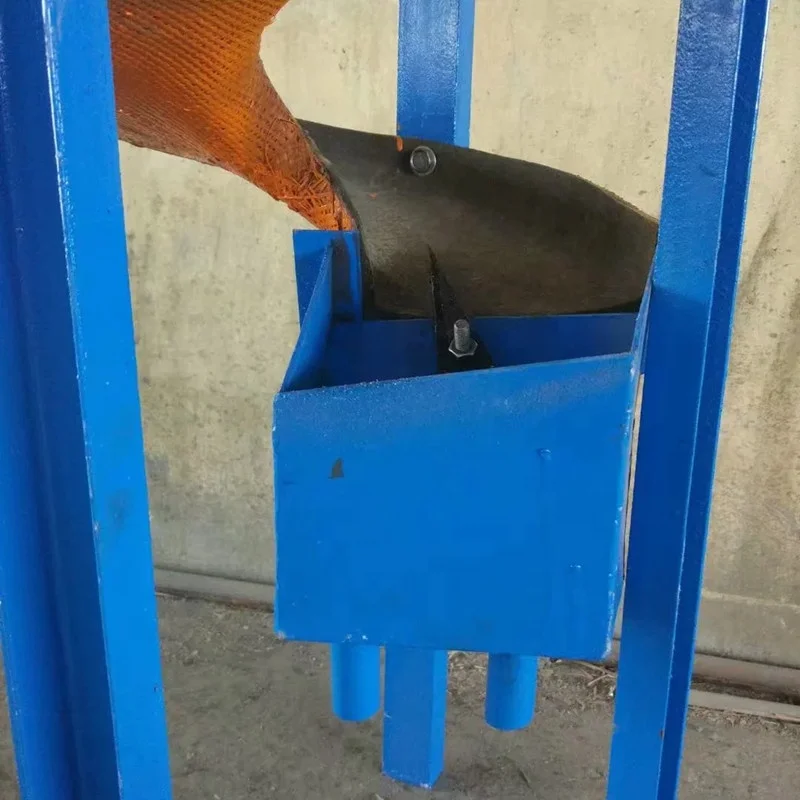

Spiral Separators, which are also called Spiral Concentrators, are gravity devices that separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. The heavy frictional forces slow their velocity. As a result, faster particles higher up in the flow. This creates a horizontal density differentiation of the feed materials, with the heavy particles flowing along the inside walls of the channel, and the faster lighter particles travelling higher up towards the outer rim. The discharge outlets are located on the inside of the channel for removal of the heavier material. Separation precision can be improved by adding additional water during the beneficiation process.

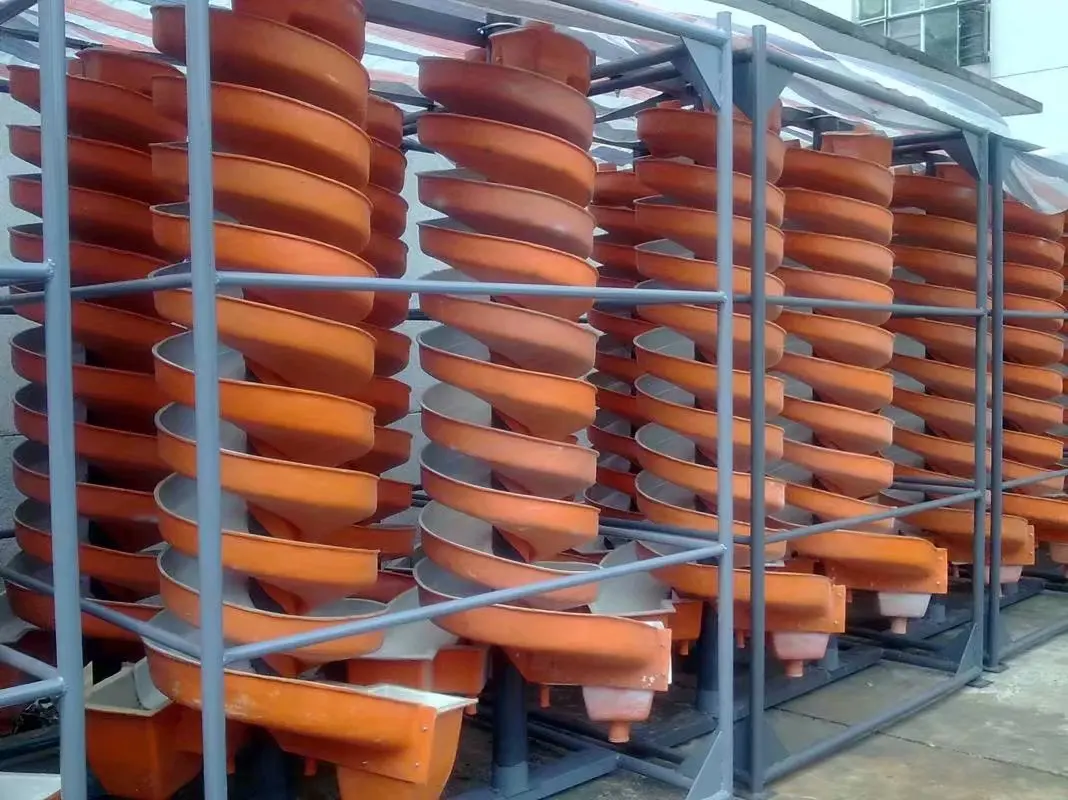

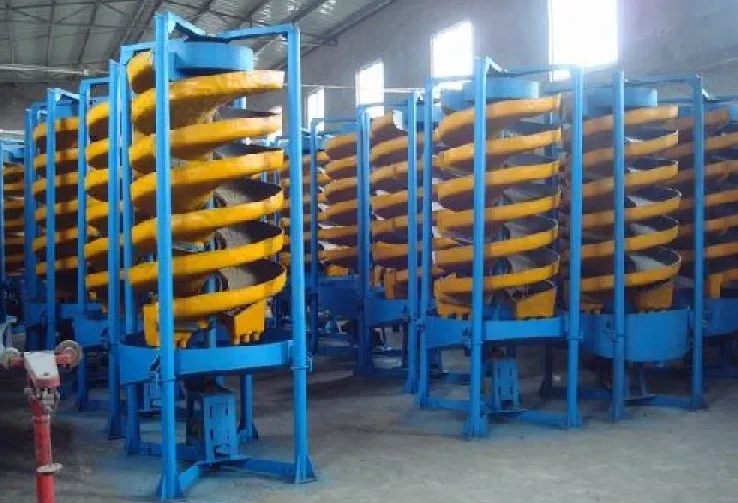

Customer Photos
Spiral Concentrator Features
1. Reasonable structure and small occupation area;
2. High recovery, high efficiency, and precise separation;
3. Light in weight, rust and corrosion resistant;
4. Simple installation and Minimal maintenance requirements;
5. Low operating cost and long operating life;
6. Reliable running with minimal operator attention;
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
2. High recovery, high efficiency, and precise separation;
3. Light in weight, rust and corrosion resistant;
4. Simple installation and Minimal maintenance requirements;
5. Low operating cost and long operating life;
6. Reliable running with minimal operator attention;
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
Product Paramenters
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 |
Outside dia (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 |
pitch (mm) | 1200 | 540, 720 | 900, 720, 540 | 675, 540, 405 | 450, 360, 270 | 240, 180 |
Pitch Dia Ratio | 0.6 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.75, 0.6, 0.45 | 0.6, 0.45 |
Lateral slope | 9° | 9° | 9° | 9° | 9° | 9° |
Maximum starts per column | 2 | 4-2 | 4-2 | 4-2 | 2 | 2 |
Feeding Size (mm) | 2-0.04 | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 |
Feeding Density(%) | 30-55 | 25-55 | 25-55 | 25-55 | 25-55 | 25-55 |
Capacity (T/H) | 7-10 | 6-8 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 |
Length (mm) | 2120 | 1560 | 1360 | 1060 | 700 | 460 |
Size Width (mm) | 2120 | 1560 | 1360 | 1060 | 700 | 460 |
Height (mm) | 5600 | 5230 | 5230 | 4000 | 2600 | 1500 |
Weight (Kg) | 1200 | 800 | 600 | 400 | 150 | 50 |

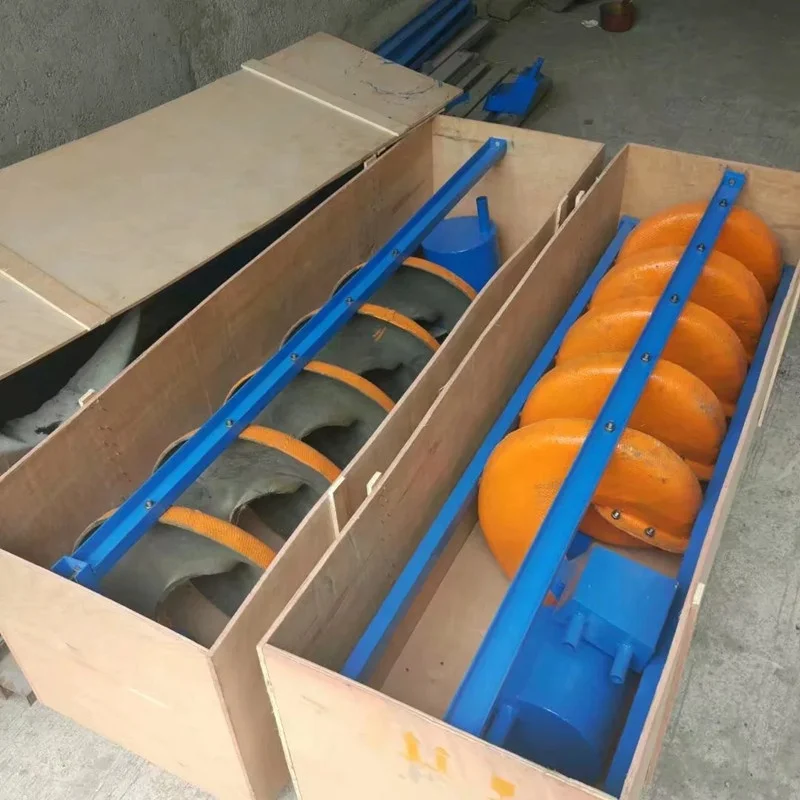

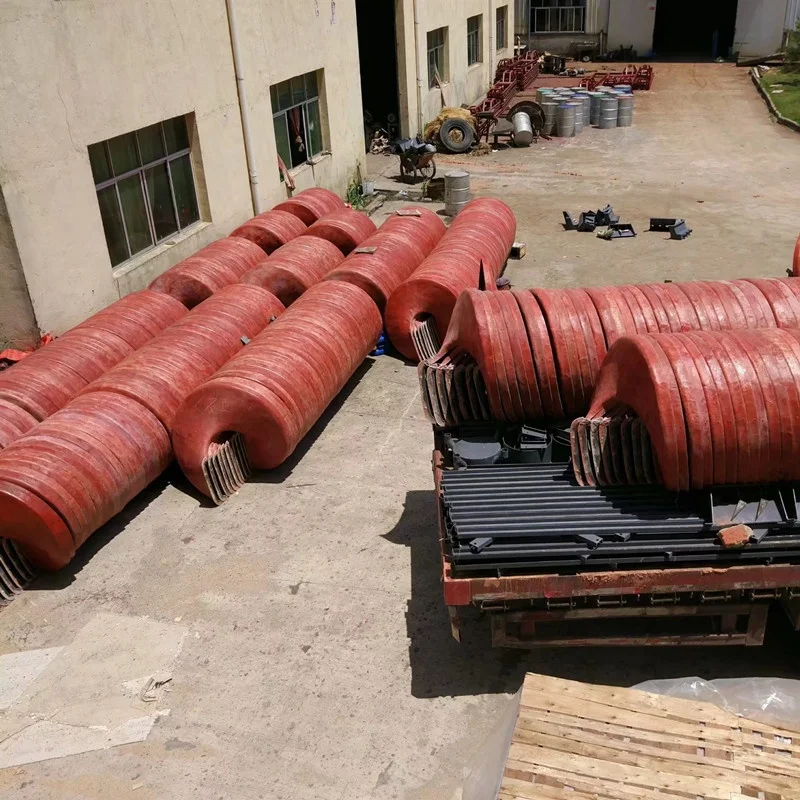

Product packaging
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
Ganzhou Li Ang Machinery Co.,Ltd. is specialize in mining machine including shaking table, Jig, Spriral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator,electrostatic separator, vibrating screen, gold pan, feeder, classifier, ore washing machine and lab equipment ect.
We also do research and manufacture various laboratory pretreatment equipment,such as lab crusher,lab ball mill&grinder,lab flotation machine,lab gravity separation equipment,lab sample pulverizer,lab crusher divider,lab hammer crusher divider,lab jaw crusher divider,lab magnetic separator,lab leaching agitator,lab rotary kiln,lab vacuum filter,lab drying machine,lab screening&classification machine,smelting furnace and other lab equipment.
Our machines are applied to separate GOLD, copper, manganes, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite,ect.
And our equipments are also mainly used in laboratory of university, government environmental protection agency, third-party test company and mine company.
Over the years we won a very good reputation from overseas customers.We believe it is our excellent product quality, reasonable prices and excellent service that make us won a lot of customers and also their recognition.
Believe us! We are your relieable parter and ideal choice!
Pre-Sales Service：
1.We can help you select equipment model and design resonable and complete production line flow according to clients’s requirements and budget.
2.Welcome to do the sample testing in our factory.A lot of clients sent or brought them to us to do the test.
3.OEM service is available.We can design and manufacturer products based on clients’ requests.
4.We can supply the technical parameters of the equipment.
After-Sales Service：
1.In order to make sure there is no quality problem,we shall pre-check and test the products before sending them out.We take pictures of finished products before delivery.
2.We shall track the logistic information until the products are well received.
3.We shall prepare the documents of custom clearance to help you receive your goods smoothly.
4.We can send professional engineers to help you install and debug the machine,train the operators and technical personnel and meet some other requirements if you need on site.
5.We can provide lifelong service of quick-wear part and technical exchanging for you.
6.We shall make prompt response to any problem about the machine within 24 hours if you have.And shall provide trouble-shooting solutions until the fault is completely eliminated.
7.To establish long-term friendship, we will regulary contact with our customers.
Q1: For providing you the suitable quotation we need to know the following information:
1.What is the raw material to handle ? Minerals eg: gold,coltan,diamond,tin, etc
2. What is the capacity per hour you required? 5tph,50tph,100 tph
3. What is the maximum input size of the raw material? 130mm,200mm,50mm
4. What is the output size and application for the final product?
Once we get your answers, I can provide you the best quotation immediately.
Q2: Do you provide ODM/OEM service?
A: OEM/ODM is welcome.A lot of clients placed an customized order from our factory.
Q3. What warranty do you give for your machine?
A:---We can supply spare parts .
---The quality assurance date we give is one year for the main parts after commissioning.
---We provide lifelong maintainence and technical support.
Q4.What is your Payment Terms?
A: We usually the follwoing payment terms.
Q5：What’s your means of transportation?
A:We have these means of transportation as below.
Q6. What is your delivery time?
A:Pls find the answers as below.
Product | Lead time | |
shaking table | <=10days | |
laboratory mining equipment | <=10days | |
large mining equipment | 30-40 days. | |
customized machine | 30-40 days. | |
Tip:Exact delivery shall be confirmed when placing the order. | ||
Please do not hesitate to contact with us!
