Prestressed Hollow Core Cement Slab Forming Equipment

Product Overview

Description

Prestressed Hollow Core Cement Slab Forming Equipment



Main machine features

1) Good bearing capacity, large span, good overall, superior seismic performance

2) Flame retardent, thermal insulation, sound insulation

3) Client customization and energy-efficiency

4) Professional design and reduce production cost

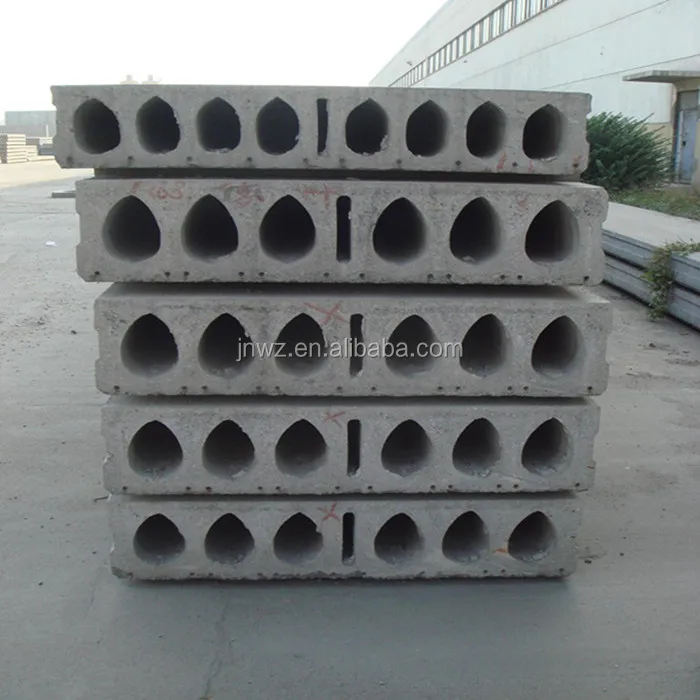

Concrete slab usage

This kind of slab is the best and economical choice for the factory to produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.



Machine specifications (Your slab sizes can be customized)

Model	Motor Power	Vibrator Power	Dimension (L*W*H)	Weight (kg)	Molding Speed(m/min)	Holes (pcs)	Hole Diameter(mm)
120*600	5.5kw	3kw	2100*850*750	1050	1.2-1.4	5	Ø76
50*500	3kw	0.8kw	1800*750*650	700	1.2-1.4	8	Ø25
50/80*500	4kw	1.5kw	2030*730*660	930	1.2-1.4	7	Ø25 (Ø42)
100*600	4kw	2.2kw	2100*850*730	975	1.2-1.4	6	Ø60
90*600	4kw	2.2kw	2100*840*730	955	1.2-1.4	6	Ø50
60/80*500	4kw	1.5kw	2030*830*660	910	1.2-1.4	7	Ø25 (Ø42)
120*900	7.5kw	3kw	2500*1300*900	1580	1.2-1.4	8	Ø76
120*1200	7.5kw	3kw	2500*1700*900	1650	1.2-1.4	11	Ø76
180*600	7.5kw	3kw	2300*1100*950	1290	1.2-1.4	3	Ø130

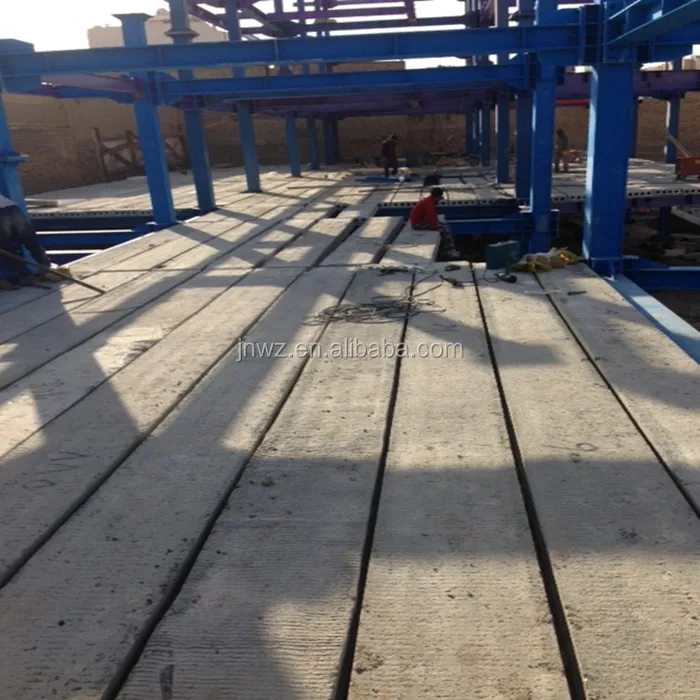

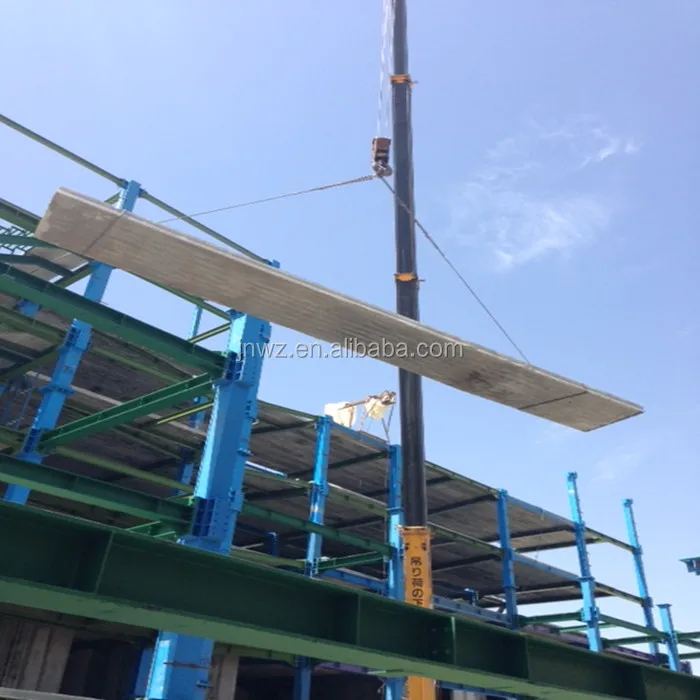

Slabs used for floor and roof





Clients visit our factory





Concrete slab machine whole production line

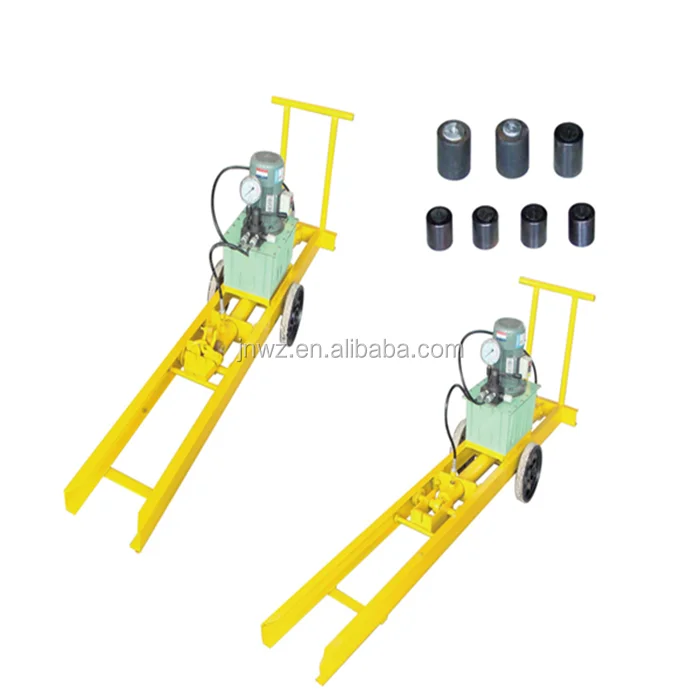

1. Steel wire tension machine and anchor grips



2. Concrete slab cutting machine



3. Concrete mixing machine



4. Concrete batching machine



5. Automatic feeding dumper



6. Prestressed steel wire for slab production

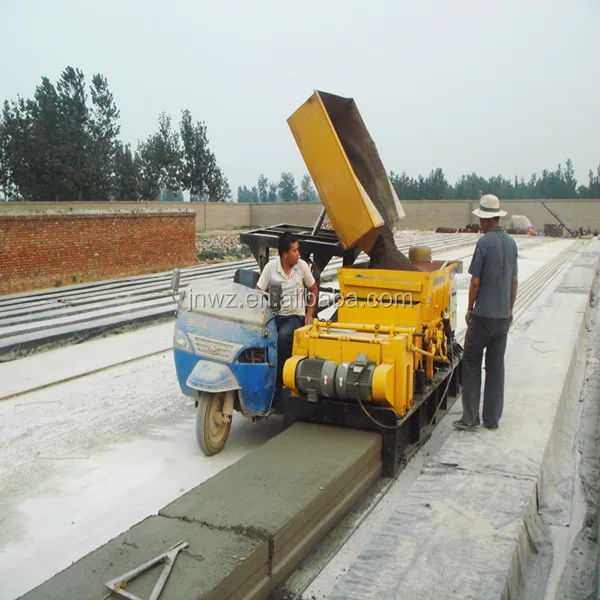

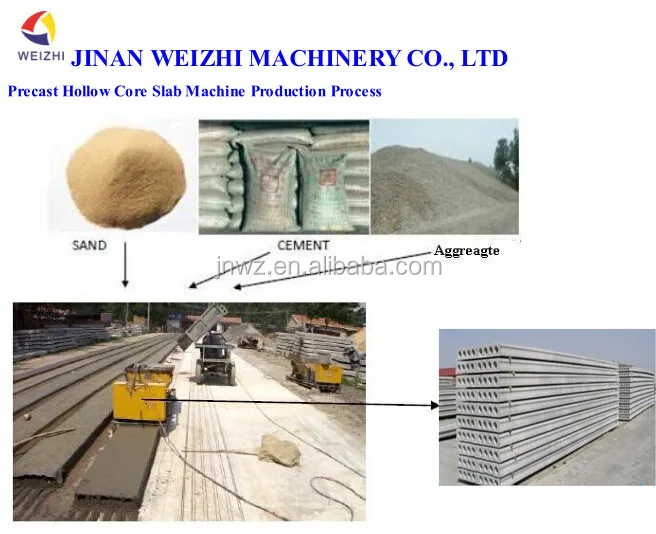

Precast slab production process

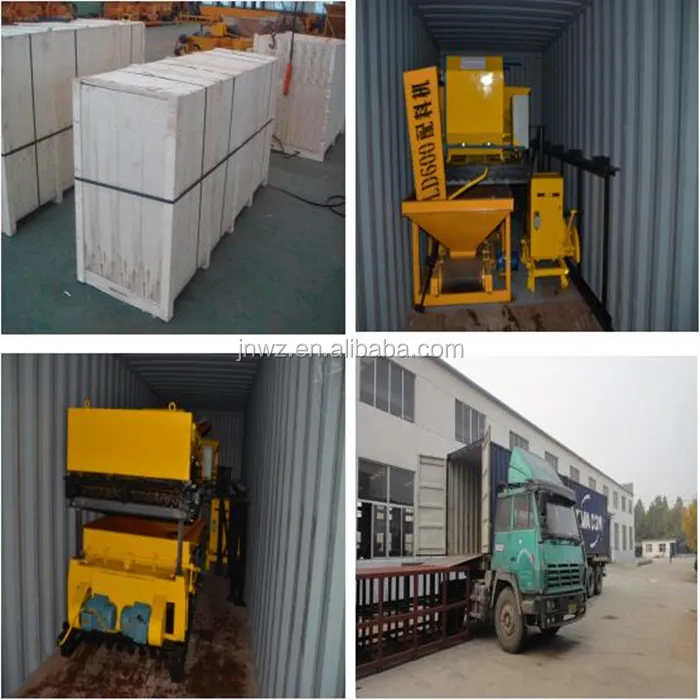

Packaging & Shipping

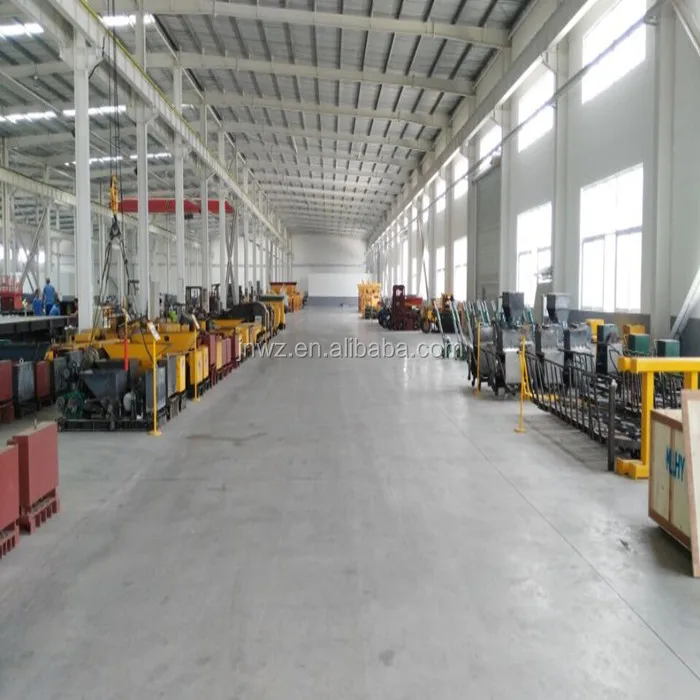

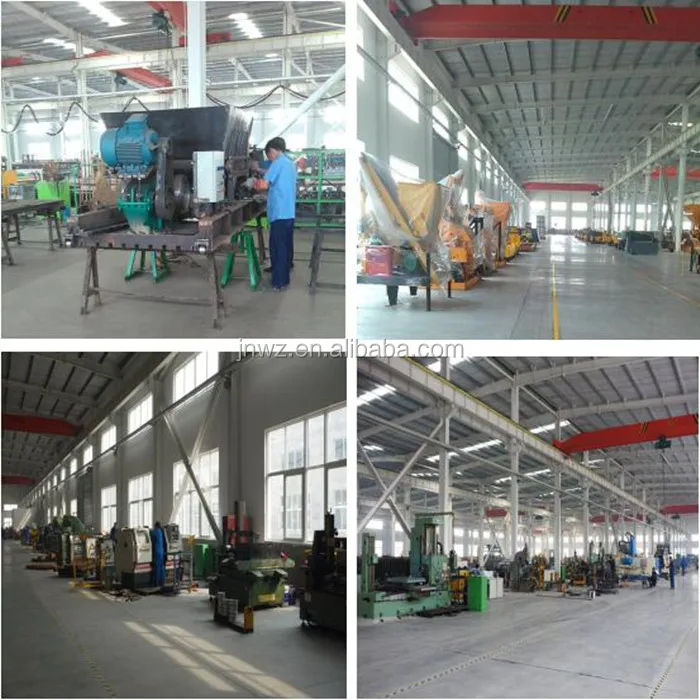

Company workshop



Our Services

1. We supply technical support and can arrange technician to help clients install the machines.

2. We supply one year warranty for the whole line of machine.

3. We supply free quick wear parts and free training to end-users.

4. We supply low cost continual maintenance when warranty is expired.
