Stainless steel sintered mesh is made of wire mesh woven mesh, which is composed
of 1-6 layers of metal mesh which are stacked and sintered at a 45° angle. Generally, the
stainless steel sintered mesh has a protective layer, a control layer, a support layer, a filter
layer, and a reinforcing layer, and is manufactured by a vacuum sintering process. The
meshes of the layers of the layers are interlaced to form a uniform and ideal filtering structure.
Material
Common stainless steel: ss304 316 316L
Special stainless steel: duplex 2205/2507
Special material: Monel, Inconel,Nickel or Titanium
Micron Size
0.5 micron to 300 micron
Layers
2 3 4 5 6 7 layers
Thickness
1.7mm 3.5mm or customized

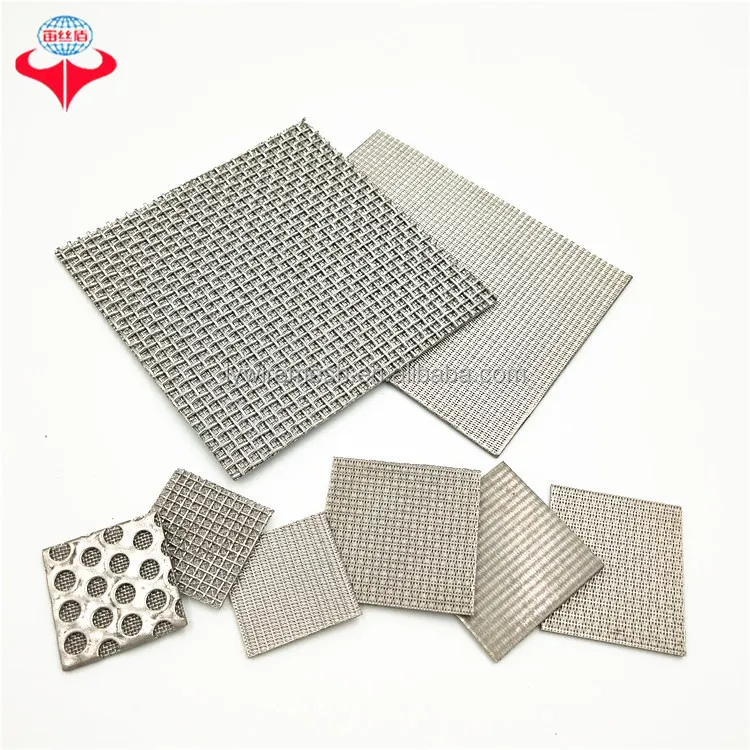

Mesh Type
Plain weave Sintered mesh
Puching Plate Sintered mesh
Dutch weave sintered mesh

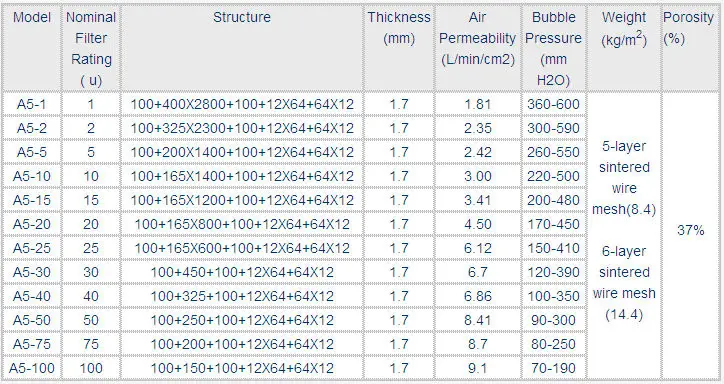

(1) 5 layer woven type sintered wire mesh

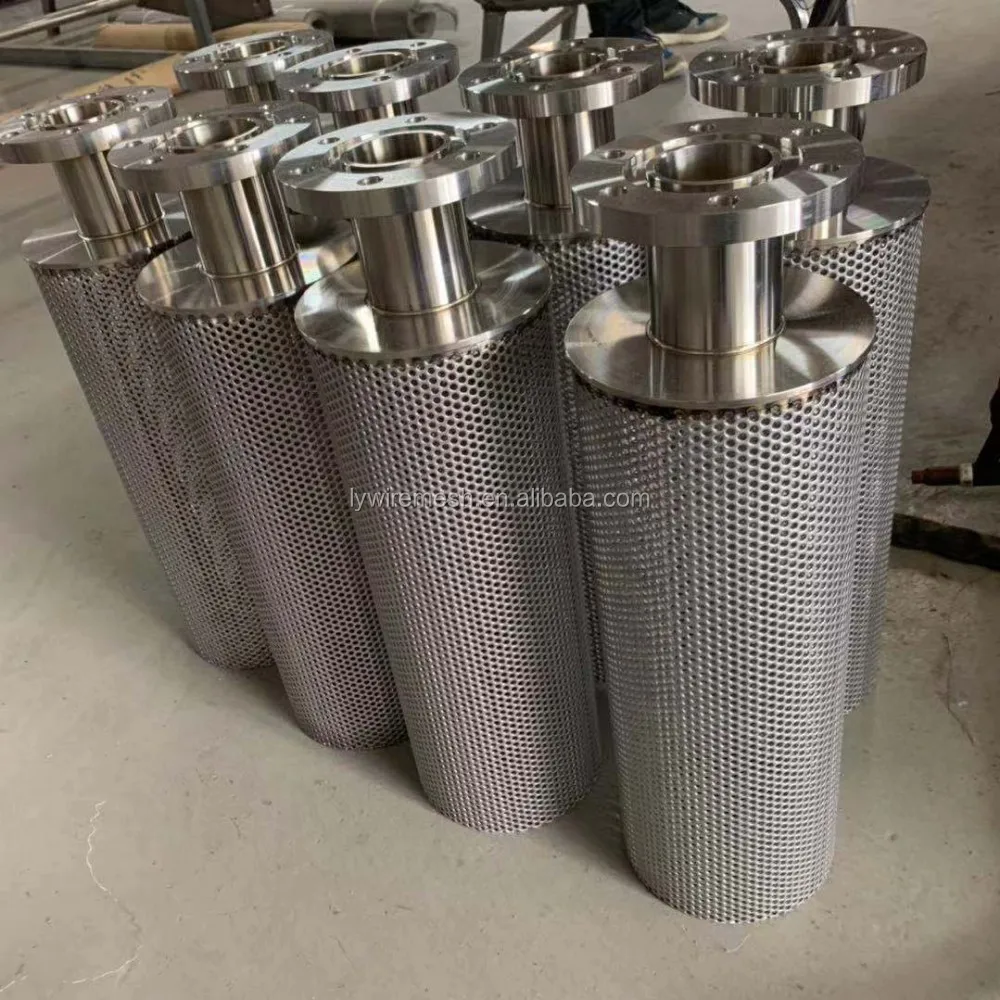

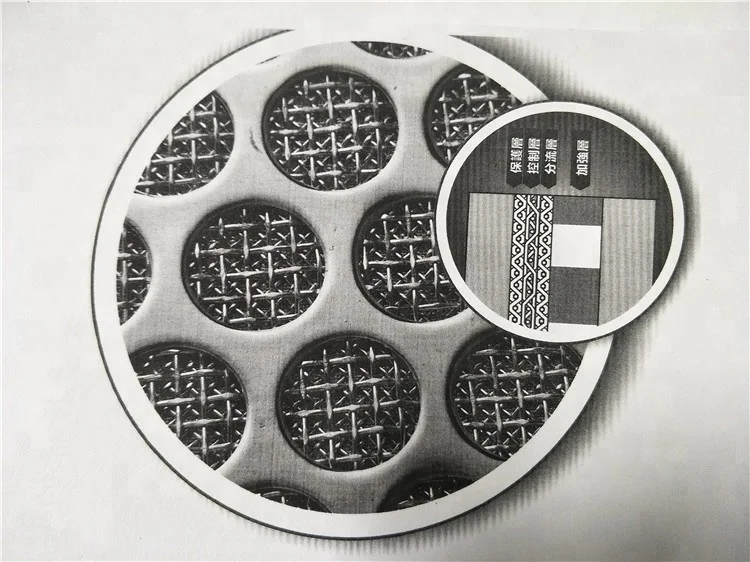

(2)Perforated type sintered wire mesh
Pefrforated sintered mesh is combination of the strong perforated sheet with the multi-layer wire mesh, which is high strong, and not easy getting deformation,and can be easy cleaning.
Micron sizes of perforated sintered mesh:
Model
Structure
Thickness
filter precision
weight
Porosity
LY4-2.0T
30+layers+30+Φ4×5p×1.0T
2.0mm
2-200μm
6.7kg/m2
57%
LY4-2.5T
30+layers+30+Φ5×7p×1.5T
2.5mm
2-200μm
9.8kg/m2
50%
LY4-1.5T
60+layers+30+Φ1.5×3p×1.0T
1.5mm
2-100μm
8.2kg/m2
30%
LY5-3.0T
60+layers+60+20+Φ6×8p×2.0T
3.0mm
2-200μm
11.8kg/m2
50%
LY5-4.0T
20+layers+20+10+Φ8×10p×2.5T
4.0mm
2-200μm
14.2kg/m2
55%
LY5-4.3T
20+layers+20+10+Φ10×13p×3.0T
4.3mm
5-500μm
16.9kg/m2
50%

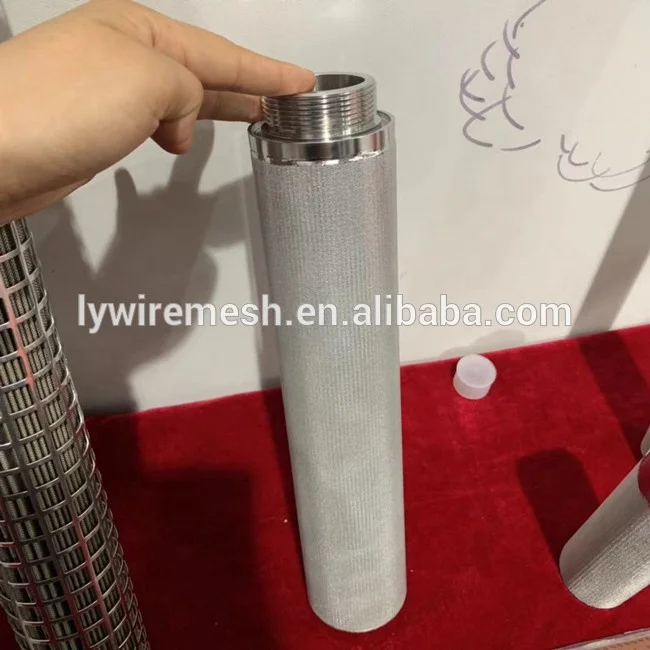

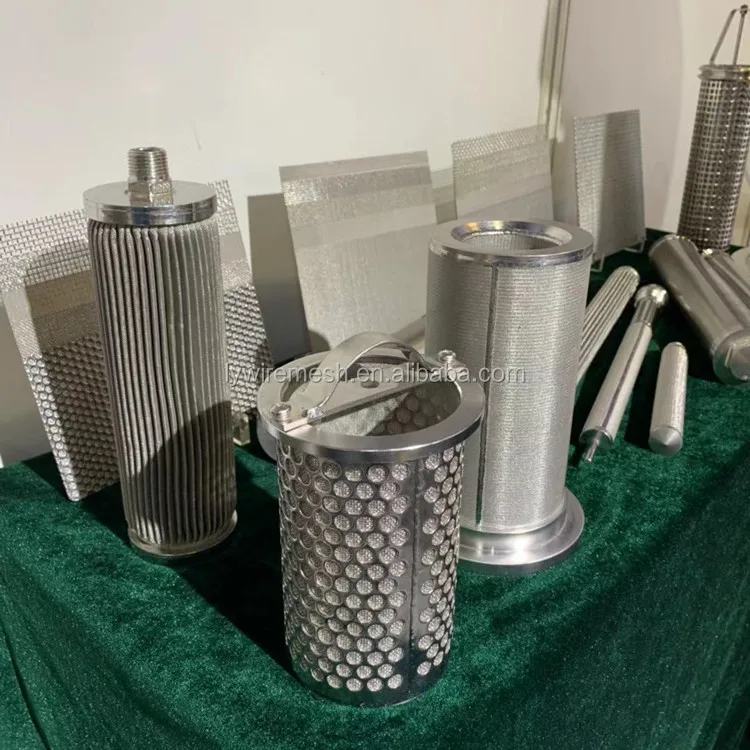

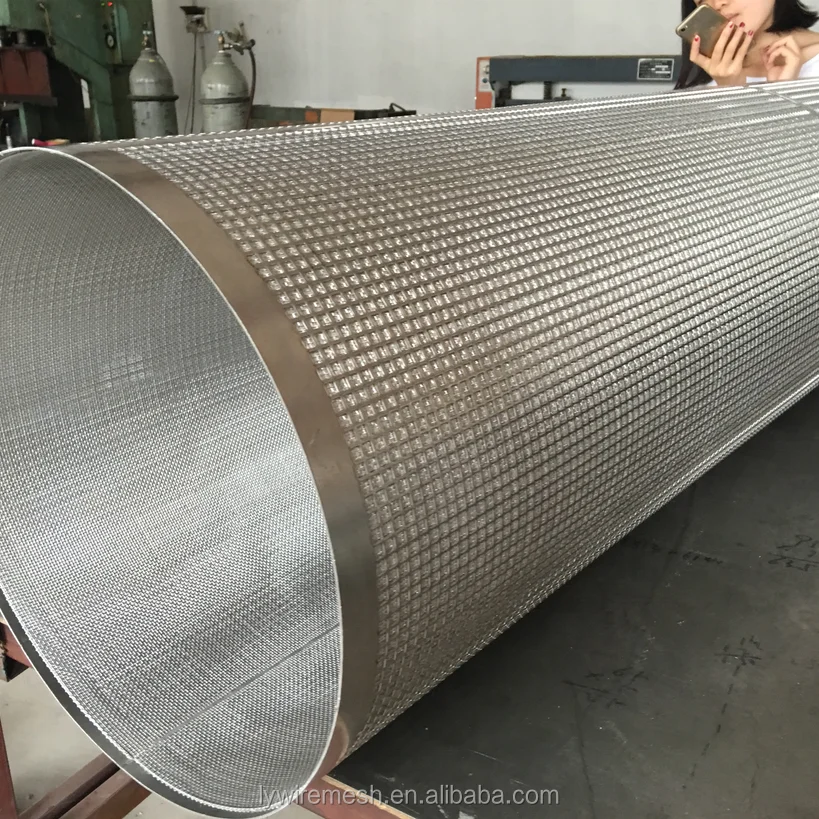

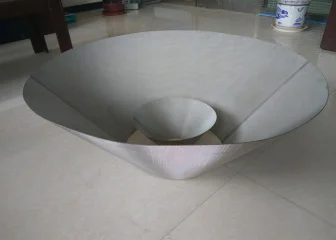

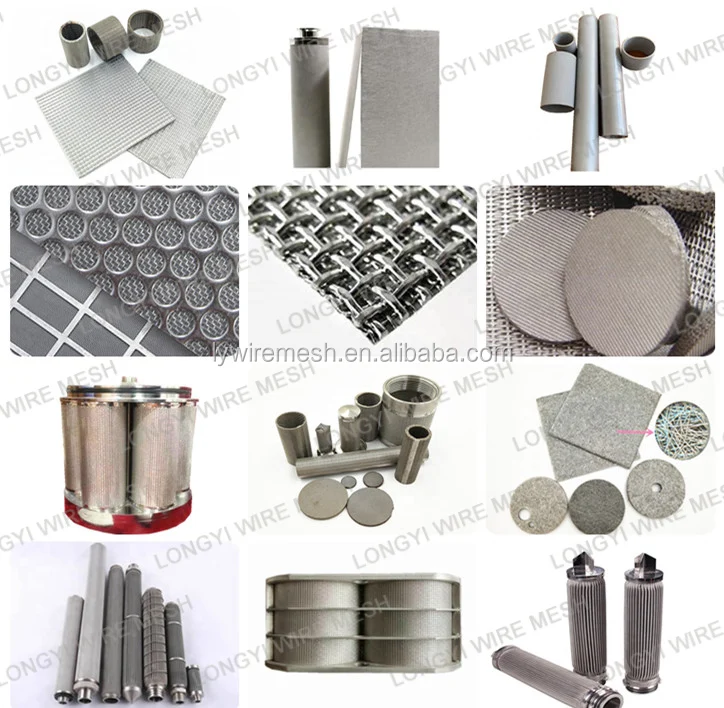

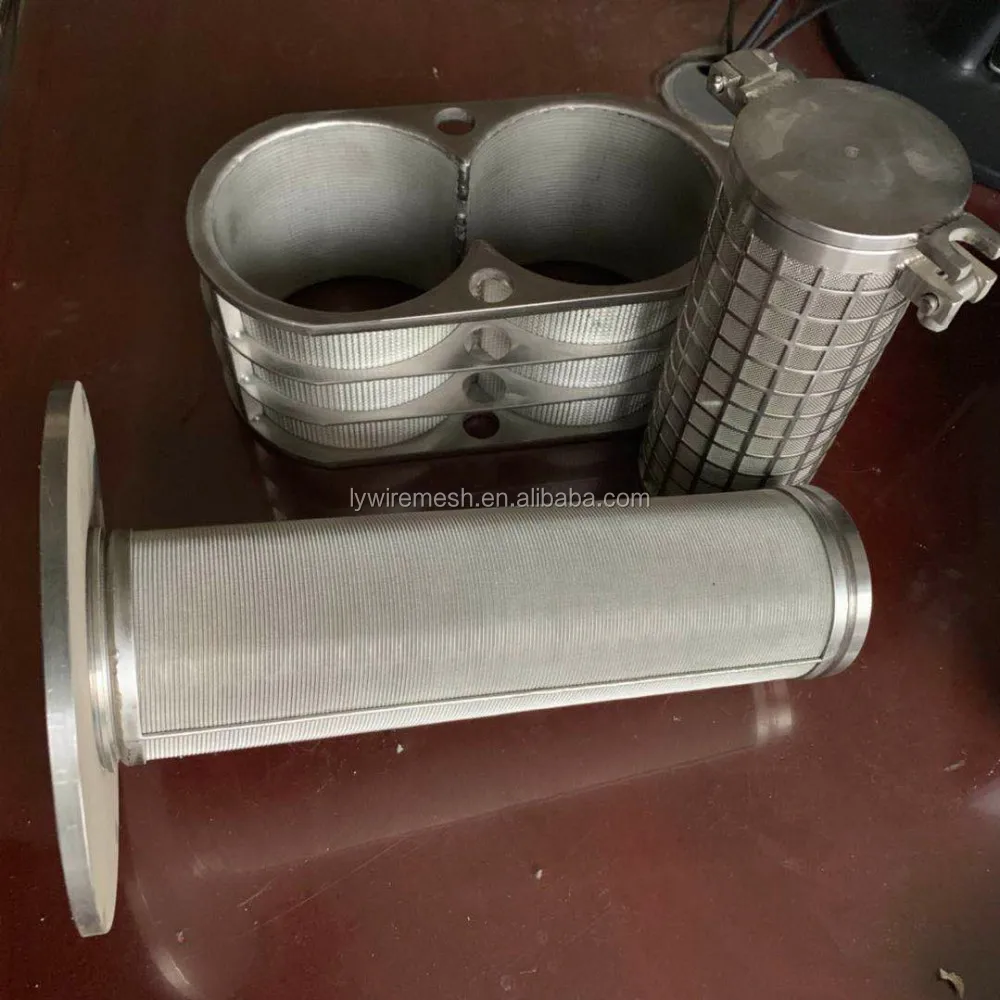

Product Show

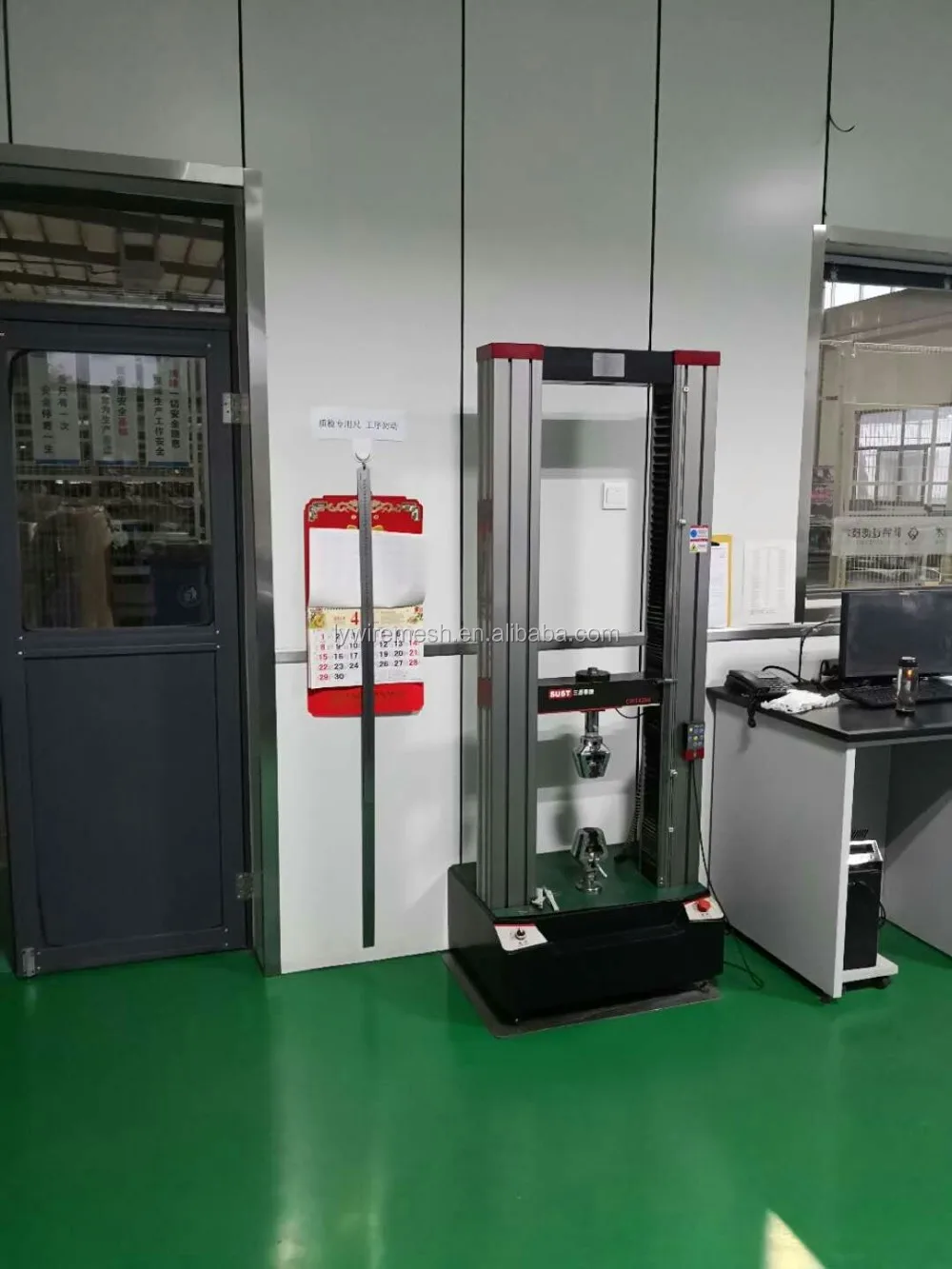

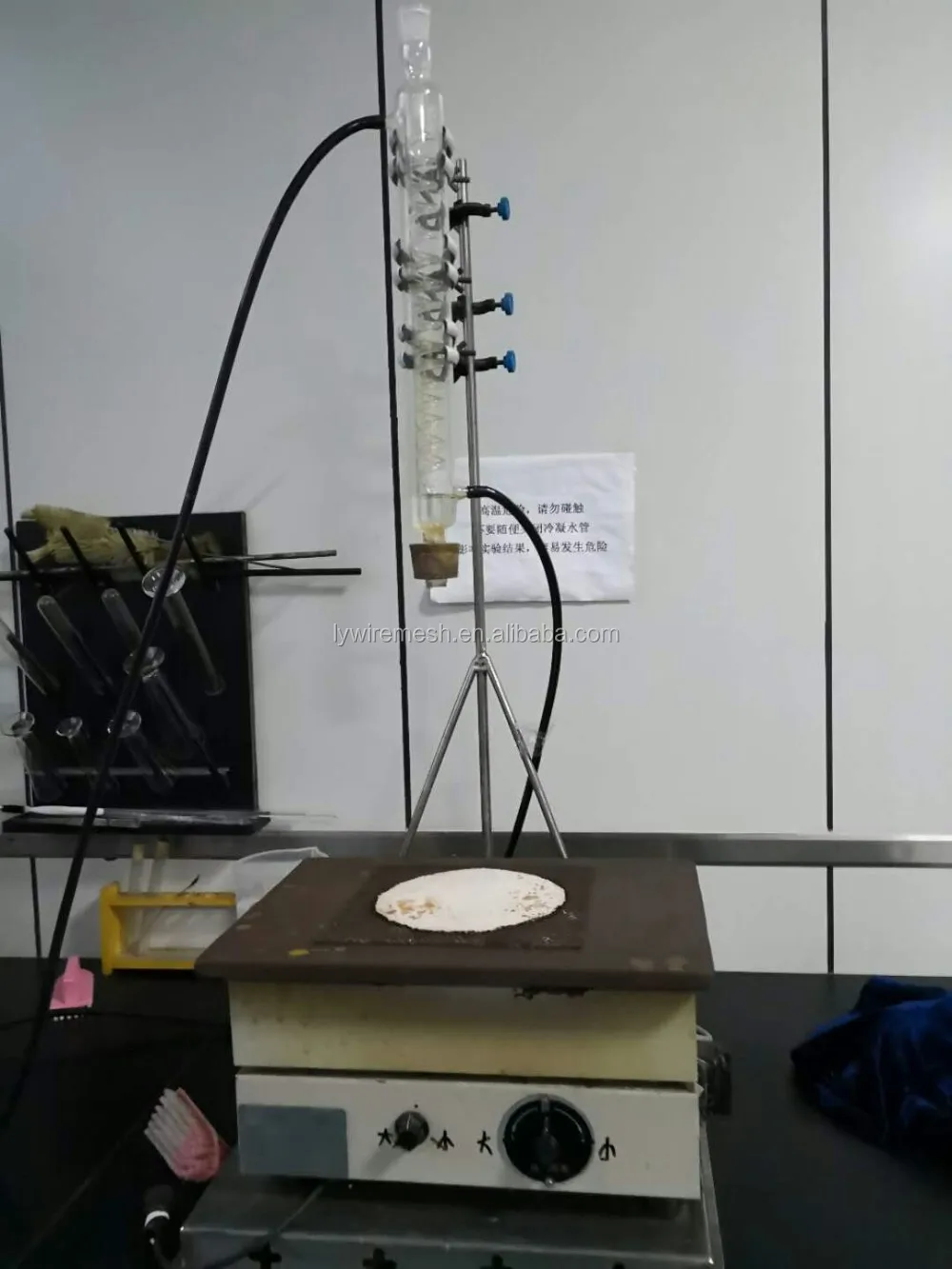

Testing Quanlity
