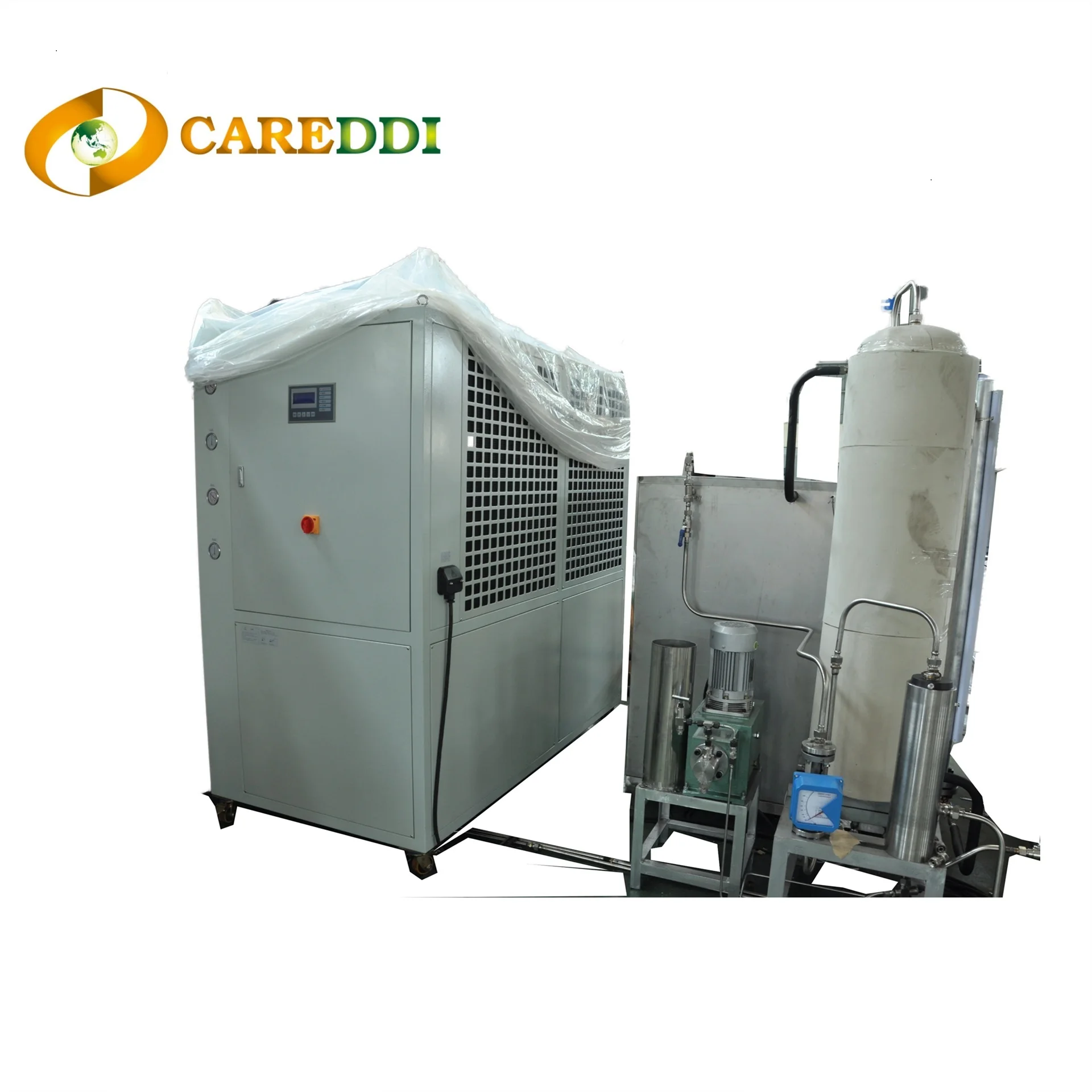

Astaxanthin Extraction with Supercritical CO2 Extractor with Small Model 10L
- Category: >>>
- Supplier: Careddi Technology Co. Ltd.
Share on (62474969321):
Product Overview
Description
Product Description

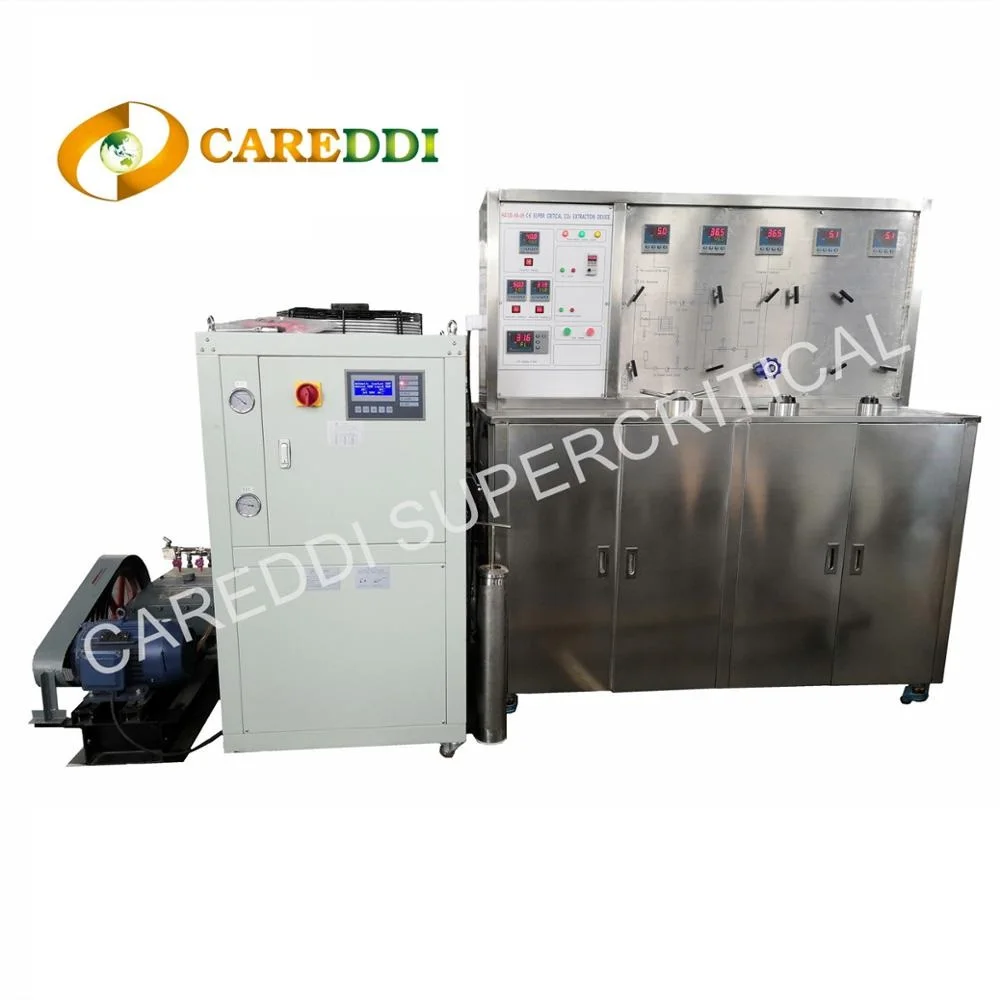

Introduction of Supercritical CO2 Extraction Machine
Supercritical extraction technology is the latest technology in modern chemical separation.It is an advanced separation technology worldwide.The so-called supercritical fluid refers to the thermodynamic state in the fluid critical point(Pc.Tc)above the critical point is a gas,liquid interface just disappears state point.Supercritical fluid has very unique physical and chemical properties.Its density is close liquid and viscosity and big dielectric constant etc Makes Excellent Separation Result,Thus Also Top-class Extracts.The supercritical extraction is to achieve the purpose of separation under high pressure at a suitable temperature in the extraction solvent in contact with the cylinder extract,solute diffusion in the solvent and then change the operating conditions in the separator,making the precipitated substance dissolved.So it is the best choice for the extraction with high value.

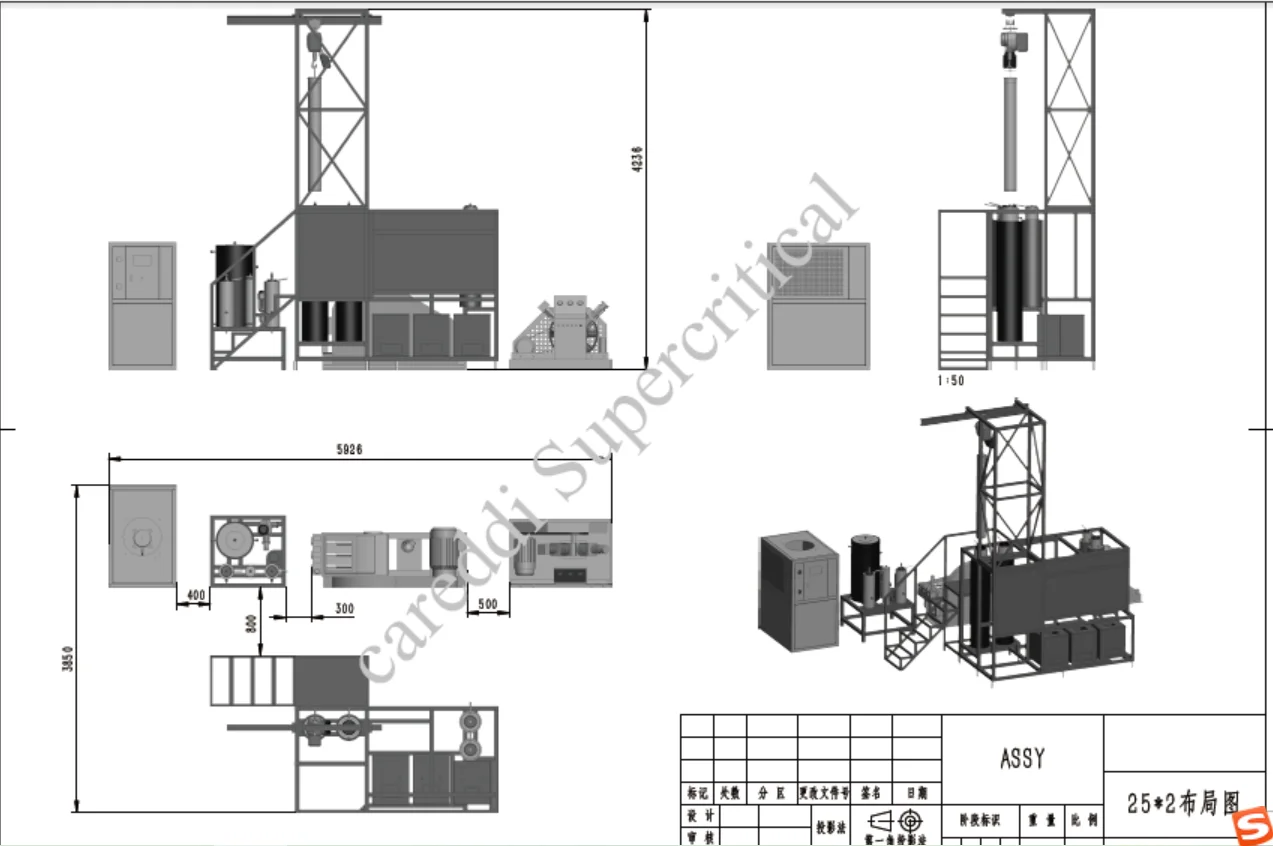

Three-digit Layout
Applications
Range of Application | Type of Application | ||||||
Pharmaccutical Industry | Extraction of effective contents of Chinese herbs,concentration, Refinement and precipitation of raw material,separation and refinement of fatty mixtures | ||||||
Foodstuff Industry | Extraction of hops,caffeine removal from coffee berry,extraction of plant pigment | ||||||
Cosmetics and Perfumery Industries | Separation and refinement of natural and synthetic perfumeries, dealkalization of tobacco,extraction of raw material cosmetics | ||||||
Chemical Industry | Separation of hydrocarbon,refinement of organic synthetic raw material,separation of azeotrope,retrieval of raw materials of reaction,dehydration of water soluble power of organic solution,water oxidation | ||||||
Others | Superconducting,semiconductor,ceramics,oil washing of petroleumcore,enzyme catalytic reaction,preparation of materials, superfine granules,extraction of complex compound,Supercritical dyeing technique,supercritical reaction,supercritical coating technique(pharmacy-making) | ||||||
Optional Model
Following are the models with Supercritical CO2 Extractor.For small scale producer,Supercritical CO2 Extractor Model 5L and Model 10L and Model 20L are very popular among them,at the same time these models can be used for lab test with large production scale which is more cost effective.And Supercritical CO2 Extractor Model 48L and Model 96L and Model 100l are selling well with middle production scale.And Supercritical CO2 Extractor Model 200L and Model 300L and Model 600L and so on are top sales among large production scale.And customized models are available for different pressures and volumes!!!
NO | Capacity | Model | Extractors and Separators |
1 | 0.5 L | Model 0.5L*1/50Mpa | 1 Extraction 2 Separation |
2 | 1 L | Model 1L*1/50Mpa | 1 Extraction 2 Separation |
3 | 2 L | Model 2L*1/50Mpa | 1 Extraction 2 Separation |
4 | 5 L | Model 5L*1/50Mpa | 1 Extraction 2 Separation |
5 | 5 L+1 L | Model 5L+1L/50Mpa | 2 Extraction 2 Separation |
6 | 10 L | Model 5L*2/50Mpa | 2 Extraction 2 Separation |
7 | 20 L | Model 10L*2/40Mpa | 2 Extraction 2 Separation |
8 | 50 L | Model 25L*2/40Mpa | 2 Extraction 2 Separation |
9 | 100L-1 | Model 25L*4/40Mpa | 4 Extraction 2 Separation |
10 | 180L | Model 30L*6/40Mpa | 6 Extraction 3 Separation |
11 | 100L-2 | Model 50L*2/40Mpa | 2 Extraction 3 Separation |
12 | 200L | Model 50L*4/40Mpa | 4 Extraction 3 Separation |
13 | 300L-1 | Model 150L*2/40Mpa | 2Extraction 3 Separation |
14 | 300L-2 | Model 50L*6/40Mpa | 6 Extraction 3 Separation |
15 | 150L*4 | Model 150L*4/40Mpa | 4 Extraction 3 Separation |
16 | 300L*4 | Model 300L*4/35Mpa | 4 Extraction 3 Separation |
17 | 1000L*2 | Model 1000L*2/35Mpa | 2 Extraction 3 Separation |
18 | 1500L*2 | Model 1500L*2/35Mpa | 2 Extraction 3 Separation |
19 | 2000L*2 | Model 2000L*2/35Mpa | 2 Extraction 3 Separation |
20 | 3000L*2 | Model 3000L*2/35Mpa | 2 Extraction 3 Separation |
21 | 150L*3 | Model 150L*3/35Mpa | 3 Extraction 3 Separation |
22 | 300L*3 | Model 300L*3/35Mpa | 3 Extraction 3 Separation |
23 | 500L*3 | Model 500L*3/35Mpa | 3 Extraction 3 Separation |
24 | 600L*3 | Model 600L*3/35Mpa | 3 Extraction 3 Separation |
25 | 1000*3 | Model 1000L*3/35Mpa | 3 Extraction 3 Separation |
26 | 1500L*3 | Model 1500L*3/35Mpa | 3 Extraction 3 Separation |
27 | 2000L*3 | Model 2000L*3/35Mpa | 3 Extraction 3 Separation |
28 | 3000L*3 | Model 3000L*3/35Mpa | 3 Extraction 3 Separation |
Main Specifications

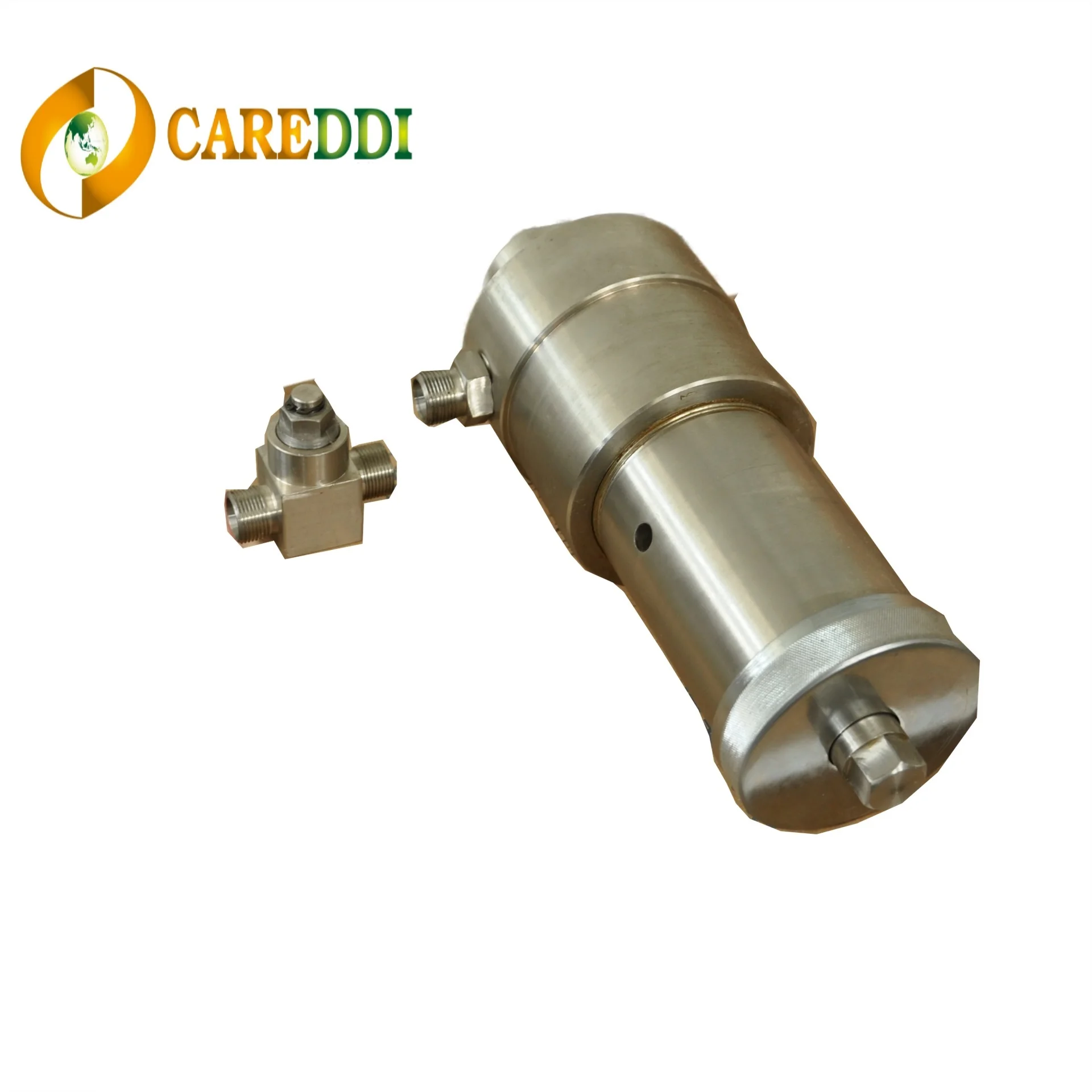

1.Extraction Kettle: 0.5L, 1L, 2L, 5L/50Mpa, 10L, 24L/40Mpa, 50-200L/32Mpa,dual purpose for solid and liquid, equipped with water jacket for circulated heating with adjustable temperature;
2.Separation Kettle: 0.3-10L/30 Mpa, 50-100L/16-22Mpa, equipped with water jacket for circulated heating with adjustable temperature;
3.Fine Distillation Column: Inner diameter 25mmx2-3m/30Mpa, 35mmx2-3m/30Mpa, 48mmx4-6m/30Mpa. 78mmx4-6m/30Mpa, according to technological requirement, 4-section, 6-section,8-section temperature control are available and relative stuffing can be selected and loaded by customer according to technological requirement;
4.High pressure pump: 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulating, 400L/40Mpa.h three-plunger frequency-modulating, 800L/40Mpa.h three-plunger frequency-modulating, the pump head with cooling system;
5.Take Pump: in the course of extraction, the entraner is used to change polarities of CO2 so as to extend range of application;

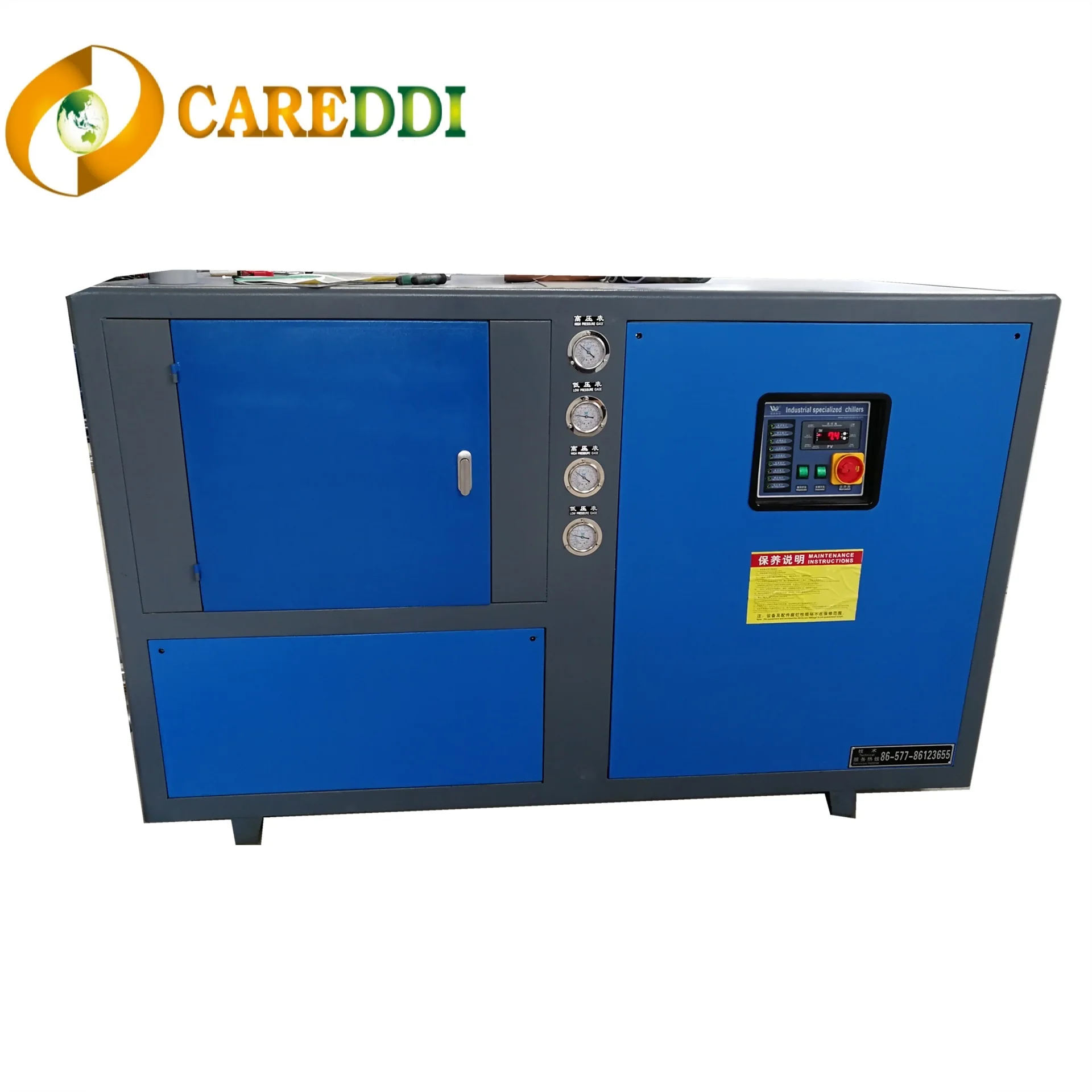

6.Cooling System: equipped with semi-sealed or full-sealed compressor to meet technological requirement.
7.Heat Exchange and Temperature Control System: According to technological requirement, the heat exchange and temperature control system are equipped for extraction kettle, separation kettle and fine distillation column respectively to control the temperature of water circulation at -85 degree and the temperature of oil circulation at -150 degree; the digital display double-screen is used to control the temperature of water bath and to measure the temperature of CO2 fluid with the accuracy of temperature control at ±1 degree;
8.Pressure Control(Protection): equipped with the electro connecting pressure gauge at the outlet of the high pressure pump and set the working pressure to release pressure and make automatic protection in case overpressure occurs; equipped with safety valves for high pressure pump, extraction kettle, separation kettle, fine distillation column according to their maximum working pressures to release pressure and make automatic protection in case over pressure occurs; equipped with back-pressure valve system at the outlet of the extraction kettle which has stable pressure and is easy to make adjustment. The control accuracy of pressure(dynamic) is±0.1 Mpa;
9.Display of Flow: the metal rotor flow meter with remote transferable digital display for instant flow and accumulated flow respectively.
10. Pipe lines: all containers, valves, pipe fittings and pipelines contacting with fluid are all made of stainless steel.
2.Separation Kettle: 0.3-10L/30 Mpa, 50-100L/16-22Mpa, equipped with water jacket for circulated heating with adjustable temperature;
3.Fine Distillation Column: Inner diameter 25mmx2-3m/30Mpa, 35mmx2-3m/30Mpa, 48mmx4-6m/30Mpa. 78mmx4-6m/30Mpa, according to technological requirement, 4-section, 6-section,8-section temperature control are available and relative stuffing can be selected and loaded by customer according to technological requirement;
4.High pressure pump: 20L/40Mpa.h double-plunger, 50L/50Mpa.h double-plunger frequency-modulating, 400L/40Mpa.h three-plunger frequency-modulating, 800L/40Mpa.h three-plunger frequency-modulating, the pump head with cooling system;
5.Take Pump: in the course of extraction, the entraner is used to change polarities of CO2 so as to extend range of application;
6.Cooling System: equipped with semi-sealed or full-sealed compressor to meet technological requirement.
7.Heat Exchange and Temperature Control System: According to technological requirement, the heat exchange and temperature control system are equipped for extraction kettle, separation kettle and fine distillation column respectively to control the temperature of water circulation at -85 degree and the temperature of oil circulation at -150 degree; the digital display double-screen is used to control the temperature of water bath and to measure the temperature of CO2 fluid with the accuracy of temperature control at ±1 degree;
8.Pressure Control(Protection): equipped with the electro connecting pressure gauge at the outlet of the high pressure pump and set the working pressure to release pressure and make automatic protection in case overpressure occurs; equipped with safety valves for high pressure pump, extraction kettle, separation kettle, fine distillation column according to their maximum working pressures to release pressure and make automatic protection in case over pressure occurs; equipped with back-pressure valve system at the outlet of the extraction kettle which has stable pressure and is easy to make adjustment. The control accuracy of pressure(dynamic) is±0.1 Mpa;
9.Display of Flow: the metal rotor flow meter with remote transferable digital display for instant flow and accumulated flow respectively.
10. Pipe lines: all containers, valves, pipe fittings and pipelines contacting with fluid are all made of stainless steel.
Company Profile
FAQ
Q:Is co2 extraction organic?
A:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q:Why is co2 better than ethanol?
A:CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products.Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant compounds.Some methods may also use ethanol to help remove terpenes before fully extracting.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant.
A:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q:Why is co2 better than ethanol?
A:CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products.Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant compounds.Some methods may also use ethanol to help remove terpenes before fully extracting.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant.
