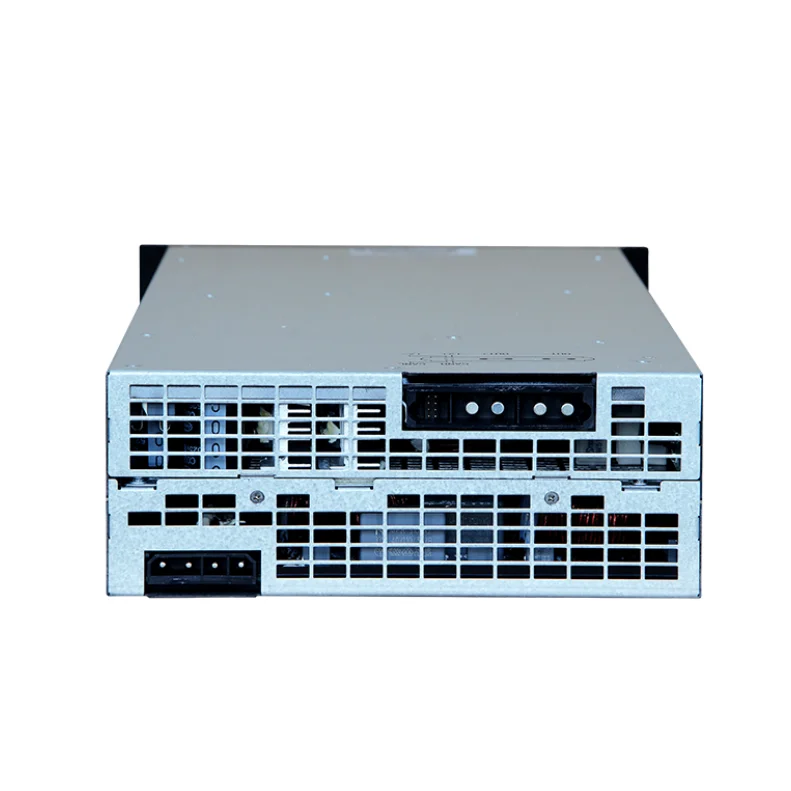

EV Charger 15kw AC DC Converter 150V 550V Electric Car Charging Rectifier
- Category: >>>
- Supplier: Chongqing Senku Machinery Imp And Exp Co. Ltd
Share on (62474974351):
Product Overview
Description
EV Charger 15kw AC DC Converter 150V - 550V Electric Car Charging Rectifier
The 15KW 550V DC output EV charging power module is specially design for the EV DC chargers. It has high efficiency, high power factor, high power density and high reliability advantage. It with 3 phase 230V - 530V AC input, and DC output voltage form 150VDC to 550VDC high voltage output, compliant with CE Safety standar requirements and EN61851-1:2011; EN61851-23:2014 and EN61851-21-2 EMC standard.
FEATURES
·Inside high frequency transformer isolation.
·Full hot plug design, easy to install.
·3 phase without Neutral design, eliminates the risk of high neutral currents.
·3 phase active power factor correction technology,reduce the harmonic interference to the grid.
·250V-530VAC input design, allows operationin most poor grid conditions.
·Wide output Voltage option, suitable for wide range of EVs
·Constant current keeps the more power output in lower voltage
·Low Standby power consumption <10W
·High full load efficiency ≥95.5%
·A patent intelligent discharge circuit inside, improve the system reliability and simplify the system design
·Dual DSP design, achieve the full digital control, fewer components means higher reliability
·Wide operating temperature range -40℃ to +75℃
·Compliant with CE Safety standard EN61851-1, EN61851-23 , and EN61851-21-1 EMC Standard
TECHNICAL DATA
AC Input | Phases/ Lines | 3-phase (without neutral supported) |
Input Voltage | 260-530VAC | |
Frequency | 45Hz-65Hz | |
Power Factor | 0.99 | |
MAX Input Current | 30A | |
THD | ≤5% | |
Efficiency | ≥94%, 550Vdc/50%-100% load, Max point ≥ ≥95.5% | |
DC Output | DC Output Power | 15KW@ Voltage ≥ 400VDC |
DC Output Voltage | 150VDC-550VDC | |
DC Output Current | 0-35A | |
Current Sharing | <±0.5A | |
Voltage stabilized accuracy | <±0.5% | |
Current stabilized accuracy | <±1% (output power in 20%-100%) | |
Control | Communication | CAN BUS (MAX 48 power module in parallel) |
Indicate LED Light | Green (Normal Operation) / Yellow (Alarm) / Red (Failure) | |
Address Indication | Automatic address identification, Panel dial switch for group setting | |
Structure | Housing material | Metal case |
Installation method | Pluggable type | |
Cables | SREG50040 cables/black 1.8m 10AWG power cable-input and output | |
Environmental Index | Operating Temperature | -20~+75°C, power derating form 55°C |
Working Humidity /Altitude | ≤95% RH non-condensing / <2000M | |
MTBF | >50000h | |
Cooling Method | Fan cooling | |
Security Protection | Voltage Protection | Over Under Voltage automatic shutdown and restart when voltage return normal |
Over Current / Short Circuit Protection | Automatic shutdown and lock, need power off to restart to unlock | |
Over Temperature Protection | Automatic shutdown. Automatic restart when the temperature return to normal | |
Certificate | Comply with CE, EN 61851-1-2011, EN 61851-23-2014, EN61851-21-2 EMC Standards | |
Dimension | Dimension & Weight | 84 mm*226mm*395mm (H*W*D) & 11KG |
